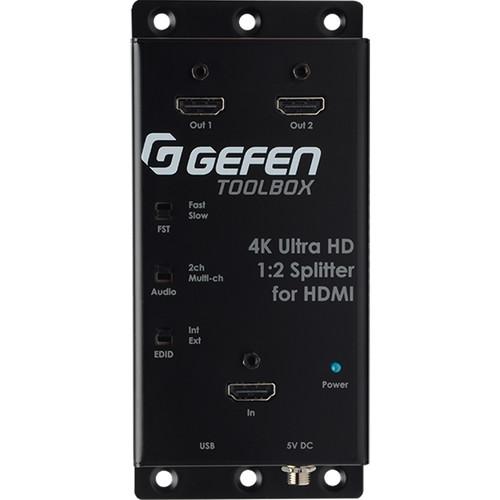

User Manual for Gefen HDMI Splitter with 4K UHD Click to enlarge the picture
Contents of the user manual for the Gefen HDMI Splitter with 4K UHD
- Product category: Distribution Amplifiers (DA's) Gefen
- Brand: Gefen
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Gefen Distribution Amplifiers (DA's)
|
User manual for the Gefen HDMI Splitter with 4K UHD contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Gefen product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Gefen user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Gefen product will considerably shorten its lifespan!
|
Product description - 4K Ultra HD Splitters for HDMI
Split your 4K input to two 4K TVs or monitors with the Gefen HDMI Splitter with 4K UHD (1 x 2). In addition to 4k DCI (4096 x 2160) video resolution, it also supports Deep Color, 3D video, and high-resolution audio formats such as Dolby TrueHD, DTS-HD Master Audio, and more. This splitter features locking HDMI ports and power supply for secure connectivity. It also supports up to 10 levels of cascading, allowing you to split your signal to over 1000 4K TVs for digital signage or showroom applications. - Simultaneously displays an Ultra HD source on up to two Ultra HD displays
- Specifically designed to support 10 layers of splitting/cascading in large video distribution and signage applications, supporting over 1000 displays
- Supports resolutions up to 4K DCI (4096 x 2160 @ 24 and 30 Hz), 4K Ultra HD (3860 x 2160 @ 60Hz, 4:2:0 color space), 1080p Full HD, and 1920 x 1200 WUXGA
- Supports 12-bit Deep Color at 1080p
- FST Technology speeds up HDCP authentication process
- EDID Management and Audio Mode selectors for rapid integration of source and displays
- Supports LPCM 7.1, Dolby TrueHD, Dolby Digital Plus, and DTS-HD Master Audio
- Supports the use of DVI sources and DVI displays with optional HDMI-to-DVI adapters
- Field-upgradeable firmware using Mini-USB port
UPC: 888814675757 In the Box Gefen HDMI Splitter with 4K UHD (1 x 2) 1 x 6' HDMI Cable 5 VDC Locking Power Supply Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Gefen HDMI Splitter with 4K UHD in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersGefen GTB-HD4K2K-142C-BLK Specs | Inputs | 1 x HDMI
1 x USB Mini-B, for firmware upgrades
1 x Power connector, locking-type | | Outputs | 2 x HDMI | | Indicators | 1 x Blue LED, for power | | Switches | 1 x FST switch, 2-position, slide-type
1 x Audio switch, 2-position, slide-type
1 x EDID switch, 2-position, slide-type | | Resolutions Supported | Up to 4K DCI (4096 x 2160 @ 24 and 30 Hz) | | Maximum Pixel Clock | 300 MHz | | Color Depth | 12 bit at 1080p | | Power Supply | 5 VDC | | Maximum Power Consumption | 10 W | | Operating Temperature | 32 to 104°F (0 to 40°C) | | Dimensions (W x H x D) | 3.0 x 6.5 x 1.3" (7.6 x 16.5 x 3.3 cm) | | Weight | 6.4 oz (181.4 g) | | | | Package Weight | 1.95 lb | | Box Dimensions (LxWxH) | 13.1 x 8.2 x 3.6" |
