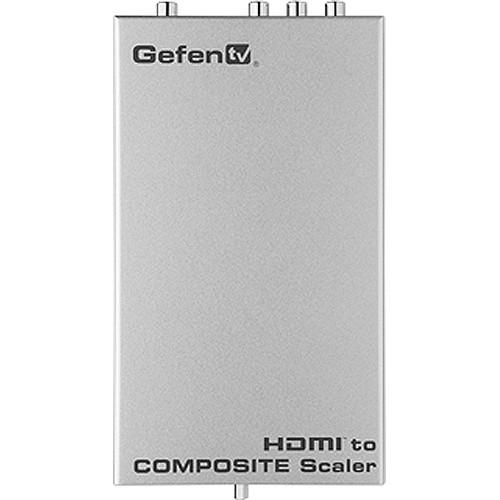

Product description The HDMI to Composite and S-Video Scaler from Gefen allows you to convert a single HD source signal to standard definition NTSC or PAL format. It supports input resolutions up to 1080p and outputs SD signals through composite or S-Video connections. The outputs are scaled, meaning the original aspect ratio of your input source will be maintained. Audio is de-embedded from the HDMI input and can be sent to an AV Receiver or amplifier through S/PDIF digital audio or left/right analog audio outputs. A 6-foot locking HDMI cable comes included.
Note: This device is not HDCP compliant. - Other Features
-
- NTSC/PAL switch

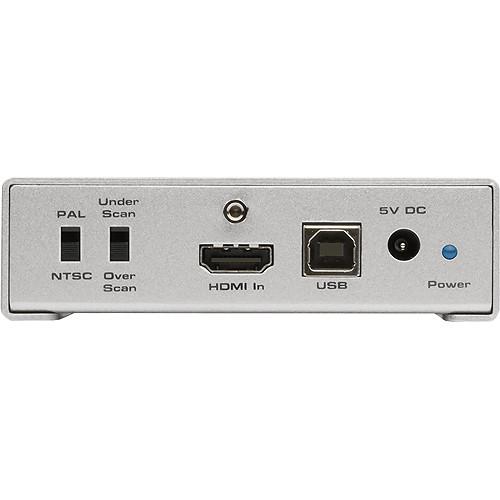

- Underscan/Overscan switch for fitting image size on older analog televisions
- USB port for firmware upgrades
UPC: 845344057309 In the Box Gefen HDMI to Composite and S-Video Scaler High-Speed HDMI Cable with Ethernet and Mono-LOK (6') 5 VDC Locking Power Supply Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Gefen HDMI to Composite and S-Video Scaler in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersGefen GTV-HDMI-2-COMPSVIDSN Specs | Maximum Pixel Clock | 225 MHz | | Video Input Connector | 1 x HDMI Type A, locking | | Video Output Connector | 1 x Composite RCA

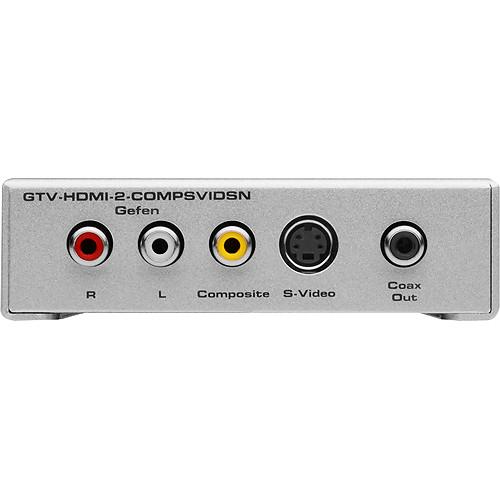

1 x S-Video | | Audio Output Connector | 1 x Left channel analog audio, RCA
1 x Right channel analog audio, RCA
1 x S/PDIF, RCA | | USB Connector | 1 x Type B, for firmware upgrades only | | Supported Input Resolutions | 480i@60 Hz
576i@50 Hz
480p@60 Hz
576p@50 Hz
720p@50/60 Hz
1080i@50/60 Hz
1080p@50/60 Hz
640x480@60 Hz
800x600@60 Hz
1024x768@60 Hz
1280x1024@60 Hz
1600x1200@60 Hz
| | Output Resolutions | 480i@60 Hz
576i@50 Hz | | Switch / Buttons | 1 x Underscan/Overscan switch
1 x NTSC/PAL switch | | Indicator Lights | 1 x LED power indicator | | Frequency Range | Horizontal: 31 to 70 KHz
Vertical: 50 to 60 KHz | | Power Supply | 5 VDC | | Power Consumption | 7.5 Watts (maximum) | | Dimensions (W x H x D) | 4.1 x 1.2 x 7.1" (10.4 x 3.0 x 18.0 cm) | | Weight | 1.71 lb (0.78 kg) | | | | Package Weight | 2.1 lb | | Box Dimensions (LxWxH) | 12.0 x 6.2 x 4.15" |
