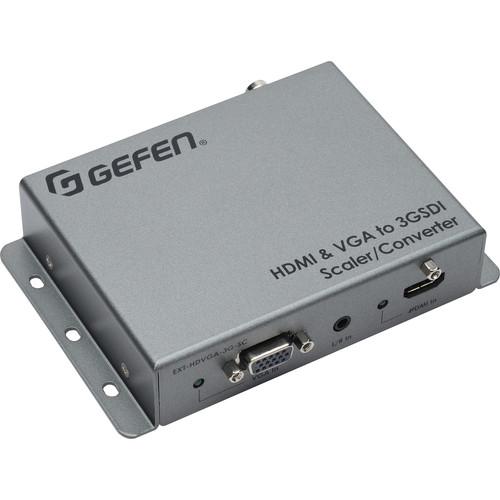

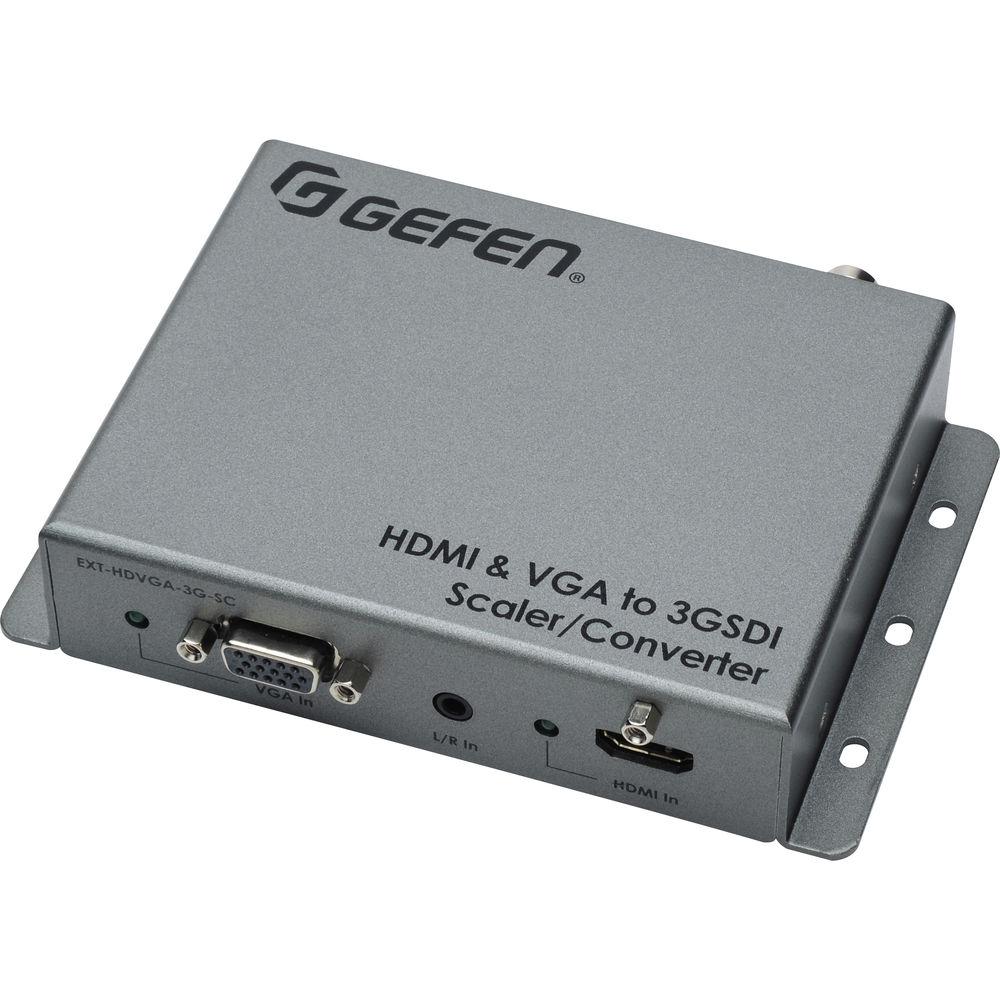

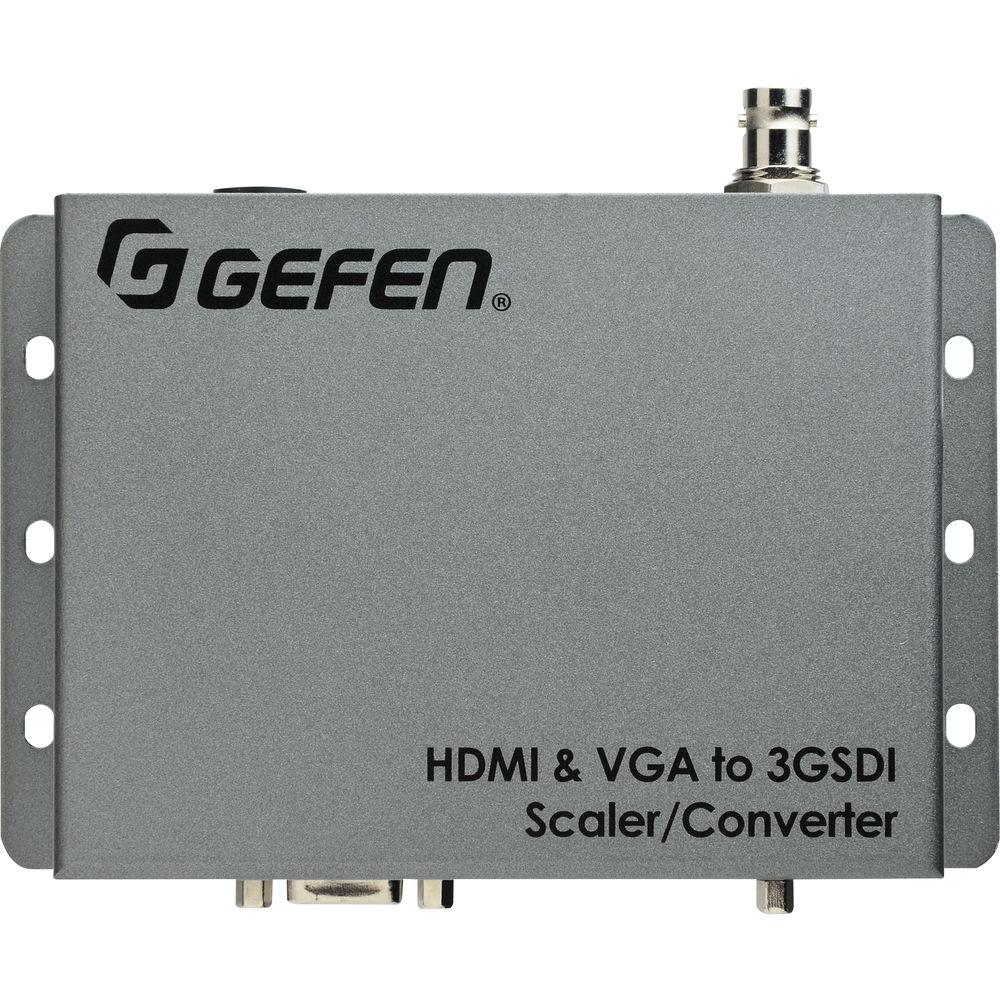

User Manual for Gefen HDMI VGA to 3G-SDI Scaler Converter Click to enlarge the picture
Contents of the user manual for the Gefen HDMI VGA to 3G-SDI Scaler
- Product category: Signal Converters Gefen
- Brand: Gefen
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Gefen Signal Converters
 |
User manual for the Gefen HDMI VGA to 3G-SDI Scaler contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Gefen product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Gefen user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Gefen product will considerably shorten its lifespan!
|
Product description For use in studios and other applications which require SDI video feeds, this HDMI/VGA to 3G-SDI Scaler/Converter from Gefen will scale and convert VGA or HDMI signals to an SDI signal. Supporting Full HD video, all input signals can be scaled up to 1080p resolution. All settings within the unit can be changed via an OSD (On-Screen Display) menu system. Alternatively, the Gefen Syner-G software suite can configure the unit as well. - General Features
-
- Converts and scales HDMI and VGA and L/R analog audio to SDI
- Input resolutions up to 1920 x 1200 (WUXGA) and 1080p60
- Output resolutions up to 1080p60
- On-screen display (OSD) menu allows easy set-up and control
- Aspect Ratio Control: Full Screen, Panoramic, Letter/Pillar, Extract/Crop
- Test Pattern Generator for quick system configuration
- Embeds 2-channel analog stereo audio in SDI signal (VGA Input only)
- Up to LPCM 7.1 audio support (HDMI input only)
- Gefen Syner-G simplifies in-field firmware updates and advanced EDID management including custom input timings
- USB port for use with Gefen Syner-G
- Wide power supply operating range (6V to 24 VDC)
- Locking power supply connector

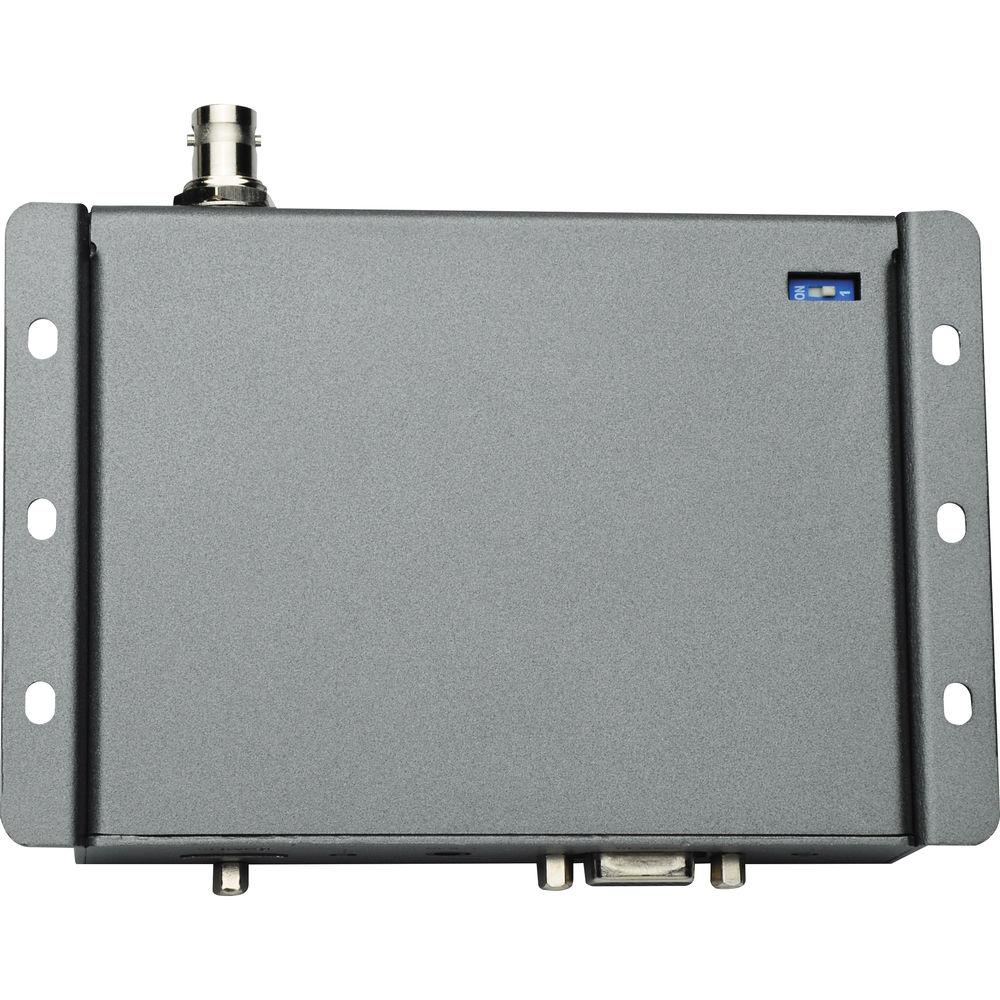

- Surface mountable
UPC: 888814180831 In the Box Gefen HDMI/VGA to 3G-SDI Scaler/Converter 6' Locking HDMI Cable 6' VGA Cable 6' 3.5mm Mini Stereo Audio Cable 12 VDC Power Supply Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Gefen HDMI VGA to 3G-SDI Scaler Converter in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersGefen EXT-HDVGA-3G-SC Specs | Maximum Resolution | Input: WUXGA (1920 x 1200)
Output: 1080p | | Audio Support | LPCM up to 7.1 channels (HDMI input only)

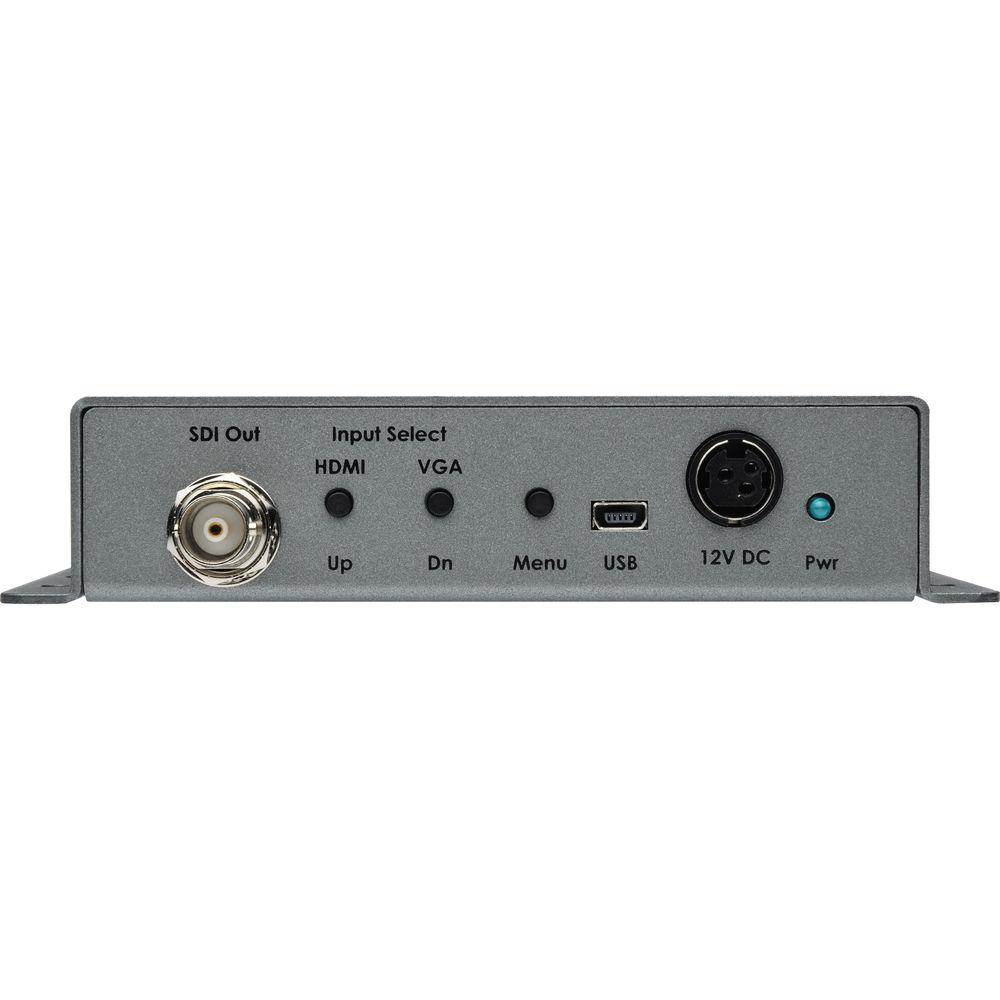

Analog stereo audio (via 3.5mm mini stereo jack) | | Clock Speed | Max Pixel Clock: 165 Mhz (HDMI/VGA input), 150 MHz (SDI output)

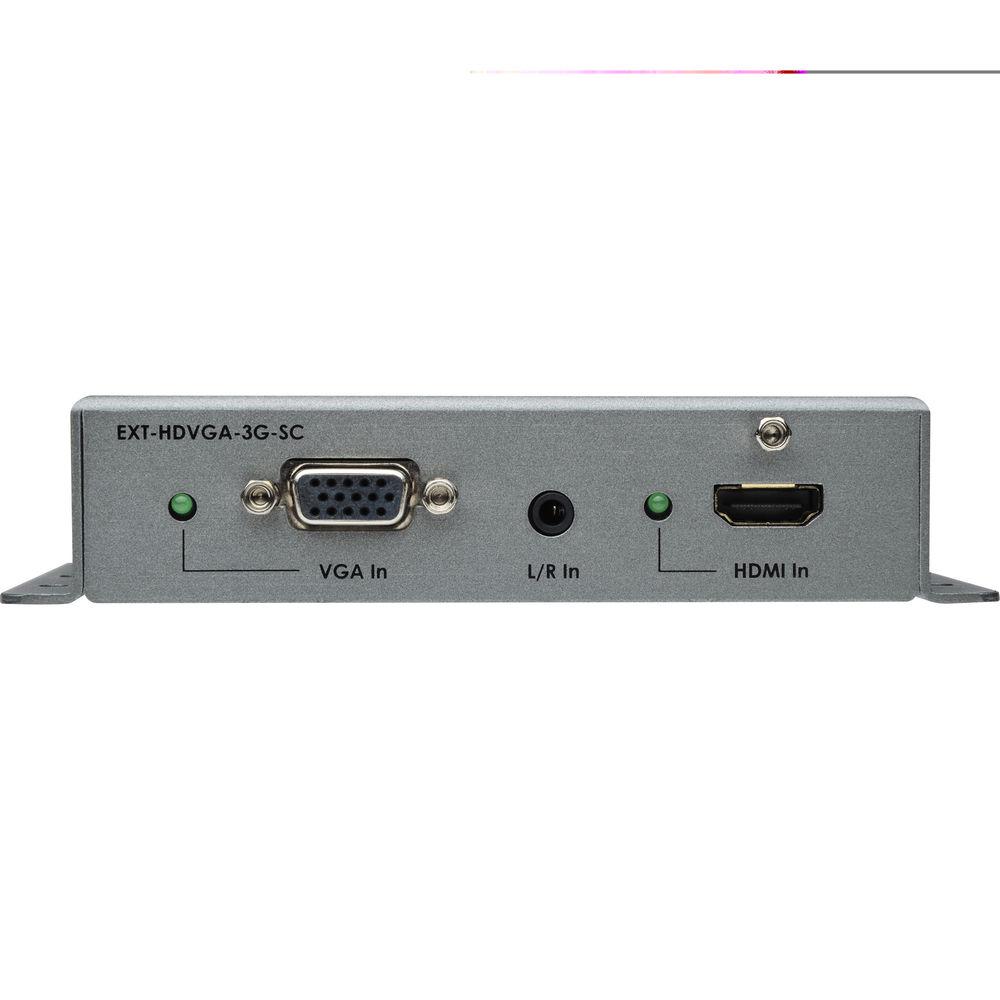

Max TMDS Clock: 225 MHz | | I/O Connections | 1 x Locking HDMI Type A female input
1 x VGA female input
1 x 3.5mm mini-stereo audio input
1 x SDI (BNC) female output
1 x USB mini-B
1 x 3-pin locking power supply connection | | LED Indicators | 1 x Green LED HDMI indicator
1 x Green LED VGA indicator
1 x Blue LED power indicator | | Power Supply | 12 VDC nominal (6 to 24 VDC operating range) | | Power Consumption | 5 W maximum | | Operating Temperature | 32 to 122°F / 0 to 50°C | | Storage Temperature | -4 to 185°F / -20 to 85°C | | Operating Humidity | 5 to 90% RH (non-condensing) | | Storage Humidity | 0 to 95% RH (non-condensing) | | Dimensions | 5.6 x 1.2 x 3.7" / 141 x 30 x 93 mm | | Weight | 0.5 lb / 230 g | | | | Package Weight | 2.6 lb | | Box Dimensions (LxWxH) | 10.55 x 6.95 x 3.9" |
