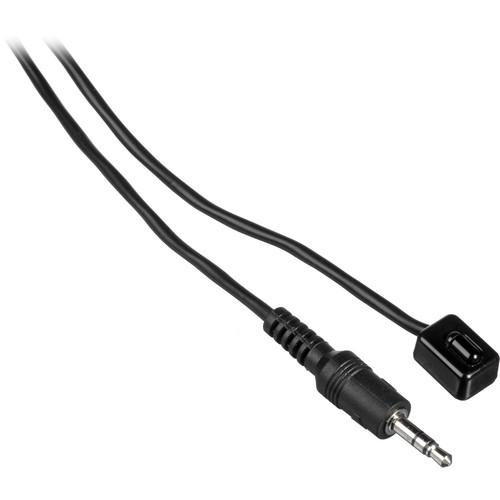

User Manual for Gefen IR Extender Module Click to enlarge the picture
Contents of the user manual for the Gefen IR Extender Module
- Product category: DA & Extender/Repeater Accessories Gefen
- Brand: Gefen
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Gefen DA & Extender/Repeater Accessories
|
User manual for the Gefen IR Extender Module contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Gefen product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Gefen user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Gefen product will considerably shorten its lifespan!
|
Product description The IR Extender Module from Gefen adds installation flexibility to your A/V system setup by extending the IR sensor on compatible Gefen products up to 6 feet away. This lets you conceal the Gefen product that needs to accept IR, and install the small-footprint IR extender module in a location within the line-of-sight of the IR remote control.
Connect the IR extender's mini phone plug into the IR extension port on your Gefen product. Once the sensor module is in the desired position, peel off the adhesive backing and attach the sensor to a flat, dry surface. The IR extender module is powered by the Gefen product that it is connected to, so no extra power source is needed. -
- Adds location flexibility to installation of compatible Gefen products
- Extends the IR sensor of compatible Gefen products up to 6 feet
- Small footprint IR sensor module easily blends with its surroundings
- Self-adhesive backing for adhering the IR sensor module to dry, flat surfaces
- Soft and flexible black cable fits in narrow spaces
UPC: 845344045214 In the Box Gefen IR Extender Module Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Gefen IR Extender Module in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersGefen EXT-RMT-EXTIRN Specs | Connector | 3.5mm mini-stereo phone plug | | Cable Color | Black | | IR Carrier Pass-Through Frequency | 30 to 60 kHz | | Dimensions | IR Sensor: 0.32 x 0.28 x 0.51" (8 x 7 x 13 mm)
Cable Length: 6.0' (1.8 m) | | | | Package Weight | 0.1 lb | | Box Dimensions (LxWxH) | 8.0 x 4.0 x 0.3" |
