Product description - Wireless Extender for HDMI 5GHz Short Range
The Long-Range 5 GHz Wireless Extender System for HDMI from Gefen is a long-range extender system comprised of a sender (transmitter) and a receiver, sending high-definition audio and video to any HDTV display up to 100' away. It extends HDCP-compliant HDMI A/V content from computers, game consoles, set-top boxes, Blu-ray players, and other A/V sources to a remotely located display. HD resolutions up to 1080p Full HD, 7.1-channels of LPCM digital audio, and 5.1 channels of Dolby or DTS formats are supported.

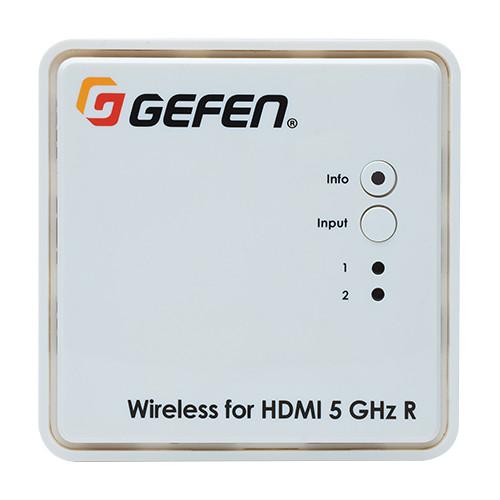

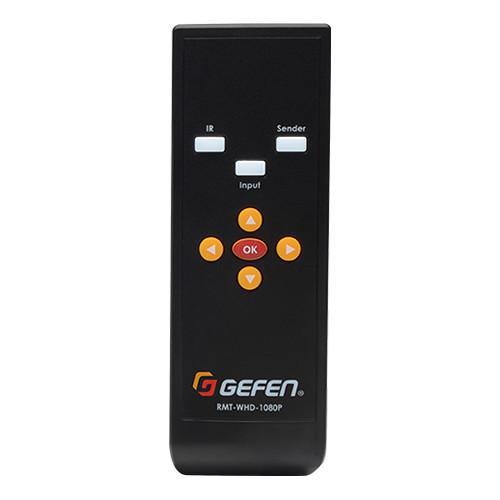

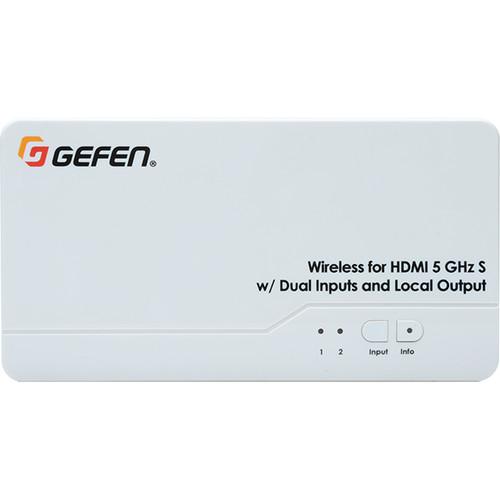

The small and low-profile receiver unit includes a wired IR extender module, and can be hidden away behind the display or inside an equipment cabinet if needed. The sender features two HDMI inputs and an HDMI output for connection to a local display. The end-user can select between the two HDMI sources by using the included handheld IR remote or by pressing the input button on the sender or the receiver unit. The included IR emitter array can be connected to the sender unit and attached to the IR sensor windows of the two HD sources, allowing full control of the source unit from another room simply by pointing the IR remote of the source at the receiver unit. Both units can be attached to a standard 1/4"-20 camera tripod mount, wall mounted, or be placed on a shelf.
The long-range extender system can transmit through walls and does not require line-of-sight placement of its transceivers, making it suitable for high-definition A/V extension in a conference room, classroom, auditorium, home theater, and multi-room A/V installations that feature multiple sources and two displays. This model is configured for Europe with channels 5.19 GHz and 5.230 GHz. This product features firmware update using the Gefen Syner-G Software Suite, available for download from the manufacturer's website. - Wireless extension of HDMI via 5 GHz RF up to 100'
- Configured channels 5.19 GHz and 5.230 GHz
- Supports resolutions up to 1080p Full HD, up to 7.1 channels of LPCM digital audio, and up to 5.1 channels of Dolby and DTS formats
- Transmits through obstacles - does not require line-of-sight
- IR Back Channel for source control with carrier frequency selector
- HDMI Features Supported: HDMI-CEC, 12-bit Deep Color, 3DTV pass-through, HDCP pass-through, and Lip Sync
- Uncompressed high-definition A/V from source to display
- Compatible with legacy DVI displays
- Handheld IR remote for easy setup and operation
- Firmware update via mini-USB port using Gefen Syner-G software
- Up to 8 transmitter units can be accessed by a receiver, one at a time, using its handheld remote control
UPC: 888814050103 In the Box Gefen Long-Range 5 GHz Wireless Extender System for HDMI (100', EU) IR Extender Module IR Remote Control IR Emitter Array Cable 2 x 5' HDMI Male to Male Cable 5' USB to Mini-USB Cable 3' USB to DC Plug Cable 2 x 5 VDC Power Supplies with Changeable AC Plugs 4 x Screws and Wall Anchors Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Gefen Long-Range 5 GHz Wireless Extender System for HDMI in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersGefen EXT-WHD-1080P-LR-EU Specs | Transmission Range | Up to 100' (30 m) | | Channels | 5.19 GHz and 5.230 GHz | | Supported Transmitters | Maximum: 8 | | Supported Resolution | Up to 1080p Full HD | | Connectors | Transmitter:

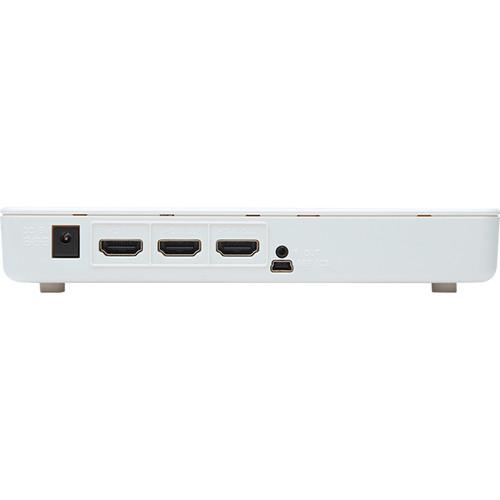

2 x 19-pin Type-A HDMI female, video input
1 x 19-pin Type-A HDMI female, video output
1 x 3.5 mm DC power jack, power input

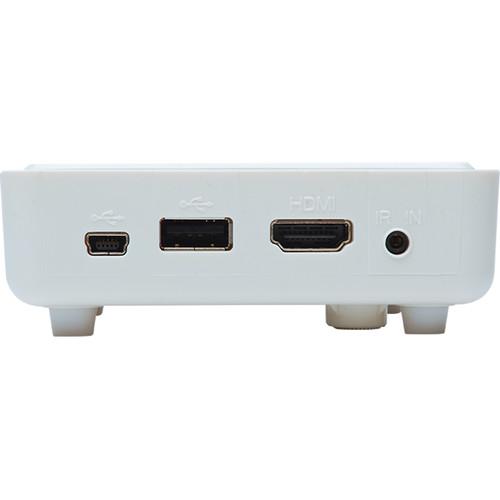

Receiver:
1 x 19-pin Type-A HDMI female, video output
1 x Mini-USB Type-B, power input | | Encryption | AES 128 | | Latency | Less than 1 frame | | Compliance | HDCP, WHDI 1.0, FCC Part 15, IC, and ETSI | | Power Consumption | Transmitter: 7 W, maximum
Receiver: 6 W, maximum | | Power Supplies | 2 x 5 VDC 2A, with USB Type-A connector | | Temperature | Operating: 32 - 104°F (0 - 40°C)
Storage: 14 - 140°F (-10 - 60°C) | | Relative Humidity | Operating: 10 - 85%, non-condensing
Storage: 5 - 90%, non-condensing | | Dimensions | Transmitter: 7.2 x 1.3 x 3.9" (18.2 x 3.3 x 9.8 cm)
Receiver: 3.8 x 1.4 x 3.8" (9.5 x 3.5 x 9.5 cm) | | Weight | Transmitter: 0.5 lb (227 g)
Receiver: 4.8 oz (136.1 g) | | | | Package Weight | 2.7 lb | | Box Dimensions (LxWxH) | 10.2 x 7.4 x 3.0" |
