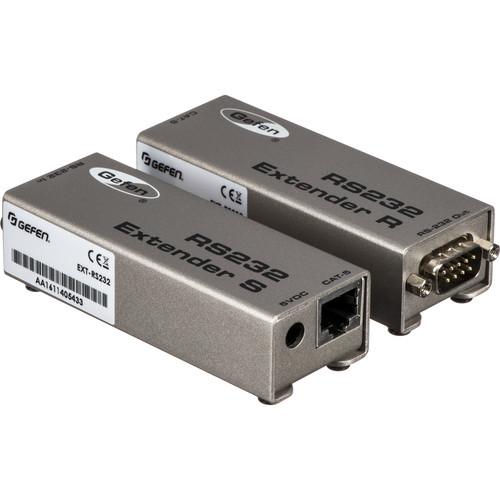

User Manual for Gefen RS232 Serial Extender Sender With Receiver - Transfers Signals Over Network Cables Click to enlarge the picture
Contents of the user manual for the Gefen RS232 Serial Extender Sender With
- Product category: Video Extenders & Repeaters Gefen
- Brand: Gefen
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Gefen Video Extenders & Repeaters
|
User manual for the Gefen RS232 Serial Extender Sender With contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Gefen product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Gefen user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Gefen product will considerably shorten its lifespan!
|
Product description The Gefen RS232 Serial Extender is used to extend your RS-232 Serial device up to a 1000' away from your computer or other host device. The RS-232 extender sender unit is connected to the computer using the supplied serial cables. The receiver unit is connected to the extended device. An inexpensive standard CAT5 network cable is used to connect the sender and receiver units. - Streamlines computer installations by allowing source devices to be located off-site or isolated for sound, noise or heat
- Conforms to RS-232C standards
- 1000' extension using a single, inexpensive and readily available CAT-5 network cable
UPC: 845344000015 In the Box Gefen RS232 Serial Extender Sender With Receiver - Transfers Signals Over Network Cables RS232 Extender-S Sender RS232 Extender-R Receiver 6' Serial cable Power Supply 1 Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Gefen RS232 Serial Extender Sender With Receiver - Transfers Signals Over Network Cables in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersGefen EXT-RS232 Specs | Transmission Speed | 12.8 Mbp/s | | Input | Sender: 1x DB-9 RS-232 Serial
Receiver: 1x RJ-45 Network cable jack | | Output | Receiver: 1x DB-9 RS-232 Serial
Sender: 1x RJ-45 Network cable jack | | Power Supply | 5 VDC | | Dimensions (HxWxD) | 1.4 x 1.0 x 3.8" (3.6 x 2.5 x 9.7 cm) | | Shipping Weight | 3 lbs (1.4 kg) | | | | Package Weight | 1.25 lb | | Box Dimensions (LxWxH) | 9.5 x 6.2 x 2.9" |
Rating96% users recommend this product to others. And what about you?
This product has already been rated by 09 owners. Add your rating and experience with the product.
