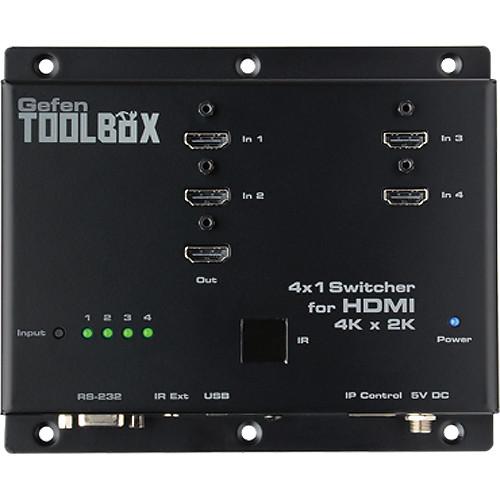

Product description The black Gefen ToolBox 4x1 Switcher for HDMI 4K x 2K is a compact and lightweight surface-mountable HDMI switcher that allows up to four Ultra HD or 1080p sources to be routed to one Ultra HD display. The matrix supports resolutions up to 3840x2160 at 30p. Deep Color, 3DTV pass-through, and lossless audio formats such as LPCM 7.1, Dolby TrueHD, and DTS-HD Master Audio are also supported. The switcher is ideal for home theater systems, multi-room installations, retail establishments, sports bars, schools, hospitals, lobbies, or any installation where multi-source Ultra HD HDCP-compliant content needs to be routed a display.
Connect up to four Ultra HD or HD sources to the HDMI inputs on the switcher using HDMI cables. Each HD source can be routed to the display using the front panel push-button, IR remote control, RS-232, Telnet, UDP, or web server interface. LED indicators on the top panel display the current switching status. A power supply with locking cable comes included. -
- Routes four Ultra Hi-Def sources to one Ultra HD display
- Supports resolutions up to Ultra HD (3840 x 2160 @ 30Hz) and Full HD 1080p
- Supports 12-bit Deep Color
- 3DTV pass-through
- Lip Sync pass-through
- Push button switching control
- Supports LPCM 7.1, Dolby TrueHD, Dolby Digital Plus, and DTS-HD Master Audio
- Supports the use of DVI sources and DVI displays with HDMI-to-DVI optional adapters
- RS-232 Serial interface for remote control using a computer or automation control system
- IP control via Telnet, UDP, and the built-in web server interface
- IR remote control
- Field-upgradeable firmware via Mini-USB and IP ports
- Locking Power Supply
- Surface-mountable
UPC: 845344075280 In the Box Gefen ToolBox 4x1 Switcher for HDMI 4K x 2K (Black) Power Supply with Locking Power Cable Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Gefen ToolBox 4x1 Switcher for HDMI 4K x 2K in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersGefen GTB-HD4K2K-441-BLK Specs | Maximum Pixel Clock | 300 MHz | | Maximum Resolution | 3840 x 2160 / 30p | | HDMI Input Connectors | 4 x Type A 19-pin female, locking | | HDMI Output Connectors | 1 x Type A 19-pin female, locking | | USB Port | 1 x Mini-B | | RS-232 Serial Port | 1 x DB-9, female | | Ethernet Port | 1 x RJ-45 | | LED Indicators | Power: 1 x LED, blue
Switching: 4 x LED, green | | Buttons | 1 x switching selector, tact-type push-button | | IR Sensor | On front panel | | IR Extender Port | 1 x 3.5 mm mini-stereo jack | | Power Connector | Locking | | Power Supply | 5 VDC | | Power Consumption | 13 W, maximum | | Operating Temperature | 32 to 104°F (0 to 40°C) | | Dimensions (W x H x D) | 6.9 x 5.8 x 1.0" (17.5 x 14.7 x 2.6 cm) | | | | Package Weight | 1.99 lb | | Box Dimensions (LxWxH) | 13.15 x 8.2 x 3.6" |
