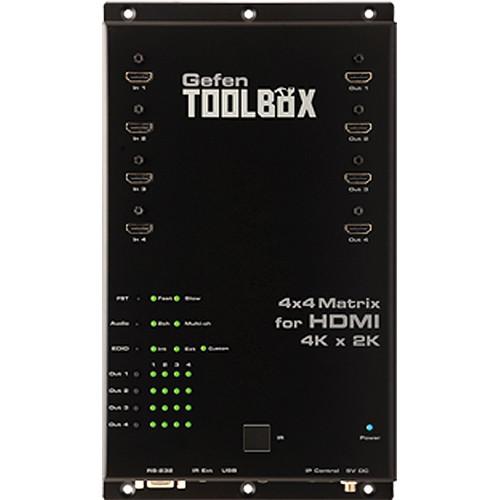

User Manual for Gefen ToolBox 4x4 Matrix for HDMI 4K x 2K Click to enlarge the picture
Contents of the user manual for the Gefen ToolBox 4x4 Matrix for HDMI
- Product category: Routers & Switchers Gefen
- Brand: Gefen
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Gefen Routers & Switchers
|
User manual for the Gefen ToolBox 4x4 Matrix for HDMI contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Gefen product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Gefen user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Gefen product will considerably shorten its lifespan!
|
Product description The black Gefen ToolBox 4x4 Matrix for HDMI 4K x 2K is a compact and lightweight surface-mountable HDMI matrix that allows up to four Ultra HD or 1080p sources to be routed to up to four Ultra HD displays. The matrix supports resolutions up to 3840x2160 at 30p. Deep Color, 3DTV pass-through, and lossless audio formats such as LPCM 7.1, Dolby TrueHD, and DTS-HD Master Audio are also supported. The matrix is ideal for home theater systems, multi-room installations, retail establishments, sports bars, schools, hospitals, lobbies, or any installation where multi-source Ultra HD HDCP-compliant content needs to be routed to multiple displays.
Connect up to four Ultra HD or HD sources to the HDMI inputs on the matrix using HDMI cables. Each HD source can be routed up to four displays using the front panel push-buttons, IR remote control, RS-232, Telnet, UDP, or web server interface. LED indicators on the top panel display the current routing status, Fast Switching Technology (FST) mode, audio configuration, and EDID settings. A power supply with locking cable comes included.
-
- Routes four Ultra Hi-Def sources to four Ultra HD displays
- Supports resolutions up to Ultra HD (3840 x 2160 @ 30Hz) and Full HD 1080p
- Supports 12-bit Deep Color
- 3DTV pass-through
- Lip Sync pass-through
- Push button controls for Routing, FST Modes, Audio, and EDID management
- Fast Tracking Technology (FST) speeds up HDCP authentication process
- Advanced EDID Management for rapid integration of sources and displays
- Supports LPCM 7.1, Dolby TrueHD, Dolby Digital Plus, and DTS-HD Master Audio
- Supports the use of DVI sources and DVI displays with HDMI-to-DVI optional adapters
- RS-232 Serial interface for remote control using a computer or automation control system
- IP control via Telnet, UDP, and the built-in web server interface
- IR remote control
- Field-upgradeable firmware via Mini-USB and IP ports
- Locking Power Supply
- Surface-mountable
UPC: 845344081410 In the Box Gefen ToolBox 4x4 Matrix for HDMI 4K x 2K (Black) Power Supply with Locking Power Cable Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Gefen ToolBox 4x4 Matrix for HDMI 4K x 2K in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersGefen GTB-HD4K2K-444-BLK Specs | Maximum Pixel Clock | 300 MHz | | Maximum Resolution | 3840 x 2160 / 30p | | HDMI Input Connectors | 4 x Type A 19-pin female, locking | | HDMI Output Connectors | 4 x Type A 19-pin female, locking | | USB Port | 1 x Mini-B | | RS-232 Serial Port | 1 x DB-9, female | | Ethernet Port | 1 x RJ-45 | | LED Indicators | Power: 1 x LED, blue
FST: 2 x LED, green
Audio: 2 x LED, green
EDID: 3 x LED, green
Routing: 16 x LED, green | | Buttons | FST Selector: 1 x tact-type, recessed push-button
Audio Selector: 1 x tact-type, recessed push-button
EDID Selector: 1 x tact-type, recessed push-buttons
Routing Selectors: 4 x tact-type push-buttons | | IR Sensor | On front panel | | IR Extender Port | 1 x 3.5 mm mini-stereo jack | | Power Connector | Locking | | Power Supply | 5 VDC | | Power Consumption | 13 W, maximum | | Operating Temperature | 32 to 104°F (0 to 40°C) | | Dimensions (W x H x D) | 6.9 x 11.9 x 1.0" (17.5 x 30.2 x 2.6 cm) | | | | Package Weight | 3.85 lb | | Box Dimensions (LxWxH) | 14.3 x 12.0 x 3.8" |
