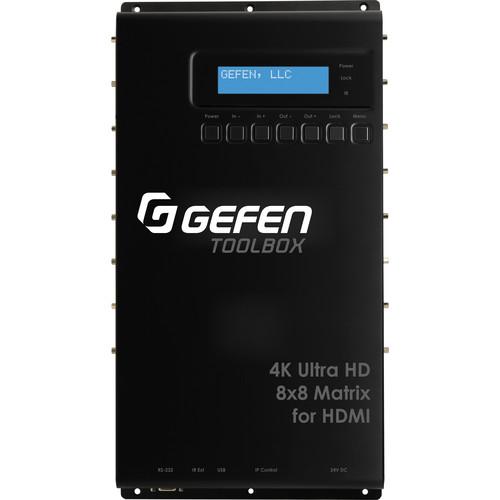

The Gefen ToolBox 8x8 Matrix Switcher is a compact and lightweight alternative to rack-mounted matrix switchers. This HDCP 1.4 compliant matrix switcher routes eight Ultra HD sources to any eight 4K Ultra HD displays with HDMI inputs. Resolutions up to 4K DCI (4096 x 2160 at 24 Hz), 4K Ultra HD (3860 x 2160 at 60 Hz, 4:2:0 color space), 1080p Full HD, and 1920 x 1200 WUXGA are supported. 3D, Deep Color, and multichannel digital audio including 7.1 channels of LPCM and HBR (High Bit Rate) formats such as Dolby®TrueHD, and DTS-HD Master Audio are also passed through. The Gefen Syner-G software's Discovery and Show-Me features simplify initial IP configuration of the ToolBox. Each source can be routed to any display location, using the front-panel push buttons or the included handheld IR Remote Control. The matrix can also be controlled via RS-232, Telnet, UDP, and web server interface. An easy-to-read backlit front panel display indicates the current routing status and IP settings. UPC: 888814217599 In the Box Gefen ToolBox 8x8 4K HDMI Matrix Switcher IR Remote 24 V DC Power Supply AC Power Cord Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Gefen ToolBox 8x8 4K HDMI Matrix Switcher in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersGefen GTB-HD4K2K-848-BLK Specs | Supported Resolutions | 4K DCI (4096 x 2160 at 24 Hz)
4K Ultra HD (3860 x 2160 at 60 Hz, 4:2:0 color space)
1080p Full HD
1920x1200 WUXGA | | HDCP | v1.4 Compliant | | Deep Color | Supports 12-bit Deep Color (up to 1080p) | | EDID | Advanced EDID management | | Audio Support | LPCM 7.1, Dolby TrueHD, Dolby Digital Plus, DTS-HD Master Audio | | Maximum Pixel Clock | 300 MHz | | Ports and Connectors | 8 x Locking HDMI Type A female inputs
8 x Locking HDMI Type A female outputs
1 x USB mini-B
1 x RS-232
1 x RJ-45 Ethernet
1 x 4-pin DC power connector | | LED Indicator: | 1 x Red/Green power indicator
1 x Orange lock indicator | | Display Type | 2 x 16-Character rows | | Control Buttons | 7 x tact type | | IR Sensor | 1 x front panel sensor 1 x 3.5mm mini stereo extender port | | Power Supply | 24 VDC | | Power Consumption | 27 W Maximum | | Operating Temperature | 32 to 122°F / 0 to 50°C | | Storage Temperature | -4 to 140°F / -20 to 60°C | | Operating Humidity | 5 to 90% RH (non-condensing) | | Storage Humidity | 5 to 95% RH (non-condensing) | | Dimensions | 9.3 x 17.9 x 1.75" / 236 x 454 x 44 mm | | Weight | 3.9 lb / 1.8 kg | | | | Package Weight | 7.0 lb | | Box Dimensions (LxWxH) | 19.37 x 12.126 x 4.724" |
