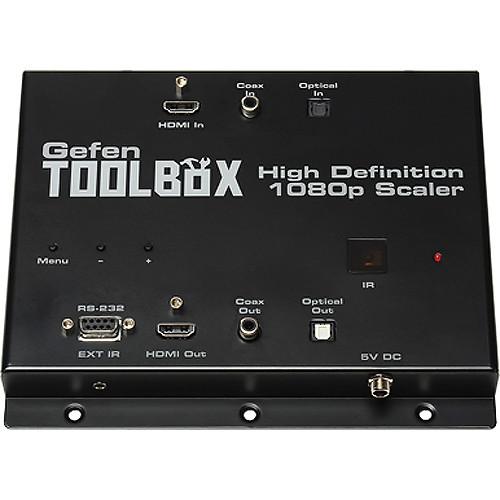

Product description The Gefen ToolBox High Definition 1080p HDMI Scaler upscales/downscales an HDMI signal to up to 1080p resolution using a custom scaling algorithm designed to deliver optimal color, intensified contrast and details, vivid skin tones, and sharp edges. The scaler supports a vast array of audio formats, including up to 8 channels of LPCM via HDMI and 2-channel LPCM via independent RCA and optical S/PDIF input/output. An on-screen display menu is accessible using menu buttons on the device or the included IR remote control. If you want to set the output resolution manually, you can do so using the OSD. You can additionally adjust contrast, brightness, and other settings. The scaler also offers an RS-232 port. The scaler is wall-mountable and comes with a locking power supply. - Key Features
-
- Upscale/downscale an HDMI signal to up to 1080p resolution
- HDMI input/output
- RCA coax and TOSLINK input/output
- Proprietary scaling algorithm designed to deliver accurate color, intensified contrast and details, vivid skin tones, and sharp edges
- Supports Dolby Digital, DTS-HD Master Audio, Dolby TrueHD, and up to 8 channels of LPCM via HDMI
- Supports Dolby Digital AC3, DTS Digital Surround, and 2-channel LPCM via S/PDIF
- Auto 3:2 pull-down and 2:2 pull-down detection and recovery
- Aspect ratio control
- Digital audio delay to match audio/video timing
- On-screen display menu (OSD) accessible using menu buttons on the device or the included IR remote control; allows you to set the output resolution as well as adjust contrast, brightness, and other settings
- RS-232 control
- Field-upgradeable
- Wall-mountable
UPC: 845344057804 In the Box Gefen ToolBox High Definition 1080p HDMI Scaler (Black) HDMI Cable (6') IR Remote Control 5 VDC Locking Power Supply Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Gefen ToolBox High Definition 1080p HDMI Scaler in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersGefen GTB-HD-1080PS-BLK Specs | Maximum Pixel Clock | 225 MHz | | Input DDC Signal | 5 Vpp (TTL) | | Input Video Signal | 1.2 Vpp | | Input | HDMI: 1 x HDMI type A (DVI-D supported via optional adapter)
S/PDIF: 1 x RCA, 1 x TOSLINK | | Output | HDMI: 1 x HDMI type A (DVI-D supported via optional adapter)
S/PDIF: 1 x RCA, 1 x TOSLINK | | Supported Audio | Supports Dolby Digital, DTS-HD Master Audio, Dolby TrueHD, and up to 8 channels of LPCM via HDMI
Supports Dolby Digital AC3, DTS Digital Surround, and 2-channel LPCM via S/PDIF | | Serial Connection | RS-232: 1 x DB-9 | | IR Extender | 1 x 3.5 mm mini-stereo jack | | Power Supply | 5 VDC, locking | | Dimensions | 8 x 7 x 1" / 20.3 x 17.8 x 2.5 cm | | | | Package Weight | 2.71 lb | | Box Dimensions (LxWxH) | 13.25 x 8.25 x 3.75" |
