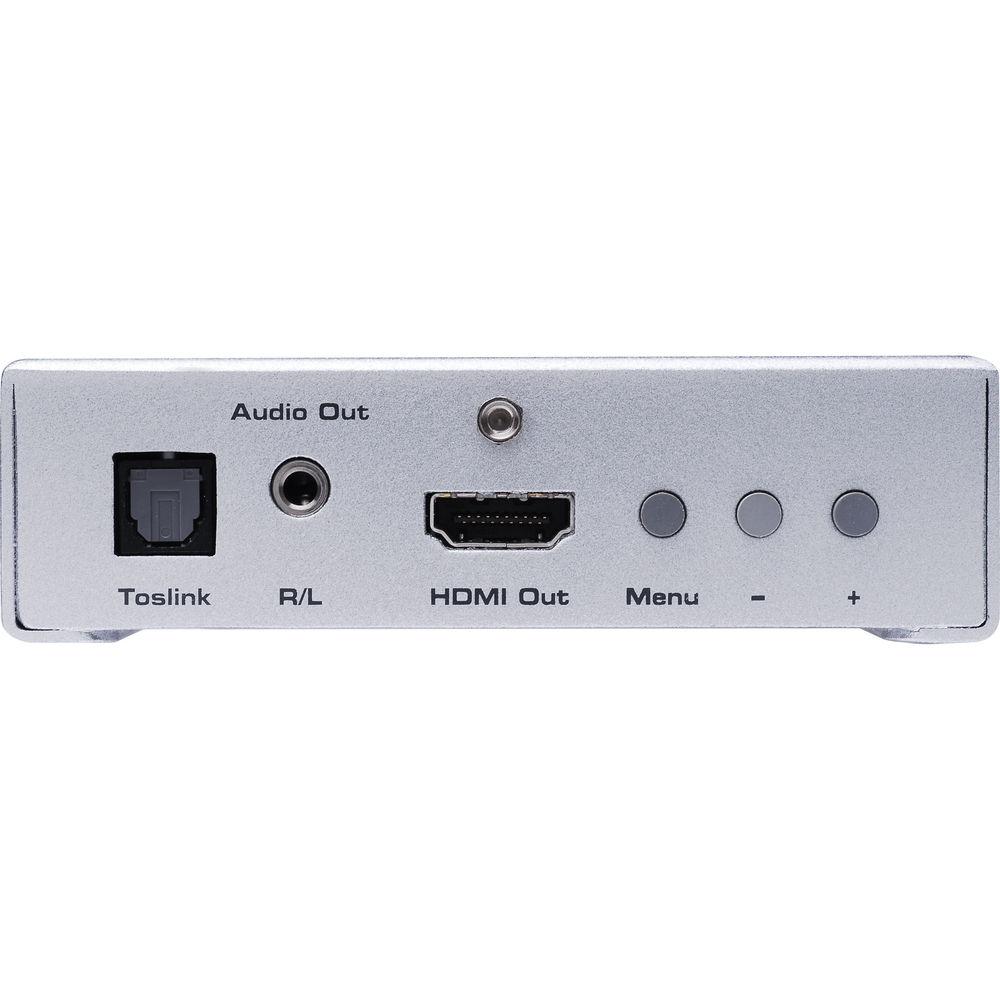

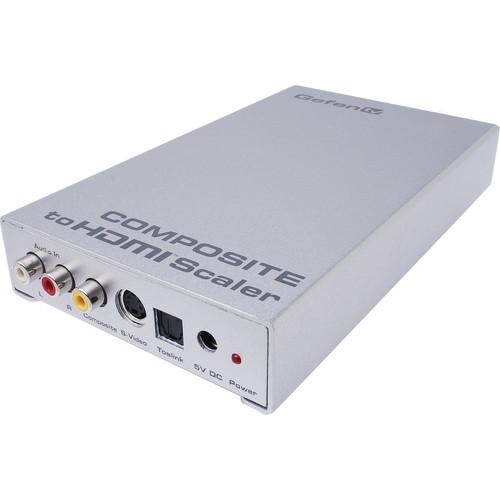

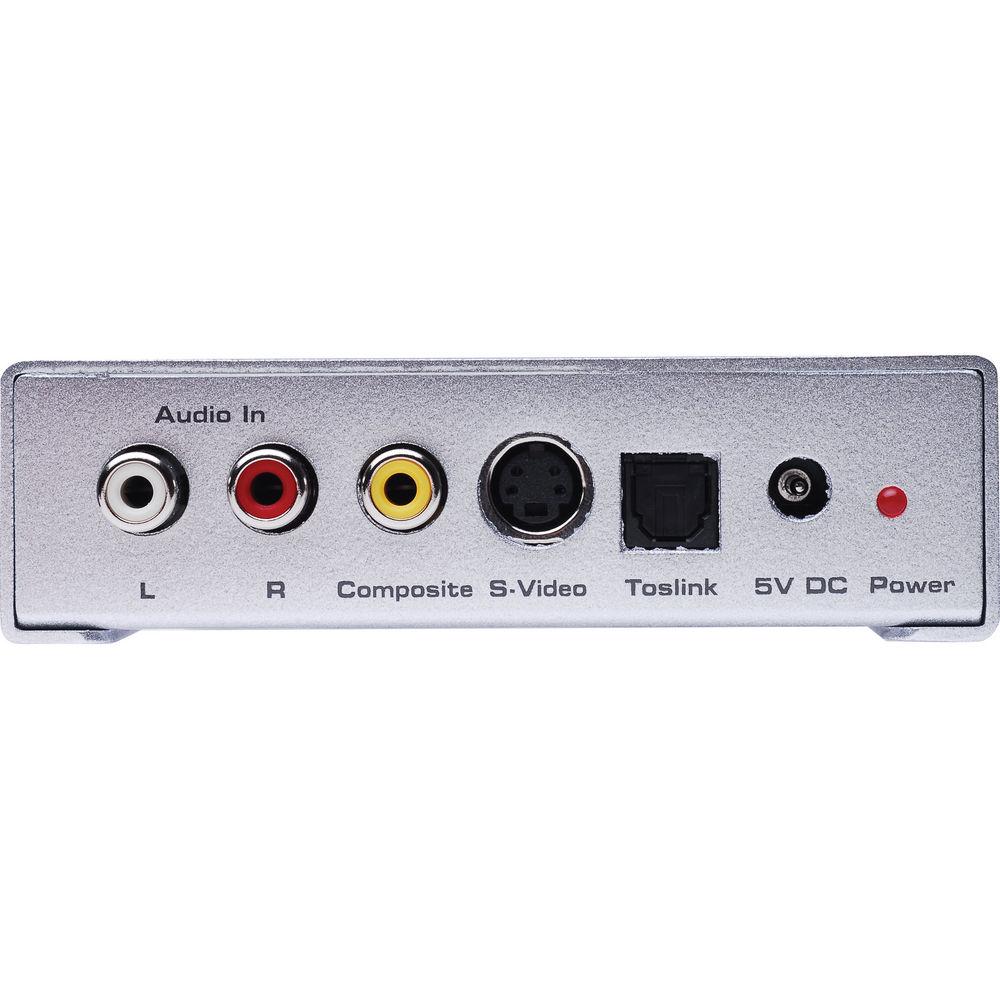

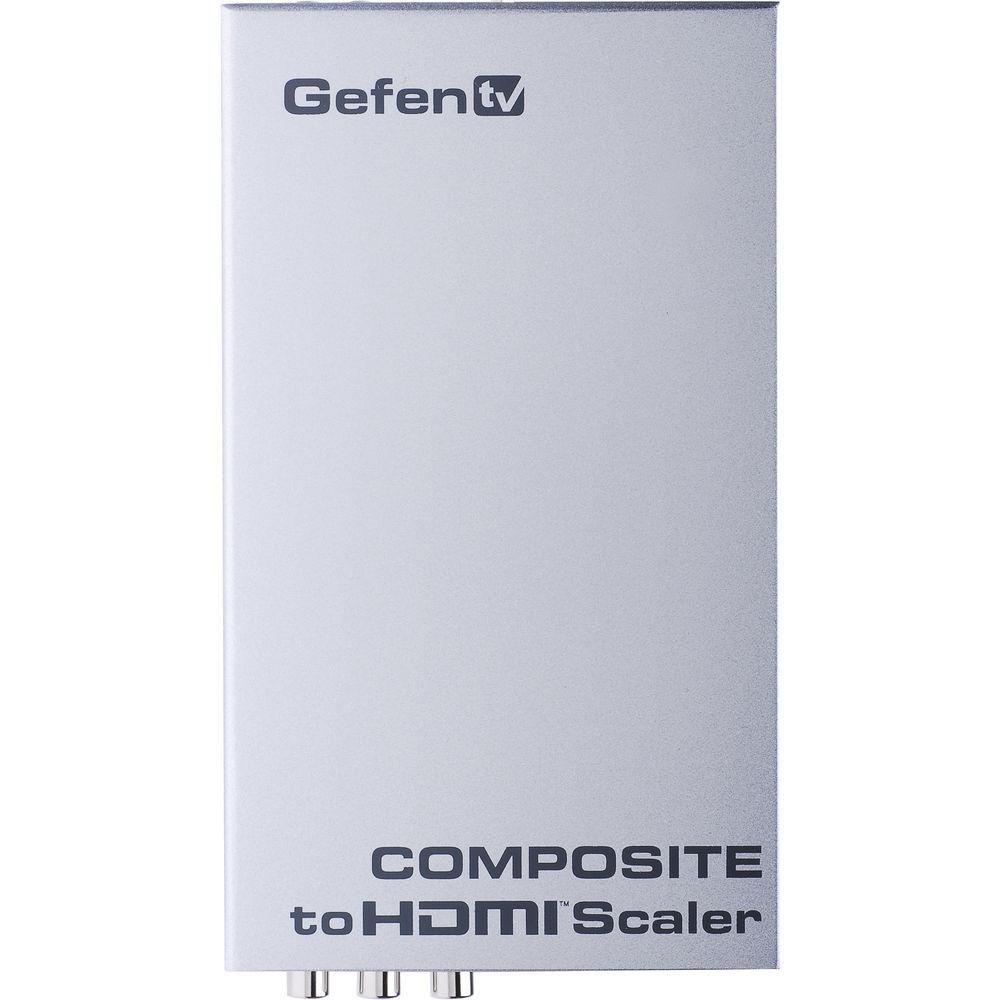

User Manual for Gefen TV Composite to HDMI Scaler Click to enlarge the picture
Contents of the user manual for the Gefen TV Composite to HDMI Scaler
- Product category: Signal Converters Gefen
- Brand: Gefen
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Gefen Signal Converters
 |
User manual for the Gefen TV Composite to HDMI Scaler contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Gefen product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Gefen user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Gefen product will considerably shorten its lifespan!
|
Product description The GefenTV Composite to HDMI Scaler from Gefen allows you to upscale composite video or S-video input to digital HDMI video output. Audio output can be embedded with the HDMI signal or separate. It supports resolutions of up to 1080p or 1920 x 1200. Input resolution is automatically detected and output resolution is selectable. - Composite or S-Video to HDMI Scaling
- Use this device to scale composite video or S-video to HDMI.
- Audio
- Audio output can be embedded with the HDMI signal or managed separately.
- Resolution
- This device supports resolutions up to 1080p or 1920 x 1200.
- Input & Output
- Input resolution is automatically detected and output resolution is selectable.
UPC: 845344062808 In the Box Gefen TV Composite to HDMI Scaler Scaler 6' 3 RCA Cable (M-M) 5VDC Power Supply User's Manual Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Gefen TV Composite to HDMI Scaler in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersGefen GTV-COMPSVID-2-HDMIS Specs | Input | (1) S-video mini-DIN
(1) composite video RCA jack | | Output | (1) HDMI type A 19-pin female
(1) right-left stereo audio | | Bandwidth | Digital Maximum Pixel Clock: 165MHz | | Input Signal | Input DDC Signal: 5Vp-p (TTL) | | Resolution | Up to 1080p or 1920 x 1200 | | Power | 5VDC, 10W maximum | | Dimensions (HxWxD) | 1 x 5 x 3.5" | | Weight | 2 lbs | | | | Package Weight | 2.195 lb | | Box Dimensions (LxWxH) | 12.05 x 6.25 x 4.2" |
