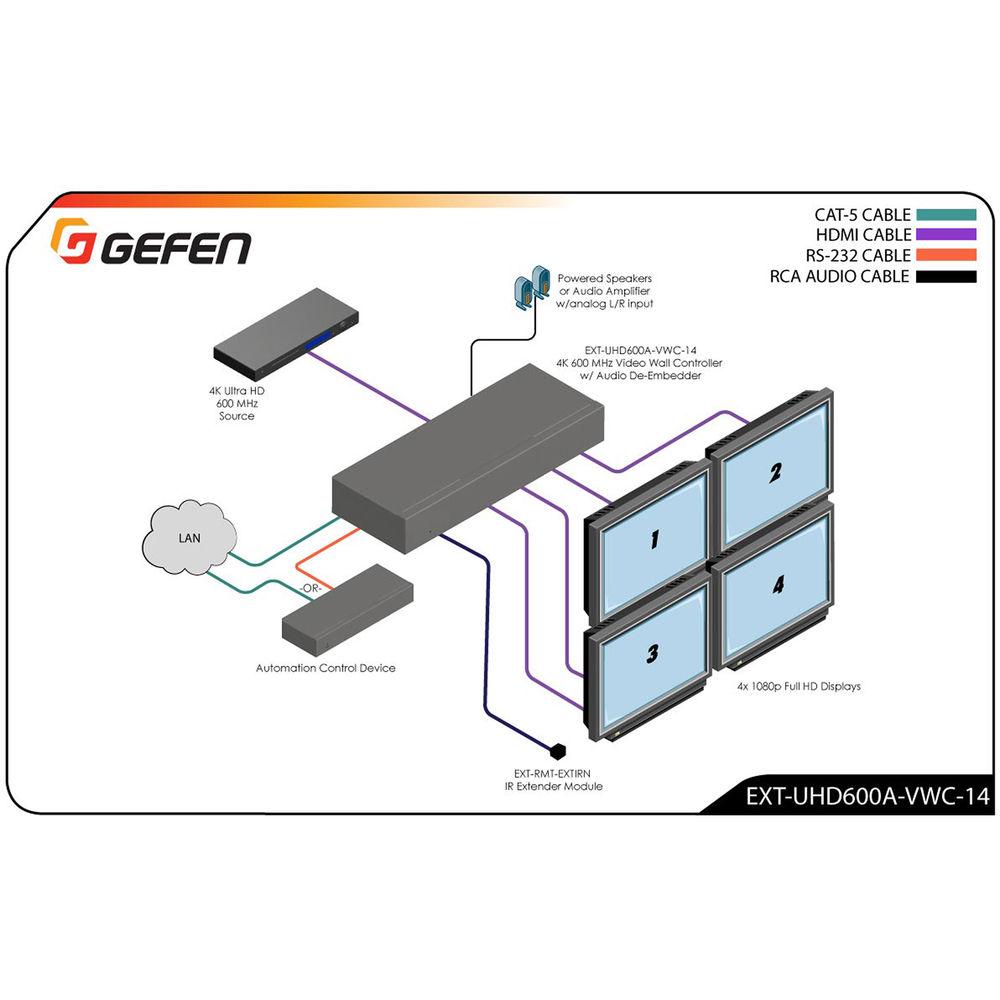

Product description Display your UHD 4K source video to a video wall with up to four Full HD outputs with this UHD 4K 600 MHz 1x4 Video Wall Controller from Gefen. This controller supports up to UHD 4K60 HDMI input and four 1080p HDMI outputs, and it also features HDCP support. The unit can also de-embed the HDMI input audio into analog RCA stereo outputs for use with separate speaker systems.

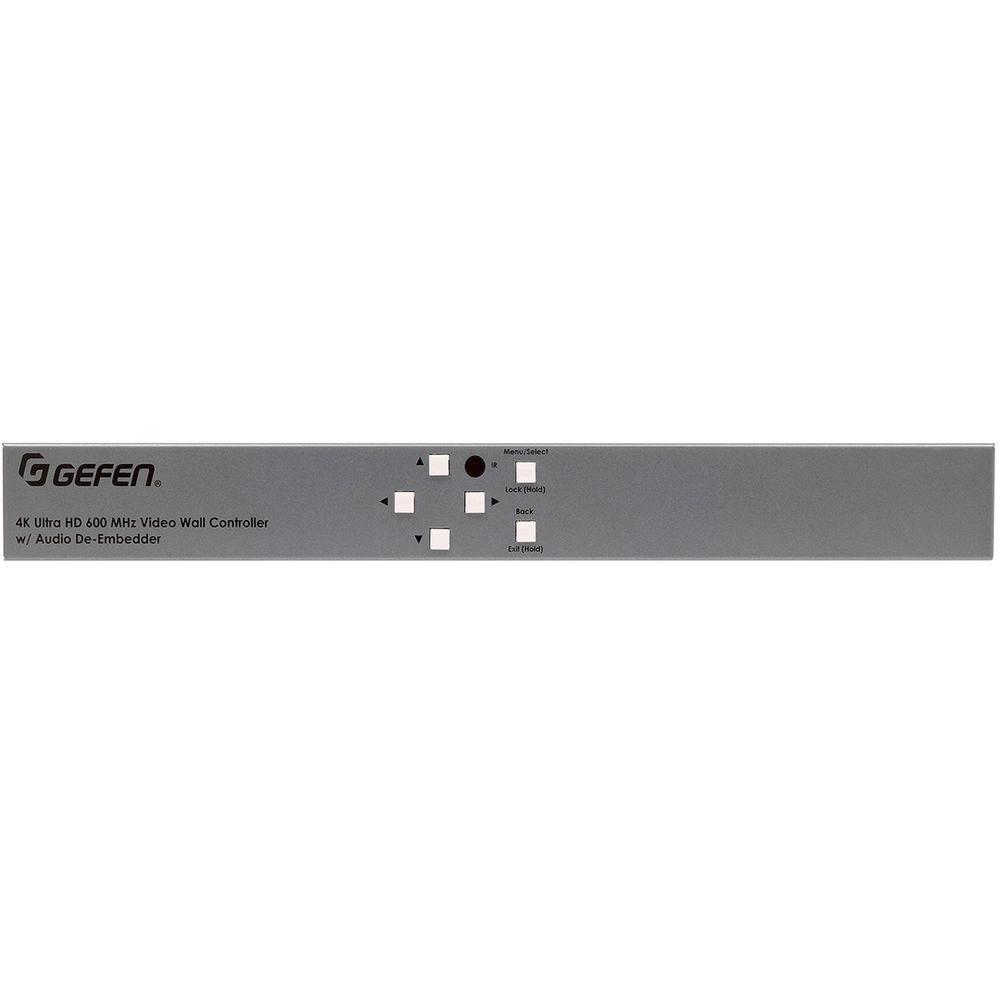

The controller settings are accessed by an RJ45 port over IP using the unit's web server, and it can also be configured via Telnet. The RS-232 DB-9 port can be used to plug in an automation control device that uses command line tools for configuration. The front-panel buttons allow you to control the menus and settings, or you can use the included IR remote controller to operate the system. If your remote is out of the line of sight, an IR extender module is included which plugs into the 3.5mm IR port to extend the signal.
The firmware is updated via the mini-USB port using the downloadable Gefen Syner-G software suite. Also included with the controller are 1 RU ears for rack mounting, a 6' locking HDMI cable, a 6' DB-9 cable, and a 12 VDC power supply. - Video Wall Controller divides an input signal up to UHD 4K into four separate signals up to 1080p60 to be scaled and sized for each output
- Controllable via front-panel controls, IR remote, IP web server interface, Telnet, and RS-232
- Input resolutions up to UHD 4K60 4:4:4 with HDCP 2.2; output resolutions up to 1080p60
- Analog L-R RCA stereo audio output for use with outboard amplification systems
- Easy to use on-screen web server interface
- Handheld IR remote control for line-of-sight control, and 3.5mm IR input on back panel to connect the included EXT-RMT-EXTIRN IR extender module if additional IR range is needed
- Field-upgradeable firmware using the Gefen Syner-G software over the mini-USB port
- Default pre-configured layout arrangements make easy setup for different monitor layouts
- Custom layout can be setup for special monitor arrangements that go beyond the usual preset layouts
- Locking power supply connector
UPC: 888814999877 In the Box Gefen UHD 4K 600 MHz 1x4 Video Wall Controller with Audio De-Embedder 2 x 1 RU Rackmount Ears IR Remote with CR2025 Battery EXT-RMT-EXTIRN IR Extender Module Locking HDMI Cable (6') DB-9 Cable (6') 12 VDC Power Supply Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Gefen UHD 4K 600 MHz 1x4 Video Wall Controller with Audio De-Embedder in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersGefen EXT-UHD600A-VWC-14 Specs | Input Resolution | Up to UHD 4K 3840 x 2160p, 4:4:4, 60 fps | | Output Resolution | Up to Full HD 1920 x 1080p, 60 fps

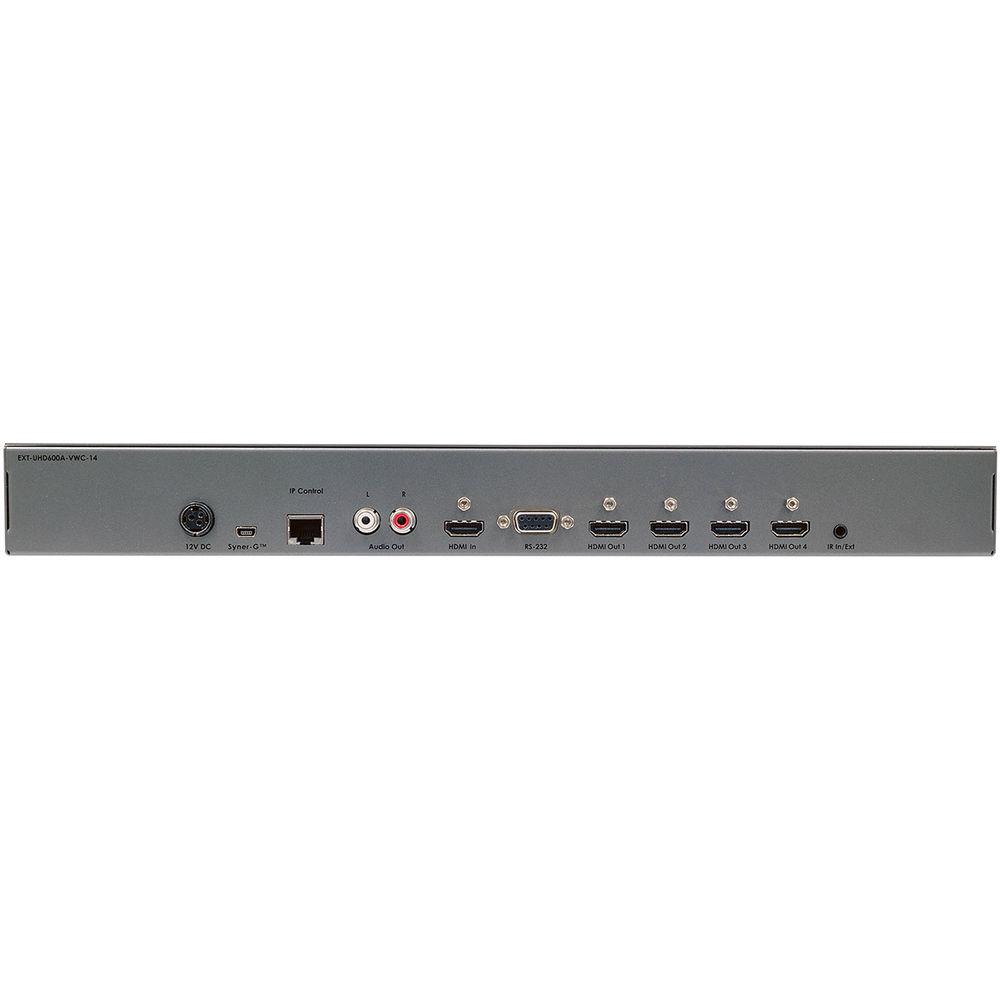

Up to WUXGA 1920 x 1200, 60 fps | | TMDS Clock Frequency | 600 MHz, 18 Gb/s | | Video Inputs | 1 x HDMI Type A | | Video Output | 4 x HDMI Type A | | Analog Audio Output | 2 x RCA L-R Stereo | | IR Receiver | Yes, Built-In Line of Sight
IR Range Extender Module Included | | Other I/O | 1 x RS-232 DB-9 (for Automation Control Device)
1 x RJ45 (LAN Management)
1 x Mini-USB Type-B (Firmware Upgrades)
1 x IR 3.5mm (for Extender Module EXT-RMT-EXTIRN) | | Power Supply | 12 VDC | | Power Consumption | 12 W | | Dimensions | Without Rack Ears: 15.3 x 1.7 x 8.9" / 38.9 x 4.3 x 22.6 cm
With Rack Ears: 18.9 x 1.7 x 8.9" / 48 x 4.3 x 22.6 cm | | Weight | 5.4 lb / 2.5 kg | | | | Package Weight | 8.83 lb | | Box Dimensions (LxWxH) | 21.0 x 12.6 x 6.0" |
