User Manual for Gefen UHD 4K ELR-POL Extender Kit Click to enlarge the picture
Contents of the user manual for the Gefen UHD 4K ELR-POL Extender Kit
- Product category: Video Extenders & Repeaters Gefen
- Brand: Gefen
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Gefen Video Extenders & Repeaters
|
User manual for the Gefen UHD 4K ELR-POL Extender Kit contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Gefen product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Gefen user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Gefen product will considerably shorten its lifespan!
|

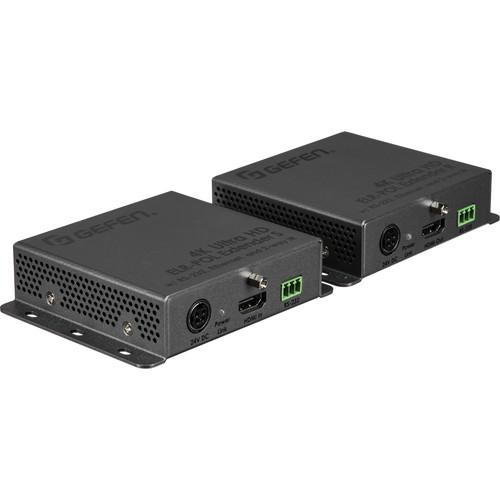

Product description Extend an HDMI video signal, Ethernet, and bidirectional IR control over a single cable with the Gefen UHD 4K ELR-POL Extender Kit. With a maximum transmission distance of 495' (1080p, 8-bit color) between the included transmitter and receiver, you can have your display farther from the source A/V equipment than when using HDMI cable alone. DCI and UHD 4K resolutions are supported, as is 1080p 12-bit deep-color, although with a reduced maximum transmission distance of 330'. Since this kit leverages the HDBaseT protocol, power can also be sent down the connecting Cat5e cable, so only a single power supply is needed. For permanent installation, use the integrated screw-hole brackets. An IR cable, IR blaster, DB-9 adapters, HDMI cable, and power supply are included so you can use the kit right out of the box. - Supports HDCP, 12-bit Deep Color, LPCM 7.1 audio, Dolby TrueHD & DTS-HD Master Audio pass-through, 3DTV pass-through, CEC pass-through, and lip sync pass-through
- Only one unit needs external power; POL feature provides power to the other unit over link cable
- Firmware upgradable via RS-232
UPC: 845344079417 In the Box Gefen UHD 4K ELR-POL Extender Kit Single Infrared Emitter fdbevywavbcrftvszfq IR Extender Module High-Speed HDMI Cable with Ethernet and Mono-LOK (6') 3-Pin Phoenix to Female DB-9 Cable 3-Pin Phoenix to Female DB-9 Cable 24 VDC 1 Amp Universal Power Supply Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Gefen UHD 4K ELR-POL Extender Kit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersGefen EXT-UHD-CAT5-ELRPOL Specs | Transmission Range | Up to 495' / 150.9 m over one Cat5e | | Resolution | Maximum: 4096 x 2160 | | Audio Support | LPCM 7.1 audio, Dolby TrueHD, and DTS-HD Master Audio pass-through | | Maximum Pixel Clock | 300 MHz | | I/O | Transmitter:
1 x HDMI Type A female, locking, video in
1 x RS-232 3-pin Phoenix
1 x RJ-45 HDBaseT out
1 x 3.5 mm mini stereo jack, IR in
1 x 3.5 mm mini stereo jack, IR out
Receiver:
1 x HDMI Type A female, locking, video out
1 x RS-232 3-pin Phoenix
1 x RJ-45 HDBaseT in
1 x 3.5 mm mini mono jack, IR out
1 x 3.5 mm mini stereo jack, IR out | | Power Supply | 24 VDC, locking (can be used with either unit) | | Power Consumption | Both Units Combined: 12 W max. | | Environmental | Operating Temperature: 32 to 113°F / 0 to 45°C
Storage Temperature: 4 to 158°F / -20 to 85°C
Operating Relative Humidity: 5-90%, non-condensing
Storage Relative Humidity: 0-95%, non-condensing | | MTBF | 50,000 hours | | Dimensions | Each Unit: 4.3 x 1 x 3.2" / 10.9 x 2.5 x 8.1 cm | | Weight | Each Unit: 0.4 lb / 0.2 kg | | | | Package Weight | 2.53 lb | | Box Dimensions (LxWxH) | 12.2 x 6.3 x 4.3" |
