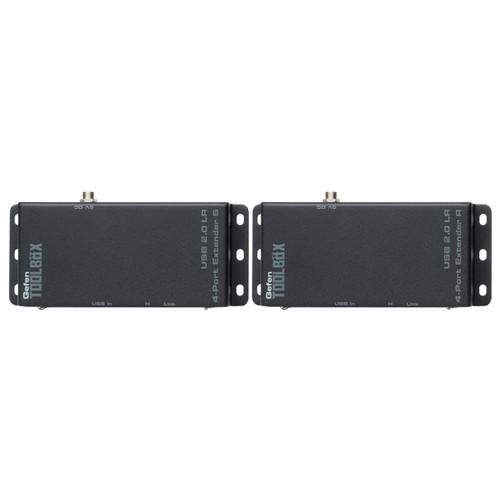

User Manual for Gefen USB 2.0 LR 4-Port Extender Click to enlarge the picture
Contents of the user manual for the Gefen USB 2.0 LR 4-Port Extender
- Product category: USB Extenders Gefen
- Brand: Gefen
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Gefen USB Extenders
|
User manual for the Gefen USB 2.0 LR 4-Port Extender contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Gefen product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Gefen user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Gefen product will considerably shorten its lifespan!
|
Product description Extend the reach of your computer's USB connections with the USB 2.0 LR 4-Port Extender from Gefen. This long-range USB extender comes with two units, a sender unit equipped with a single USB port and a receiver unit equipped with four USB ports. The long-range connection is established using RJ-45 Ethernet cabling and can cover up to 300'. The LR 4-Port Extender is easy to set up as it comes plug-and-play compatible, and can be used with both Windows and Mac computers. - Extends USB 2.0 up to 330 feet
- Supports 480 Mbps using USB 2.0
- Backward compatible with USB 1.1 devices
- Receiver supports up to four USB devices
- Uses industry standard Cat5, Cat5e, or Cat6 cable
- Works with PC and Mac computers
UPC: 845344090139 In the Box Gefen USB 2.0 LR 4-Port Extender GefenToolBox USB 2.0 LR 4-Port Extender Sender Unit GefenToolBox USB 2.0 LR 4-Port Extender Receiver Unit 6' USB Cable (A-B) 2 x 5 VDC Locking Power Supply Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Gefen USB 2.0 LR 4-Port Extender in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersGefen GTB-USB2.0-4LR-BLK Specs | Data Transfer Rate | Up to 480 Mbps | | USB Connectors | 1 x USB 2.0 Type-B connector (sender unit)
4 x USB 2.0 Type-A connectors (receiver unit) | | Link Connectors | RJ-45 (sender unit / receiver unit) | | Power Supply | 5 VDC locking type (20 W max) | | Temperature & Humidity | Operating Temperature
32 to 122°F / 0 to 50°C
Storage Temperature
-4 to 158°F / -20 to 70°C
Operating Humidity
20 to 80% non-condensing
Storage Humidity
10 to 90% non-condensing | | Dimensions | 5.75 x 1.25 x 2.5" / 14.6 x 3.2 x 6.4 cm | | Weight | 3 lb / 1.4 kg | | | | Package Weight | 2.885 lb | | Box Dimensions (LxWxH) | 12.2 x 6.25 x 4.25" |
