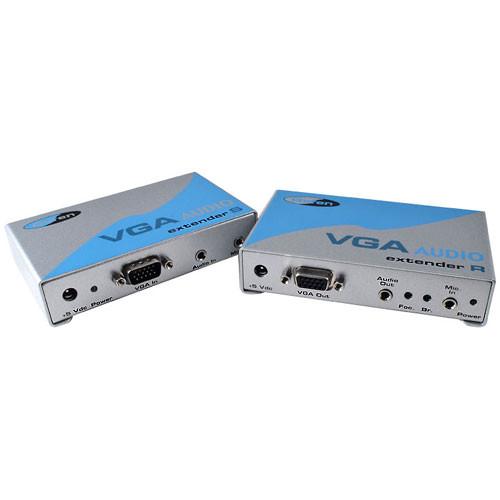

User Manual for Gefen VGA-AUDIO-141 VGA Video & Audio Serial Extender, Sender With Receiver - Transfers Signals Over Network Cables Click to enlarge the picture
Contents of the user manual for the Gefen VGA-AUDIO-141 VGA Video & Audio
- Product category: KVM Extenders Gefen
- Brand: Gefen
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Gefen KVM Extenders
|
User manual for the Gefen VGA-AUDIO-141 VGA Video & Audio contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Gefen product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Gefen user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Gefen product will considerably shorten its lifespan!
|
Product description The Gefen Inc. VGA-AUDIO-141 VGA & Audio Extender is a transmitter and matching receiver kit that allows a user to separate computer components up to 150' (46 m)—far beyond the reach of standard desktop cables. It uses inexpensive and common CAT5 network cable to connect the sender and receiver over great distances. It supports HD video and does not degrade the resolution during transmission. Sample applications include broadcast or security installations where a computer needs to be in a remote and/or secure location away from the displays. - Extends any VGA compliant device up to 150 feet (46 m) away from the computer
- Helps to eliminate computer noise or hum and electro-magnetic interference created by desktop computers
- Uses one inexpensive standard CAT-5 network cable to connect sender and receiver
- Supports resolutions up to 1080p, 2K, and 1920 x 1200
UPC: 845344024103 In the Box Gefen VGA-AUDIO-141 VGA Video & Audio Serial Extender, Sender With Receiver - Transfers Signals Over Network Cables VGA-AUDIO-141-S Sender VGA-AUDIO-141-R Receiver 6' 15-pin VGA Video cable 6' 3.5mm Stereo Audio Cable 2 x 5 VDC Power Supply 1 Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Gefen VGA-AUDIO-141 VGA Video & Audio Serial Extender, Sender With Receiver - Transfers Signals Over Network Cables in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersGefen EXT-VGA-AUDIO-141 Specs | | | Ports | Transmitter:
1 x HD15 VGA Male (Input)
1 x 3.5 mm Audio Female (Input)
1 x RJ45 Ethernet (Output)
Receiver:
1 x RJ45 Ethernet (Input)
1 x HD15 VGA (Output)
1 x 3.5 mm Audio (Output) | | | | Bandwidth | 350 MHz (Video)
120 MHz | | Frequency Response | 15 to 70kHz (Horizontal)
30 to 170Hz (Vertical) | | Signal Level | 1.2 Vp-p (Video) | | | | DC Input Power | 5 VDC | | Power Consumption | 5 W | | | | Dimensions | 4.0 x 3.0 x 1.2" / 10.1 x 7.6 x 3.0 cm | | | | Package Weight | 2.75 lb | | Box Dimensions (LxWxH) | 12.0 x 6.0 x 4.3" |
