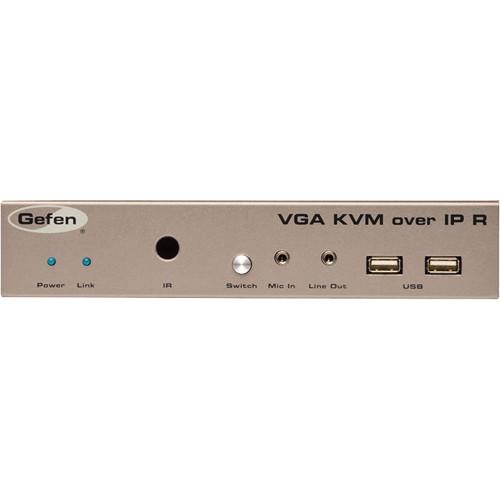

Product description The Gefen VGA KVM over IP Receiver connects to any Gefen KVM Transmitter (sold separately) and extends a VGA signal, along with USB, RS-232, and two-way audio, 328 ft over CAT5/6, in resolutions up to 1920 x 1200 WUXGA. Using an optional Gigabit switch, you can configure a multipoint matrix of up to 65,000 transmitter/receiver units in total. The Gigabit switch must support 8k jumbo frame packets in order to support multipoint mode. A free web server interface is available on the Gefen website for quick system set-ups and firmware upgrades.
A total of three RJ-45 ports are available, one for the signals transmitted and two offering network connectivity. Two-way audio consists of a 3.5mm mic in and line out. The mic in sends a mic signal back to the transmitter for recording. Two USB 2.0 ports are located on the front panel for connecting a mouse and keyboard. An IR port is available for optional IR control. An L-shaped mounting bracket is included. - Key Features
-
- Supports VGA, USB, RS-232, and two-way audio from 328 ft over CAT5/6
- Supports input/output resolutions up to 1920 x 1200 WUXGA
- Supports Gigabit switches for 65,000 unit transmitter/receiver matrix
- Three RJ-45 ports, one for signals carried and two for network connectivity
- Two USB ports on the front panel for a keyboard and mouse
- 3.5mm mic in and line out ports
- IR port for optional IR control
- Tact-type Switch button
- Tact-type, recessed Reset button
- Includes L-shaped mounting bracket
- 1U, half-rack wide, rack-mountable using an optional Gefen rackmount tray (model EXT-RACK-1U)
UPC: 845344042060 In the Box Gefen VGA KVM over IP Receiver 5V DC Locking Power Supply L-Shaped Mounting Bracket with Screws Quick-Start Guide 2-Year Limited Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Gefen VGA KVM over IP Receiver in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersGefen EXT-VGAKVM-LANRX Specs | | | Ports | Receiver:
1 x HD15 VGA (Output)
1 x 3.5 mm Audio (Output)
1 x 3.5 mm IR (Output)
2 x USB Type-A USB 2.0 (Output)
3 x RJ45 (Input)
1 x 3.5 mm Audio (Input)
1 x DB9 RS232 Male (Input) | | Supported Resolutions | 1920 x 1200 | | Maximum Transmission Distance | 328' / 100 m | | | | DC Input Power | 5 VDC | | Power Consumption | 10 W | | | | Dimensions | 8.4 x 1.7 x 4.5" / 21.3 x 4.3 x 11.3 cm | | Weight | 2.0 lb / 0.9 kg | | | | Package Weight | 3.6 lb | | Box Dimensions (LxWxH) | 13.1 x 8.1 x 3.6" |
