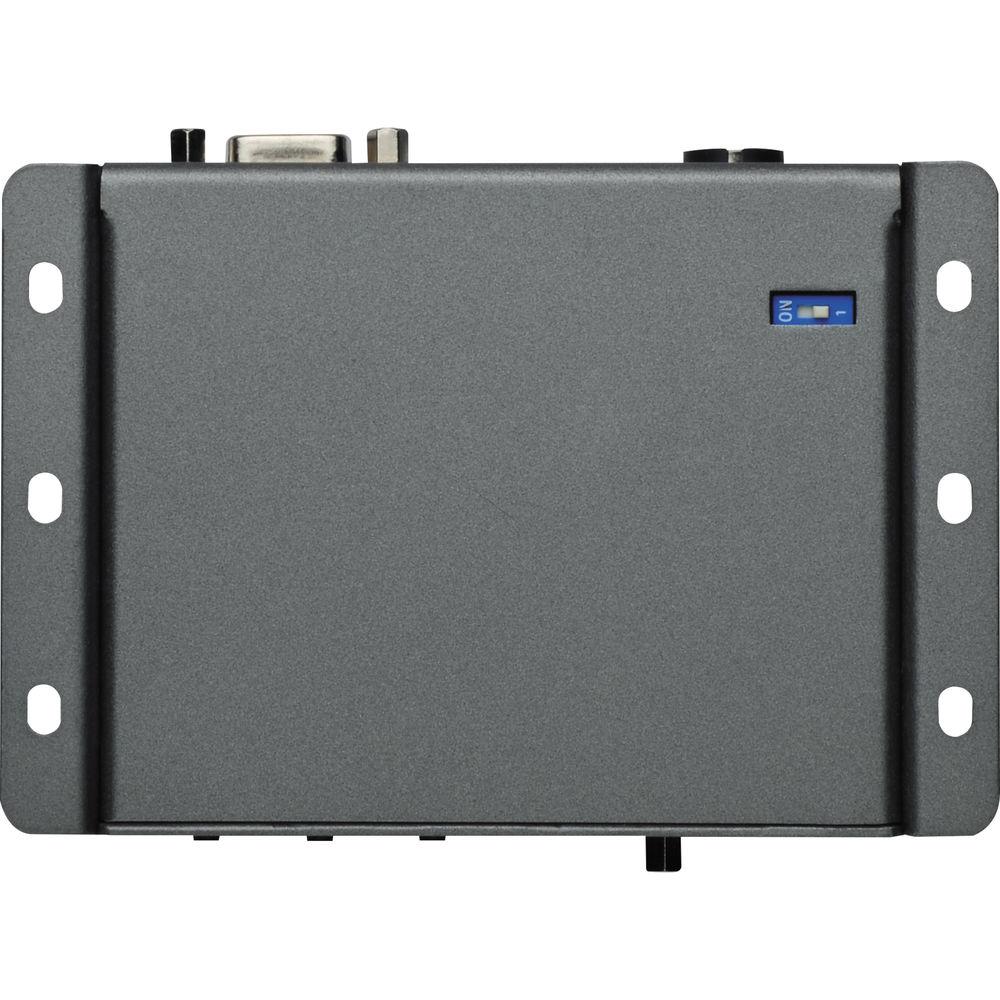

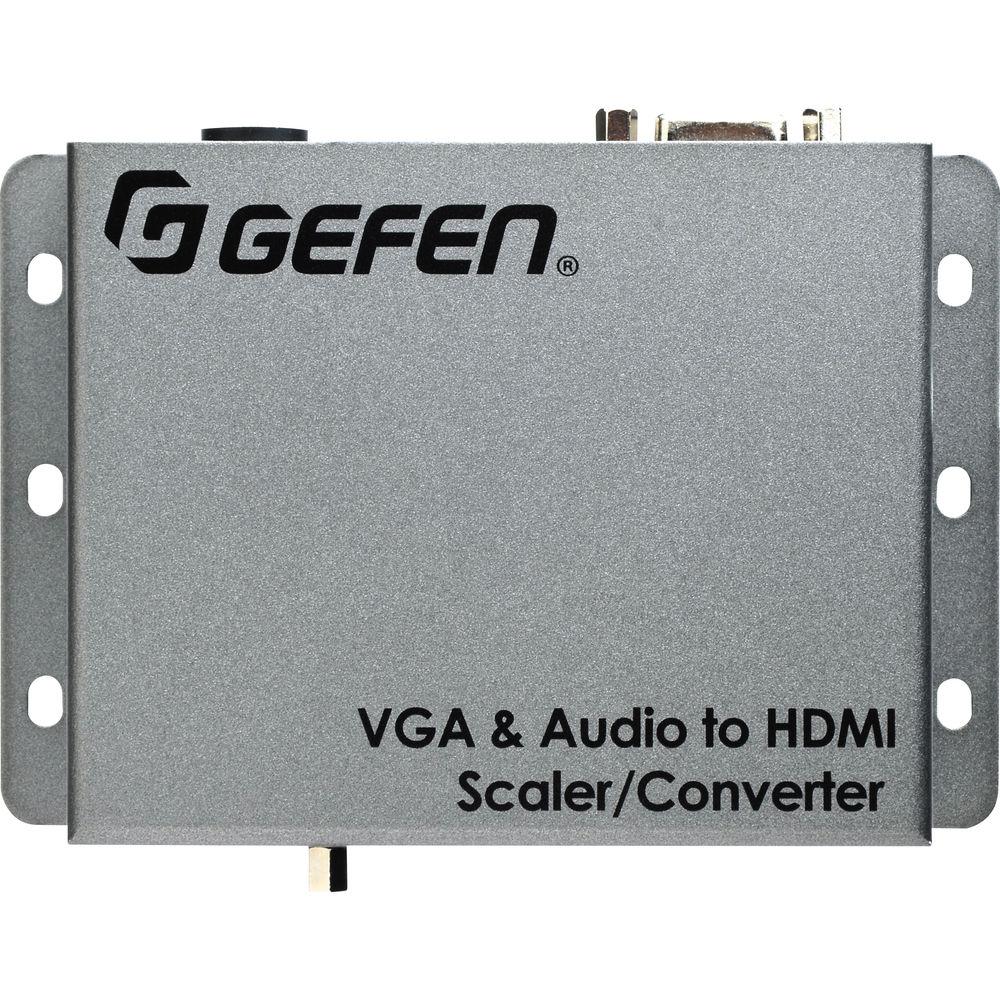

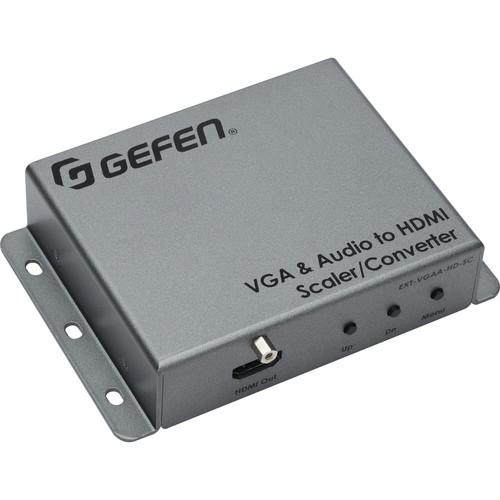

Product description For use with AV integration which requires HDMI video feeds, this VGA to HDMI Scaler/Converter from Gefen will scale and convert a VGA signal or an HDMI signal with analog audio to a single digital HDMI signal with embedded audio used by projectors, televisions, and other HD hardware. Supporting Full HD video and UXGA resolutions, all input signals can be scaled up to 1080p or 1920x1200. All settings within the unit can be changed via an OSD (On-Screen Display) menu system. Alternatively, the Gefen Syner-G software suite can configure the unit as well. - General Features
-
- Converts and scales VGA and L/R analog audio to HDMI
- Input resolutions up to 1920 x 1200 (WUXGA)
- Output resolutions up to 1080p60 and 1920 x 1200
- On-screen display (OSD) menu allows easy set-up and control
- Aspect Ratio Control: Full Screen, Panoramic, Letter/Pillar, Extract/Crop
- Test Pattern Generator for quick system configuration
- Embeds 2-channel analog stereo audio in HDMI signal
- Gefen Syner-G simplifies in-field firmware updates and advanced EDID management including custom input timings
- USB port for use with Gefen Syner-G
- Wide power supply operating range (6V to 24 VDC)
- Locking power supply connector
- Surface mountable
UPC: 888814063073 In the Box Gefen VGA to HDMI Scaler/Converter with Audio 6' Locking VGA Cable 3.5mm Mini Stereo Cable 12 VDC Power Supply Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Gefen VGA to HDMI Scaler Converter with Audio in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersGefen EXT-VGAA-HD-SC Specs | Maximum Resolution | Input: WUXGA (1920 x 1200)
Output: WUXGA | | Audio Support | Analog stereo audio (via 3.5mm mini stereo jack) | | Clock Speed | Max Pixel Clock: 165 Mhz

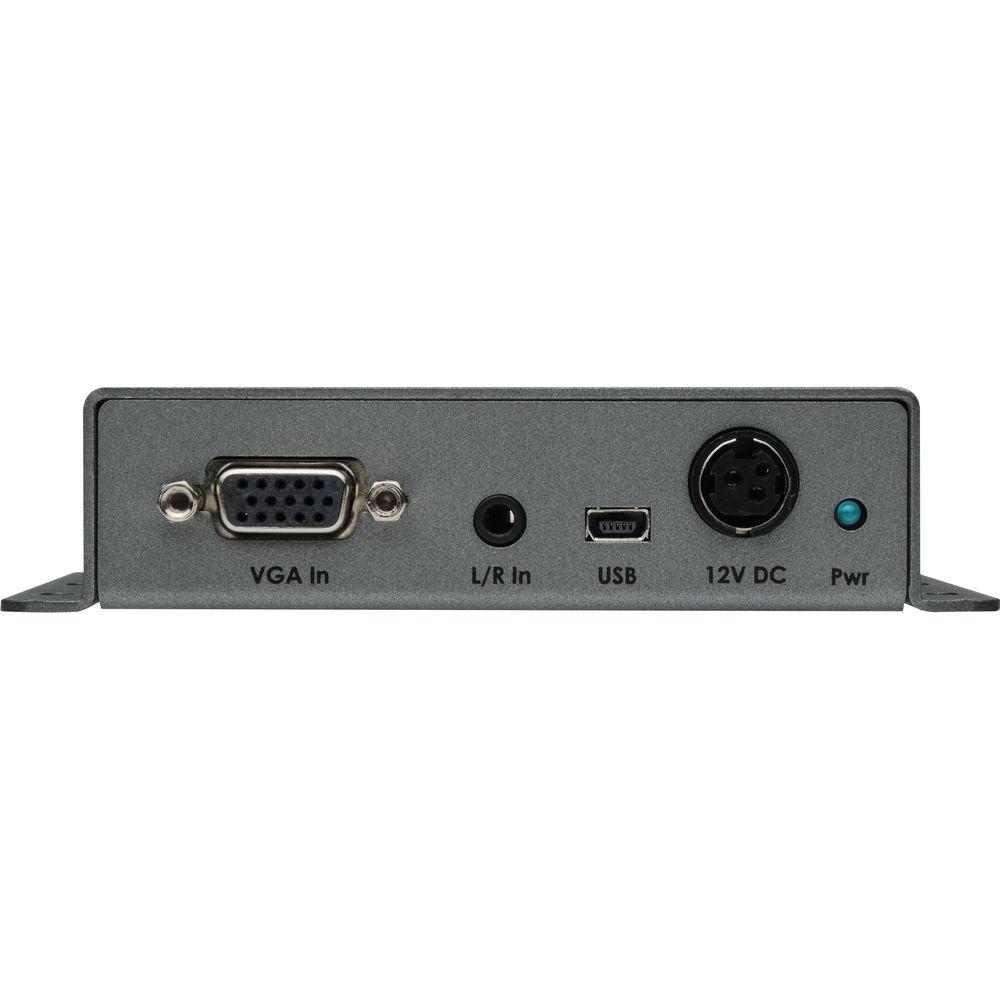

Max TMDS Clock: 225 MHz | | I/O Connections | 1 x VGA female input

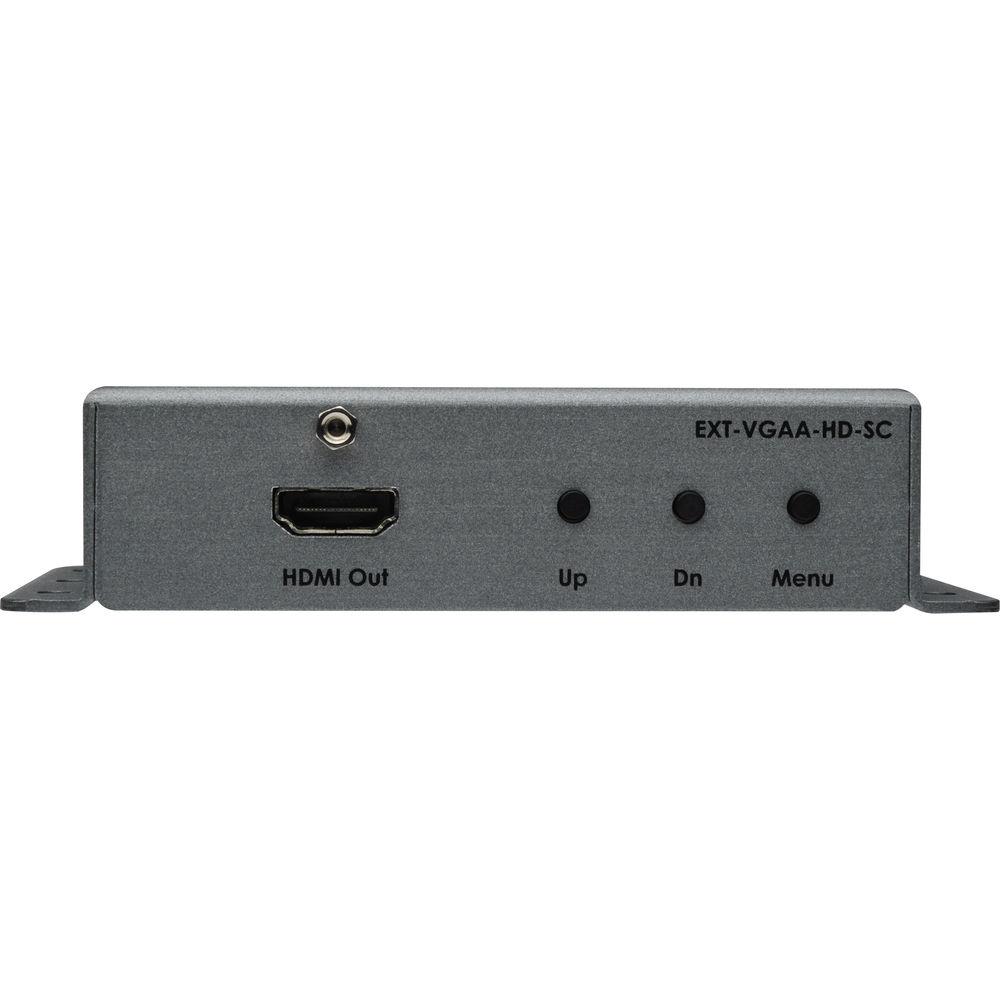

1 x Locking HDMI Type A female output
1 x 3.5mm mini-stereo audio input
1 x USB mini-B
1 x 3-pin locking power supply connection | | LED Indicators | 1 x Blue LED power indicator | | Power Supply | 12 VDC nominal (6 to 24 VDC operating range) | | Power Consumption | 2.6 W maximum | | Operating Temperature | 32 to 122°F / 0 to 50°C | | Storage Temperature | -4 to 185°F / -20 to 85°C | | Operating Humidity | 5 to 90% RH (non-condensing) | | Storage Humidity | 0 to 95% RH (non-condensing) | | Dimensions | 4.9 x 1 x 3.2" / 123 x 26 x 82 mm | | Weight | 0.4 lb / 200 g | | | | Package Weight | 2.25 lb | | Box Dimensions (LxWxH) | 10.472 x 7.008 x 3.937" |
