User Manual for Genaray 10" Curved Super-Wide Bi-Color SMD LED On-Camera Light Click to enlarge the picture
Contents of the user manual for the Genaray 10" Curved Super-Wide Bi-Color SMD
- Product category: On Camera Lights Genaray
- Brand: Genaray
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Genaray On Camera Lights
 |
User manual for the Genaray 10" Curved Super-Wide Bi-Color SMD contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Genaray product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Genaray user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Genaray product will considerably shorten its lifespan!
|

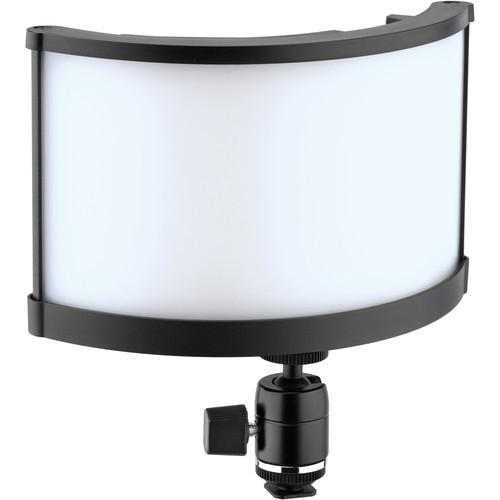

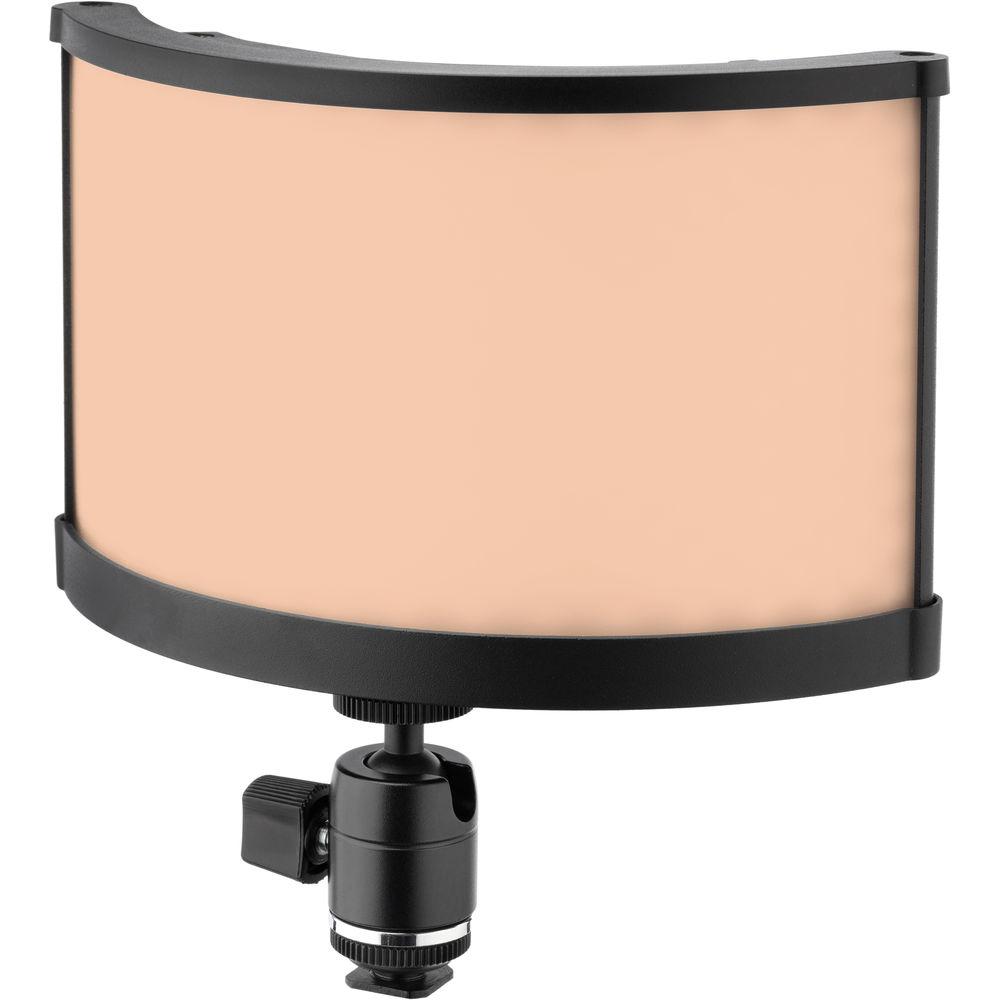

Product description The Genaray 10" Curved Super-Wide Bi-Color SMD LED Light is a variable color temperature light fixture with a range of 3200 to 5600K and dimming from 100 to 10% brightness. It features a total of 600 SMD LEDs (300 daylight and 300 tungsten) with a CRI over 95 for good color reproduction. The fixture is curved and features an integrated diffusion that creates a 180° beam spread.

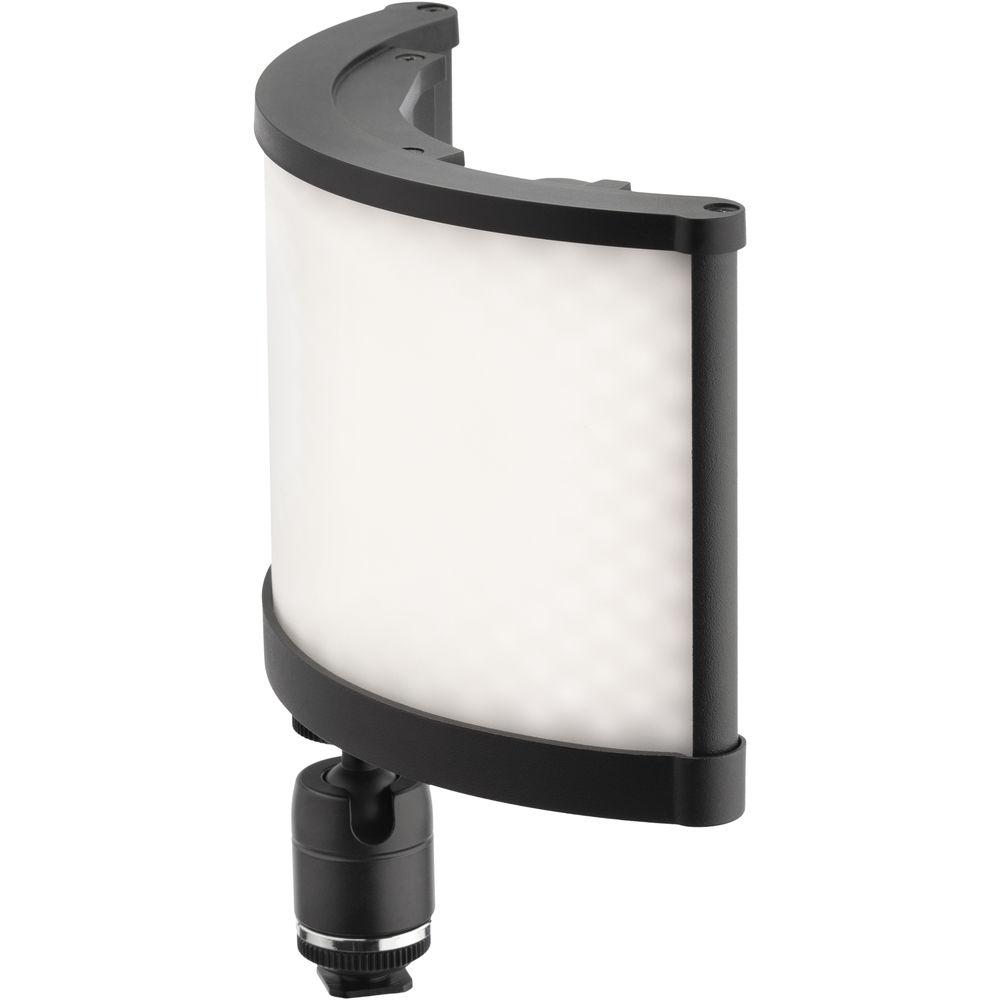

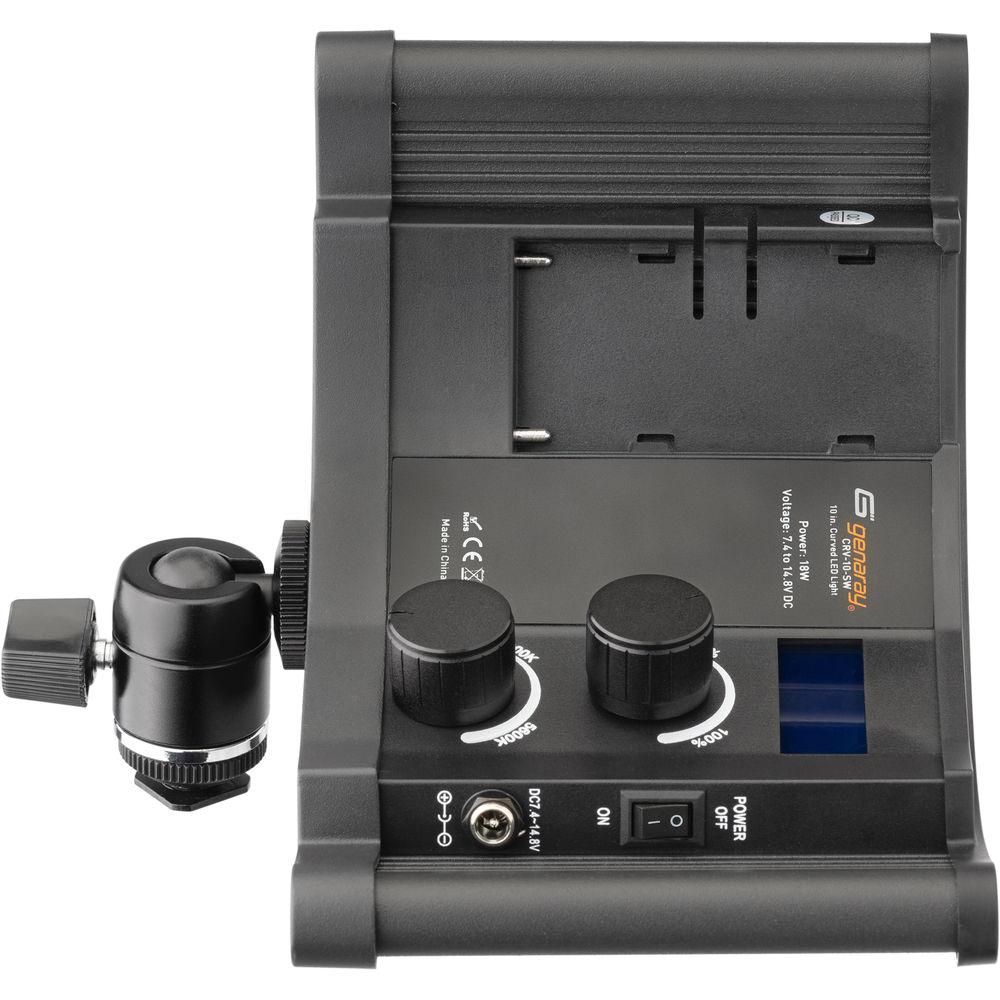

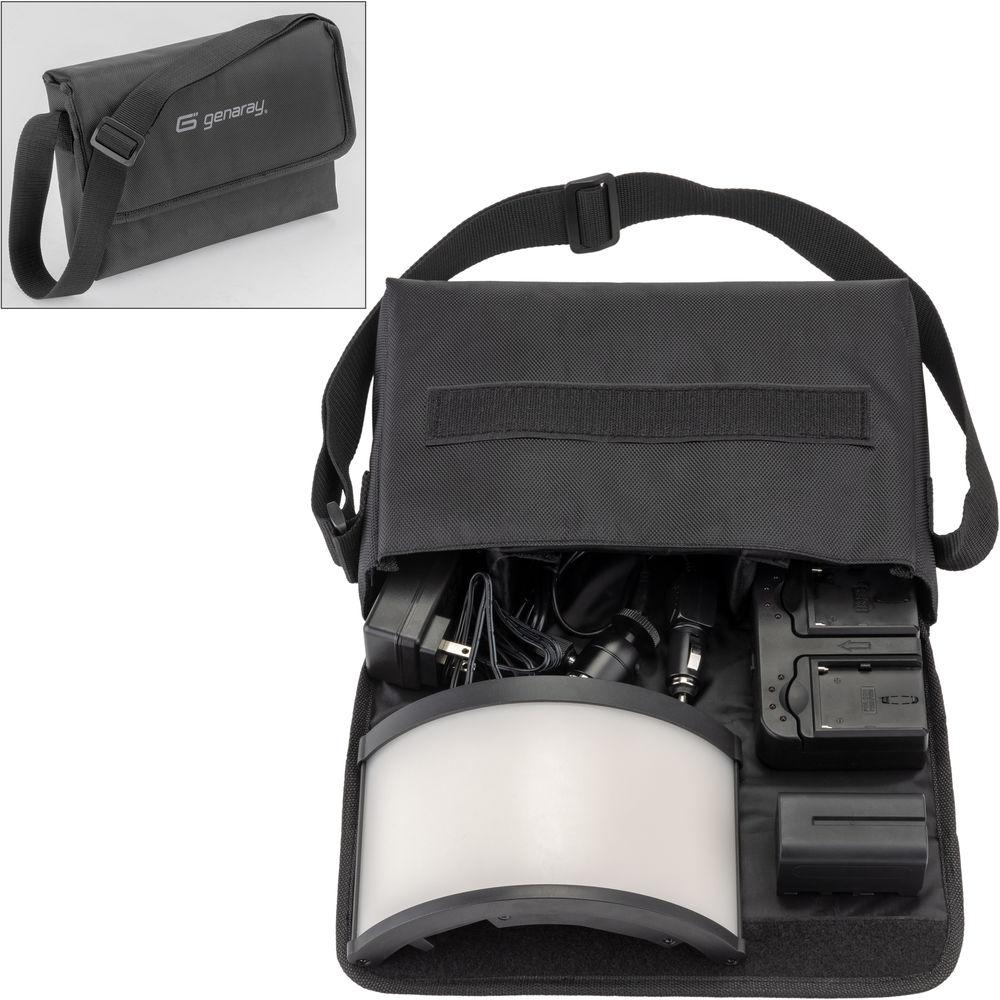

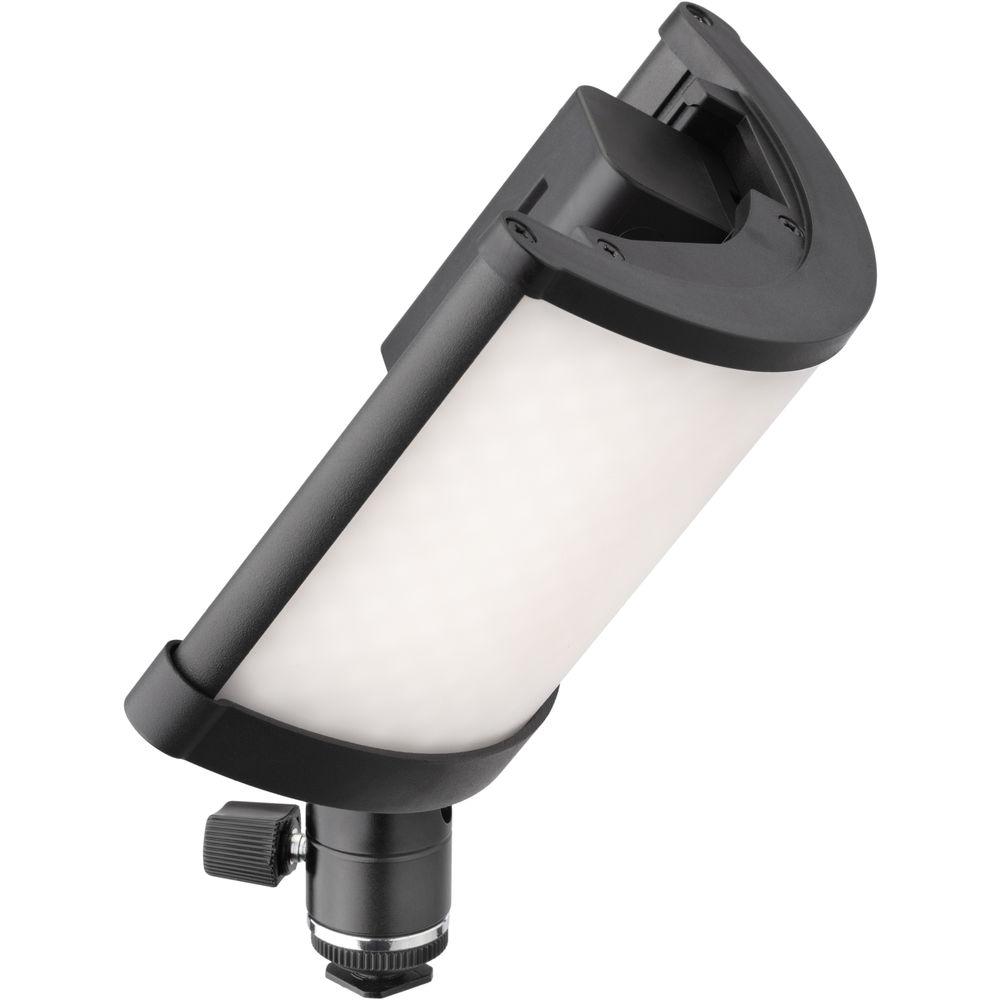

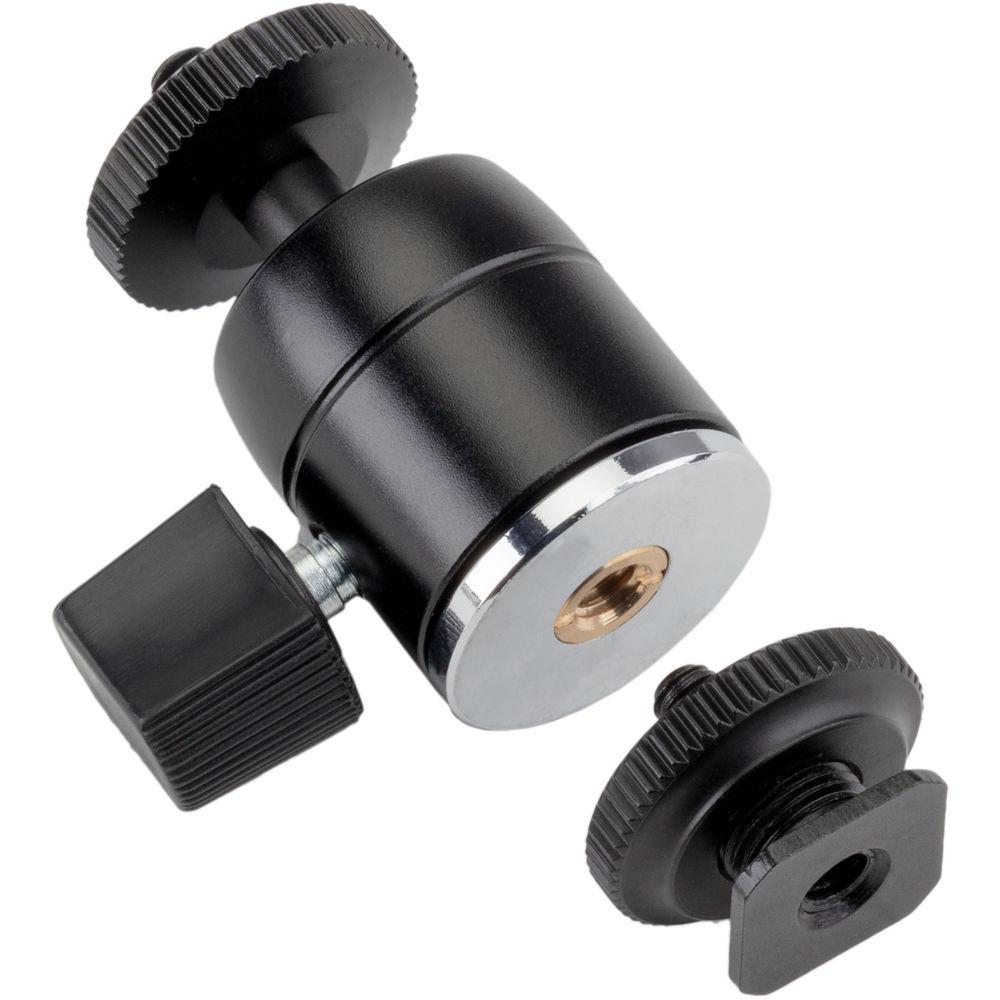

The fixture features a dedicated on/off switch and an LCD display screen that shows dimming level, color temperature, and a battery gauge. Separate knobs provide control over color temperature and dimming. The integrated L-series battery plate allows you to power the fixture using the included L-series type battery, or you can power the light via a pin positive coaxial power plug. Included with the fixture is a cold shoe to 1/4"-20 threaded stud ball joint adapter that interfaces with the fixture's 1/4"-20 threaded mounting hole. A carrying pouch holds the entire light package securely. - The curved design of the fixture, along with the integrated diffusion, helps prevent the light from casting the multiple shadows associated with non-curved array-type LED light fixtures, and it also creates a soft-edged shadow when lighting your subject from the side.
- Well suited for exterior interviews, the fixture's light falloff will help illuminate subjects or the background during on-camera interviews.
-
- 300 tungsten-balanced SMD LEDs
- 300 daylight-balanced SMD LEDs
- CRI rating of 95

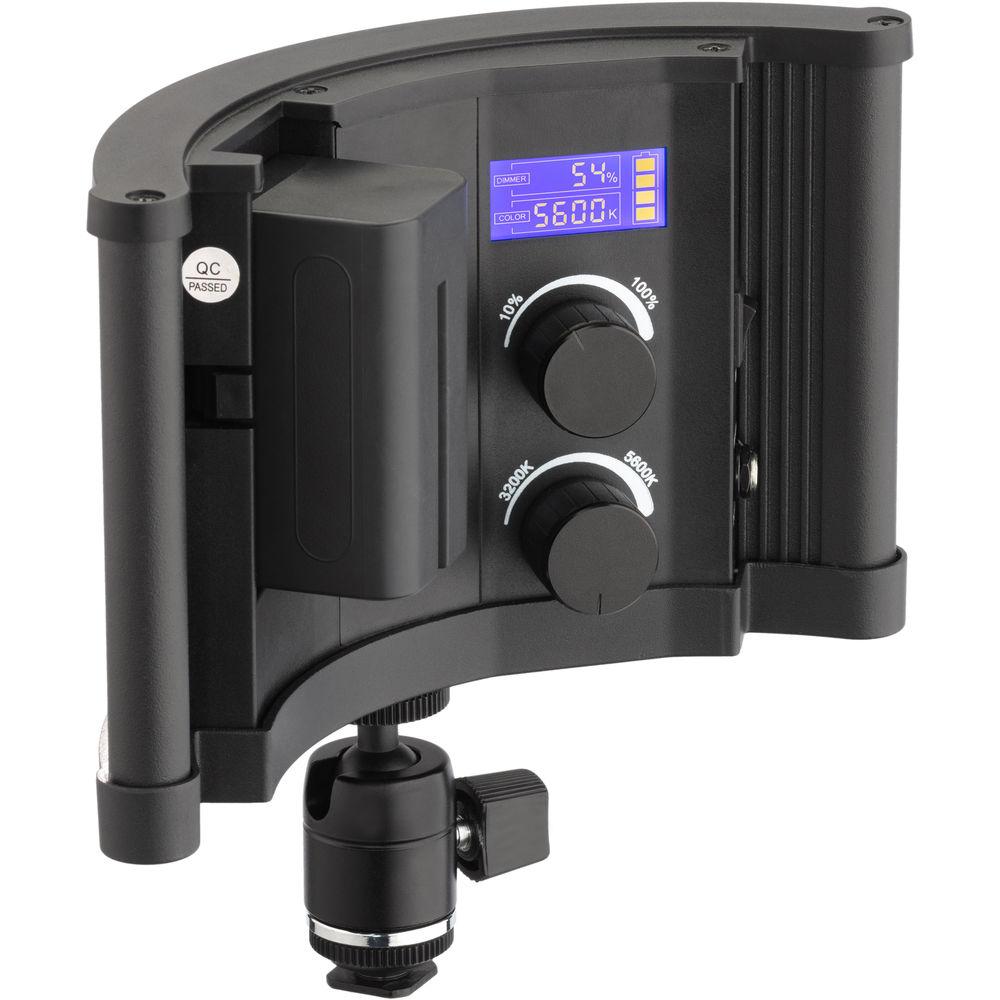

- Integrated LCD screen provides readout of color temperature and dimming

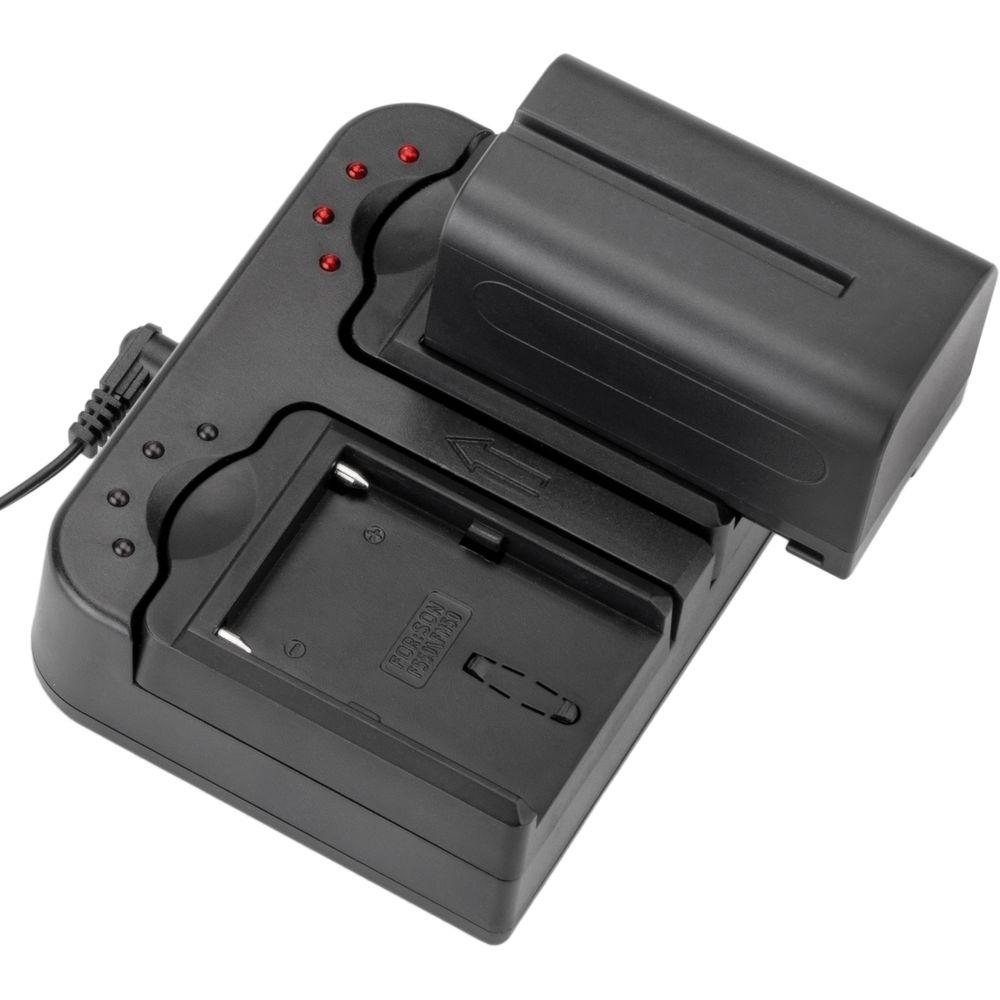

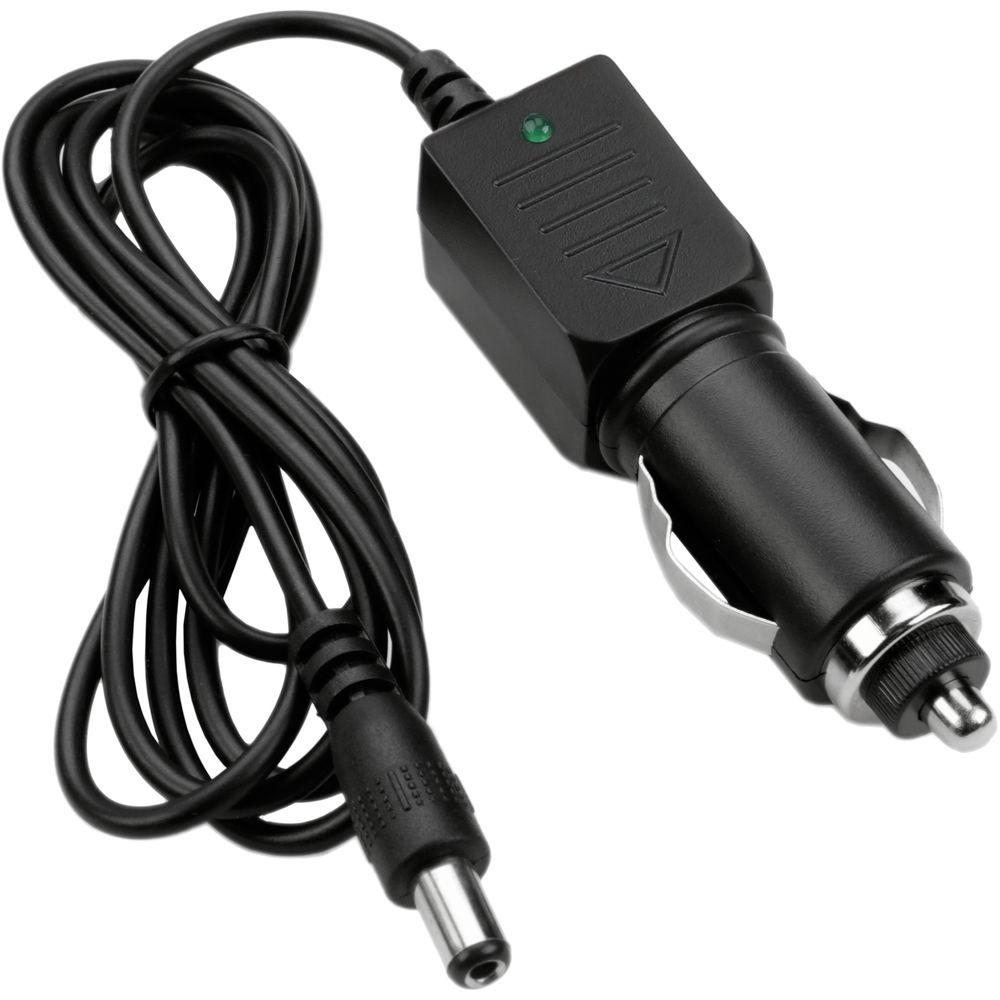

Please note that the dimming and color temperature spin endlessly; however, they have detents that stop them from rotating by themselves. - The fixture includes a power supply that can be used to power the dual-bay battery charger. The charger itself comes with two L-series battery plates which can be removed or swapped out, and four LED indicators. The included car lighter adapter can be used to power the charger as well.
UPC: 847628013438 In the Box Genaray 10" Curved Super-Wide Bi-Color SMD LED On-Camera Light Series-L Battery (NP-F750) Dual Battery Charger with Power Supply Car Lighter Adapter 1/4"-20 to Cold Shoe Ball Joint Adapter Limited 1-Year Warranty User Manual PDF 997.8kb Table of Contents
|
Upload User Manual
Have you got an user manual for the Genaray 10" Curved Super-Wide Bi-Color SMD LED On-Camera Light in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersGenaray CRV-10-SW Specs | | | Beam Angle | 180° | | Color Temperature | 3200K ± 200K
5600K ± 300K | | Color Accuracy Standard | CRI 95
TLCI 98 | | Dimming | Yes, 10 to 100% | | Expected Lamp Life | 40000 Hours | | Number of LEDs | 300 (Daylight)
300 (Tungsten) | | | | Battery Plate | 1 x Sony L-Series (NP-F) | | DC Input Power | 12 to 17 VDC | | Max Power Consumption | 18 W | | Power Input Connector | Barrel / Coax | | Power Source | AC Adapter | | | | Mount Type | 1/4"-20 Female | | Dimensions | 4.8 x 7.5 x 2.6" / 12.2 x 19.1 x 6.6 cm | | Weight | 1.2 lb / 0.54 kg | | | | Package Weight | 3.485 lb | | Box Dimensions (LxWxH) | 12.75 x 8.55 x 3.65" |
