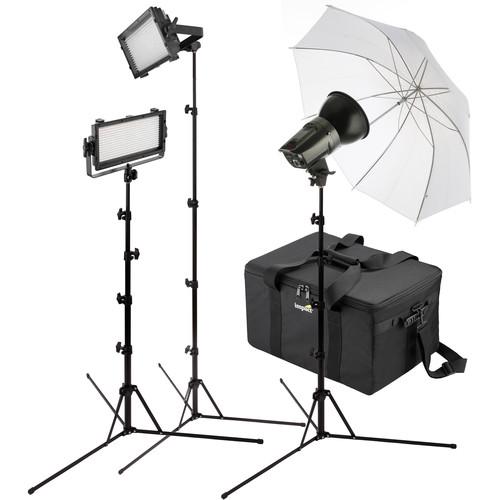

Genaray 3-Light ENG Kit

User Manual for Genaray 3-Light ENG Kit

• Product category: LED Lights Genaray
• Brand: Genaray
• Description and content of package
• Technical information and basic settings
• Frequently asked questions – FAQ
• Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
• Authorized service for Genaray LED Lights

Product description

• Genaray MonoBright Daylight LED 750
  • The Genaray MB-50DWV MonoBright Daylight LED 750
  With its monolight form factor, S-Type front accessory mount and AC or 12 VDC battery power options, the MonoBright Daylight LED 750 fixture from Genaray can be easily integrated into a wide range of projects. The MonoBright employs a HiBrite 5200K microLED PCB to output the equivalent power of a 750W tungsten fixture while consuming only 50W of current. Its high CRI rating of >90 means that the light packs precision with power for faithful rendition of colors down to the subtlest tones. Another handy feature is the dimming range of 10-100% so you won't have to move the light once you have it perfectly positioned. And if you've mounted the MonoBright in a hard to reach place you'll appreciate the inclusion of a 2.4 GHz wireless remote control that can dim the light at distances up to 98' as well as turn it on or off. The MonoBright can run on 100-240 VAC mains voltage for worldwide use but the light also has a 4-pin XLR input for a battery cable and 12V battery (available separately). Also included are a 7", 60 degree umbrella/grid reflector, and shower cap-style diffuser.
  HiBrite microLED PCB
  • Thanks to its HiBrite microLED PCB, the Genaray MonoBright LED 750 delivers 8,000 lux of continuous light and draws only 50W to produce the equivalent output of a 750W open-face tungsten light
  Dimming 10-100%
  • Dim the brightness from 10 to 100% via the onboard controls or the included wireless remote
  Color Rendering Index (CRI) of >90
  • High CRI ensures faithful rendering of colors - even the subtlest tones
  Wireless Remote
  • The included 2.4 GHz remote control allows you to wirelessly adjust output for multiple MonoBright units - even at different settings. The 99 channel unit has a wireless range of up to 98'
  S-Type Front Accessory Mount and Umbrella Channel
  • The MonoBright has an S-type front accessory mount for the included umbrella/grid reflector and the many accessories made by other brands that use this mount. Additionally, the stand mount has a built-in channel for umbrella shafts
  Worldwide AC Voltage and Optional DC Battery
  • The MonoBright can run on worldwide AC voltage or an optional 12 VDC battery via a Genaray MonoBright battery cable (available separately)
  Built-In Memory
  • A built-in memory function saves your settings on the MonoBright control panel. The next time you turn on the MonoBright- even with the wireless remote - your previous settings will appear on the control panel
  LCD Readout
  • LCD display with large numbers for optimal readability, even in bright daylight
  Sleep Mode
  • Powers down the light when not in use
  UPC: 639767568340
• 2 x Genaray SpectroLED Essential 500 Daylight LED Light
  • The Genaray MB-50DWV MonoBright Daylight LED 750
  The SpectroLED Essential 500 Daylight LED Light by Genaray is a 504 LED panel with a daylight-balanced, digital-friendly color temperature of 5600K and 100-0% dimming without color shift or flickering. The SpectroLED offers a 60° flood beam angle and a high CRI for precise and faithful color rendering. The 9.25 x 13.6 x 2.2" panel weighs just 2.5 lb and with its slim profile and barely perceptible warmth can be placed in areas that traditional fixtures just can't go. Another benefit of using LEDs is low power draw; although it uses just 40W of power, it outputs many times that number meaning a rapid return on investment. If you need more power Genaray has got that covered too; the light's removable yoke and included clips allow you to stack up to 3 units for triple the power. You can even "daisy chain" several units using the separately purchased SP-E-MLC Multi-Link Cable which allows 1 "master" unit to control light intensity of the others. Power options are equally versatile. Use the included multi-voltage AC adapter to run the SpectroLED anywhere in the world, or shed the power cord and employ two optional Sony L-series NP-F type batteries when mains current is unavailable.
  Daylight Color Balance
  • The SpectroLED has a digital-friendly, daylight-balanced color temperature of 5600K that facilitates shooting outdoors or in venues with large windows. Filters are easily applied to alter the Kelvin temperature to fit your needs.
  100-0% Dimming
  • The SpectroLED is dimmable from 100-0% without color shift and flicker.
  High CRI
  • The SpectroLED's high CRI rating ensures vibrant, accurate rendition of color.
  Removable Yoke
  • The removable yoke can be mounted horizontally or vertically on a light stand, allowing you to position the fixture so the yoke doesn't cast a shadow.
  Battery or AC Power
  • Power your light with the included multi-voltage AC adapter or with two optional Sony L-series NP-F type batteries when mains power is unavailable.
  Flexible Mounting
  • The light has an industry-standard 5/8" receiver for stand mounting as well as 1/4"-20 top and bottom taps for supports such as ball heads.
  Daisy Chain Control
  • Using Genaray's SP-E-MLC Multi-Link Cable, you can connect multiple SpectroLEDs together and brightness of all of them from one master unit.
  Stackable
  • Thanks to its removable yoke, you can use the included clips to stack up to 3 lights for triple the power.
  UPC: 639767568593
• Impact White Translucent Umbrella (33")
  • The Genaray MB-50DWV MonoBright Daylight LED 750
  Umbrellas soften, broaden, and diminish the light output of any flash light source. Umbrellas with a white interior will soften and weaken light more than an umbrella with a silver lining. A white umbrella without a black backing may also be used as a makeshift softbox, although the use of the light will not be as efficient as with a lightbox.Choosing umbrella size is determined by the size of the subject, and the strength of the light supply being used. Choosing an umbrella surface is as subjective as choosing a paint and brush.This Impact 33" White Translucent Umbrella is suggested for use in head-and-shoulders portraits for one or two persons. UPC: 847628013278
• 3 x Impact LS-RL7 7.2' Reverse Legs Light Stand
  • The Genaray MB-50DWV MonoBright Daylight LED 750
  This Impact LS-RL7 7.2' Reverse Legs Light Stand is a lightweight support that's ideal for location work or in the studio for use with a small lights or to hold reflectors. This is one of the few stands to be able to sit completely flush to the floor where they can be taped down or sandbagged to stabilize its load. The LS-RL7's unique design allows the legs to fold up around the central risers somewhat like an inverted umbrella. The result is a 7.2' light stand that breaks down to only 19.5" - short enough to fit in even the smallest light kit bags. The stand is topped with a 5/8" mounting stud with 3/8" threads, a 3/8" 1/4"-20 adapter, and weighs just 2.6 lb. UPC: 847628566576
• Impact LKB-4C Light Kit Bag (Black)
  • The Genaray MB-50DWV MonoBright Daylight LED 750
  The 22 x 16 x 13", black LKB-4C Light Kit Bag from Impact is a lightweight yet durable case designed to safely transport and protect lighting equipment. Ideally sized for LED panels, it is also suitable for studio strobe systems, continuous light systems, and a variety of equipment needed in the studio or on location.

  The outer shell and interior walls are all reinforced with heavy-duty plastic panels to ensure the structural integrity of the bag. Adjustable dividers can be configured to your needs within the 20 x 14 x 11" interior to keep your lights and gear organized and secure. A generous zippered mesh storage compartment provides plenty of room for cables and other small accessories.

  The LKB-4C has a weather-resistant, heavy-duty 600-denier ballistic nylon shell fitted with anti-slip rubber feet. Carrying options include a detachable, adjustable shoulder strap, overlapping top handles, and rubber grip side handles. For added security, the heavy-gauge dual zippers accept an optional lock.
  Weather Resistant
  • A heavy-duty 600D nylon shell shields your lighting equipment from moisture and dust.
  Reinforced Wall Construction
  • Sides of the bag are reinforced with heavy-duty plastic panels to ensure the protection of your gear from impacts encountered during transport.
  Interior Lining
  • The interior lining is gray for locating gear in low light.
  Double Zipper
  • The double zipper closure provides easy access to your gear, and features loops that accept a lock (sold separately).
  Mesh Storage Compartment in Lid
  • The zippered mesh storage compartment in the lid is ideal for securing and organizing cables and small accessories.
  Shoulder Strap
  • The removable, easily adjustable shoulder strap includes a cushioned shoulder pad for comfort.
  Side Handles
  • Heavy-duty rubber grip side handles add lifting and carrying options.
  Adjustable Dividers
  • The four internal dividers can be configured to your needs, keeping your gear secure by preventing contact that could result in scratches.
  One-Time Setup
  • The padded L-shaped side panels use multiple strong touch-fastener strips on the interior walls of the bag, forming a rigid rectangular shape under the weather-resistant outer shell. Once the panels are secured in place, no further setup for future use is needed.
  Rubber Feet
  • For added security, non-slip rubber feet are attached to the bottom of the bag.
  UPC: 847628002319

• MonoBright Daylight LED 750 crdtebsweqrfedxtfxqsaec
• Wireless Transmitter
• Reflector: 7"
• Transport Cap
• Diffuser Cover
• AC Cable
• Limited 1-Year Warranty

• 2 x SpectroLED Essential 500 Daylight LED Light crdtebsweqrfedxtfxqsaec

• Impact - Umbrella - White Translucent (33")

• 3 x Impact - LS-RL7 7.2' Reverse Legs Light Stand

• Impact - LKB-4C Light Kit Bag (Black)

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

• Genaray MonoBright Daylight LED 750

  Beam Angle	60°
  Color Temperature	5200K ± 300K
  Color Accuracy Standard	CRI 90
  Cooling System	Fan
  Dimming	Yes, 10 to 100% (Stepped)
  Display	LCD
  Housing Material	Polymer
  Photometrics	60° at 5200K: 743.2 fc / 8000 lux at 3' / 0.91 m
  Expected Lamp Life	50,000 Hours
  Fixture Dimensions	8.0 x 6.0 x 8.2" / 20.3 x 15.2 x 21.0 cm
  Fixture Weight	2.45 lb / 1.1 kg

  Battery Plate	None
  Power Input Connector	4-Pin XLR
  DMX Connector	None

  Reflector Mount	Bowens S-Type
  Lens Diameter	7" / 17.78 cm

  Fixture Mount	5/8" Receiver
  Accessory Mount	None

  Remote Control Type	Proprietary Wireless
  Wireless Range	98' / 30 m
  Wireless Channels / Groups	99 / X

  AC Input Power	100 to 240 VAC, 50 / 60 Hz
  DC Input Power	12 to 17 VDC
  Power Source	AC Adapter, External Battery
  Max Power Consumption	50 W
  Fuse	None

  Certifications	CE, FCC, RoHS, as per Manufacturer
  IP Rating	IP20

  Box Dimensions (LxWxH)	13.7 x 10.3 x 8.7"

• 2 x Genaray SpectroLED Essential 500 Daylight LED Light

  Beam Angle	60°
  Color Temperature	5600K
  Color Accuracy Standard	CRI 95
  Cooling System	None
  Dimming	Yes, 0 to 100%
  Display	None
  Number of LEDs	504
  Expected Lamp Life	30,000 Hours
  Fixture Dimensions	9.2 x 13.6 x 2.2" / 23.4 x 34.5 x 5.6 cm
  Fixture Weight	1.6 lb / 0.7 kg 2.5 lb / 1.1 kg (Including Yoke)

  Battery Plate	2 x Sony L-Series (NP-F)

  Fixture Mount	5/8" Receiver
  Accessory Mount	2 x 1/4"-20 Female

  AC Input Power	100 to 240 VAC, 50 / 60 Hz
  DC Input Power	12 to 14.4 VDC
  Power Source	AC Adapter, External Battery
  Max Power Consumption	40 W

  IP Rating	IP20

  Box Dimensions (LxWxH)	15.8 x 10.5 x 4.7"

• Impact White Translucent Umbrella (33")

  Size	33.0" / 83.8 cm
  Interior	White (Translucent)
  Shaft Diameter	8 mm
  Folded Size	L: 23.0" / L: 58.4 cm

  Box Dimensions (LxWxH)	21.55 x 3.7 x 1.6"

• 3 x Impact LS-RL7 7.2' Reverse Legs Light Stand

  Load Capacity	3.3 lb / 1.5 kg
  Mounting Options	1/4"-20 Male Thread 3/8"-16 Male Thread 5/8" Stud
  Number of Sections	5
  Column Diameter	0.98" / 2.5 cm 0.87" / 2.2 cm 0.75" / 1.9 cm 0.63" / 1.6 cm 0.51" / 1.3 cm
  Maximum Working Height	86" / 218 cm
  Minimum Working Height	19.3" / 49 cm
  Collapsed Height	19.5" / 49.5 cm
  Footprint Diameter	39.4" / 100 cm
  Air Cushioned	No
  Detachable Base	No
  Leveling Leg	No
  Reverse Legs	Yes
  Finish	Black
  Material	Aluminum
  Weight	2.6 lb / 1.2 kg

  Box Dimensions (LxWxH)	20.8 x 3.85 x 3.15"

• Impact LKB-4C Light Kit Bag (Black)

  Interior Dimensions	11 x 20 x 14" / 27.9 x 50.1 x 35.6 cm

  Closure Type	Zipper
  Carry and Transport Options	Shoulder Strap Handle
  Material of Construction	Nylon
  Exterior Dimensions (W x H x D)	13 x 22 x 16" / 33 x 55.9 x 40.6 cm
  Weight	8 lb / 3.6 kg

  Box Dimensions (LxWxH)	21.0 x 16.0 x 7.0"
