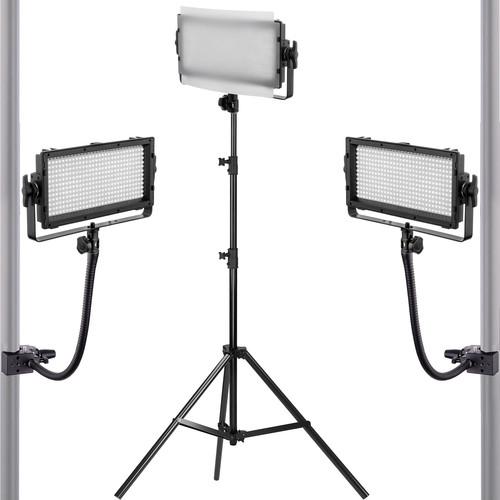

User Manual for Genaray 3-Light SpectroLED 365 Go Kit with Light Stand

• Product category: LED Lights Genaray
• Brand: Genaray
• Description and content of package
• Technical information and basic settings
• Frequently asked questions – FAQ
• Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
• Authorized service for Genaray LED Lights

Product description

• 3 x Genaray SpectroLED Essential 365 Daylight LED Light
  • The Genaray SpectroLED Essential 365 Daylight LED Light
  The SpectroLED Essential 365 Daylight LED Light by Genaray is a 360 LED panel with a daylight-balanced, digital-friendly color temperature of 5600K and 100-0% dimming without color shift or flickering. The SpectroLED offers a 60° flood beam angle and a high CRI for precise and faithful color rendering. The 9.25 x 13.6 x 2.2" panel weighs just 2.5 lb and with its slim profile and barely perceptible warmth can be placed in areas that traditional fixtures just can't go. Another benefit of using LEDs is low power draw; although it uses just 40W of power, it outputs many times that number meaning a rapid return on investment. If you need more power Genaray has got that covered too; the light's removable yoke and included clips allow you to stack up to 3 units for triple the power. You can even "daisy chain" several units using the separately purchased SP-E-MLC Multi Link Cable, which allows one "master" unit to control light intensity of the others. Power options are equally versatile. Use the included multi-voltage AC adapter to run the SpectroLED anywhere in the world, or shed the power cord and employ two optional Sony L-series NP-F type batteries when mains current is unavailable.
  Daylight Color Balance
  • The SpectroLED has a digital-friendly, daylight-balanced color temperature of 5600K that facilitates shooting outdoors or in venues with large windows. Filters are easily applied to alter the Kelvin temperature to fit your needs.
  100-0% Dimming
  • The SpectroLED is dimmable from 100-0% without color shift and flicker.
  High CRI
  • The SpectroLED's high CRI rating ensures vibrant, accurate rendition of color.
  Removable Yoke
  • The removable yoke can be mounted horizontally or vertically on a light stand, allowing you to position the fixture so the yoke doesn't cast a shadow.
  Battery or AC Power
  • Power your light with the included multi-voltage AC adapter or with two optional Sony L-series NP-F batteries when mains power is unavailable.
  Flexible Mounting
  • The light has an industry-standard 5/8" receiver for stand mounting as well as 1/4"-20 top and bottom taps for supports such as ball heads.
  Daisy Chain Control
  • Using Genaray's SP-E-MLC Multi Link Cable, you can connect multiple SpectroLEDs together and brightness of all of them from one master unit.
  Stackable
  • Thanks to its removable yoke, you can use the included clips to stack up to three lights for triple the power.
  UPC: 639767568821
• 2 x Impact BHE-102 Heavy-Duty Flex Arm for Super Clamp
  • The Genaray SpectroLED Essential 365 Daylight LED Light
  This Impact BHE-108 Flex Arm for Super Clamp is ideal for supporting small lights, reflectors or other items up to 1.1 lb . Made of flexible aluminum, the 18 mm diameter arm measures 21.65" long and can be twisted into configurations that would be impossible with a jointed articulating arm. One end of the arm has a 3/8" female tapped hex stud to prevent torsion in the Super Clamp. The other end terminates in a 1/4"-20 screw on a 5/8" stud. UPC: 847628554795
• 2 x Impact Super Clamp with Ratchet Handle
  • The Genaray SpectroLED Essential 365 Daylight LED Light
  The Impact Super Clamp with Ratchet Handle is a versatile grip tool made of lightweight cast alloy. With a load capacity of 33 lb, the clamp can hold a wide variety of items such as cameras, lights, umbrellas, hooks, shelves, plate glass, cross bars, even other Super Clamps.The Super Clamp can be securely mounted on any tube or pipe from 0.5" to 2.1" and is supplied with a wedge insert for clamping onto flat surfaces. The ratchet handle allows you to disengage it and tighten it down from any angle; a very handy feature when you're using the clamp in tight quarters. A built-in socket holds 5/8" accessories such as the supplied SRP-102 Hex Stud with 1/4"-20 male thread. UPC: 847628538870
• Impact Air-Cushioned Light Stand (Black, 8')
  • The Genaray SpectroLED Essential 365 Daylight LED Light
  This aluminum Impact Air-Cushioned Light Stand rises to a height of 8' and folds down to 29.6". The stand has sure-twist section locks and 4 sections and will support up to 8 lb. If you forget to tighten any section with your light mounted, the light slowly descends, thanks to the air-cushioned action. This useful feature saves equipment and fingers from harm during busy photo sessions.
  Air Cushioned
  • Protects equipment from impact damage.
  Compact Design
  • Will fit easily into most location cases.
  Accepts Casters
  • Eases positioning of heavy lights.
  • Available as accessories.
  UPC: 847628012349

• 3 x SpectroLED Essential 365 Daylight LED Light bzqzsyvutqcfvrtfatxdczrwsqdvzefz
• Yoke
• AC Adapter
• AC Power Cord
• Diffuser
• 2 x Stacking Clips
• Limited 1-Year Warranty

• 2 x Impact - BHE-102 Heavy-Duty Flex Arm for Super Clamp

• 2 x Impact - Super Clamp with Ratchet Handle

• Impact - Air-Cushioned Light Stand (Black, 8')

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

• 3 x Genaray SpectroLED Essential 365 Daylight LED Light

  Beam Angle	60°
  Color Temperature	5600K
  Color Accuracy Standard	CRI 95
  Cooling System	None
  Dimming	Yes, 0 to 100%
  Display	None
  Number of LEDs	360
  Expected Lamp Life	30,000 Hours
  Fixture Dimensions	9.2 x 13.6 x 2.6" / 23.4 x 34.5 x 6.6 cm
  Fixture Weight	1.6 lb / 0.7 kg 2.5 lb / 1.1 kg (Including Yoke)

  Battery Plate	2 x Sony L-Series (NP-F)

  Fixture Mount	5/8" Receiver
  Accessory Mount	2 x 1/4"-20 Female

  AC Input Power	100 to 240 VAC, 50 / 60 Hz
  DC Input Power	12 to 14.4 VDC
  Power Source	AC Adapter, External Battery
  Max Power Consumption	30 W

  IP Rating	IP20

  Box Dimensions (LxWxH)	15.9 x 10.5 x 4.7"

• 2 x Impact BHE-102 Heavy-Duty Flex Arm for Super Clamp

  Construction	Aluminum, brass
  Load Capacity	1.1 lb (0.49 kg)
  Dimensions	Length: 21.65" (55 cm) Diameter: 0.7" (18 mm) Studs: 5/8" (16 mm) hex with 3/8" tap 5/8" (16 mm) stud with 1/4"-20 male
  Weight	1.57 lb (0.7 kg)

  Box Dimensions (LxWxH)	24.05 x 1.55 x 1.3"

• 2 x Impact Super Clamp with Ratchet Handle

  Clamp Type	Jaw
  Jaw Shape	Round
  Jaw Opening	0.5 to 2.1 " / 1.3 to 5.3 cm
  Load Capacity	33 lb / 15 kg
  Weight	1.4 lb / 0.6 kg

  Box Dimensions (LxWxH)	10.2 x 5.35 x 2.3"

• Impact Air-Cushioned Light Stand (Black, 8')

  Maximum Load	8 lb (3.6 kg)
  Leg Tip	20 mm
  Attachment Size	5/8" Stud with 1/4"-20 in threaded tip
  Accepts Wheels	Yes
  Air Cushioned	Yes
  Maximum Height	96" (243.8 cm)
  Minimum Height	34" (86.3 cm)
  Folded Height	29.6 (75.2 cm)
  Footprint Diameter	36" (91.4 cm)
  Weight	2.05 lb (1 kg)

  Box Dimensions (LxWxH)	29.75 x 3.2 x 3.15"
