Product description - Genaray: 10 Beautiful LED Strip Light Setups

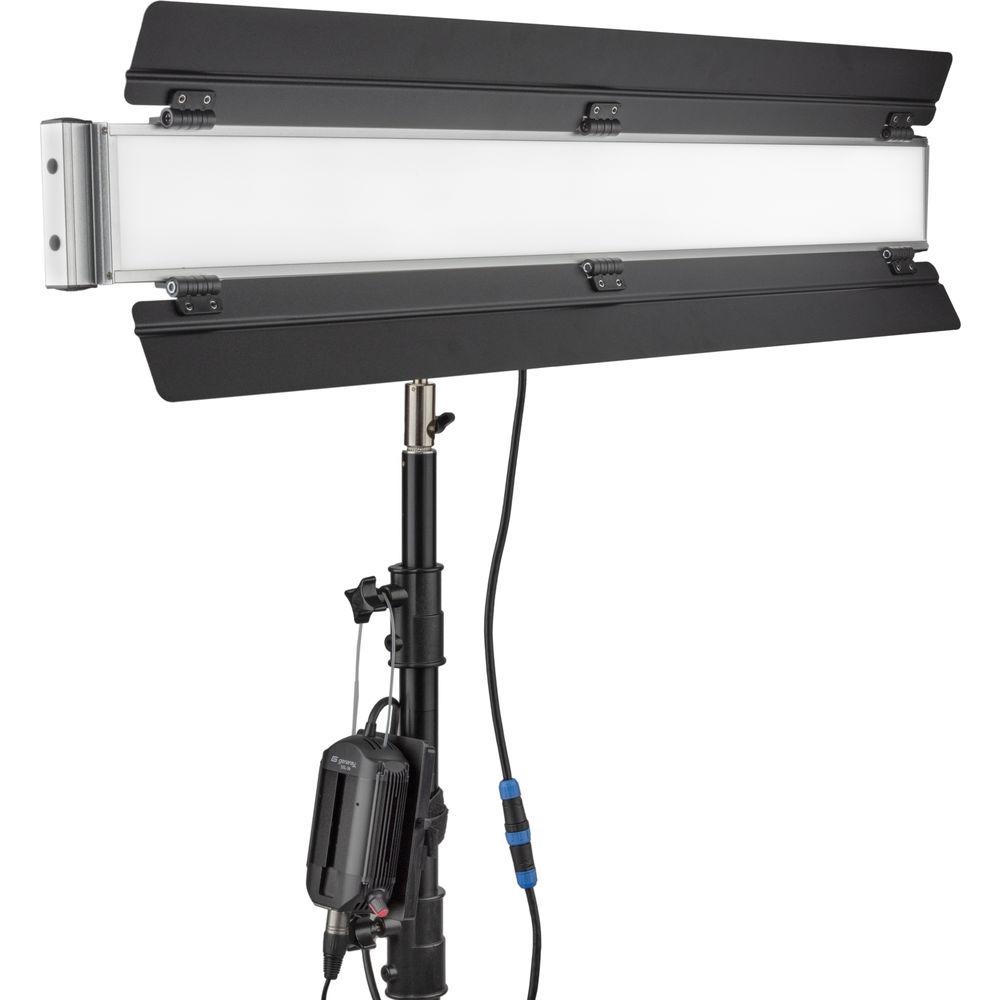

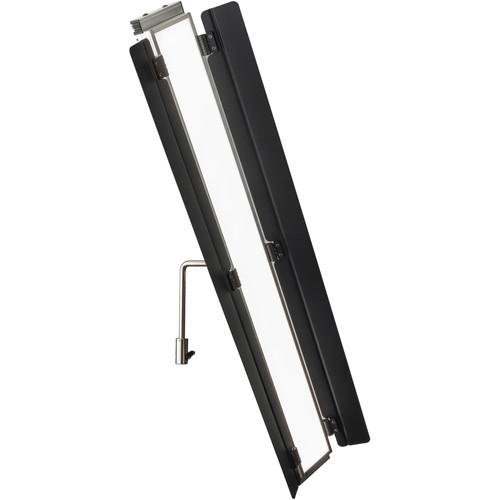

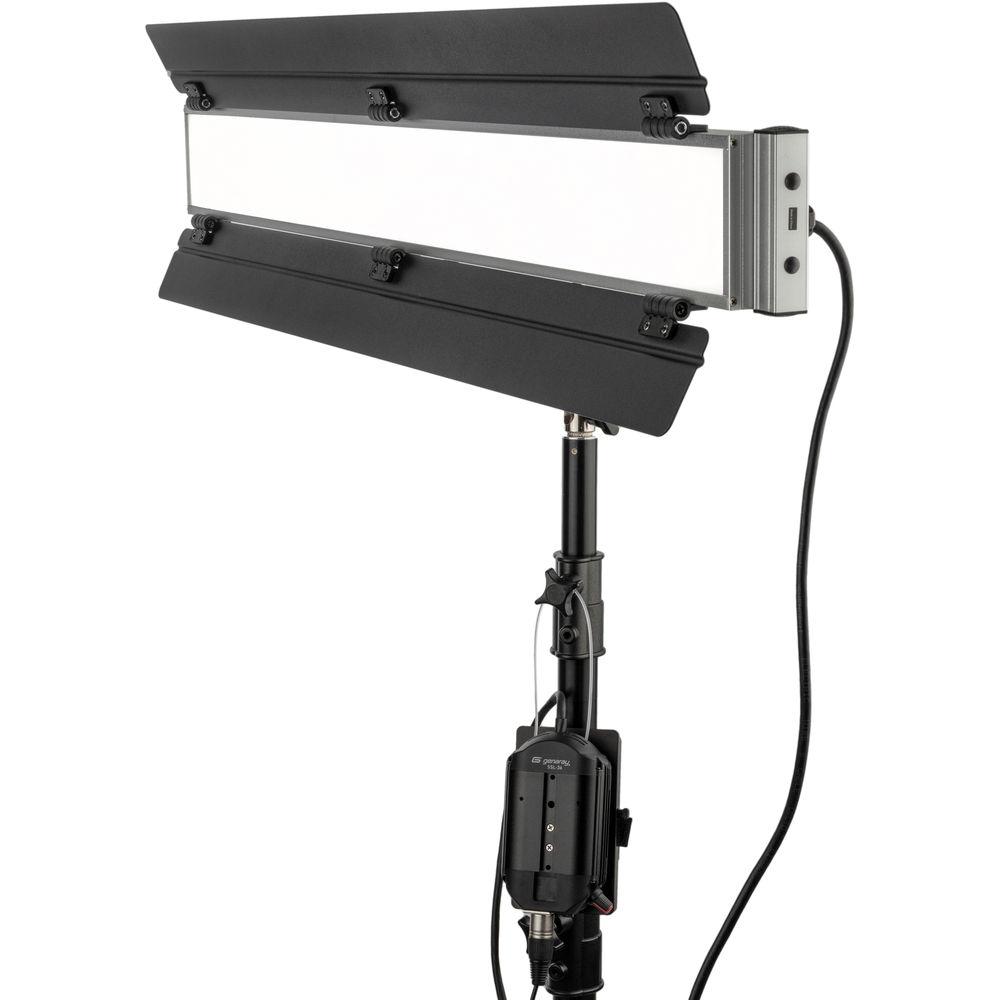

Offering 256 bright LEDs with a soft wrap-around quality thanks to its long, narrow form factor, the 36" long Soft Strip LED Light from Genaray is a versatile fixture with features easy to use in the studio or on location. The light has color temperature that's a solid, daylight-balanced 5600K with a high CRI/TLCI rating of 95/98.3, an indicator of precise color rendering. Light intensity is conveniently variable from 10 to 100% without flicker, avoiding moving the fixture back and forth to achieve the desired illumination level. The SSL-36 runs barely warm to the touch, allowing you to work close to the subject without causing discomfort or hot light hazards. The power-saving light produces an output of 977 lux at 3.3' while consuming just 56W of power, ensuring a fast return on investment. The long, narrow fixture can be used vertically or horizontally. In vertical orientation, the SSL-36 is ideal for use as a sidelight or for dramatic lighting. It also creates long, elegant reflections when shooting products. It horizontal mode, the light has a wrap-around quality with appealing falloff at the top and bottom of the frame. Another use is overhead as a hairlight. The SSL-36 has a beam angle coverage of 60 degrees which can be modified and controlled by its 2-way barndoors. The fixture comes with a multi-voltage adapter that makes it ready for world use, but it can also run on optional V-mount batteries when AC power is unavailable. A case is included to store and transport the light. - Horizontal or Vertical Orientation

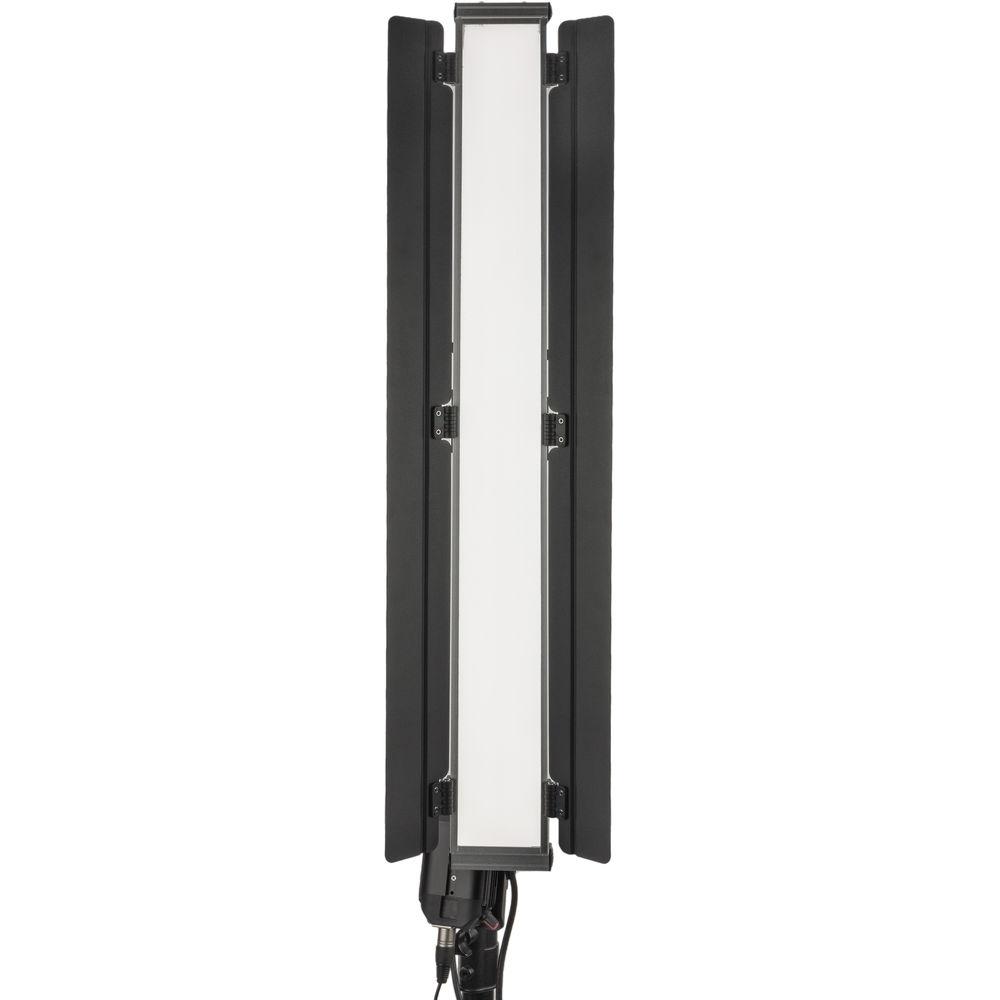

- The long, thin form factor gives a wrap-around quality when used horizontally. Used vertically, it's well-suited for a sidelight or for lighting objects and casting a long, elegant reflection.

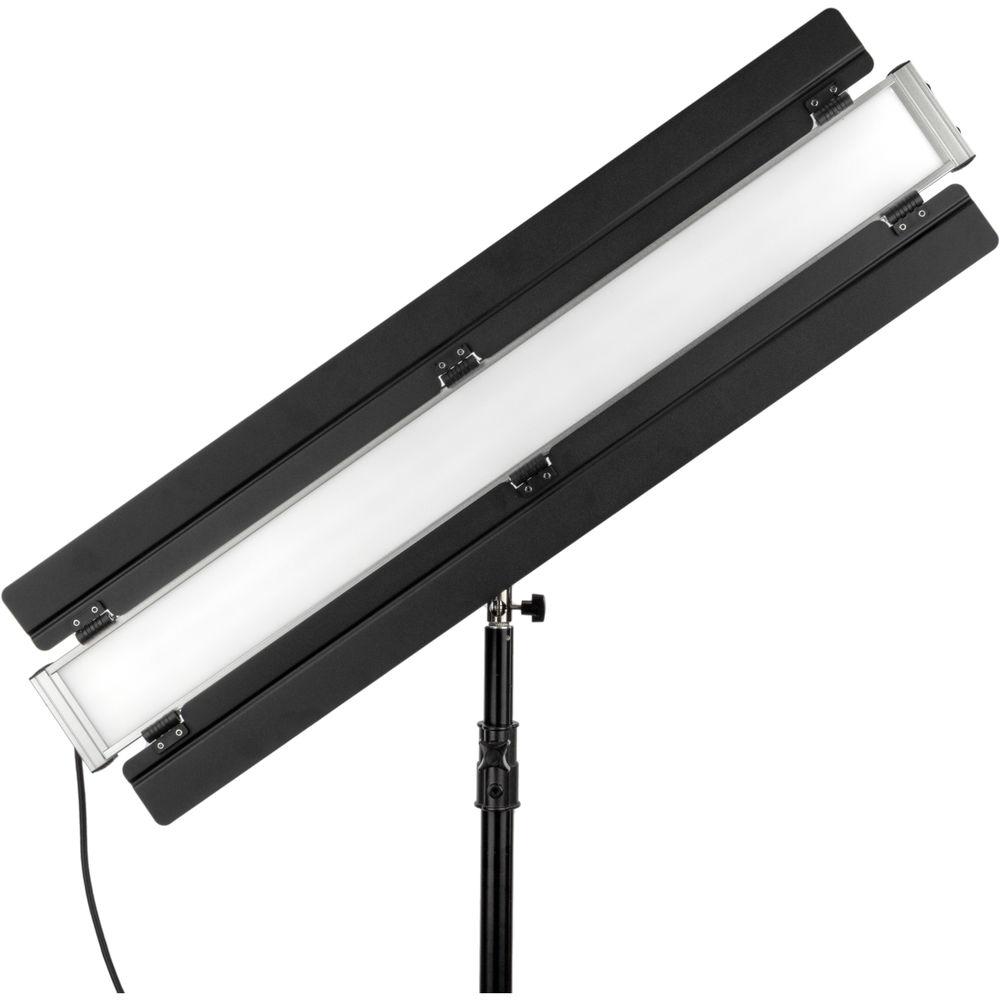

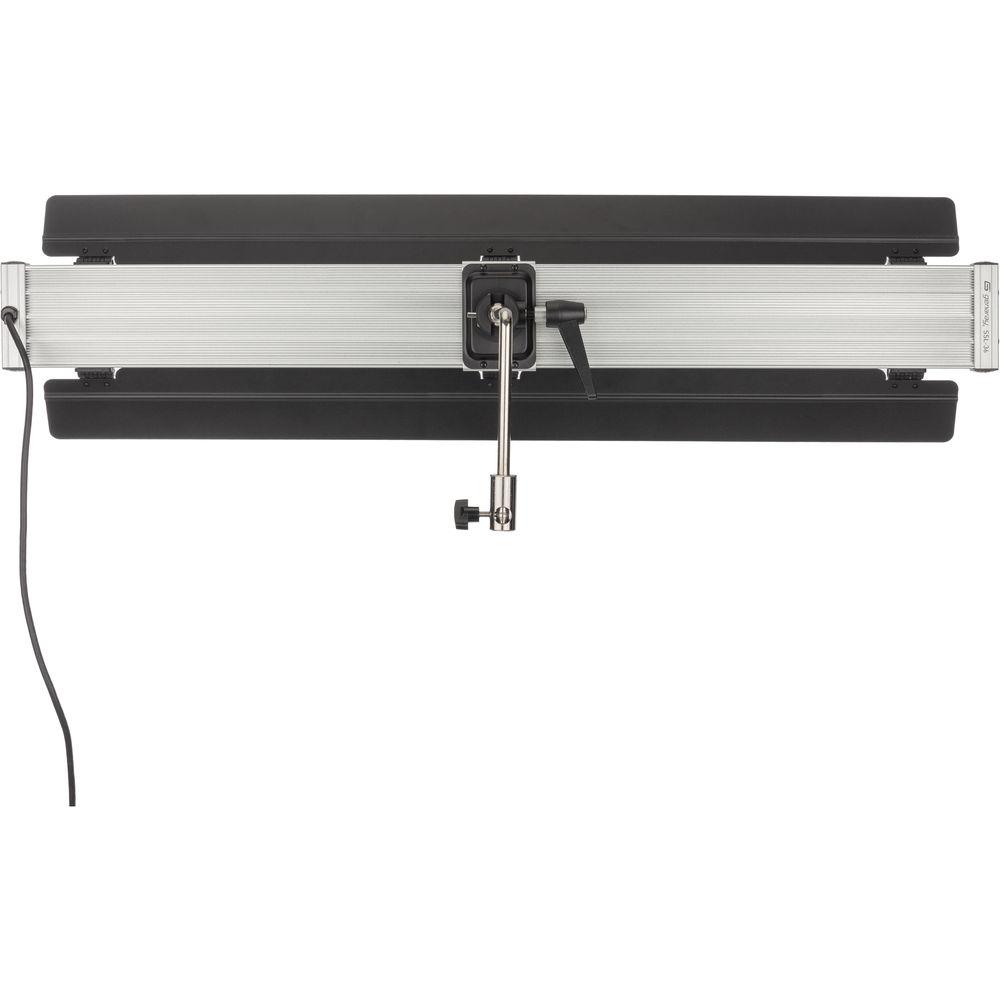

- 2-Way Barndoors
- This simple but effective modifier allows you to swing one or more leaves into the light's beam for selective lighting of your subject.

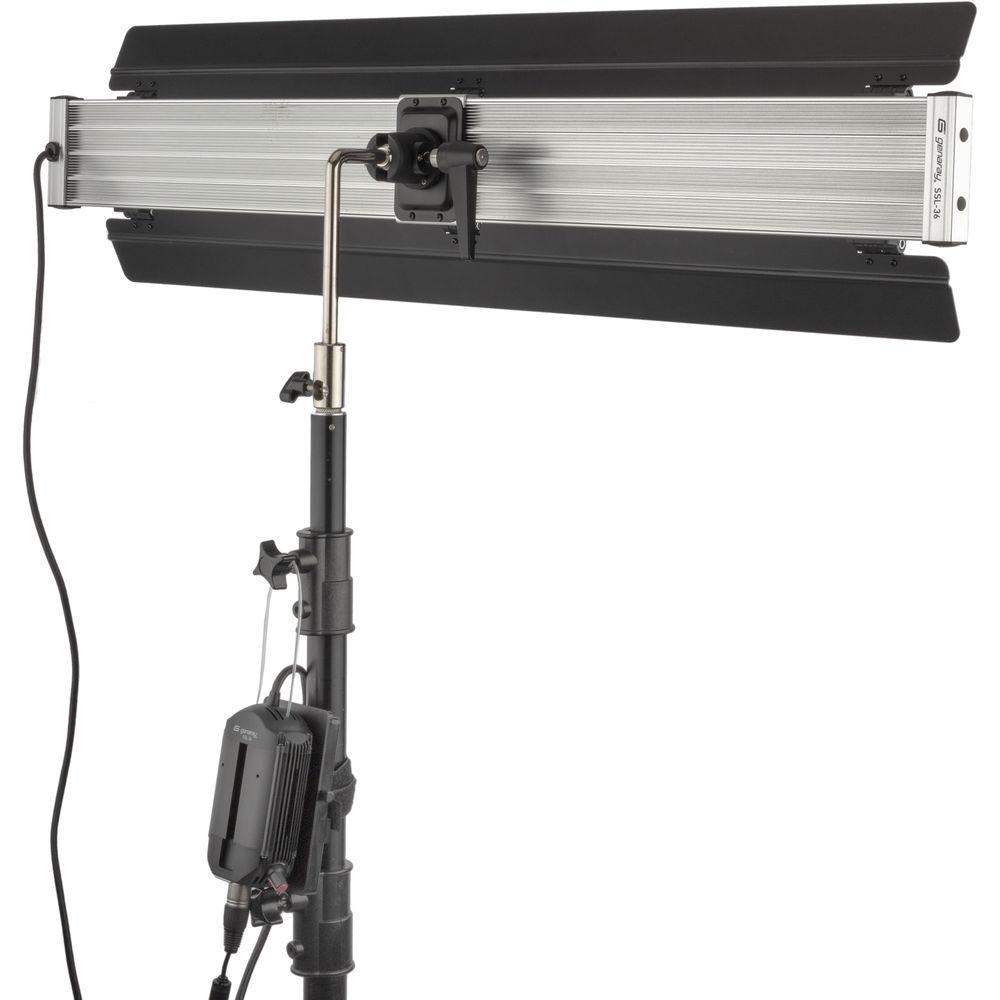

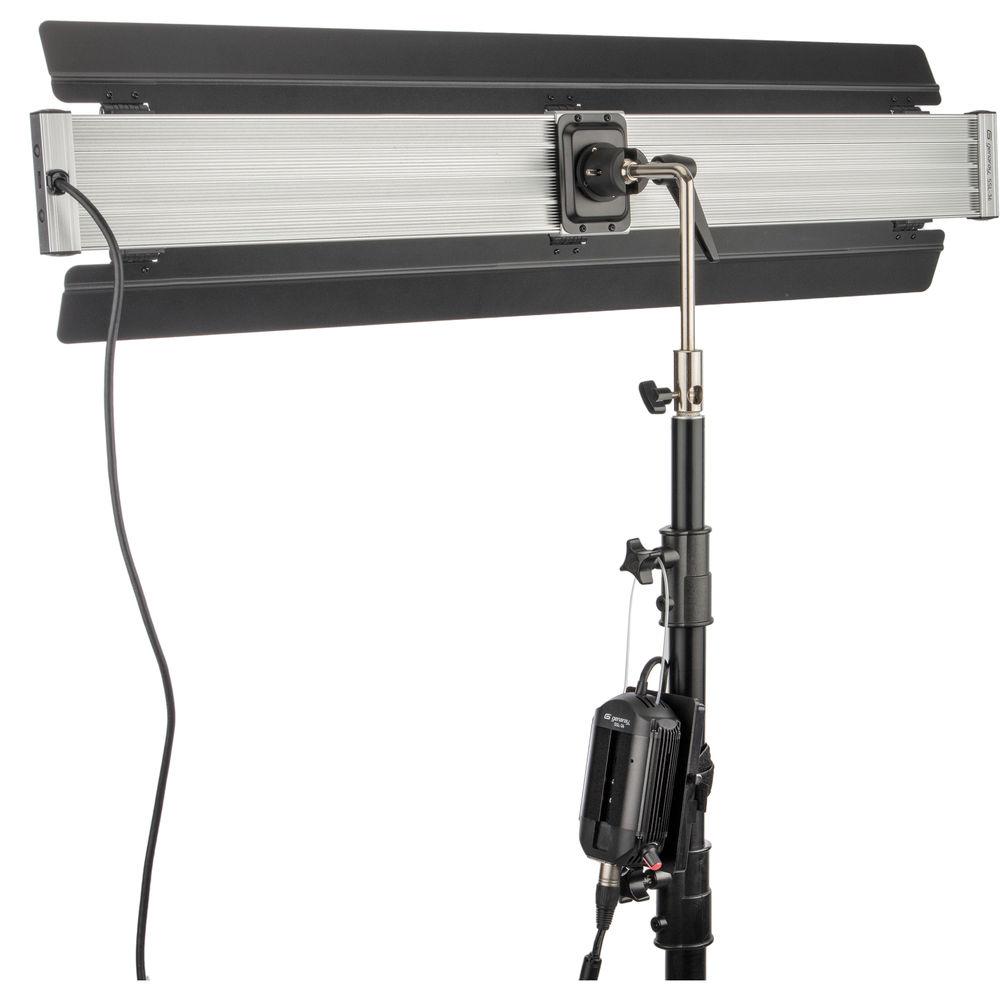

- Lollipop Mount
- The mount incorporates a ball head attachment that allows fine-tuning of the light's positioning.
- AC or Optional Battery Power

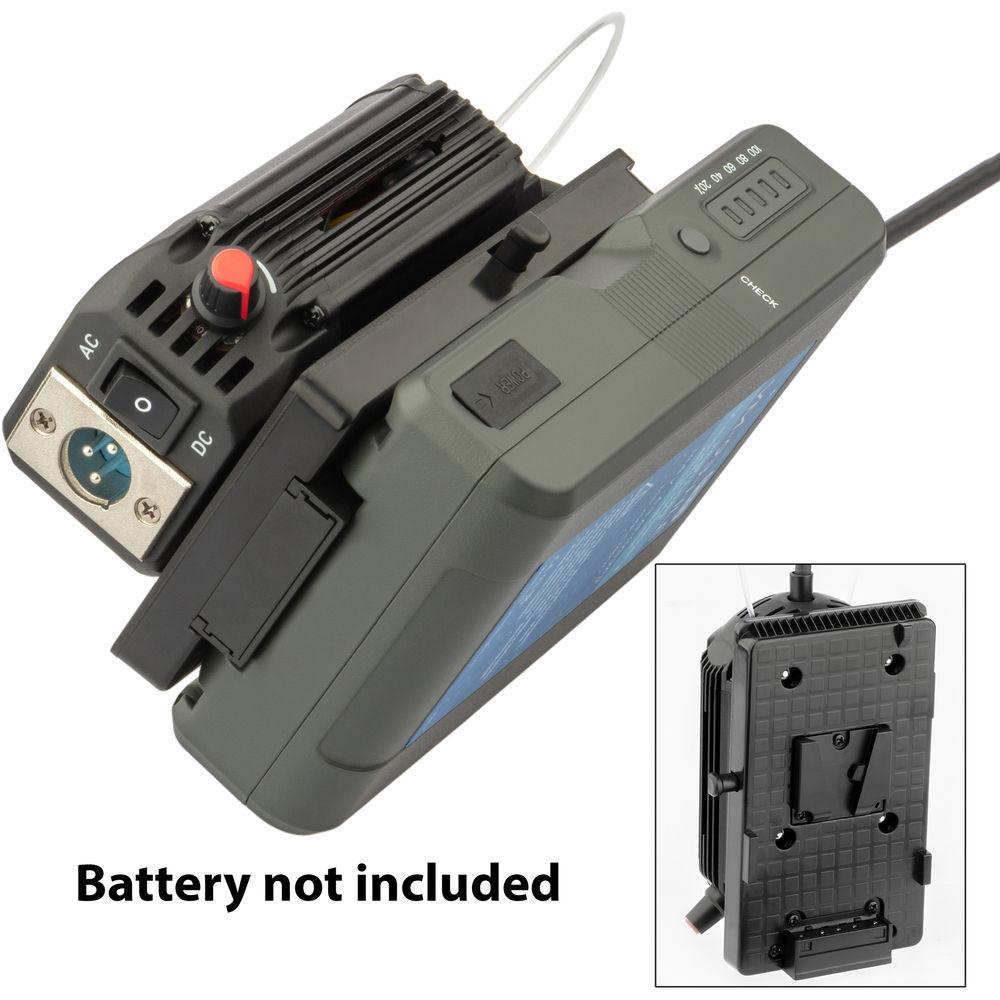

- The SSL-36 ships with a multi-voltage 100-240 VAC power supply but it can also run on V-mount batteries when mains power is unavailable.
- Even Illumination
- The SSL-36 provides even illumination along its 36-inch length, without noticeable hot spots. When shooting full-length portraits or group shots, this fixture bathes your subjects in soft and diffuse wraparound light without multiple shadows.
- Cool Running
- The SSL-36 runs barely warm to the touch allowing you to work close to your subject without discomfort and without losing time waiting for the fixture to cool down.
- Dimming
- The light features 10 to 100% dimming to adjust the output without moving the fixture back and forth.
- Dead Quiet Operation
- The light's fanless convection cooling is a valuable asset in sound-sensitive environments.

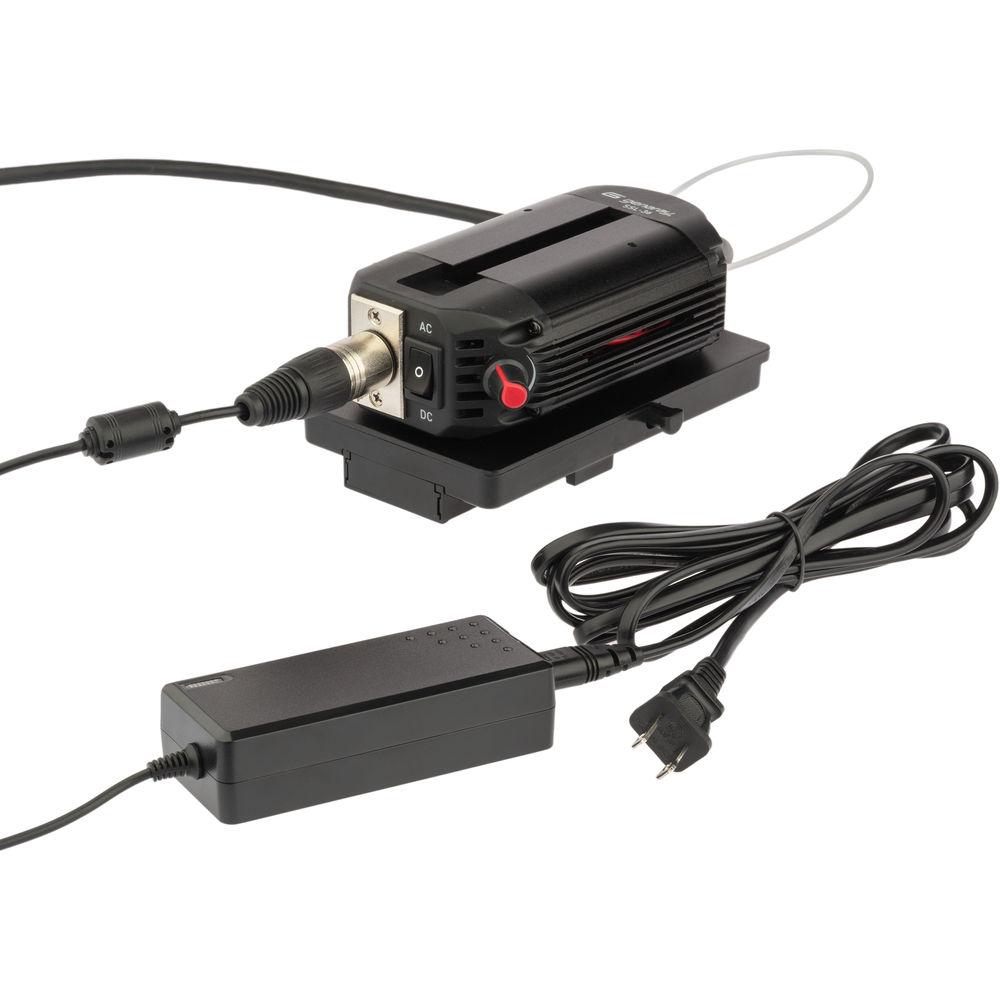

UPC: 855193007349 In the Box Genaray 36" Soft Strip LED Light Lollipop Mount Dimmer Control Box with V-Mount V-Mount Strap AC Adapter AC Cable Carry Case Limited 1-Year Warranty User Manual PDF 950.2kb Table of Contents
|
Upload User Manual
Have you got an user manual for the Genaray 36" Soft Strip LED Light in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersGenaray Soft Strip Specs | | | Beam Angle | 60° | | Color Temperature | 5600K | | Color Accuracy Standard | CRI 95
TLCI 98.3 | | Cooling System | Passive | | Dimming | Yes, 10 to 100% (Continuous) | | Display | None | | Housing Material | Metal | | Photometrics | 91 fc / 979.2 lux at 3.28' / 1 m | | Number of LEDs | 256 (Daylight) | | Expected Lamp Life | 50000 Hours | | Fixture Dimensions | Overall: 37.6 x 4.2 x 1.9" / 95.5 x 10.7 x 4.8 cm | | Fixture Weight | 6.4 lb / 2.90 kg | | | | Battery Plate | 1 x V-Mount | | | | Fixture Mount | 5/8" Receiver | | Accessory Mount | None | | | | AC Input Power | 100 to 240 VAC, 50 / 60 Hz | | Power Source | AC Adapter, External Battery | | Max Power Consumption | 56 W | | Power Pass-Thru | None | | | | Cable Length | 36" / 91.44 cm | | | | Power Supply Output | 15 VDC, 5 A | | Power Supply Dimensions | 1.5 x 2.9 x 5.9" / 3.8 x 7.4 x 15.0 cm | | Power Supply Weight | 0.9 lb / 0.41 kg | | | | Package Weight | 11.95 lb | | Box Dimensions (LxWxH) | 40.0 x 5.1 x 5.1" |
