Genaray 5" Curved Bi-Color SMD LED

Search your instruction manual in PDF to download

User Manual for Genaray 5" Curved Bi-Color SMD LED On-Camera Light

Click to enlarge the picture
Genaray 5" Curved Bi-Color SMD LED On-Camera Light Contents of the user manual for the Genaray 5" Curved Bi-Color SMD LED
  • Product category: On Camera Lights Genaray
  • Brand: Genaray
  • Description and content of package
  • Technical information and basic settings
  • Frequently asked questions – FAQ
  • Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
  • Authorized service for Genaray On Camera Lights

Genaray 5" Curved Bi-Color SMD LED On-Camera Light Genaray 5" Curved Bi-Color SMD LED On-Camera Light Genaray 5" Curved Bi-Color SMD LED On-Camera Light Genaray 5" Curved Bi-Color SMD LED On-Camera Light Genaray 5" Curved Bi-Color SMD LED On-Camera Light Genaray 5" Curved Bi-Color SMD LED On-Camera Light Genaray 5" Curved Bi-Color SMD LED On-Camera Light Genaray 5" Curved Bi-Color SMD LED On-Camera Light Genaray 5" Curved Bi-Color SMD LED On-Camera Light
User manual for the Genaray 5" Curved Bi-Color SMD LED contain basic instructions that need to be followed during installation and operation. Before starting your appliance, the user manual should be read through carefully. Follow all the safety instructions and warnings, and be guided by the given recommendations. User manual is an integral part of any Genaray product, and if it is sold or transferred, they should be handed over jointly with the product. Following the instructions for use is an essential prerequisite for protecting health and property during use, as well as recognition of liability on the part of the manufacturer for possible defects should you make a warranty claim. Download an official Genaray user manual in which you will find instructions on how to install, use, maintain and service your product.

And do not forget – unsuitable use of a Genaray product will considerably shorten its lifespan!



Product description

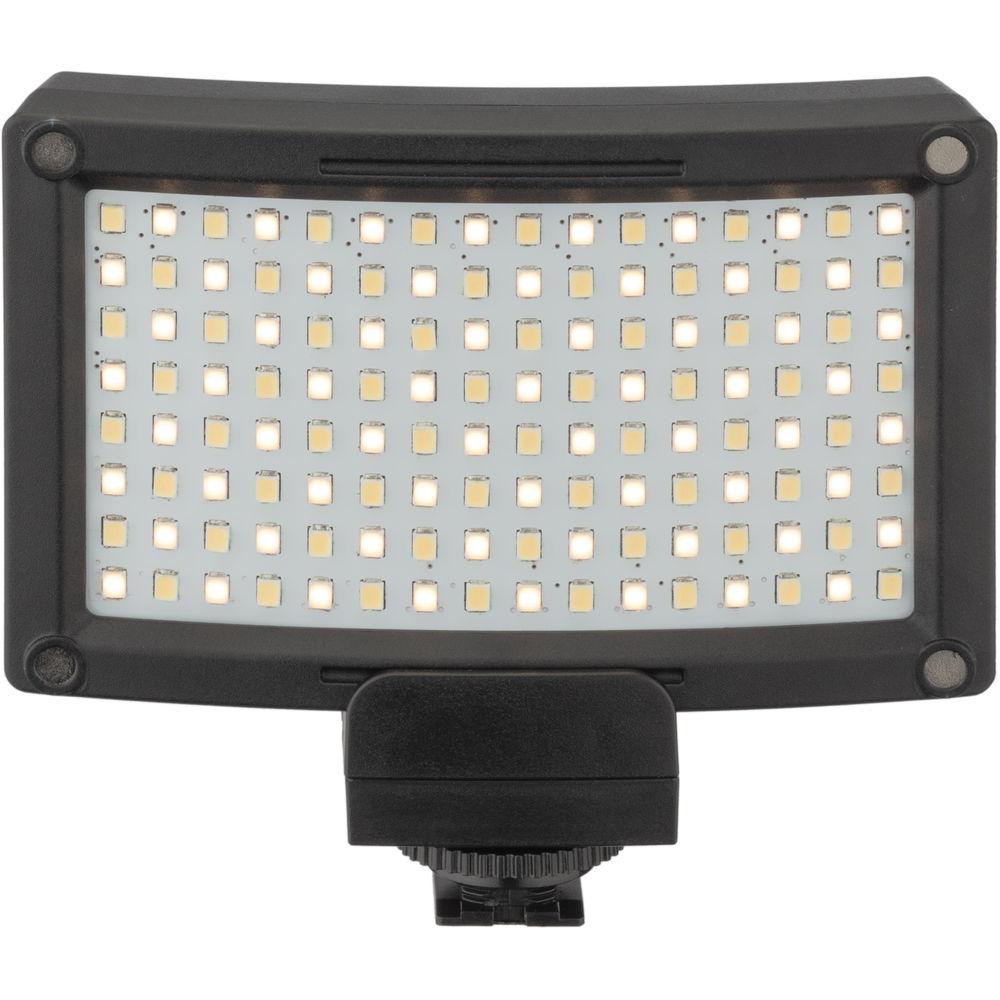

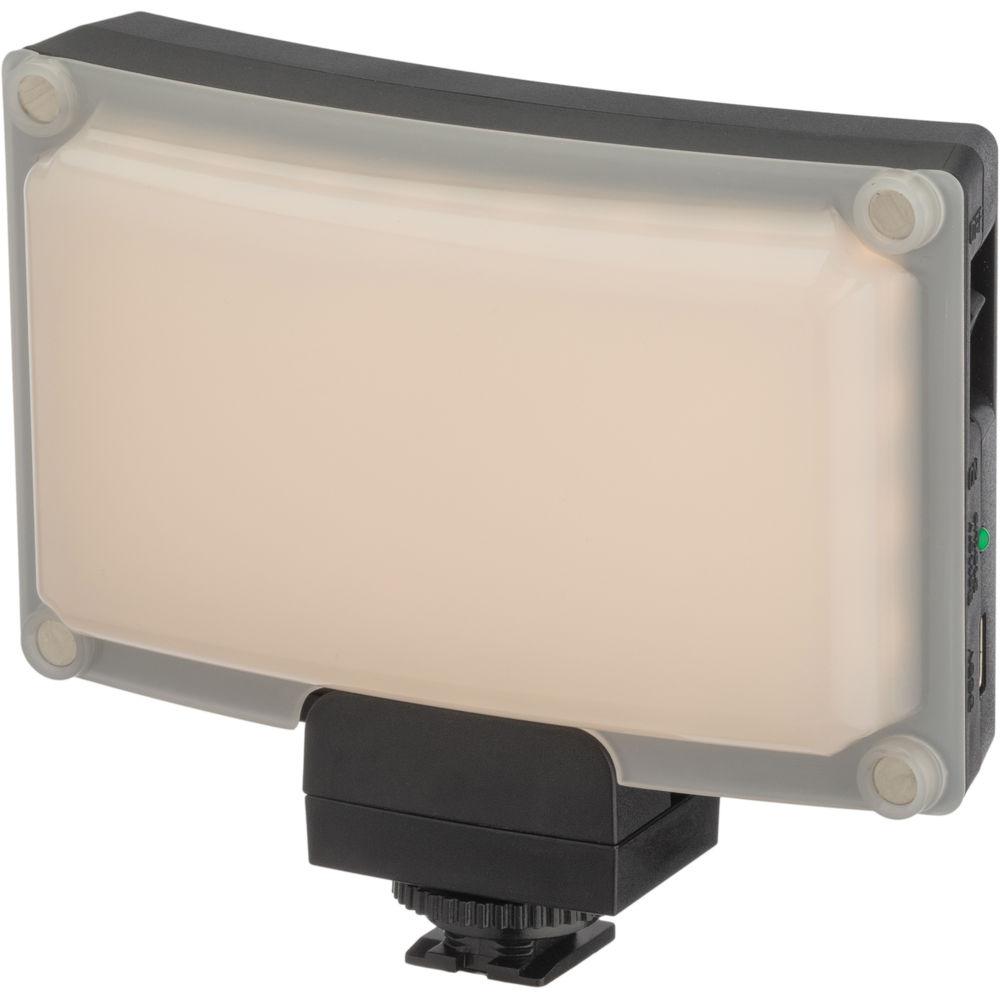

The Genaray 5" Curved Bi-Color SMD LED On-Camera Light is a variable color temperature light fixture with a range of 3200 to 5600K and dimming from 100 to 10% brightness. It features a total of 128 SMD LEDs (64 daylight and 64 tungsten) with a CRI over 95 for good color reproduction. The fixture is curved and features a 120° beam spread without the diffusion, and a 140° spread when you add the magnetically attached diffusion.

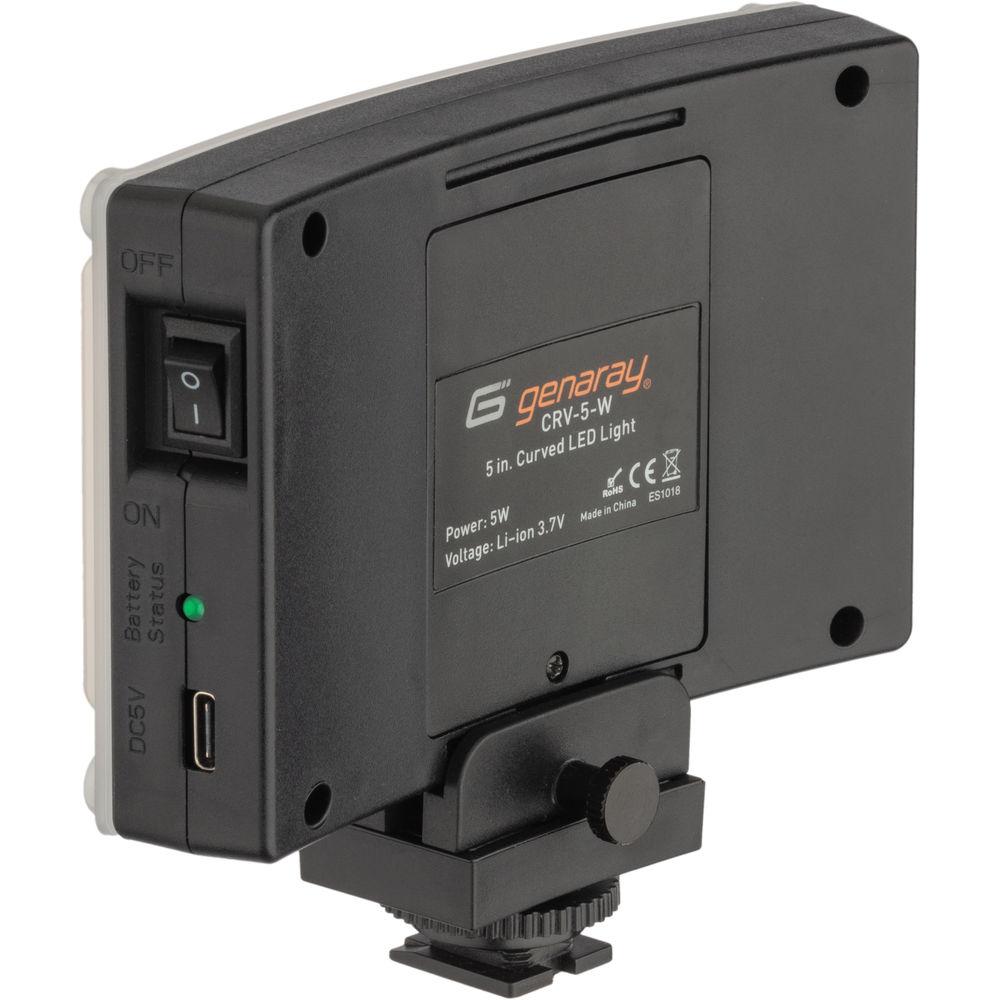

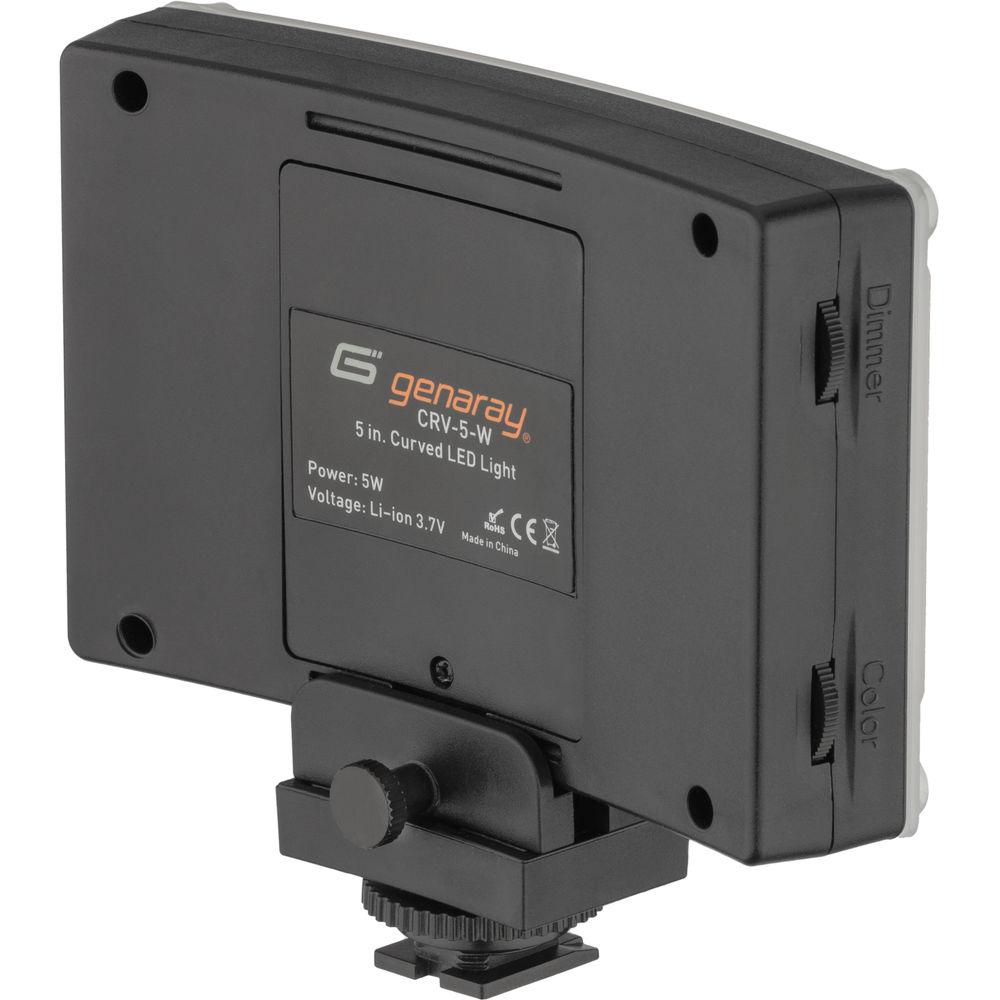

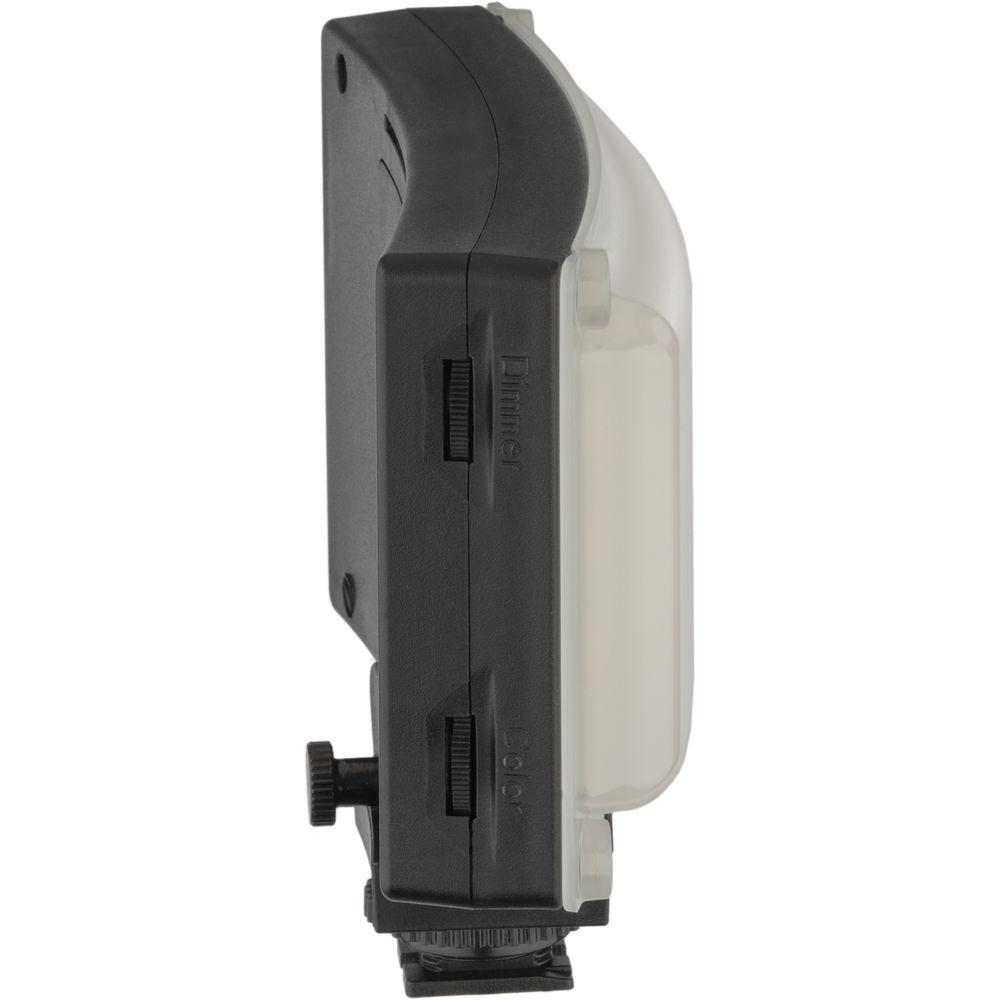

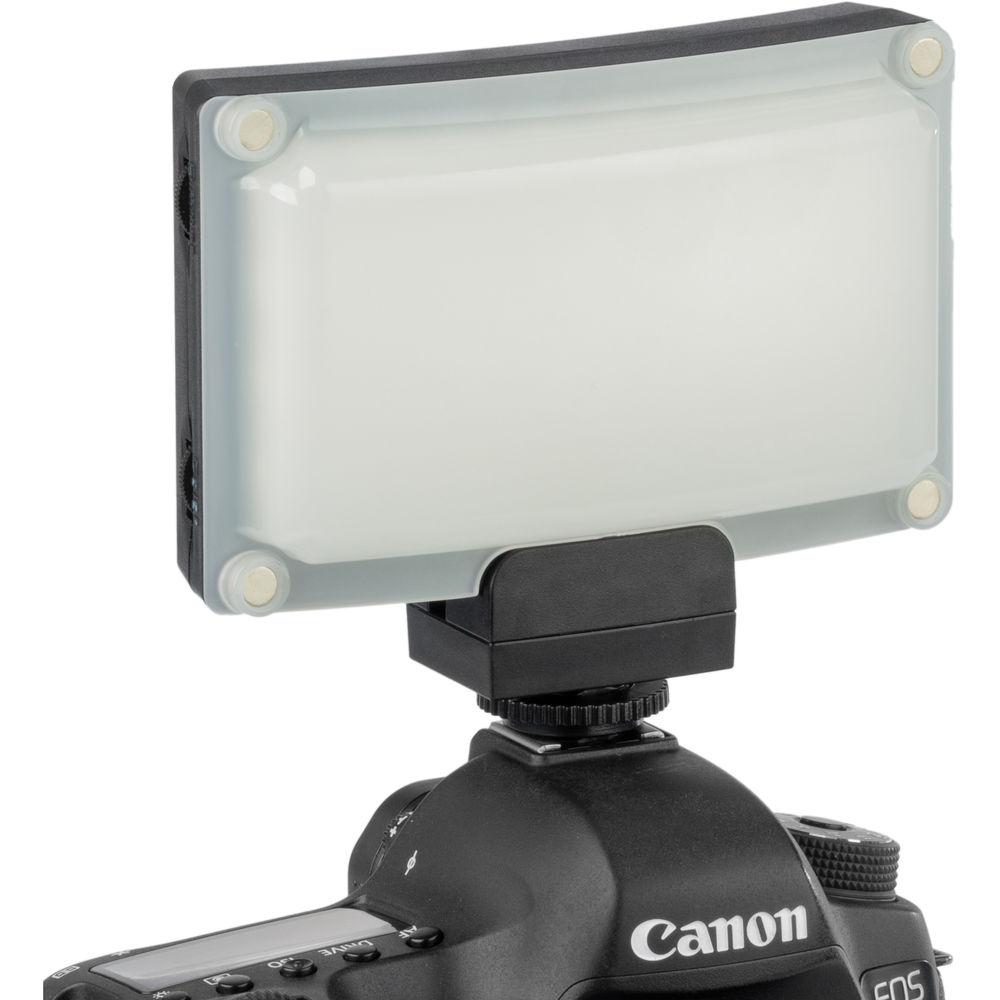

The fixture features a dedicated on/off switch with separate dials to control color temperature and dimming. An integrated 2500mAh lithium-ion battery powers the fixture, and it charges via a USB Type-C port. Included with the fixture is a mounting bracket that enables mounting onto an accessory cold shoe or a 1/4"-20 threaded stud. A carrying pouch holds the entire light package securely.

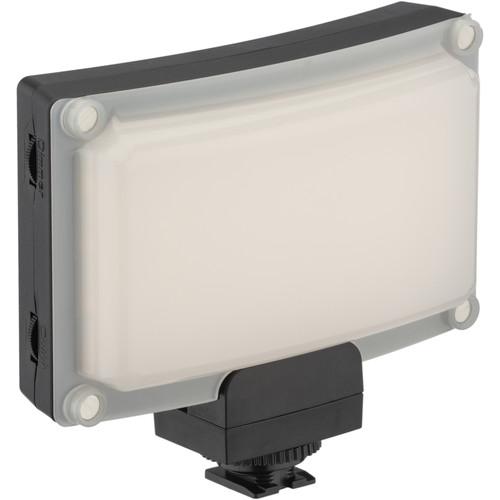

  • The curved design of the fixture helps prevent the light from casting the multiple shadows associated with non-curved array-type LED light fixtures. Adding the magnetically attached diffusion further softens the already smooth output.
    • 64 tungsten-balanced SMD LEDs
    • 64 daylight-balanced SMD LEDs
    • CRI rating of 95
    • Heavy white diffusion spreads the beam angle to 140°, while only absorbing 1/3rd of the output.
    • Integrated battery runs the fixture approximately 1.5 hours at maximum and recharges in 5 hours.

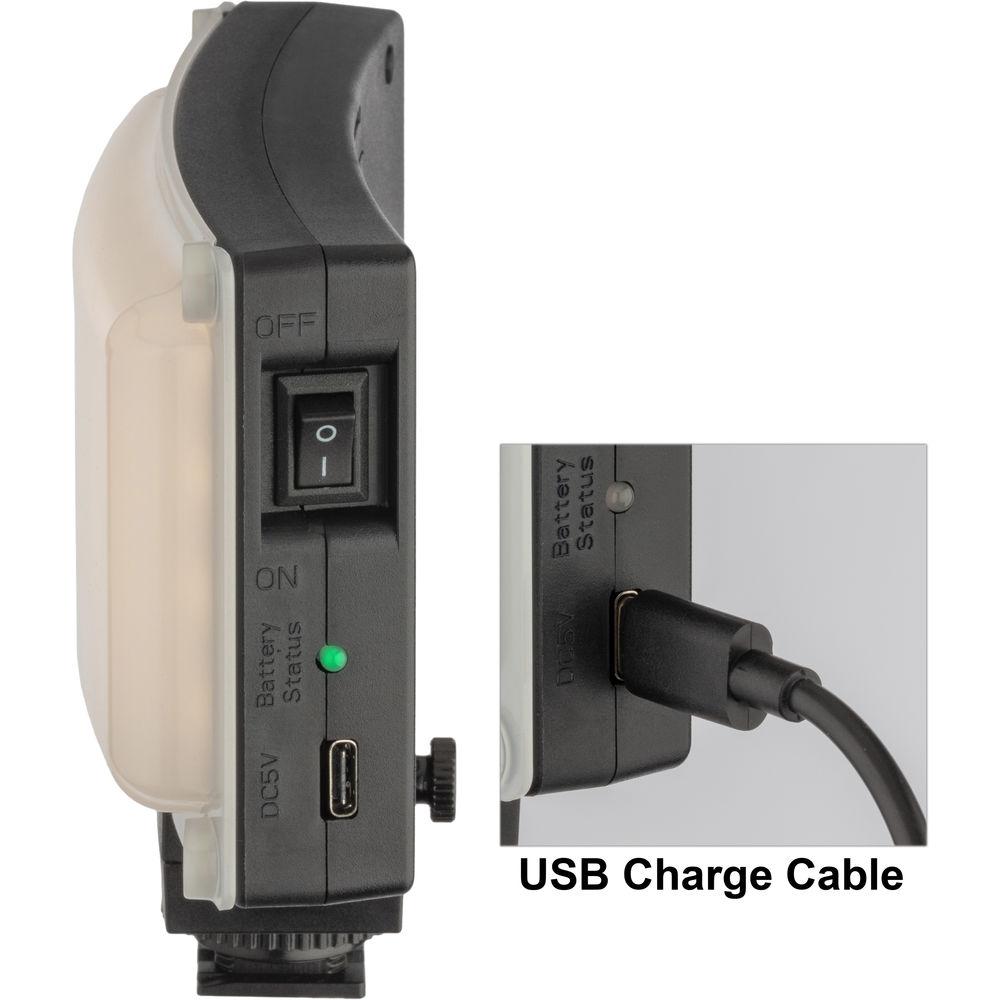

    • The fixture features a USB Type-C port for charging
    • You can charge the fixture while it is in use
    • An LED indicator shines green when the light is powered on and red when connected to power

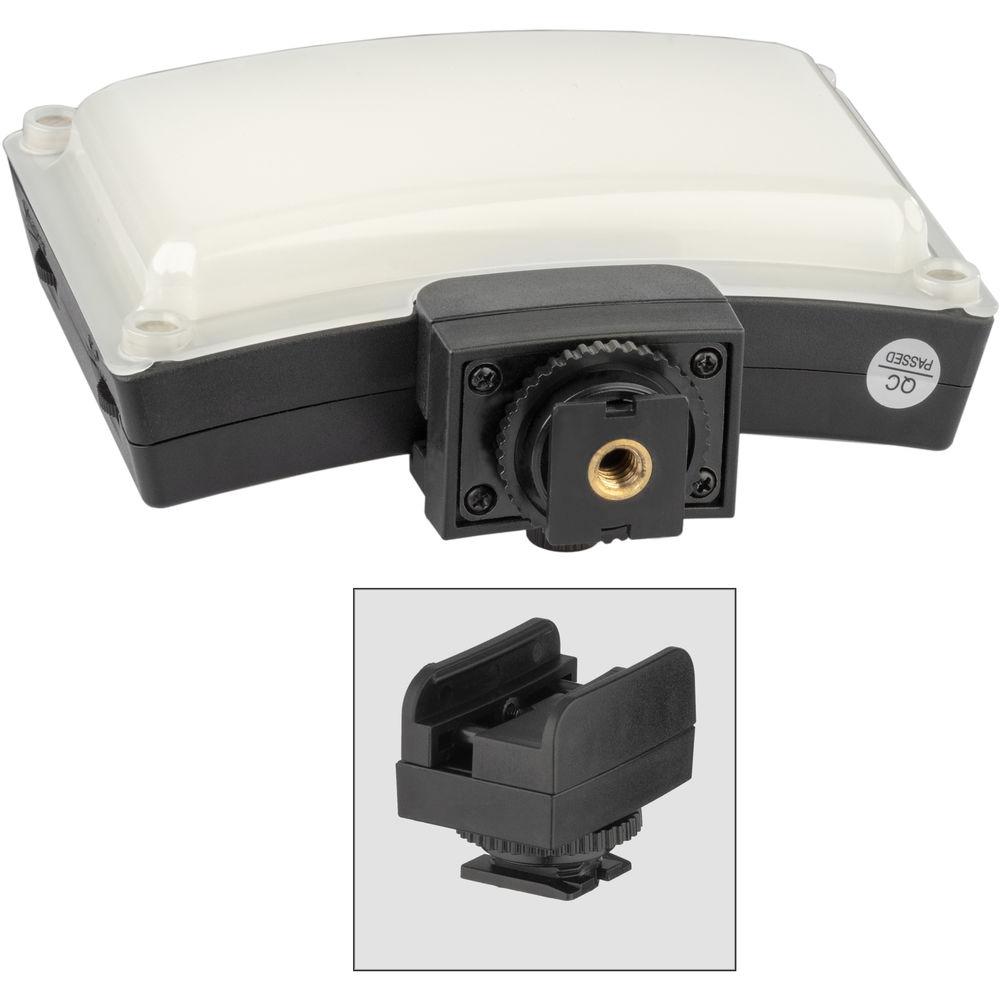

    • The mounting bracket can be attached to either the top or bottom of the unit

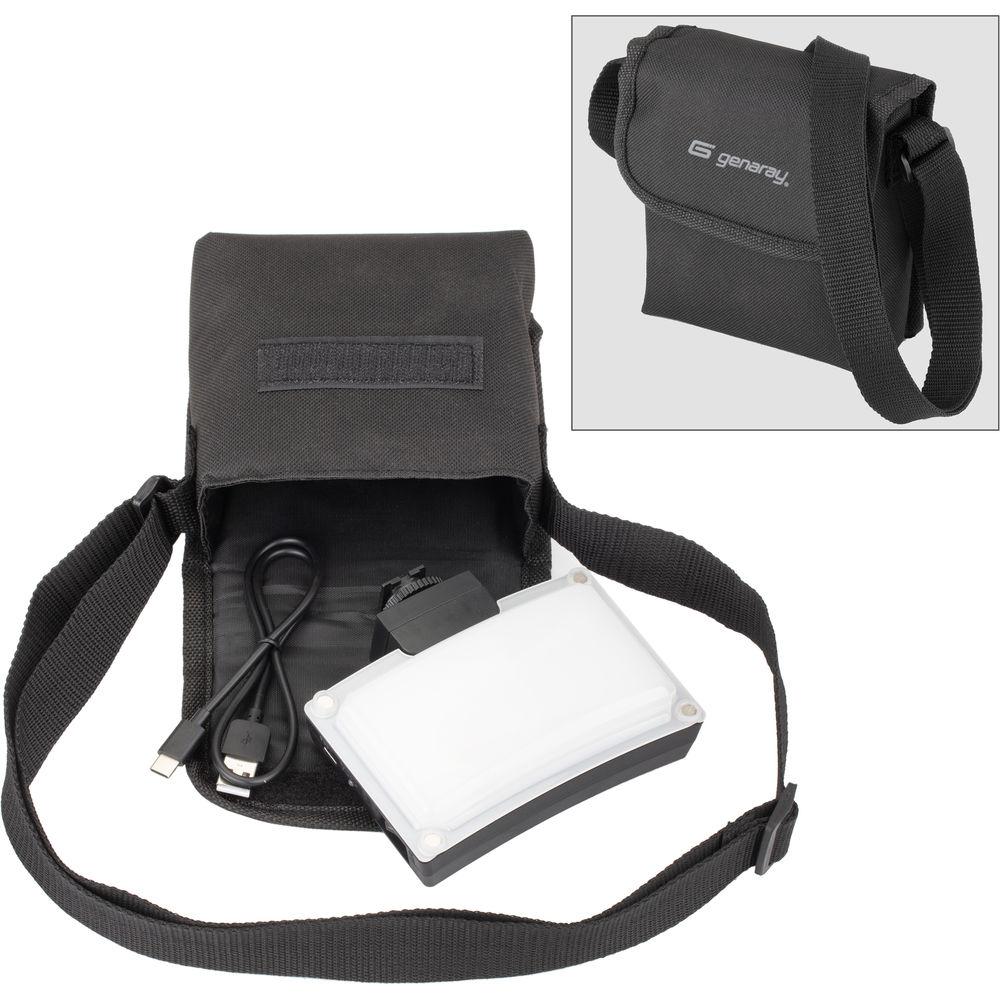

In the Box Genaray 5" Curved Bi-Color SMD LED On-Camera Light
  • Cold Shoe Mounting Bracket
  • USB Type-C Cable
  • Carry Pouch
  • Limited 1-Year Warranty
  • User Manual PDF 467.8kb Table of Contents




    Upload User Manual

    Have you got an user manual for the Genaray 5" Curved Bi-Color SMD LED On-Camera Light in electronic form? Please send it to us and help us expand our library of instruction manuals. Thank you, too, on behalf of other users.

    To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
    Upload PDF user manual Upload DOC user manual
    Please enter here the link to the user manual of this product:





    OR

    Enter here the file with the user manual of this product from your computer/phone:
    (60MB max; Permitted formats: PDF)

    0%


    Technical parameters

    Genaray CRV-5-W Specs

    Beam Angle 120 to 140° 120° without diffusion, 140° with diffusion
    Color Temperature 3200K ± 200K
    5600K ± 300K
    Color Accuracy Standard CRI 95
    TLCI 98
    Dimming Yes, 10 to 100%
    Expected Lamp Life 40000 Hours
    Number of LEDs 64 (Daylight)
    64 (Tungsten)
    Capacity (mAh) 2500 mAh
    Battery Chemistry Lithium-Ion
    Battery Runtime 1.5 Hours
    Operating Voltage 5.0 VDC
    Max Power Consumption 5 W
    Mount Type 1/4"-20 Female, Cold Shoe
    Dimensions 2.9 x 4.7 x 1.4" / 7.4 x 11.9 x 3.6 cm
    Weight 6 oz / 170 g
    Package Weight 1.0 lb
    Box Dimensions (LxWxH) 18.0 x 14.12 x 11.9"
