Product description - The Genaray SP-LR2 Beacon-Style LED Wand Light

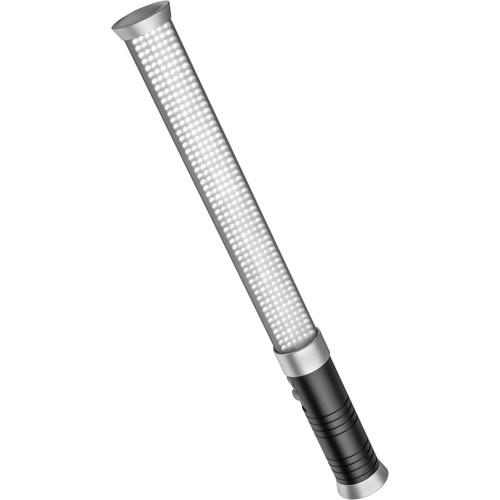

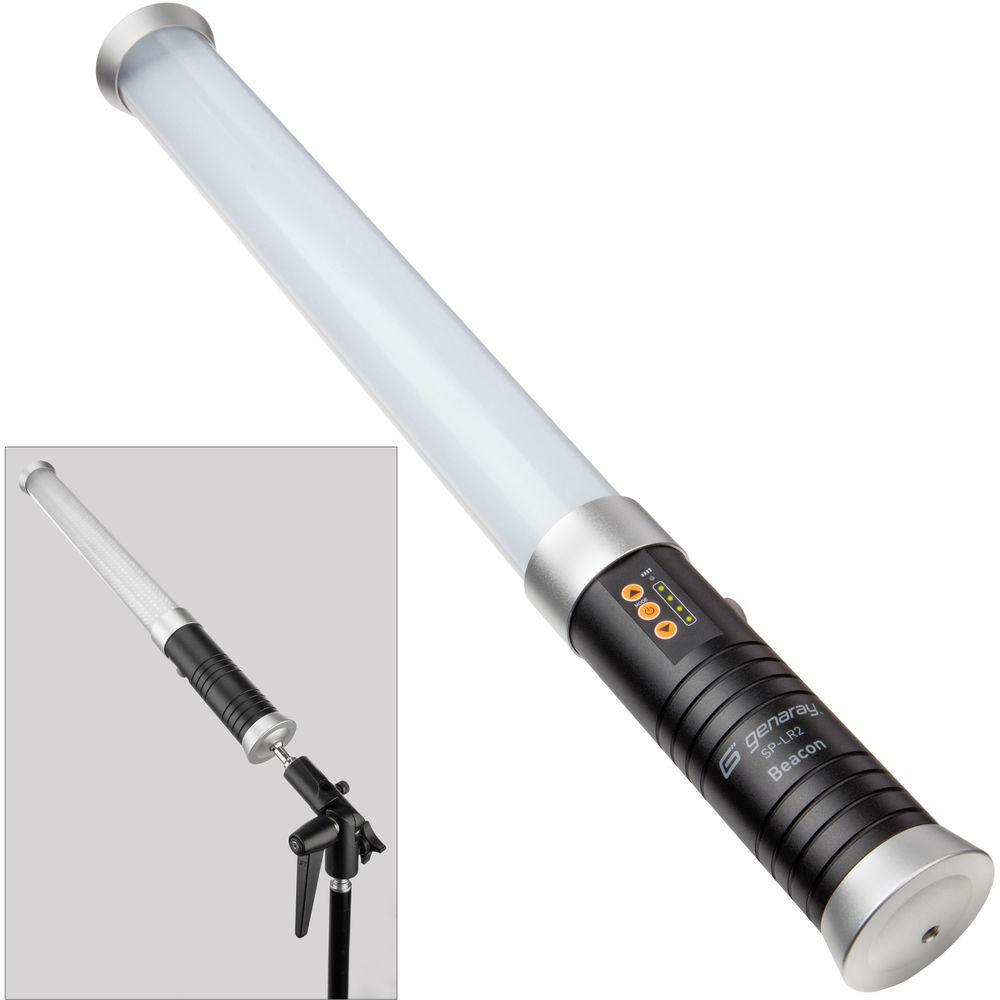

The Beacon LED Wand-Style Light from Genaray is a perfectly-named 2.3" diameter tubular light source that measures 22" in length and can easily bring some "magic" to your work. The Wand makes an ideal sidelight, rim light, or hair light. Since it doesn't generate any heat, you can get as close as you like to your subject for special effects, or you can even tape it to a wall or shelf for use as an up-light.The Beacon runs on a removable, rechargeable battery that can give you up to 1.5 hours of run time on a full charge. Since the battery is removable, you can have a spare at the ready. The charging cord doubles as a 100-240 VAC adapter so that you can charge it or use it connected to a mains power source with the battery inside anywhere in the world.The Beacon's 312 LEDs are 5600K daylight-balanced, but you can use the included filter to change it to 3200K tungsten-balance to match other fixtures or ambient light conditions. Light intensity is flexible too, allowing dimming from 10-100% while maintaining a high CRI rating of 95.2 for accurate color renderingAlthough the most fun is to be had by handholding the Beacon, it's also mountable to a variety of grip equipment via its 1/4"-20 female thread. This is where another hidden asset comes in; the Beacon has a 4-channel receiver built into it so that with separate purchase of Genaray's WB-WRT remote, you can adjust the light level or put the fixture into sleep mode. Finally, the Beacon has another hidden feature to make sure that your shoot isn't scrubbed because of the rain. The light's IP65 rated water-resistance makes it immune to moisture, splashes, and precipitation - Daylight or Tungsten

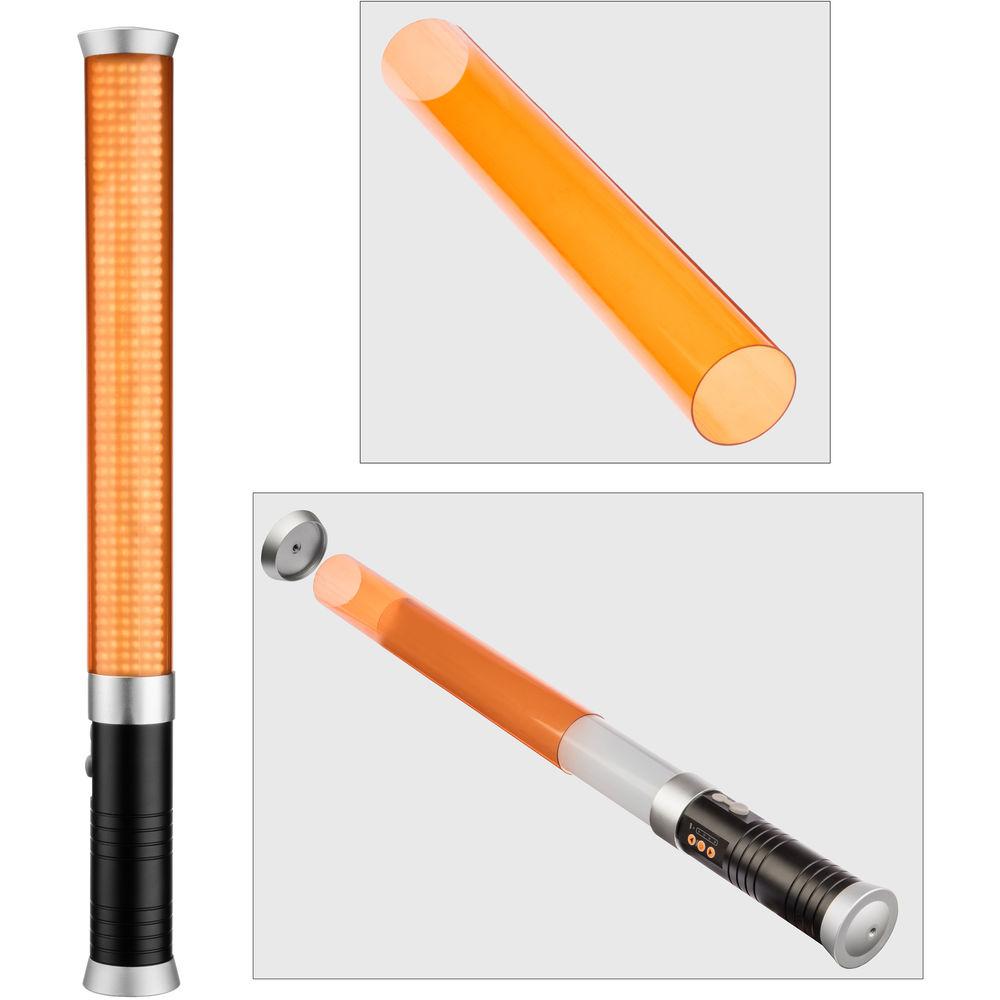

- The Beacon's 312 daylight-balanced LED can easily be converted to tungsten balance with the included filter.
- High Color Accuracy
- The light's high CRI of 95.2 indicates precise and faithful color rendering.
- AC or DC Use
- The Beacon can run on its integrated battery or via AC current with the 100-240 VAC charger/adapter.
- Battery Power

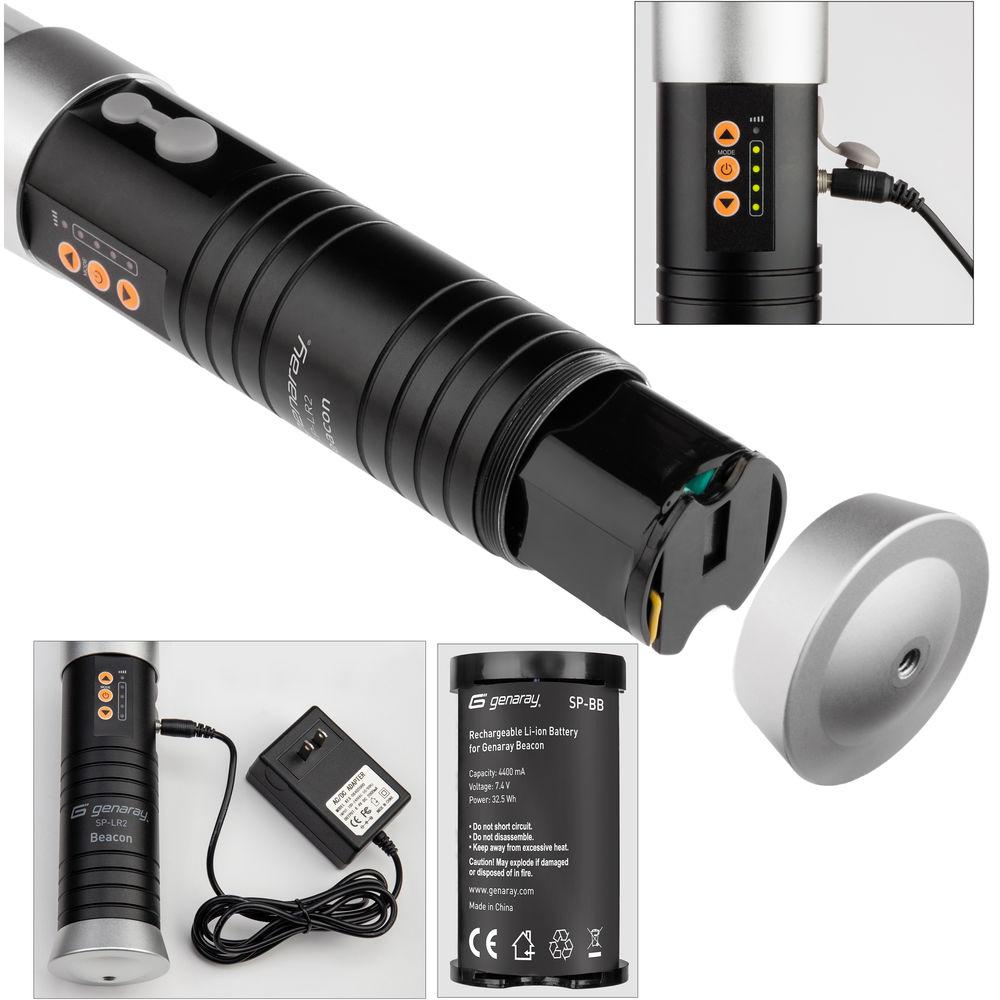

- The 4400 mAh rechargeable lithium-ion battery is removable so you can have a spare charged battery at the ready.
- Four-Channel Receiver
- A 4-channel receiver is built into the Beacon allowing it to be dimmed or put into sleep mode wirelessly with separate purchase of Genaray's 2.4 GHz WB-WRT remote.
- Diffuser
- The built-in diffuser takes the edge off the LEDs, producing a soft, flattering quality of light.
- Dimming
- The Beacon can be dimmed from 10-100% on the unit or remotely via the optional remote for the perfect light level.

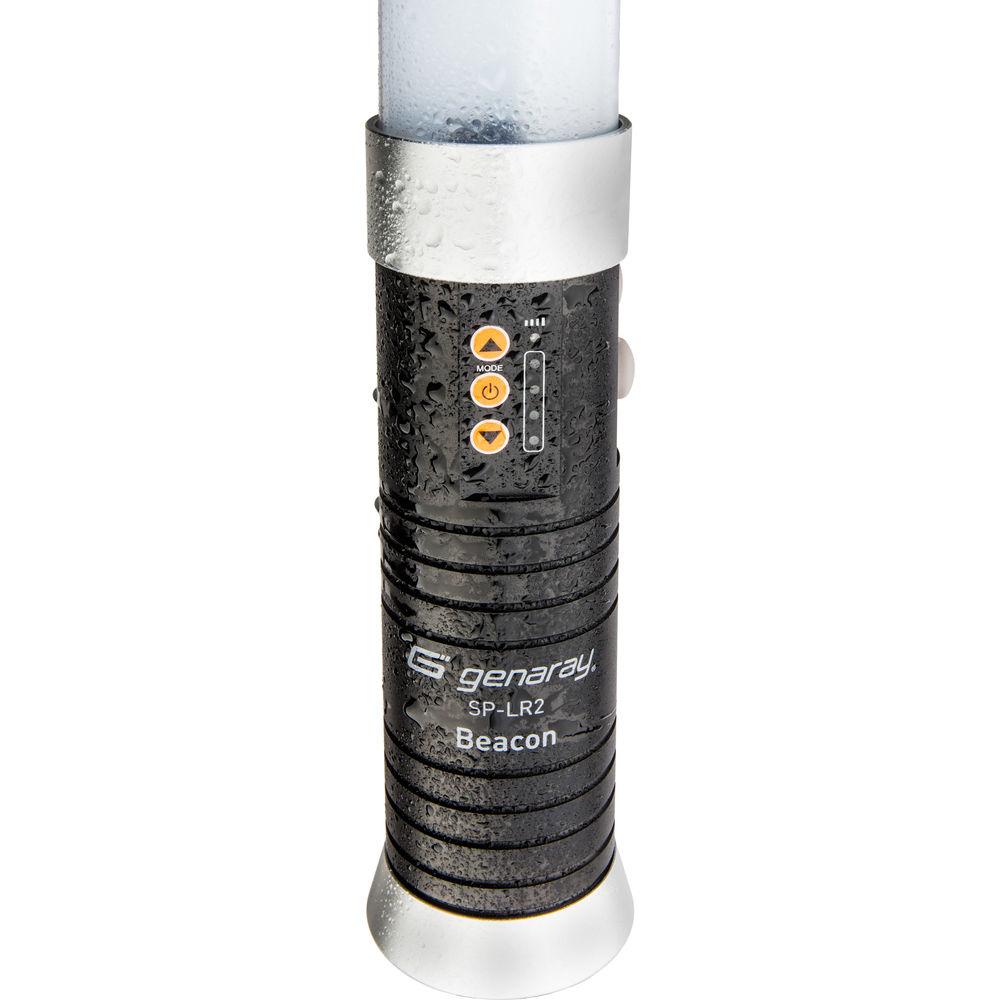

- Water-Resistant
- You never have to worry about the weather with the Beacon. Its IP65 water-resistant rating means that it's immune to rain or splashes.

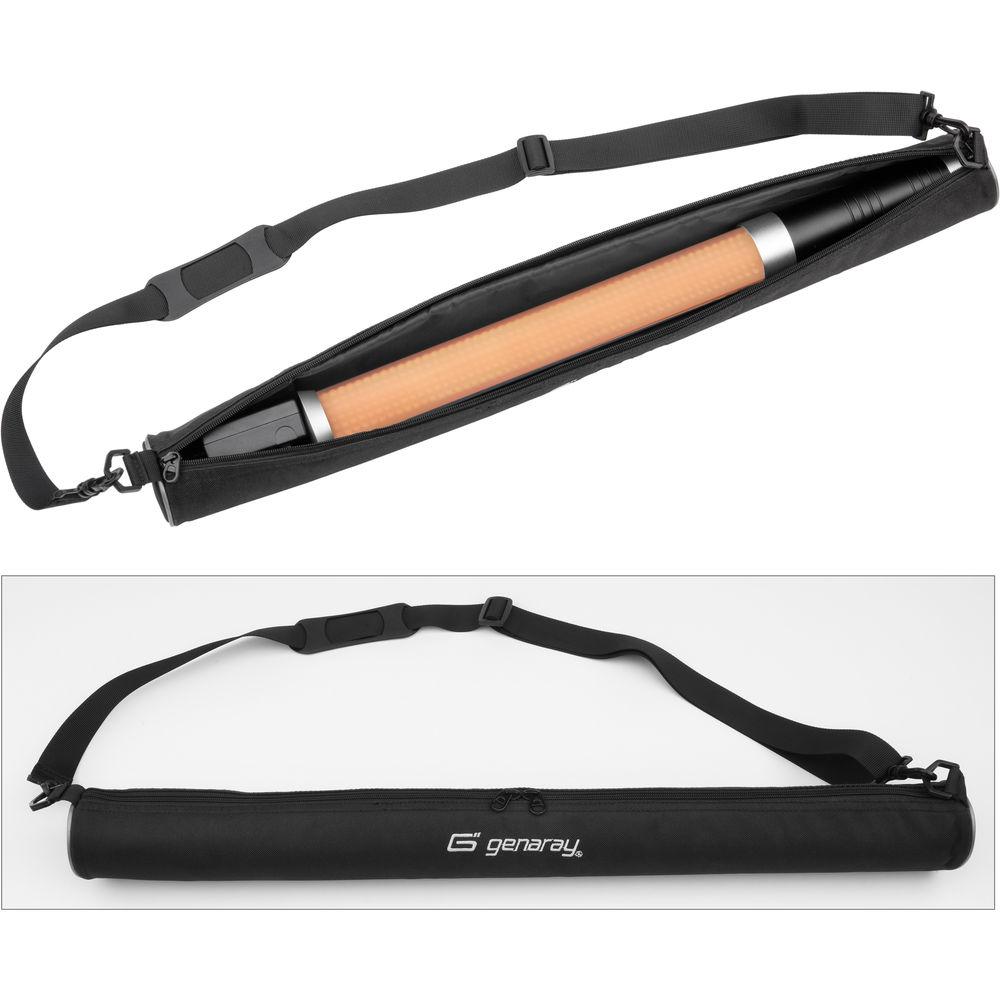

UPC: 639767568579 In the Box Genaray Beacon LED Wand-Style Light AC/DC Charger/Adapter Battery for Beacon LED Light Carrying Case Shoulder Strap Tungsten Conversion Filter Limited 1-Year Warranty User Manual PDF 1.1mb Table of Contents
|
Upload User Manual
Have you got an user manual for the Genaray Beacon LED Wand-Style Light in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersGenaray Beacon LED Specs | | | Color Temperature | 5600K | | Color Accuracy Standard | CRI 95 | | Cooling System | None | | Dimming | Yes, 10 to 100% (Stepped) | | Display | None | | Number of LEDs | 312 | | Expected Lamp Life | 30,000 Hours | | Fixture Dimensions | 2.3 x 2.3 x 22.0" / 6.0 x 6.0 x 55.8 cm | | Fixture Weight | 2.0 lb / 0.9 kg | | | | Fixture Mount | 1/4"-20 Female Thread | | Accessory Mount | None | | | | AC Input Power | 100 to 240 VAC, 50 / 60 Hz | | DC Input Power | 7.4 VDC | | Power Source | AC Adapter, External Battery | | Max Power Consumption | 15 W | | | | Run Time | 1.5 Hour at Full Power | | | | Package Weight | 3.55 lb | | Box Dimensions (LxWxH) | 27.9 x 3.7 x 3.3" |
