Genaray Bi-Color Soft Ring Light LED

Search your instruction manual in PDF to download

User Manual for Genaray Bi-Color Soft Ring Light LED

Click to enlarge the picture
Genaray Bi-Color Soft Ring Light LED Contents of the user manual for the Genaray Bi-Color Soft Ring Light LED
  • Product category: Uncategorized Genaray
  • Brand: Genaray
  • Description and content of package
  • Technical information and basic settings
  • Frequently asked questions – FAQ
  • Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
  • Authorized service for Genaray Uncategorized

Genaray Bi-Color Soft Ring Light LED Genaray Bi-Color Soft Ring Light LED Genaray Bi-Color Soft Ring Light LED Genaray Bi-Color Soft Ring Light LED Genaray Bi-Color Soft Ring Light LED Genaray Bi-Color Soft Ring Light LED Genaray Bi-Color Soft Ring Light LED
User manual for the Genaray Bi-Color Soft Ring Light LED contain basic instructions that need to be followed during installation and operation. Before starting your appliance, the user manual should be read through carefully. Follow all the safety instructions and warnings, and be guided by the given recommendations. User manual is an integral part of any Genaray product, and if it is sold or transferred, they should be handed over jointly with the product. Following the instructions for use is an essential prerequisite for protecting health and property during use, as well as recognition of liability on the part of the manufacturer for possible defects should you make a warranty claim. Download an official Genaray user manual in which you will find instructions on how to install, use, maintain and service your product.

And do not forget – unsuitable use of a Genaray product will considerably shorten its lifespan!



Product description

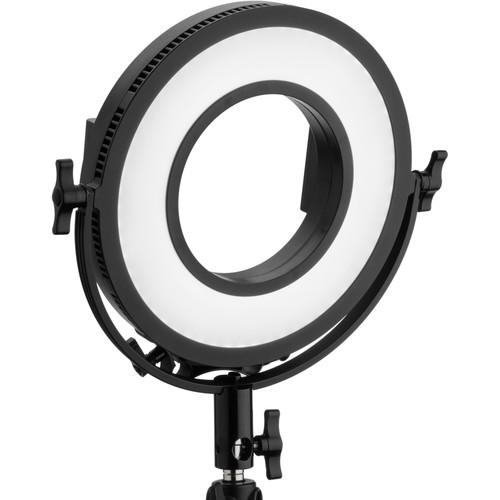

A fixture designed to produce soft, even light, the 10" diameter Bi-Color Soft Ring Light LED from Genaray employs 120 bright LEDs to generate light output with color that's variable from 3200 to 5600K to match other fixtures or ambient light conditions while maintaining a high CRI/TLCI rating of 93 indicating faithful rendition of colors down to the subtlest hues. Light intensity is also conveniently variable from 10-100%. The ring light displays the signature quality of light that its shape is known for, with unique catchlights in the eyes of the subject that makes it popular with fashion shooters. The ring light has a 5/8" receiver but also comes with a bracket for 19mm and 15mm rod systems so that you can position your lens (up to 129.5 mm) through the central 5.1" opening via an optional camera platform.At only 1.25" thick, the ring light fits where other fixtures can't go, and you can work close-up too, without fear of causing the subject discomfort, since running the light all day at full power barely makes it warm to the touch. The Soft Ring Light LED can be used anywhere in the world, thanks to its 110-240 VAC multi-voltage power adapter. The fixture also comes with two NP-F750 type batteries for situations where AC power is unavailable. A cigarette lighter car charger is also included and since the light runs on one battery, you can charge one while the other is in use. A carry case is included for storage and transport.
    Soft Single Shadow Light
  • 120 LEDs are recessed with a design that points them toward an interior reflector for soft, even light with a single shadow.
    Flicker-Free
  • The SRL-10 emits flicker-free output, even at high frame rates

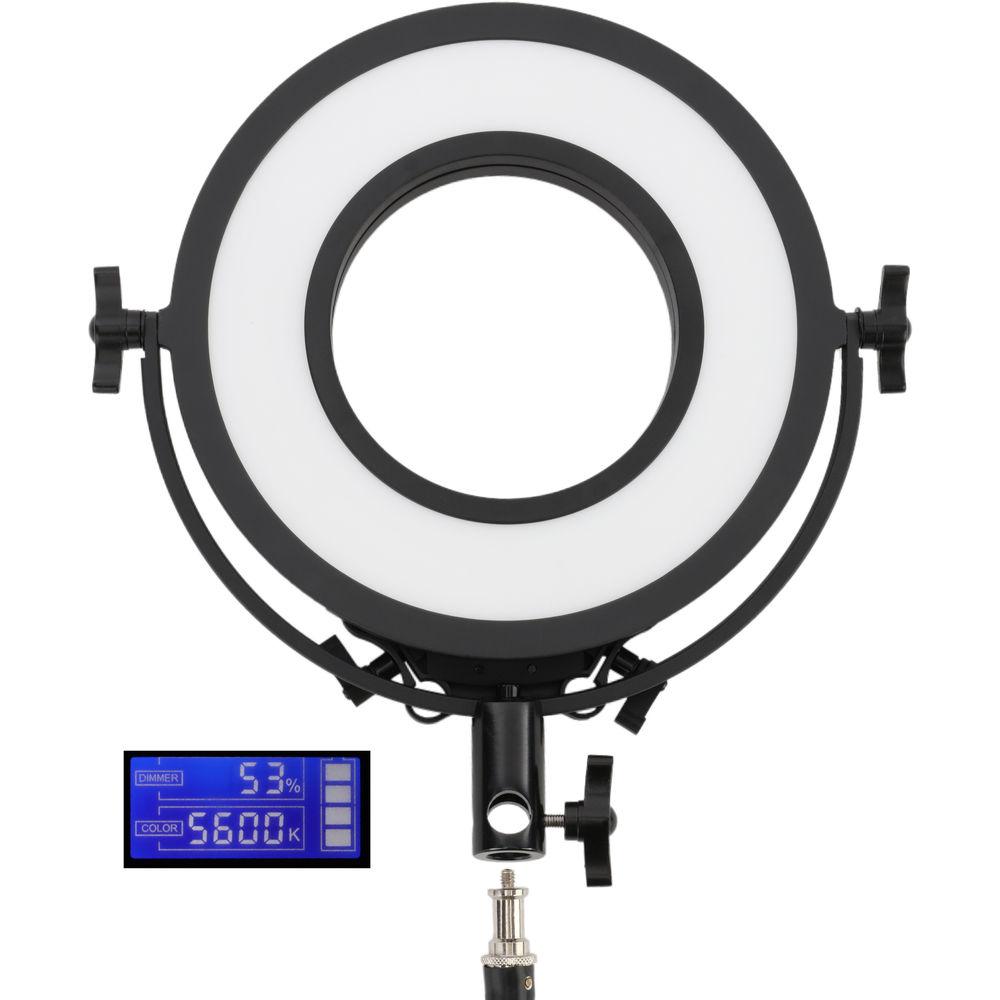

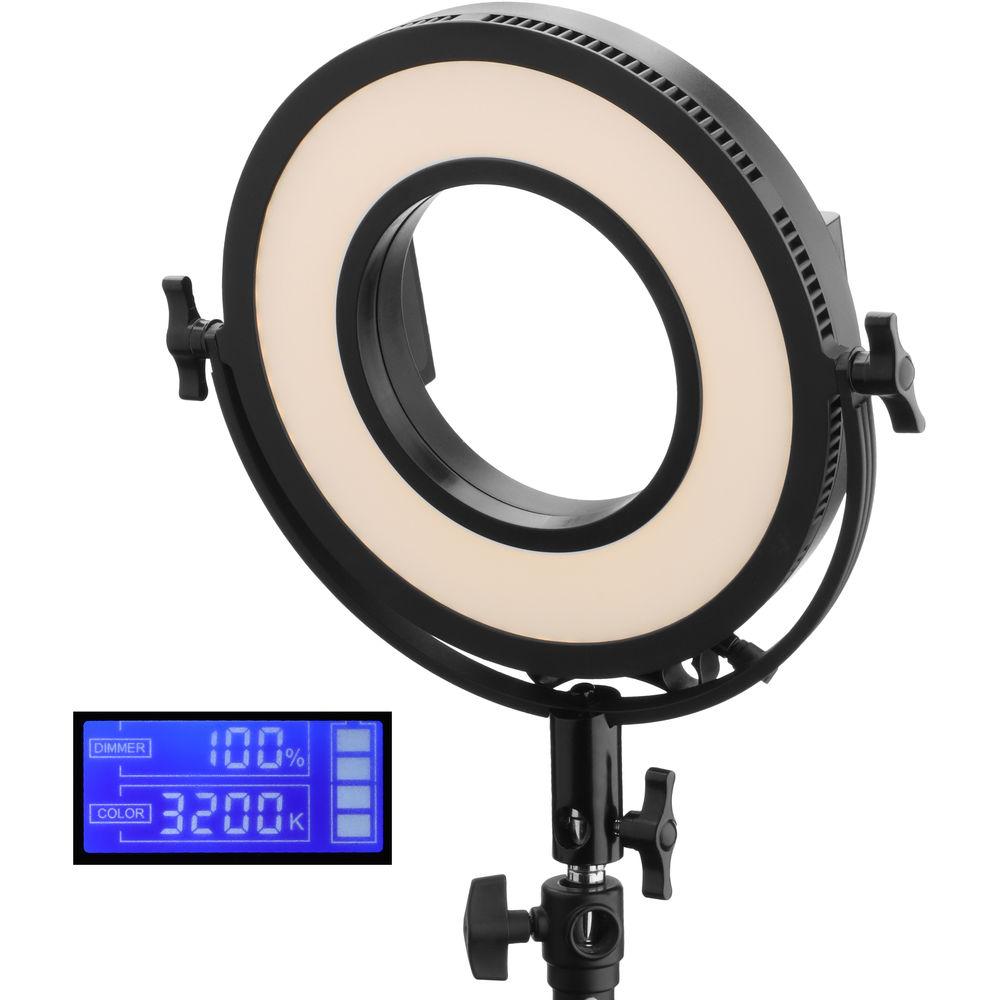

    Adjustable Color Temperature
  • The color balance is adjustable from 3200K tungsten to 5600K daylight in 100K increments.
    Yoke
  • The yoke allows for tilting options and will mount to stands with a 5/8" stud or a 1-1/8" receiver.
    Light Stand or Camera Mount

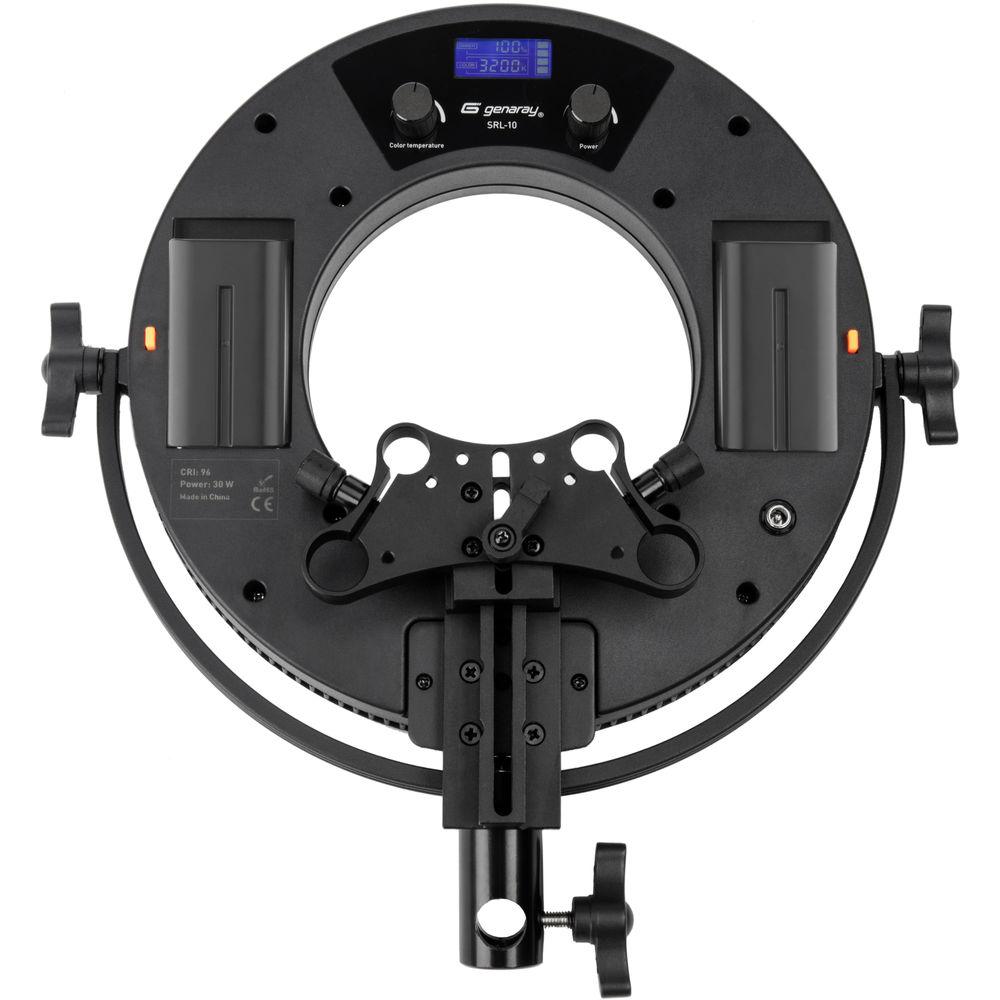

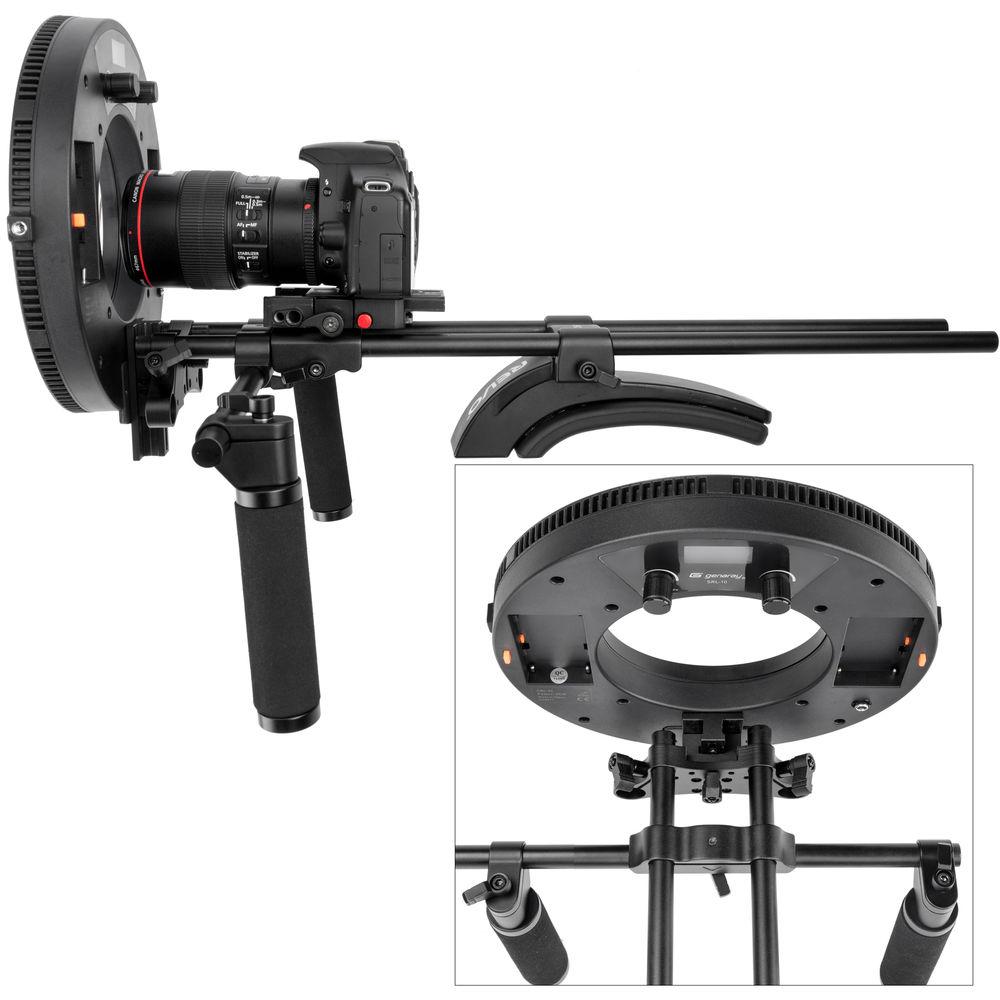

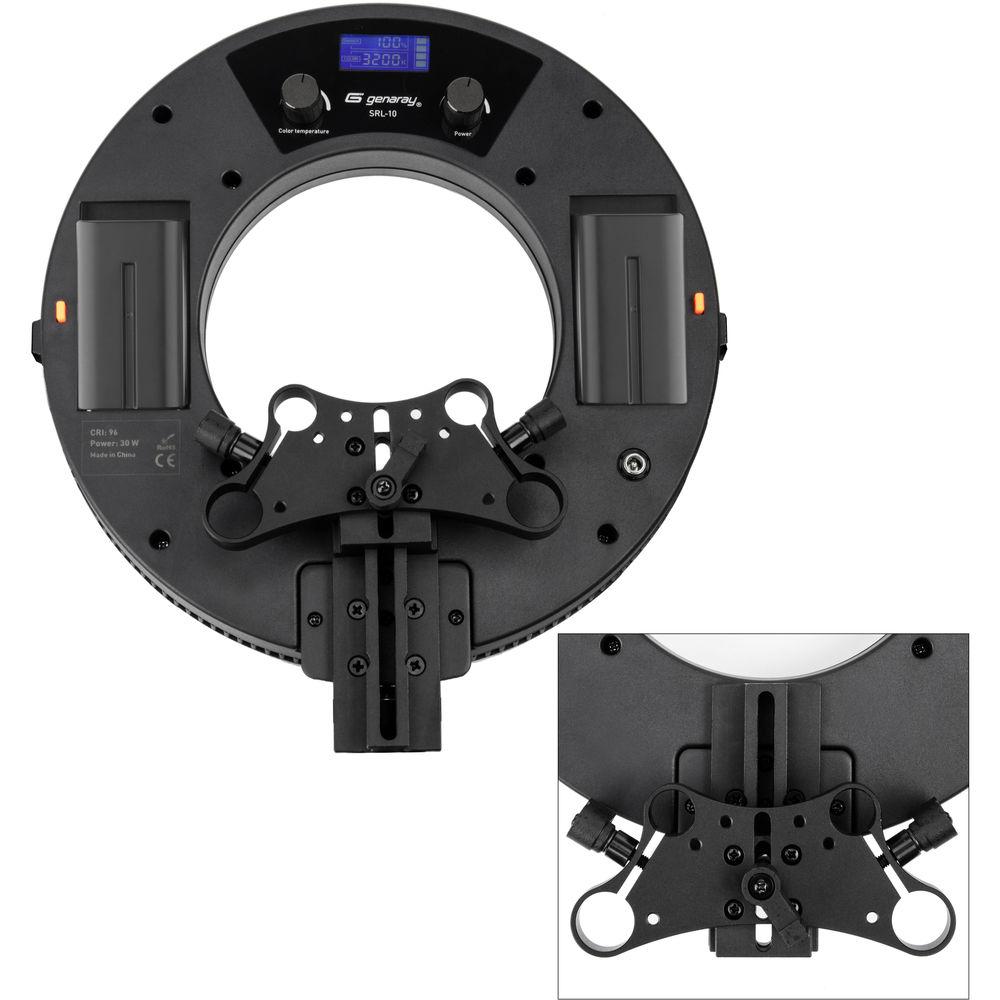

  • The ring light has a 5/8" receiver but also comes with a bracket for 19mm and 15mm rod systems so that you can position your lens (up to 129.5mm) through the central 5.1" opening using an optional camera platform.
    AC or Battery Power
  • The ring light runs on 100 to 240 VAC current via the included adapter or on the 2 provided NP-F750-style lithium-ion batteries.
    Recharging Options

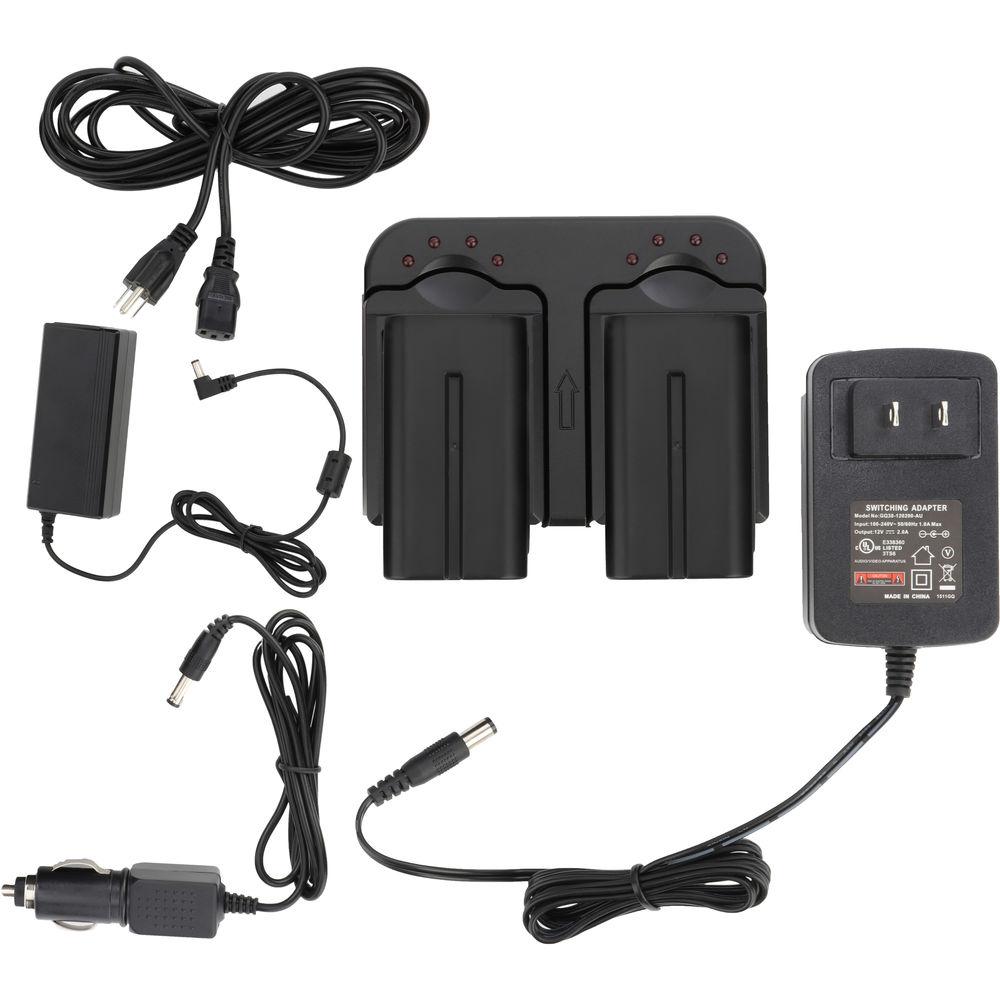

  • You can charge the batteries via the included dual charger, but you can also charge them from your car with the included cigarette lighter power cable.
    Sturdily Built

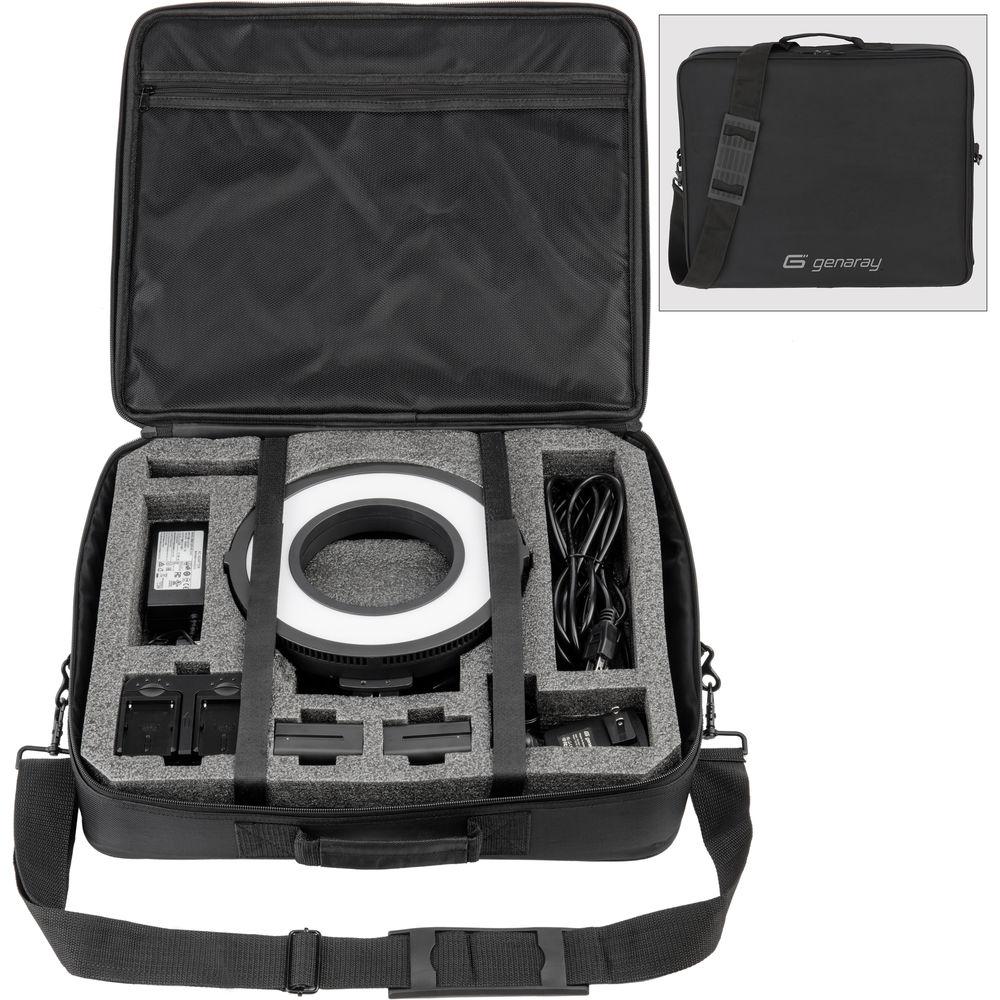

  • Made of heavy duty durable plastic, the light comes with a carry case for storage and transport.
In the Box Genaray Bi-Color Soft Ring Light LED (10")
  • Yoke
  • 2 x Yoke Attachment Screws and Washers
  • 2 x NP-F750-Style Batteries
  • Dual Charger
  • Charger Power Cord
  • AC Adapter
  • AC Power Cord
  • Cigarette-Lighter Power Cable
  • Rod Mounting Bracket
  • Carry Case
  • Limited 1-Year Warranty
  • Table of Contents




    Upload User Manual

    Have you got an user manual for the Genaray Bi-Color Soft Ring Light LED in electronic form? Please send it to us and help us expand our library of instruction manuals. Thank you, too, on behalf of other users.

    To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
    Upload PDF user manual Upload DOC user manual
    Please enter here the link to the user manual of this product:





    OR

    Enter here the file with the user manual of this product from your computer/phone:
    (60MB max; Permitted formats: PDF)

    0%


    Technical parameters

    Beam Angle 75°
    Color Temperature 3200 to 5600K ± 300K
    Color Accuracy Standard CRI 93
    TLCI 93
    Cooling System None
    Dimming Yes, 10 to 100% (Stepped)
    Display None
    Number of LEDs 120
    Fixture Dimensions 10.0 x 10.0 x 1.2" / 25.4 x 25.4 x 3.2 cm
    Fixture Weight 2.15 lb / 1.0 kg
    Battery Plate 2 x Sony L-Series (NP-F)
    Fixture Mount Combination 1-1/8" Stud and 5/8" Receiver
    Accessory Mount 2 x 1/4"-20 Female
    AC Input Power 100 to 240 VAC, 50 / 60 Hz
    DC Input Power 7.4 to 14 VDC
    Power Source AC Adapter, External Battery
    Max Power Consumption 30 W
    IP Rating IP20
    Package Weight 10.6 lb
