User Manual for Genaray Contender LED Focusing Spot 3-Light Kit with Battery Module Kit Click to enlarge the picture
Contents of the user manual for the Genaray Contender LED Focusing Spot 3-Light
- Product category: LED Lights Genaray
- Brand: Genaray
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Genaray LED Lights
 |
User manual for the Genaray Contender LED Focusing Spot 3-Light contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Genaray product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Genaray user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Genaray product will considerably shorten its lifespan!
|

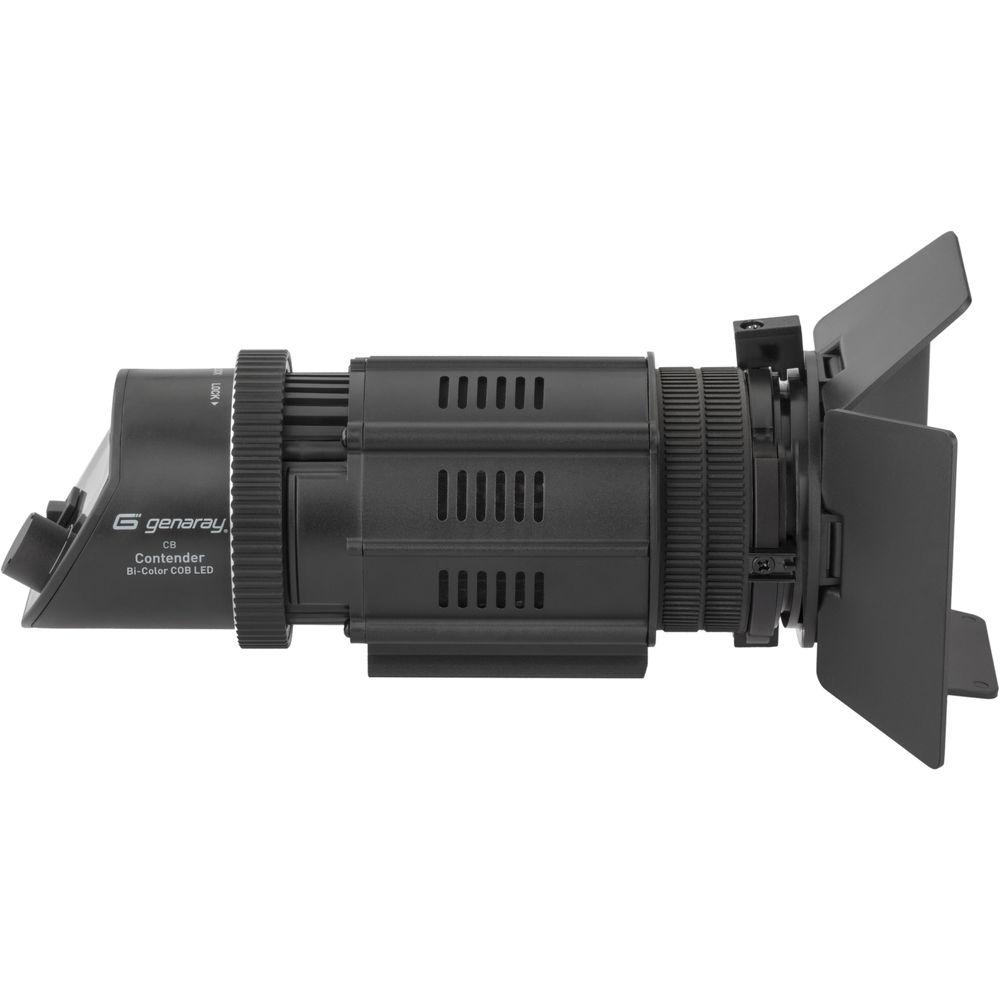

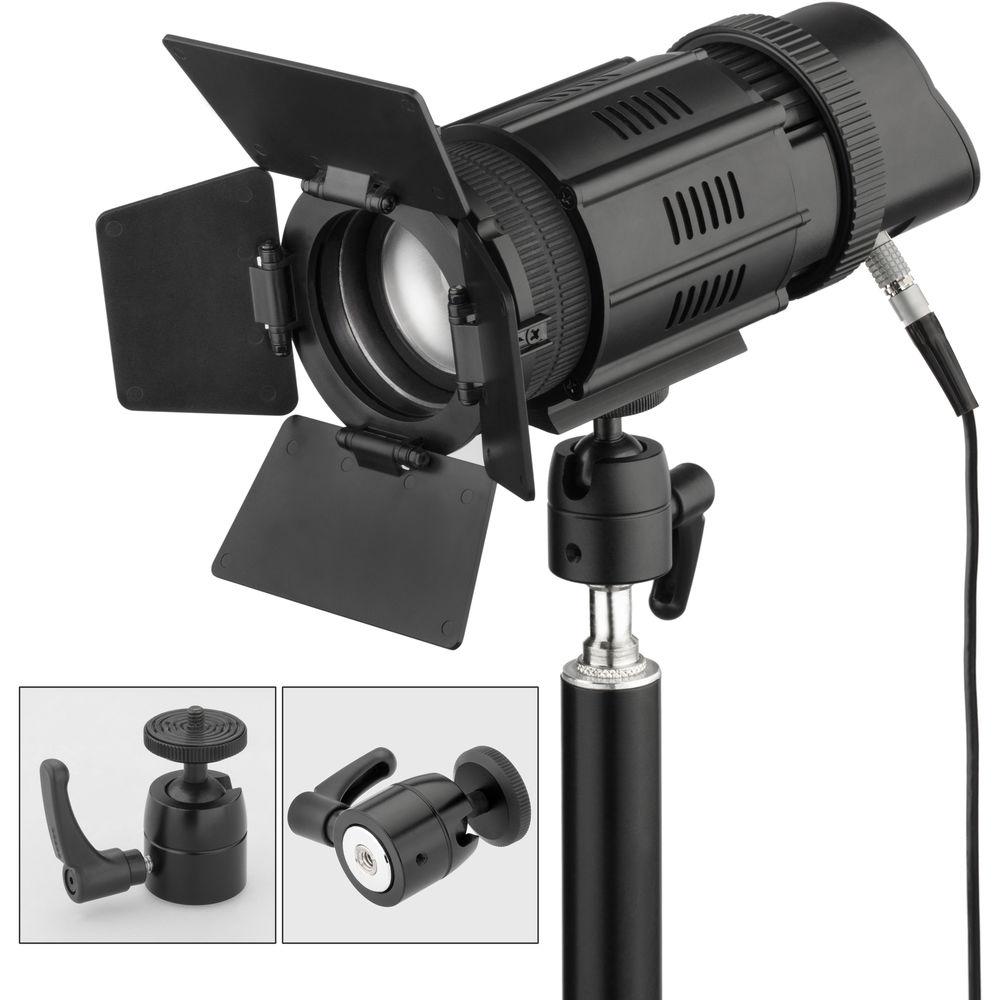

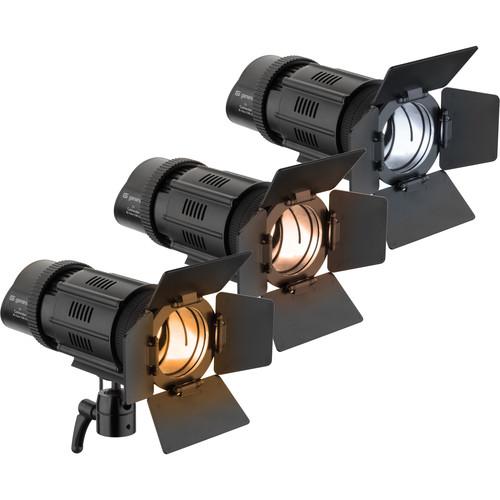

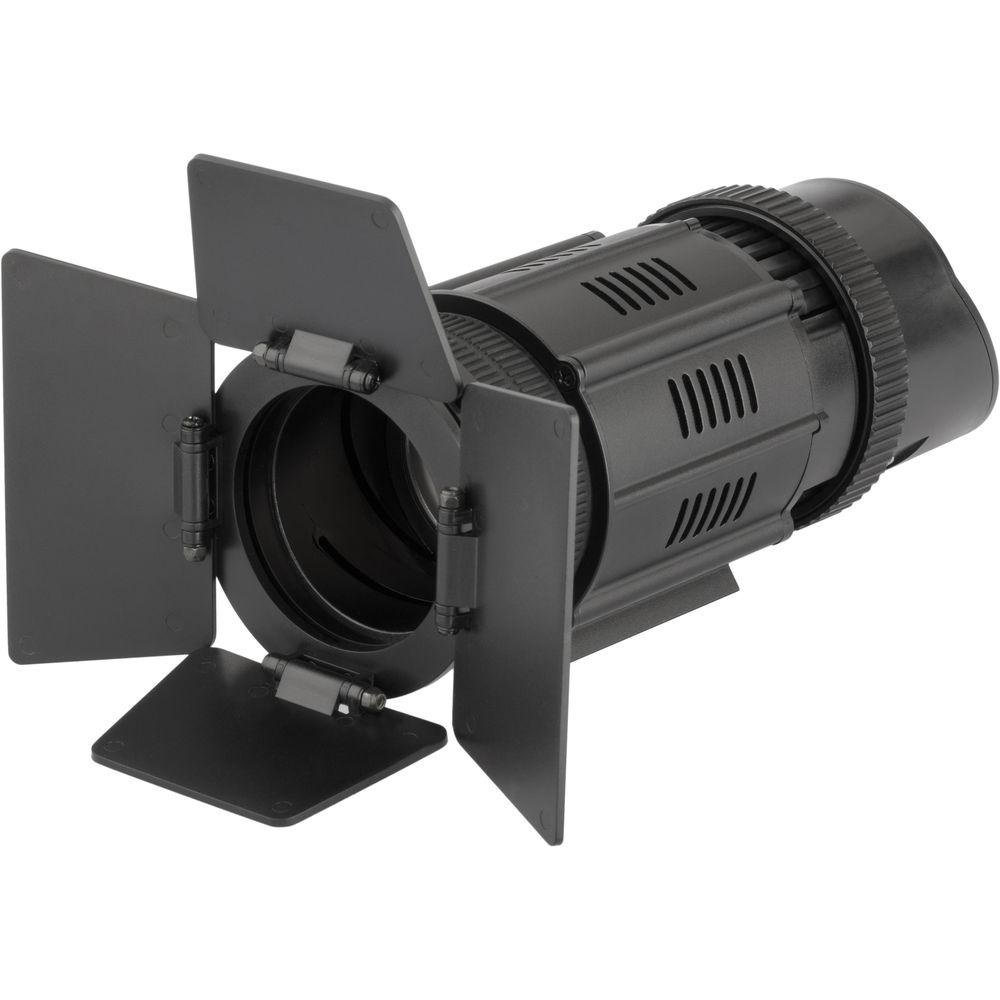

Product description The Contender LED Focusing Spot 3-Light Kit was put together by Genaray to give image makers in the studio or on location the benefit of a setup based on a light with wide adjustment options in color temperature, light intensity, beam coverage and power. The kit comes with three Contender LED heads. Each light comes with removable 4-way barndoors, multi-voltage AC adapter, ball head mount, two NP-F750 batteries, a battery charger and a filter insert. A hard travel case is included for storage and transport.The versatile 3.25 x 3.25 x 8.25" Contender LED Focusing Spot Light from Genaray has a compact form factor, variable light intensity, focus, and color temperature, as well as power options that make it well-suited to location work. The Contender is dimmable from 100 to 10% and its color is variable from 3200 to 5600K while maintaining a CRI/TLCI rating of 95/96, indicating faithful and accurate color rendition. You can fine tune the color or add diffusion materials for softness using the integrated filter frame. Yet another sign of versatility is the Contender's adjustable angle lens. The lens offers wide 55-degree coverage that can be focused down to a 25-degree spot for selective lighting or sharp-shadowed sunlight effects. The fixture's light source is a 50W high-density matrix LED array that generates negligible heat, allowing you to squeeze it into tight places or work up close to the talent without being concerned about hazard or discomfort.Powering the Contender offers two options. The light is ready for worldwide use, thanks to its 100-240 VAC power adapter. Just add an inexpensive plug adapter that matches the socket of the country you're traveling to. The Contender also includes a battery module, charger, and two NP-F750 batteries to power the light when mains current is unavailable. A carry case is included for storage and transport. - Adjustable Beam Angle
- The adjustable focus mechanism provides a beam angle from a 25° spot to a 55° flood. This makes it ideal for faces as well as backgrounds.
- Bi-Color
- Simply dial in color temperature from 3200 - 5600K or anywhere in between to match other fixtures, ambient light conditions, or just for creative effects.
- Color Fidelity
- The Contender has a CRI rating of 95 and a TLCI rating of 96, indicating a faithful and accurate rendition of color.
- Power Options
- Run on 100-240 VAC current or included NP-F750 batteries when mains power is unavailable.
- Cool Running
- The Contender generates barely perceptible heat. Squeeze the light into tight places or position it close to the talent without risk of hazard or discomfort.
- Flicker-free
- The Contender's LEDs output constant flicker-free light that's well-suited for shooting video at a high frame rate or in slow motion without a strobing effect.

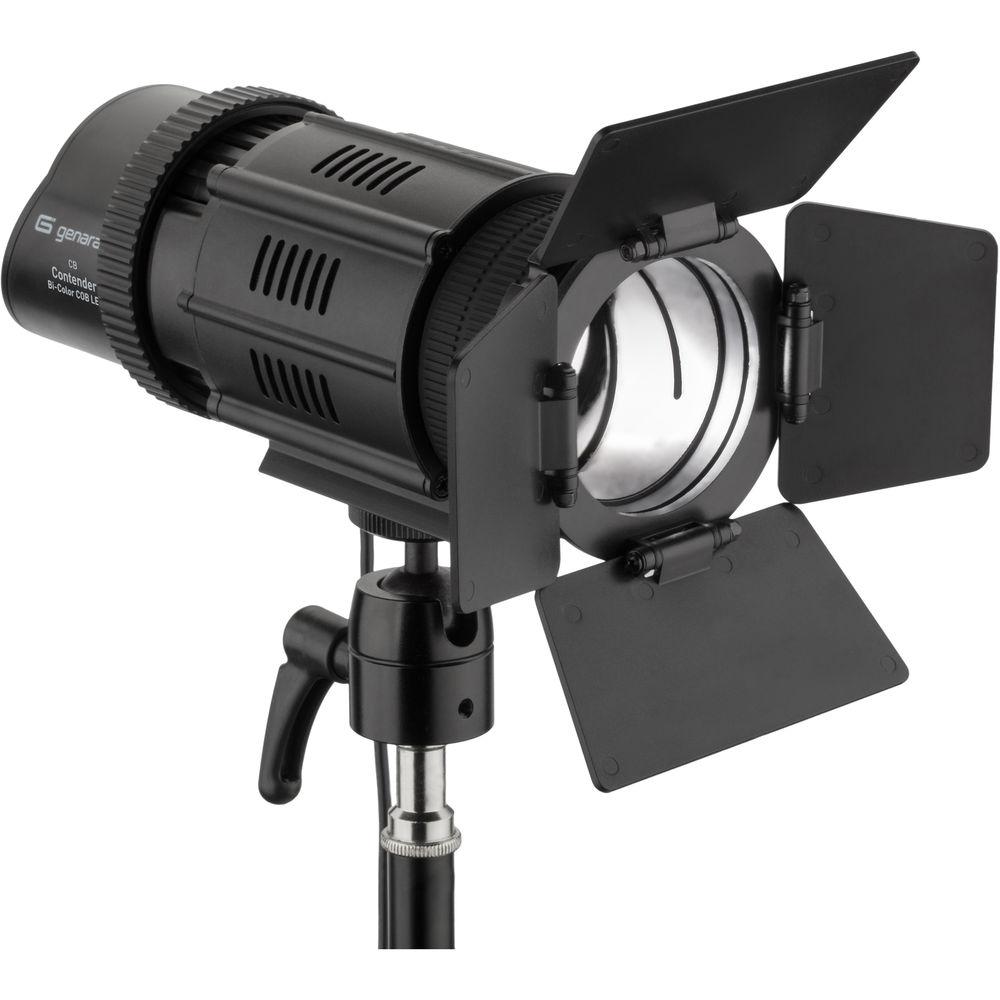

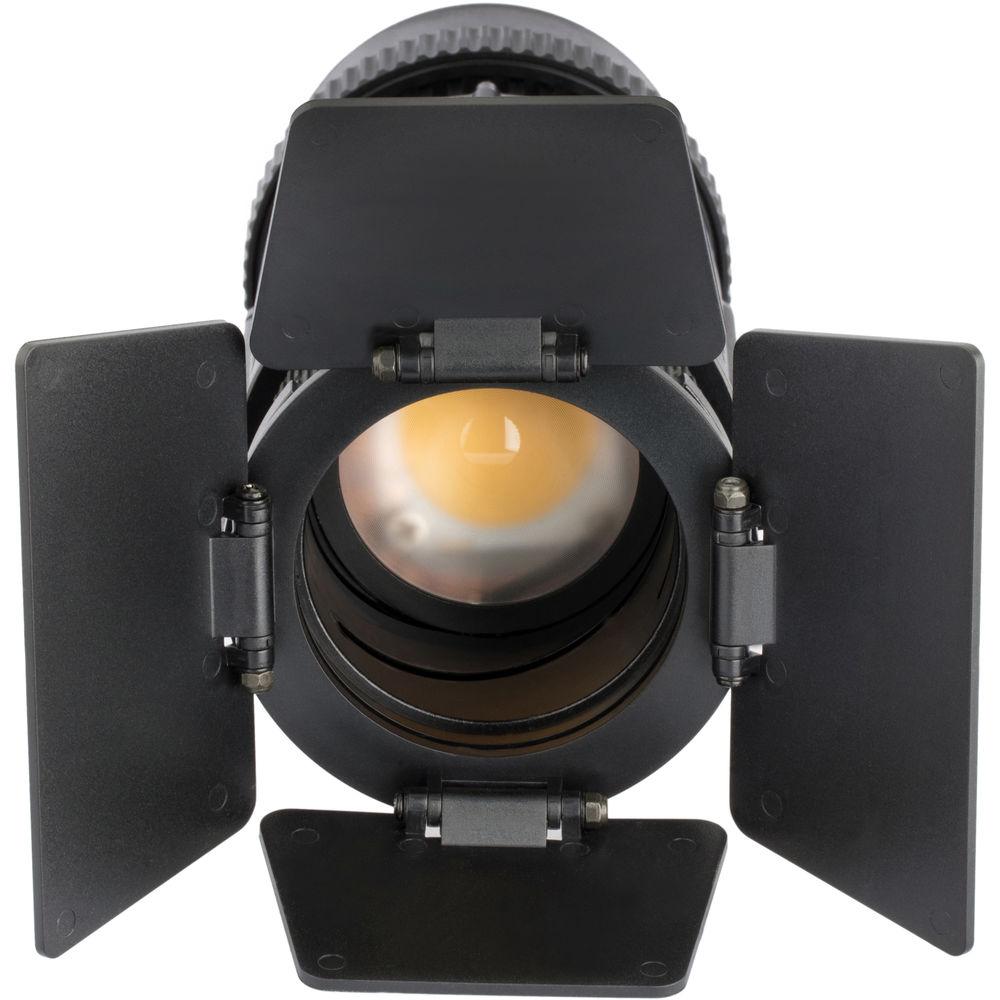

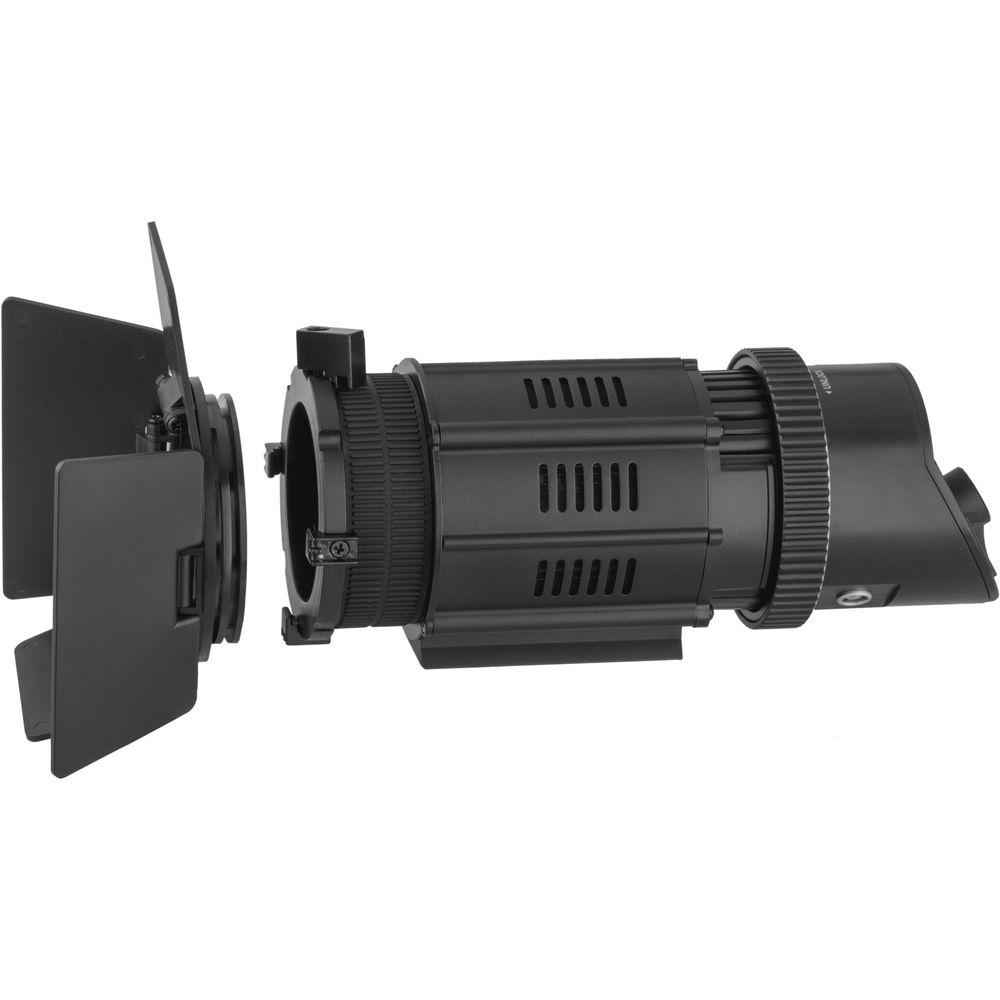

- Removable Barndoors
- The 4-way barndoors help you illuminate areas that you want to and keep light from areas that you don't want to light.
- Filter or Diffuse the Light Output
- The Contender has an integrated frame that allows insertion of diffusion materials for softer light or gel filters to balance the color temperature or for creative effects.

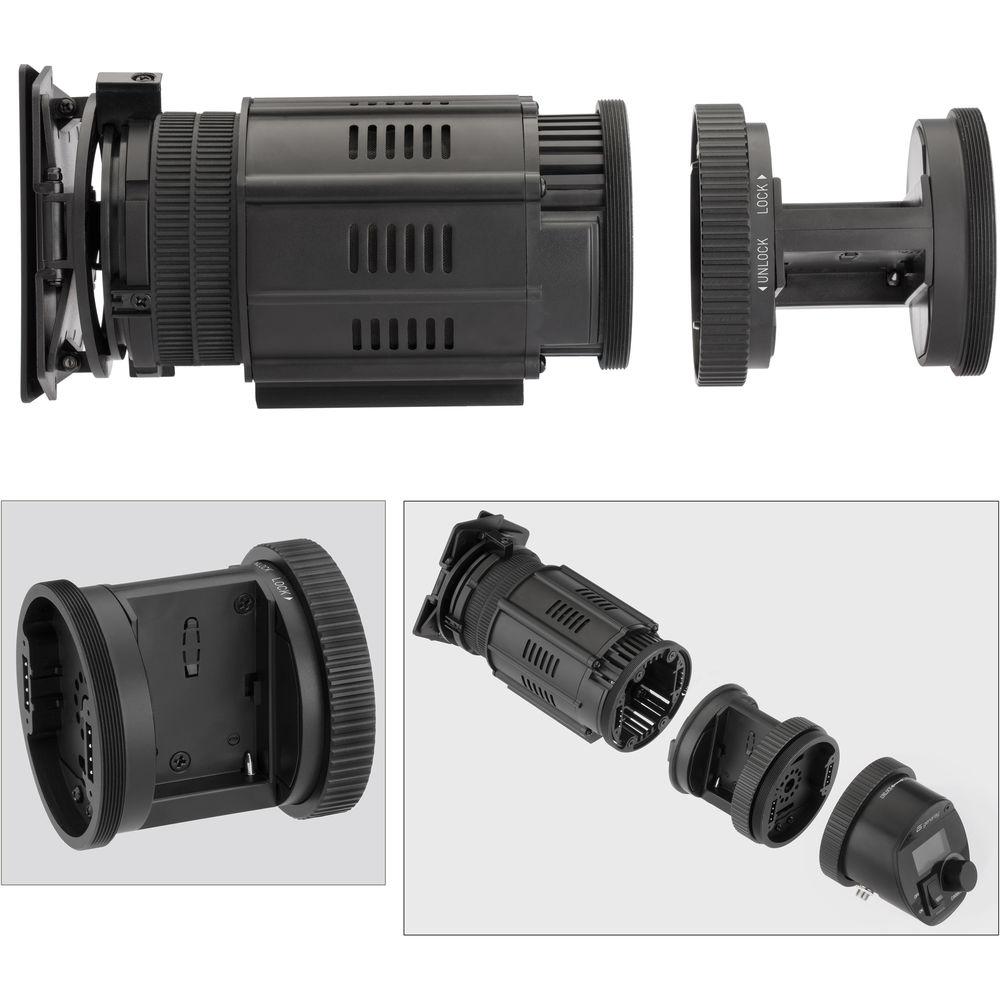

- Modular Design

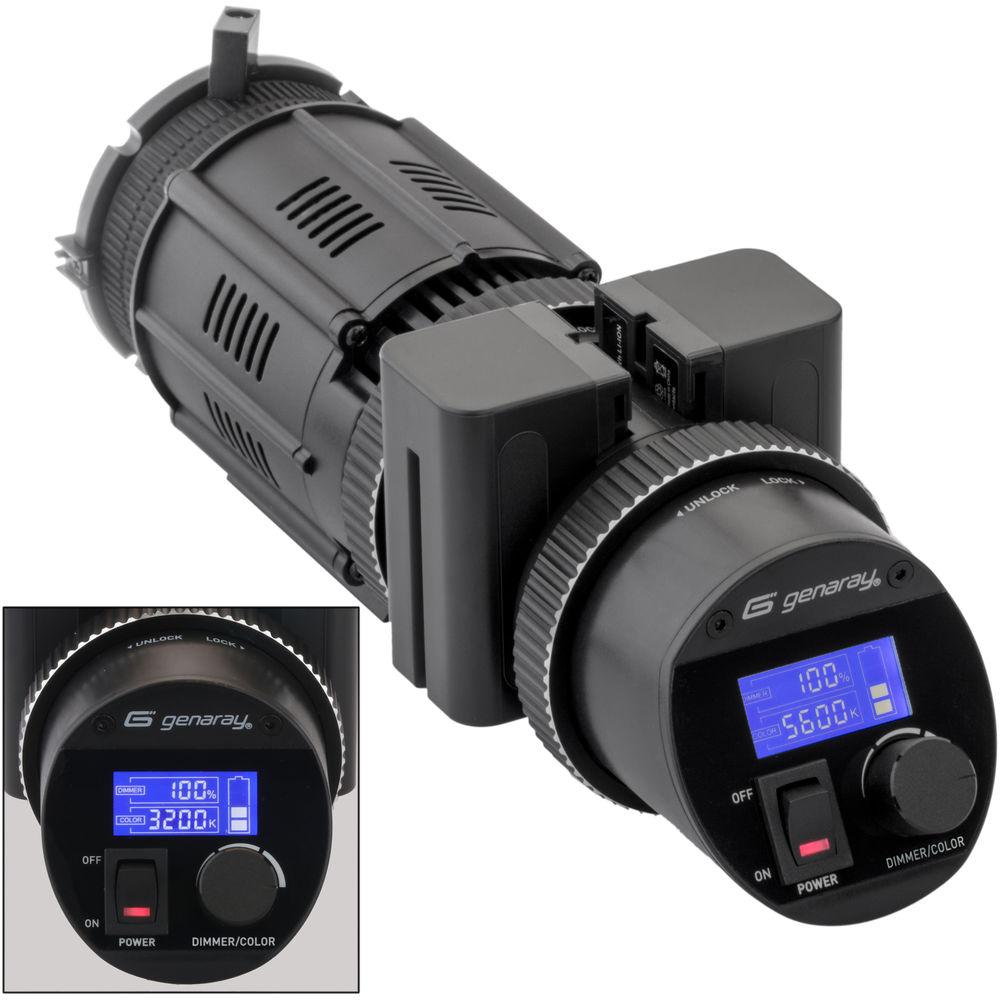

- The light's modular design makes it possible to incorporate a battery module to make use of the two provided NP-F750 batteries when mains power is not available.
UPC: 855193007165 In the Box Genaray Contender LED Focusing Spot 3-Light Kit with Battery Module Kit (Bi-Color) 3 x Contender LED Spot Focusing Light with Battery Module Kit (Bi-Color) Hard Travel Case Limited 2-Year Warranty User Manual PDF 1.2mb Table of Contents
|
Upload User Manual
Have you got an user manual for the Genaray Contender LED Focusing Spot 3-Light Kit with Battery Module Kit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

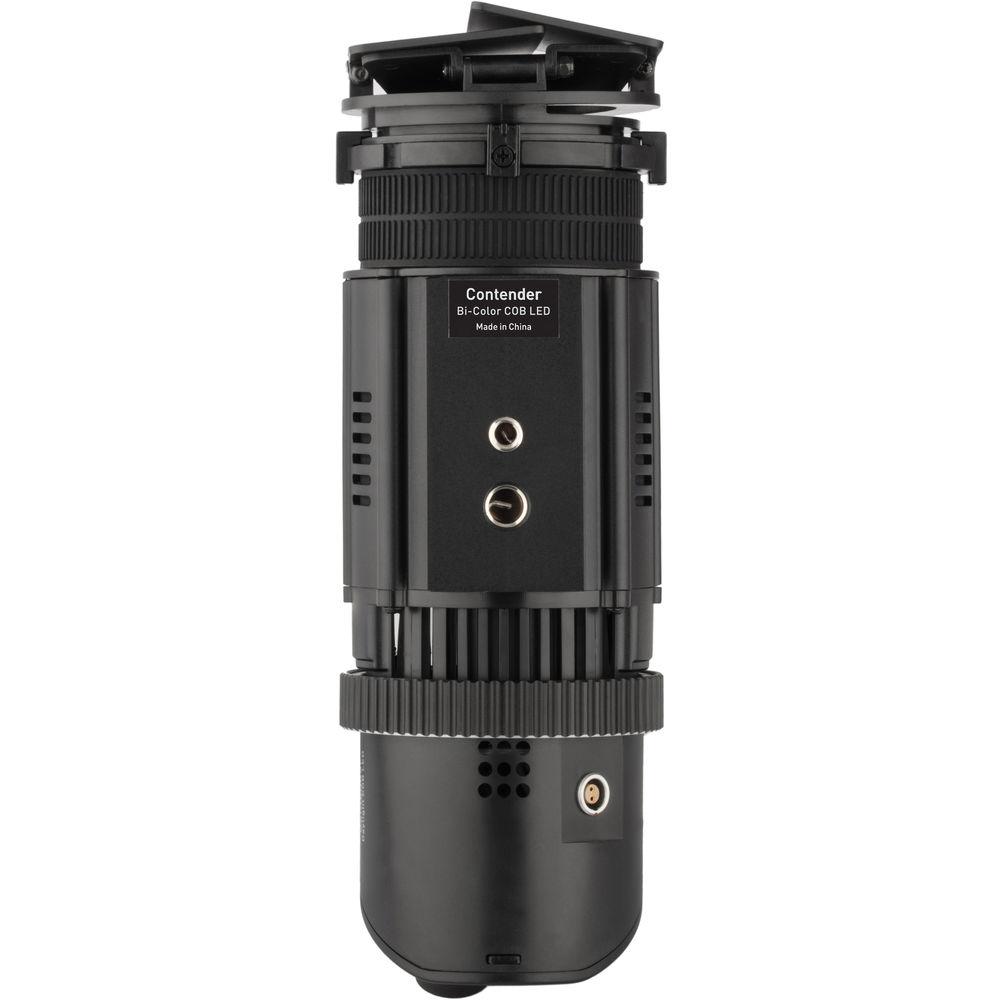

Technical parametersGenaray CB Contender Specs | Light Source | 50 W high density matrix LED array | | Tungsten Equivalent | 150-200 W | | Color Range | 3200 - 5600K | | CRI / TLCI | 95/96 | | Beam Angle | 25 - 55° | | Dimming | 10-100% | | Mount | Arca-style plate with 1/4"-20 and 3/8"-16 screws | | Power Consumption | 50 W | | Photometrics | 25°: 5400 lux, 55°: 2258 lux @ 3.28' (1.0 m) | | Operating Voltage | AC: 100-240 VAC, 50/60 Hz
DC: 14 to 18 V | | Battery | 2 x 4400 mAh NP-F750 batteries | | Battery Life | At 100% power: 1 hr 20 min
At 50% power: 3 hr 45 min | | Dimensions | Light Only: 3.25 x 3.25 x 8.25" (8.2 x 8.2 x 21 cm)
With Battery Module: 3.25 x 3.25 x 11" (8.2 x 8.2 x 28 cm)
AC Cable: 6.0' (1.8 m)
DC Cable: 3.0' (0.9 m) | | Weight | With Batteries: 3.05 lb (1.38 kg) | | | | Package Weight | 38.0 lb | | Box Dimensions (LxWxH) | 25.0 x 18.0 x 12.0" |
