User Manual for Genaray Crux 7" Round Daylight LED Light Click to enlarge the picture
Contents of the user manual for the Genaray Crux 7" Round Daylight LED
- Product category: LED Lights Genaray
- Brand: Genaray
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Genaray LED Lights
 |
User manual for the Genaray Crux 7" Round Daylight LED contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Genaray product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Genaray user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Genaray product will considerably shorten its lifespan!
|
Product description - The Genaray CR-7D Crux 7" Round Bi-Color LED Light

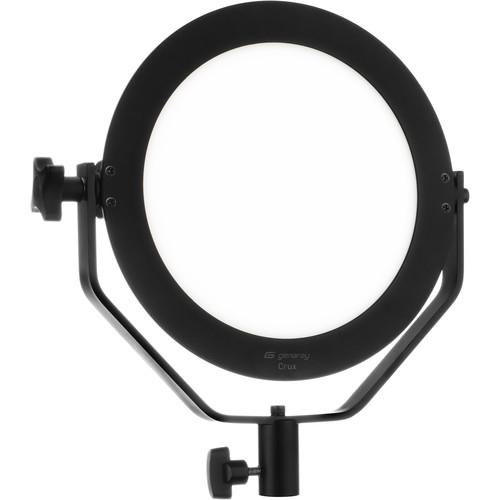

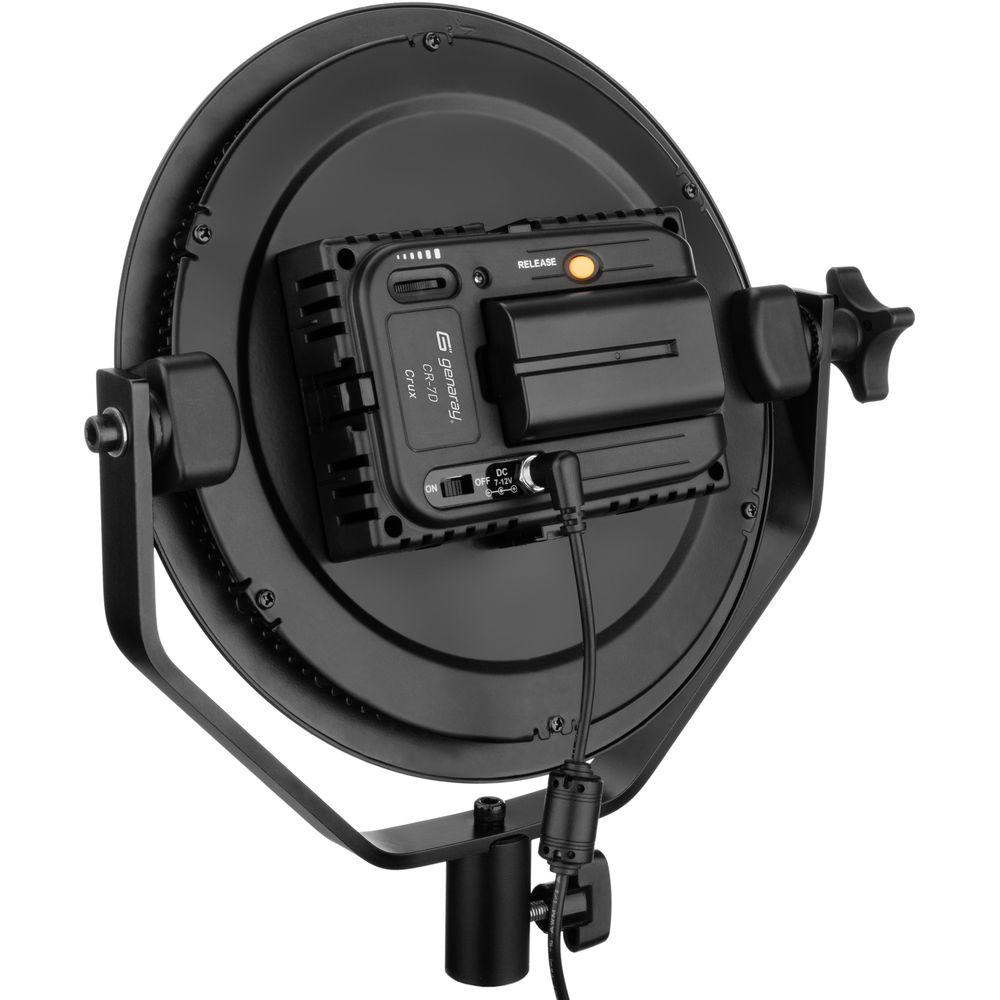

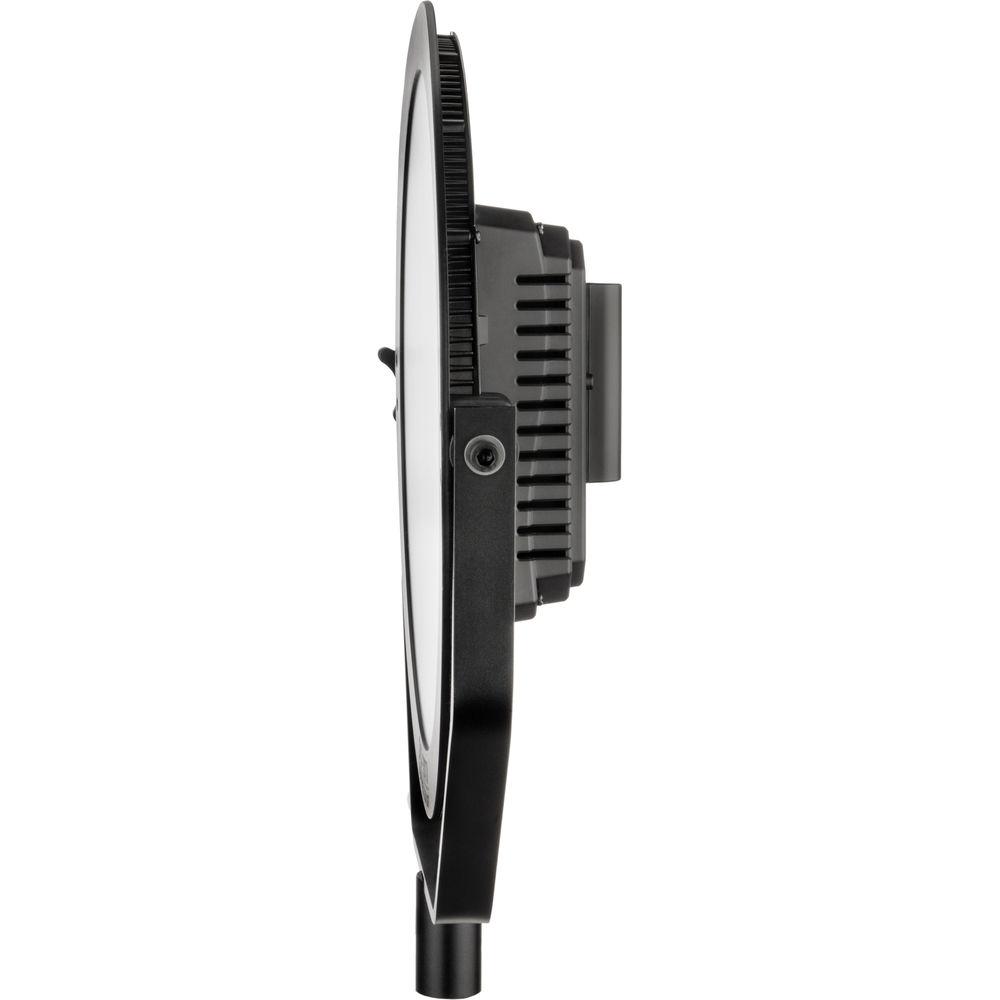

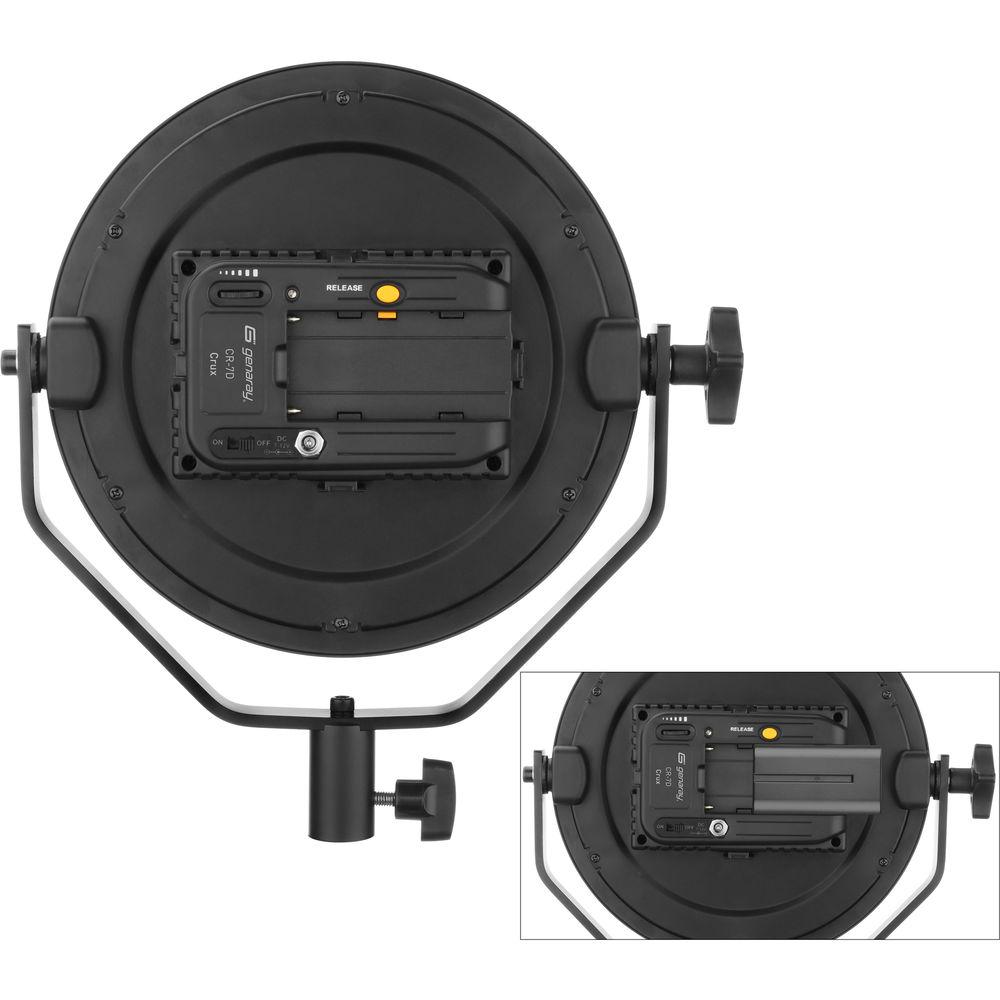

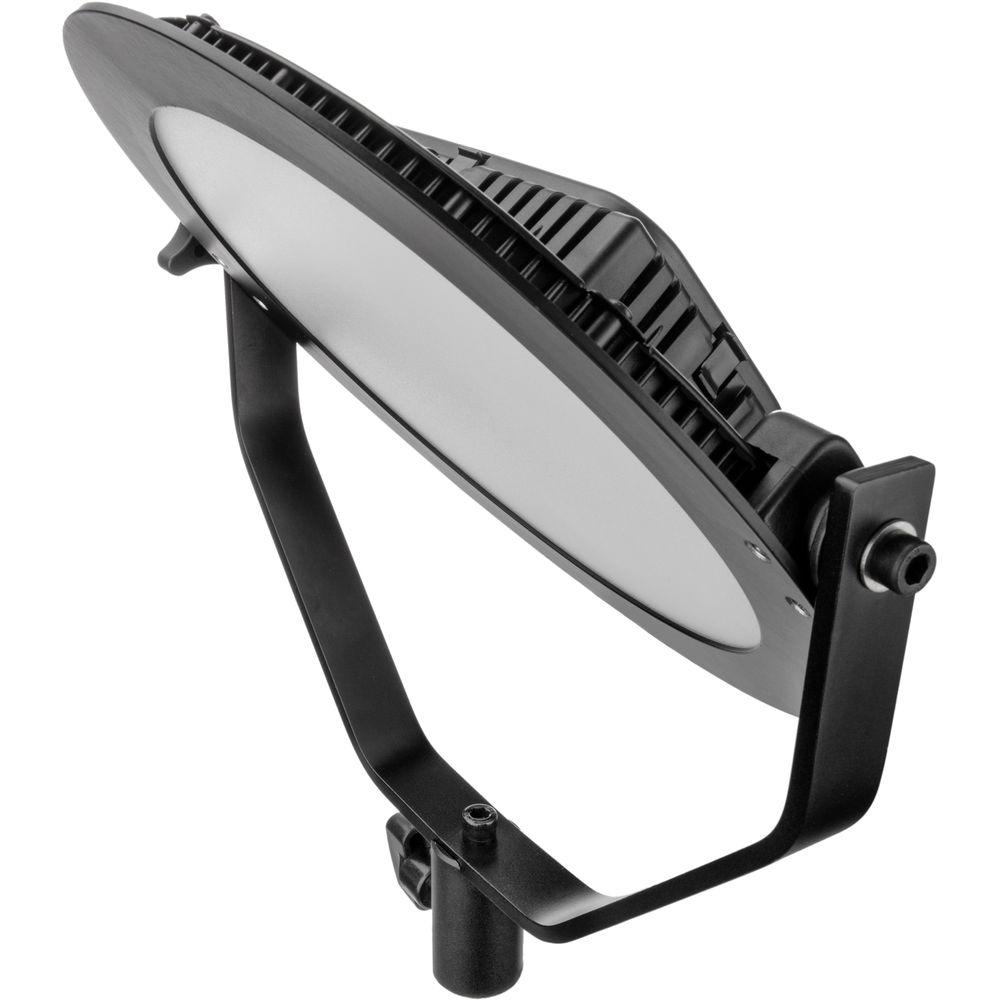

Ideal for products or portraiture, in the studio or on location, the Crux 7" Round Daylight LED Light from Genaray is a 5600K daylight-balanced fixture that uses 90 LEDs to output 1490 lux @ 1.6' with a high CRI of 93 for accurate color rendition. The Crux has an internal diffuser that defeats distracting multiple shadows and exhibits clean, natural-looking single-shadow performance. The efficient light consumes just 19W of power while outputting the tungsten equivalent of 150W that is dimmable from 100-0% without flicker. Dimming is controlled with a stepless dimmer knob. The round fixture has a 60° beam angle that offers wide coverage, flattering light quality, and natural-looking catchlights reflected in the eyes of your subject.The Crux 7" runs on AC or battery power. The light ships with a 100-240 VAC power adapter for worldwide use and a NP-F-type battery and charger for shooting in locations where AC power is unavailable. A carry case is provided for storage and transport. - Benefits
-
- 60°Beam angle
- 5600K daylight color balance
- Integrated diffuser softens the 90 recessed LEDs and outputs single shadow quality of light
- High CRI of 93 indicates superior color quality
- AC (100-240 VAC) or battery power with included battery
- Runs barely warm to the touch
- Flicker-free dimming from 100 to 0%
- Yoke with 5/8" receiver
- Lightweight fixture is easy to transport in its included case

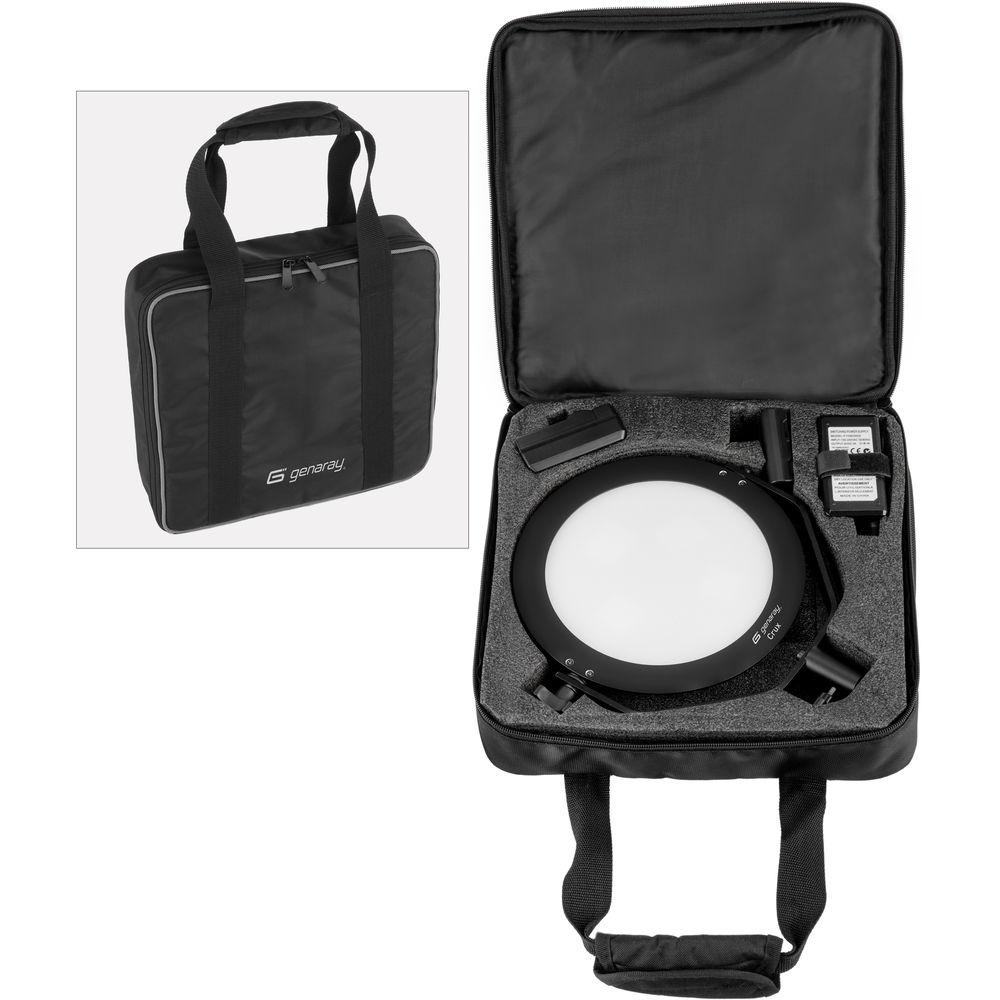

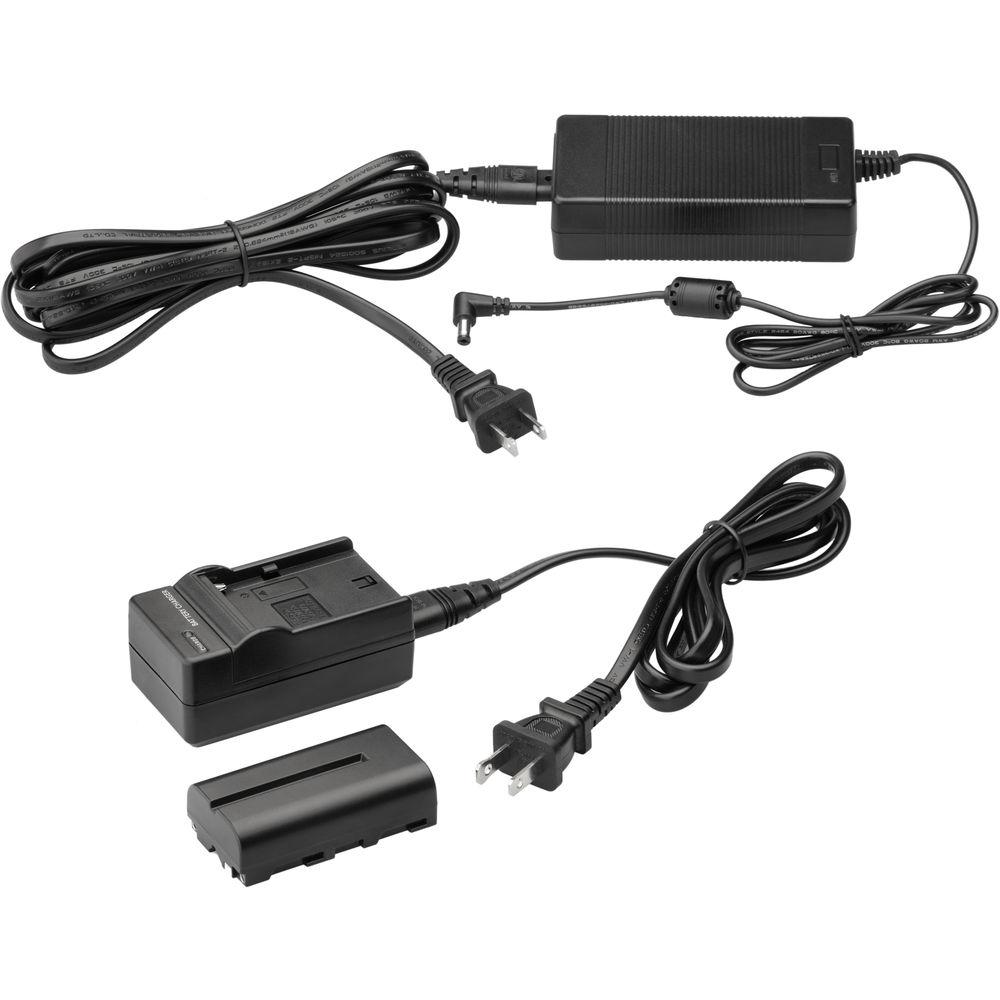

UPC: 639767568630 In the Box Genaray Crux 7" Round Daylight LED Light Sony NP-F-Type Rechargeable Battery Battery Charger with Power Cord AC Adapter with Power Cord Carry Case Limited 1-Year Warranty User Manual PDF 1016.4kb Table of Contents
|
Upload User Manual
Have you got an user manual for the Genaray Crux 7" Round Daylight LED Light in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersGenaray Crux 7 Specs | | | Beam Angle | 60° | | Color Temperature | 5600K | | Color Accuracy Standard | CRI 93 | | Cooling System | None | | Dimming | Yes, 0 to 100% | | Display | None | | Housing Material | Aluminum, Polycarbonate | | Number of LEDs | 90 | | Expected Lamp Life | 30,000 Hours | | Fixture Dimensions | 11.4 x 10.6 x 2.0" / 29.0 x 27.0 x 5.0 cm (Including Yoke) | | Fixture Weight | 1.55 lb / 0.90 kg | | | | Battery Plate | 1 x Sony L-Series (NP-F) | | | | Yoke Mount | TVMP/ Hex Bolt | | Fixture Mount | 5/8" Receiver | | Accessory Mount | None | | | | Remote Control Type | Proprietary Wireless | | Wireless Channels / Groups | 4 / X | | | | AC Input Power | 100 to 240 VAC, 50 / 60 Hz | | DC Input Power | 15 VDC at 3 A | | Power Source | AC Adapter, External Battery | | Max Power Consumption | 19 W | | | | Cable Length | 9.3' / 2.8 m | | | | Package Weight | 4.2 lb | | Box Dimensions (LxWxH) | 13.4 x 13.2 x 3.3" |
