User Manual for Genaray Cutlass Wand and Ring Light Kit Click to enlarge the picture
Contents of the user manual for the Genaray Cutlass Wand and Ring Light
- Product category: LED Lights Genaray
- Brand: Genaray
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Genaray LED Lights
 |
User manual for the Genaray Cutlass Wand and Ring Light contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Genaray product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Genaray user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Genaray product will considerably shorten its lifespan!
|
Product description - The Genaray SP-C Cutlass Wand & Ring Light

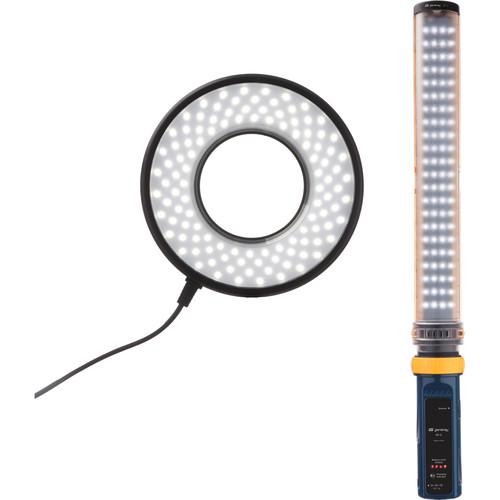

The Cutlass Wand and Ring Light Kit from Genaray is an opportunity to maximize your creativity with two unique light sources. The kit includes Cutlass, a 22.5" cylindrical fixture with a battery pack in the handle, and a 6.25" diameter Ring Light that shares the Wand's removable battery handle, which has a USB female input to charge iOS and Android devices. It's as simple as unscrewing the handle and mounting it on the Ring Light. A camera bracket is included so that your lens pokes through the center of the Ring Light for maximum effect. A charger is included for the battery, but you can also use the multi-voltage AC adapter anywhere in the world while the battery is charging.The Cutlass has 88 LEDs that output many times their nominal 15W rating with a high 93.1 CRI for accurate and precise color rendering. The Wand has a 100-degree beam angle - ideal for use as a hair light, side light, or rim light and light intensity is adjustable from 100 to 0%. While rated at 5600K daylight balance, a quick twist of the tube covers the LEDs with a tungsten-balanced 3200K filter for matching other fixtures or working creatively.The Ring Light also has a 100% beam angle, a low power draw, and stepless dimming from 100 to 0%. Its 112 LEDs output an accurate CRI of 92.3 at a color temperature of 5600K. The Ring Light has a signature, near-shadowless quality of light with unique catchlights in the eyes of your subjects that make it popular with fashion and macro shooters. The Ring Light includes seven adapter rings for various-sized camera lenses. Both lights fit in an included carry bag. - Bright and Powerful
- The Cutlass is an ideal, hair, sidelight, or rim light, while the Ring Light casts a soft quality of light with minimal shadows that's great for fashion, macro, and other close-up work. The camera mounts to the Ring Light with the lens protruding through the center of the "donut."
- Tungsten Filter

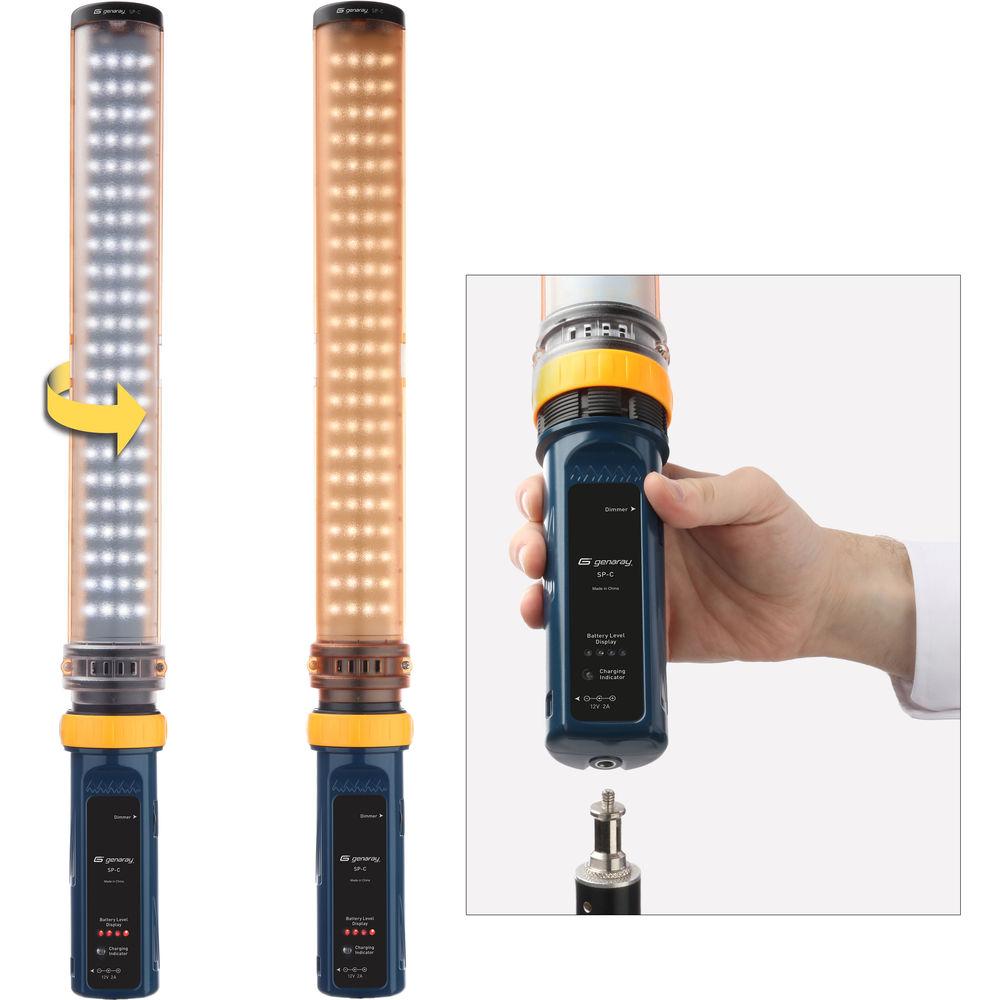

- The Cutlass Wand has a built-in tungsten filter that that converts the color temperature from daylight-balanced 5600K to tungsten-balanced 3200K to match existing fixture or to use creatively.
- Dimmable
- The Cutlass and Ring Light share a power supply, which they use separately. Located in the Cutlass's handle, the dimmer is capable of steplessly adjusting the light intensity on both fixtures from 100 to 0%.
- Rechargeable Battery Power
- The Wand's and Ring Light's rechargeable lithium-ion batteries give you at least 2.5 hours of untethered freedom. When the battery runs low, the included multi-voltage adapter allows worldwide use.
- Mounting Options

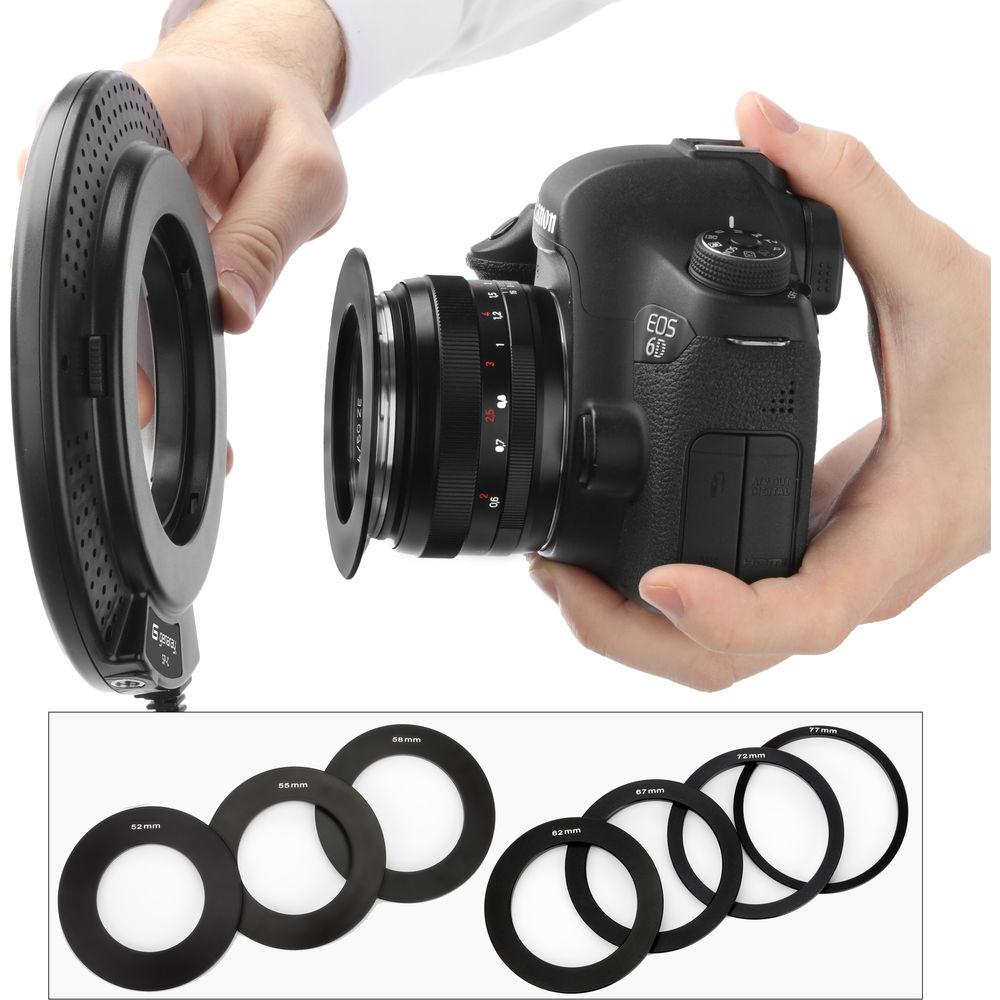

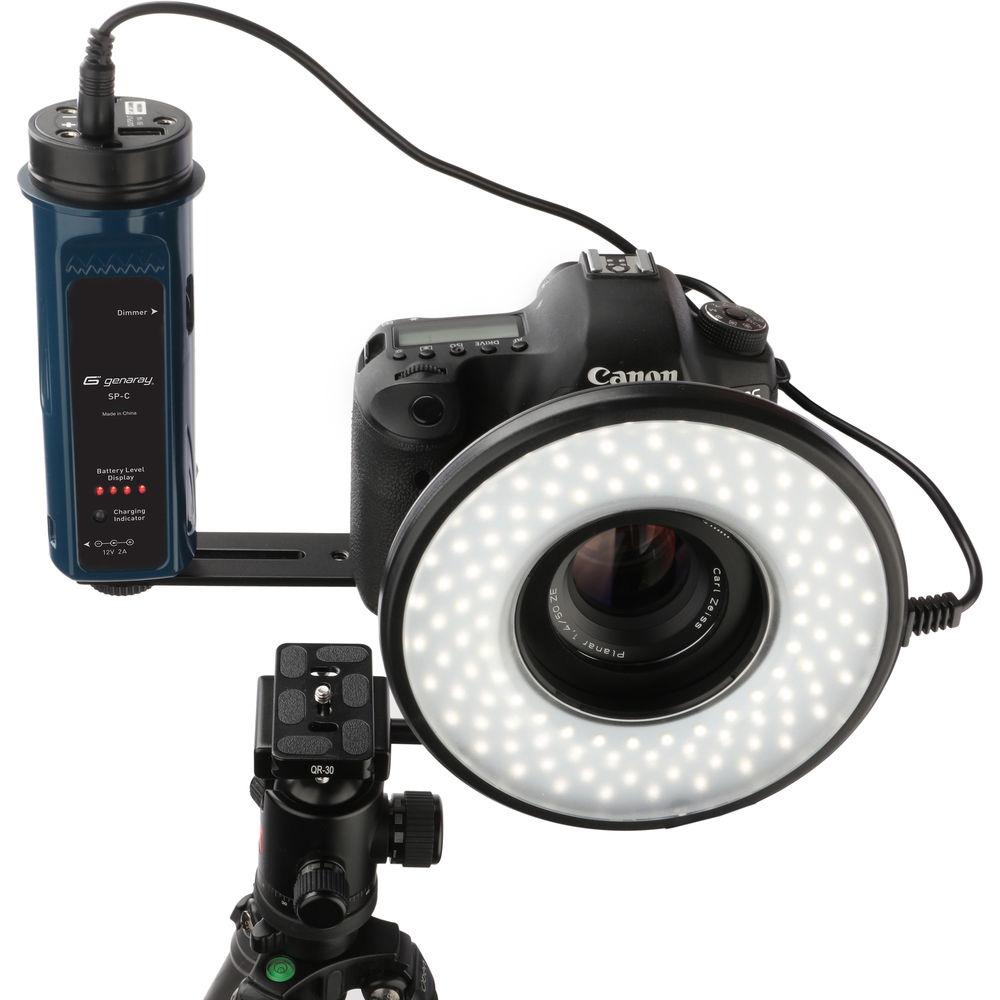

- The Cutlass Wand and the Ring Light are tripod mountable. The kit includes a camera bracket that will hold the Ring Light and the battery handle. The kit also comes supplied with seven adapter rings that allow the Ring Light to be mounted to the front of the lens; 52,55,58,62,67,72, and 77mm.
- Cool-Running LEDs
- The LEDs not only run barely warm to the touch but draw very little power and have a high input to output ratio.
- Portable
- The Cutlass and Ring Light are compact and lightweight.

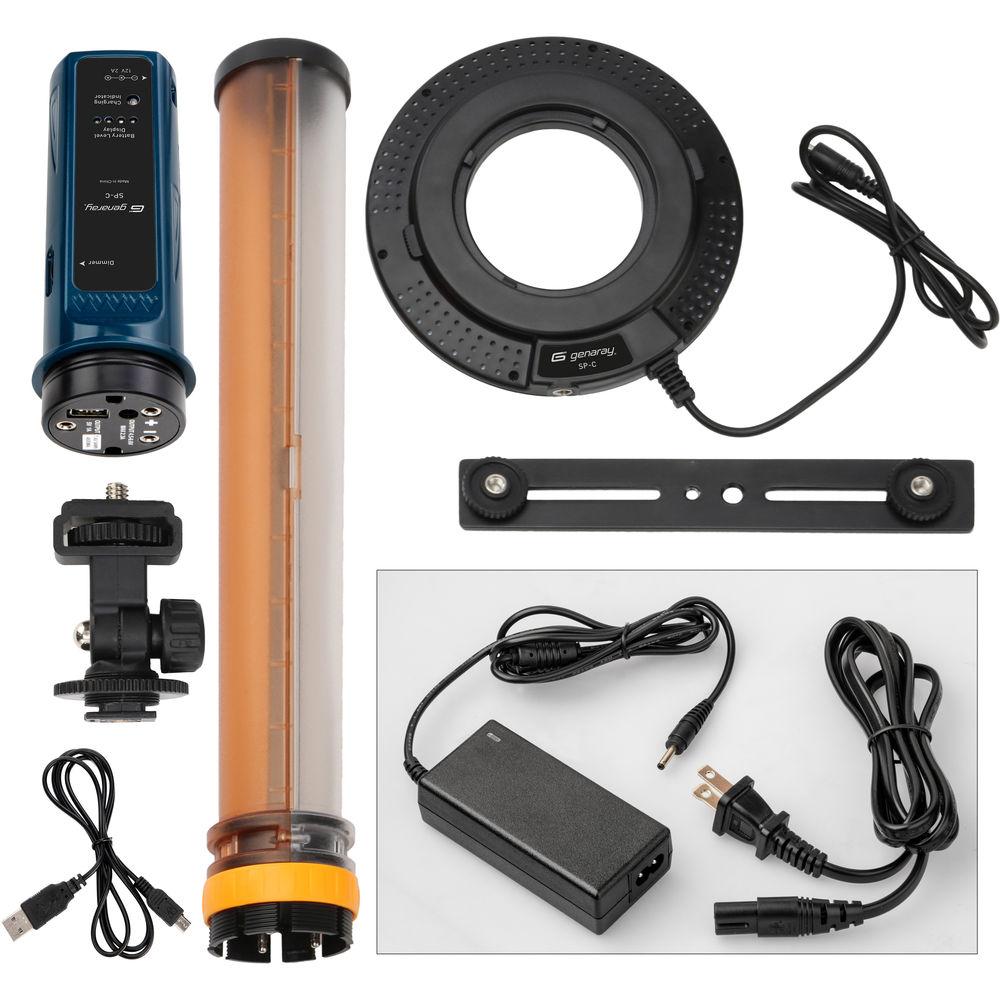

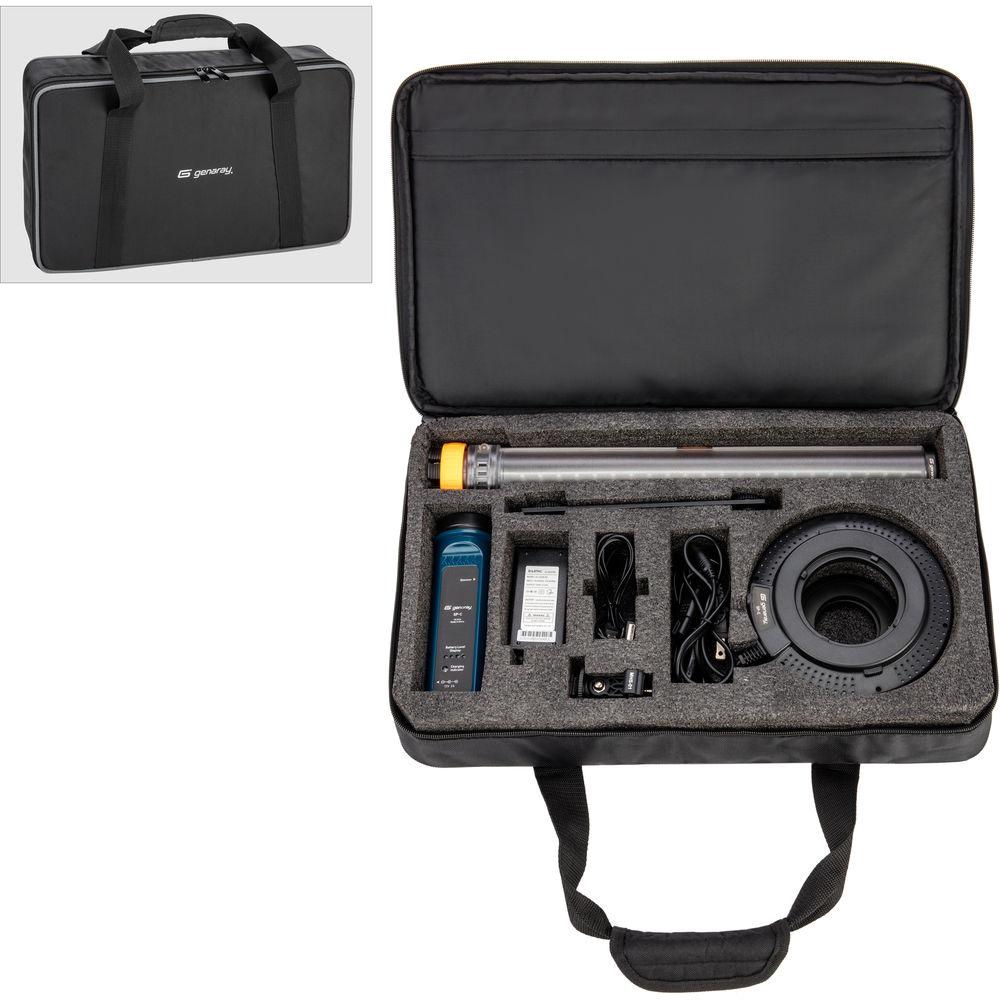

UPC: 639767568654 In the Box Genaray Cutlass Wand and Ring Light Kit Cutlass Wand LED Light LED Ring Light Power Supply Base (Battery Handle) Charger Power Cord Camera Bracket 7 x Adapter Rings for Ring Light USB to Micro-USB Cable Carry Case Limited 1-Year Warranty User Manual PDF 1mb Table of Contents
|
Upload User Manual
Have you got an user manual for the Genaray Cutlass Wand and Ring Light Kit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersGenaray SP-C Specs | LED Light Head | 22.5" Wand | | Light Source | 88 LEDs | | Color Range | 5600K, 3200K with built-in conversion filter | | CRI | 93.1 | | Operating Voltage | AC adapter: 100-240 VAC, 50/60 Hz
DC 7.4 V, 4600 mAh | | Beam Angle | 100° | | Dimming | 100% to 0% stepless | | Power Consumption | 15 W | | Mount | 1/4"-20 female thread in battery/handle base | | Photometrics | 2289 lux @ 1.0' (0.3 m) | | Dimensions | Height: 22.5" (56.5 cm)
Diameter: 6.3" (16 cm) | | Weight | 1.3 lb. (590 g) with battery | | LED Light Head | Ring light | | Light Source | 112 LEDs | | Color Range | 5600K | | CRI | 92.3 | | Operating Voltage | Battery: DC 7.4 V, 4600 mAh
AC Adapter: 100-240 VAC, 50/60 Hz | | Beam Angle | 100° | | Power Consumption | 15 W | | Mount | Camera mount and 1/4"-20 female thread on battery pack base | | Filter Thread | 52-77mm | | Photometrics | 2367 lux @ 1.0' (0.3 m) | | Dimensions | Height: 6.25" (15.9 cm)
Diameter: 6.25" (15.9 cm) | | Weight | 6.0 oz (170 g) without battery | | | | Package Weight | 4.85 lb | | Box Dimensions (LxWxH) | 19.4 x 12.2 x 4.3" |
