Product description - The Genaray ESBF-75 Escort Bi-Color LED Flood Light
The Escort Bi-Color LED Flood Light from Genaray is a powerful, versatile light source with color temperature that's variable from 3200K to 5600K or anywhere in between. Ideal for the on-the-go shooter, you can quickly adjust the color to match other fixtures or the ambient light without taking the time to apply filters. And, depending on the Kelvin temperature you've chosen, the Escort outputs illumination with a high CRI of 94 to 96 for accurate color rendition. There's also a Full Power Mode with a color temperature of about 4000K that uses all 680 LEDs to more than double the output. The light draws just 40W of current while outputting 300-400W of equivalent incandescent power that can be dimmed down to 10% on the unit. The Escort has a built-in in 2.4 GHz receiver making convenient, wireless dimming and color adjustments an option with separate purchase of a MonoBright Remote Control. You can also control and shape the 75-degree flood beam spread with the built-in barndoors. A diffusion filter in provided to soften the output.Genaray provides a multi-voltage 100 to 240 VAC power adapter for worldwide use but they also include 2 NP-F750 batteries and chargers for situations where mains power is unavailable. The light's pistol grip is handy for maximum flexibility when using battery power and you can stand mount the light with the provided adapter. A case is also included for storage and transport. - Variable Color Temperature
- Genaray has conveniently packed their daylight and tungsten-balanced lights into 1 fixture. This Bi-Color version is tunable in 100K increments from 3200K to 5600K and anywhere in between. Ideal for on-the-go shooters, the Escort Bi-Color allows you to make speedy adjustments to match other fixtures or balance with ambient light conditions without filters.
- Bright and Powerful
- The Escort offers high output equivalent to 300-400W of incandescent wattage while drawing only 40W.
- AC or Battery Power

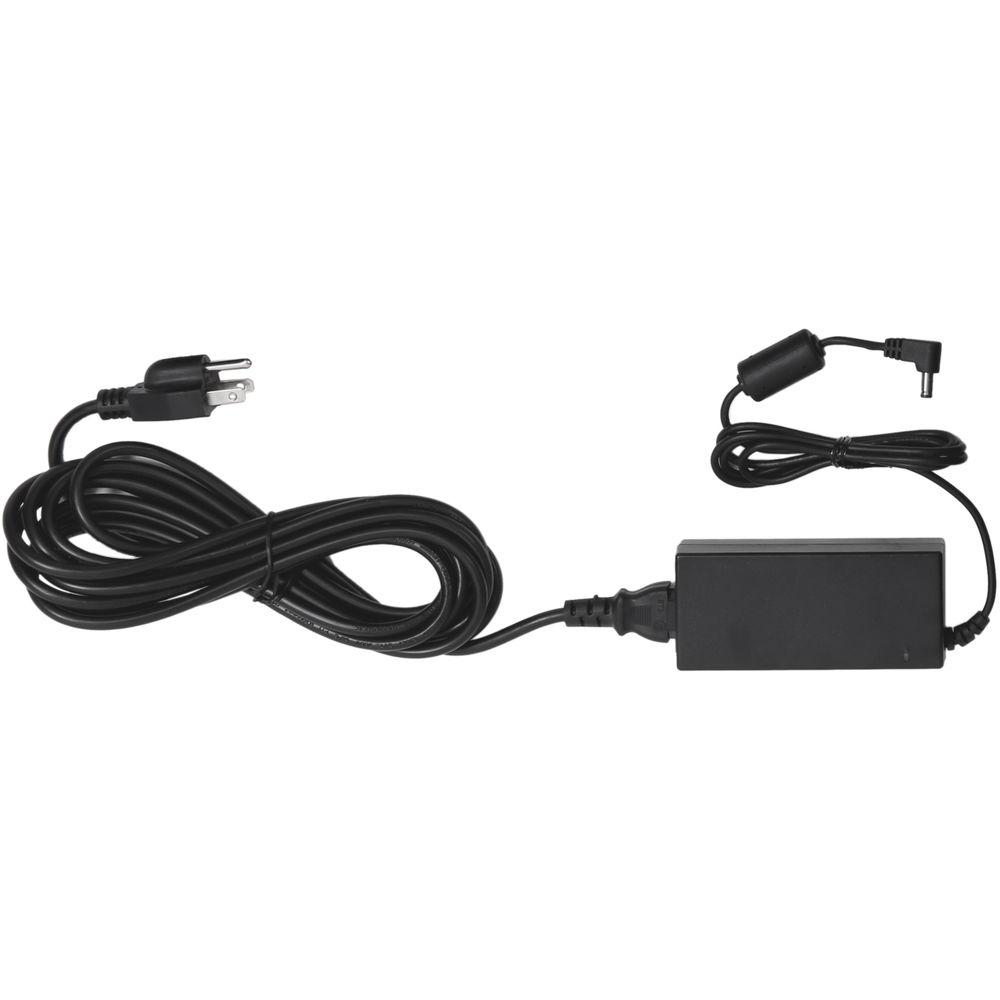

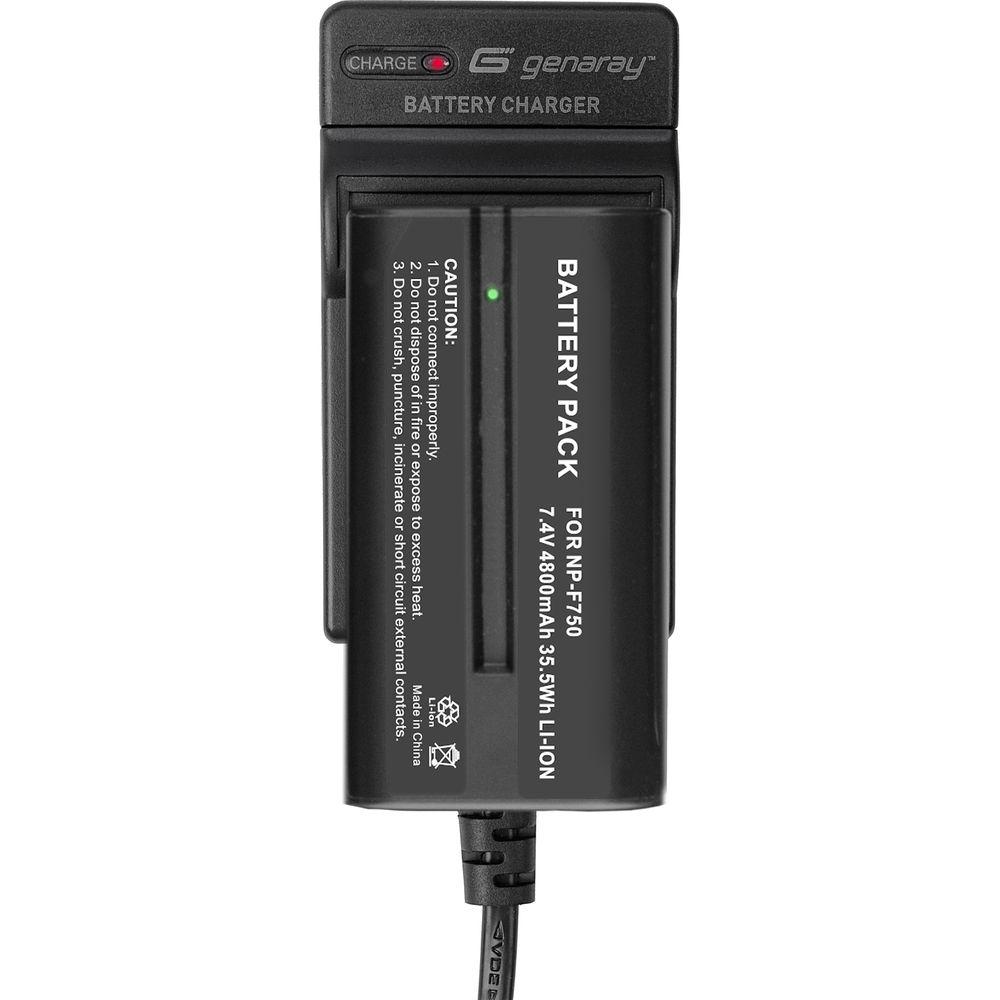

- You have the option of running the Escort on the provided multi-voltage adapter or with the included NP-F750 batteries when mains power is unavailable.
- LED Advantages
- Not only are LEDs power efficient to use, but they operate barely warm to the touch, meaning less worries about delicate objects and no discomfort for your subject.
- Dimming
- Dim the Escort from full brightness to 10% power without flicker or color shifting.
- Light Modifiers

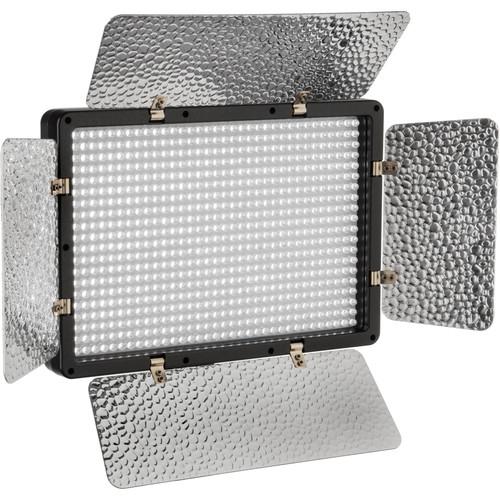

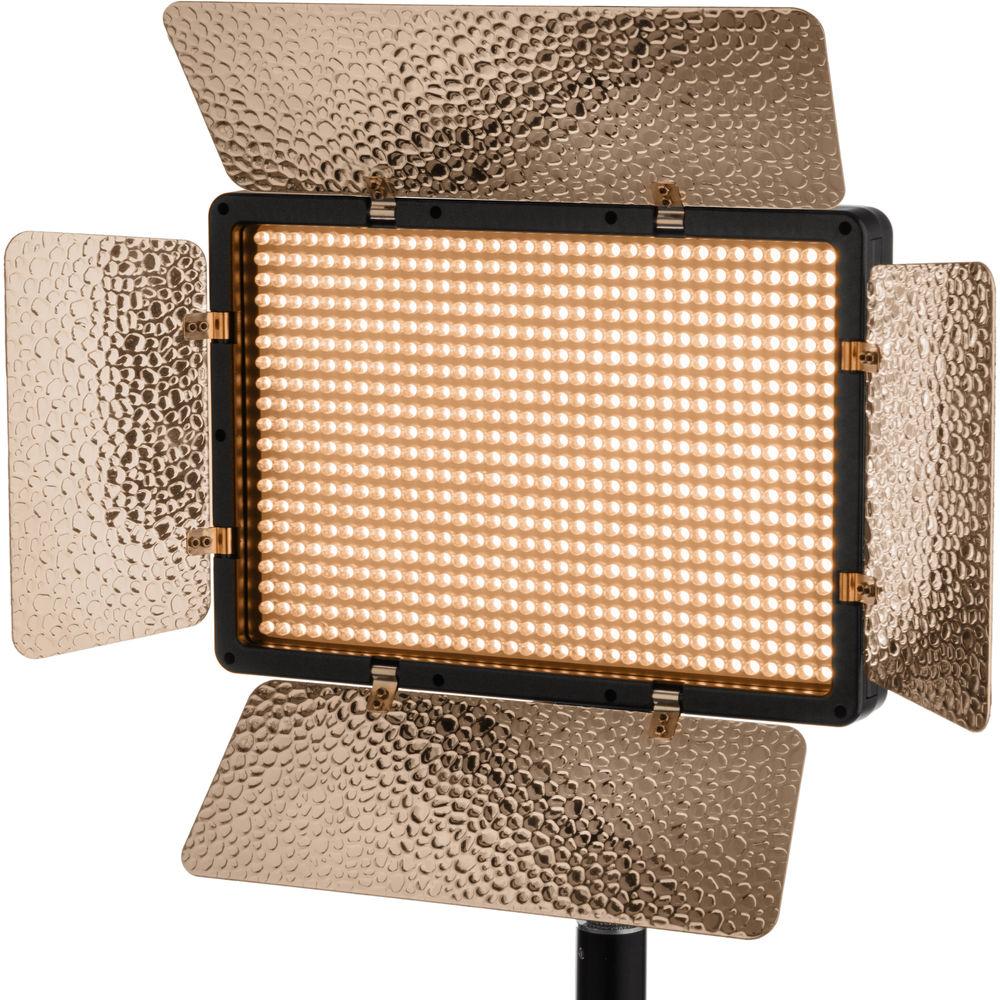

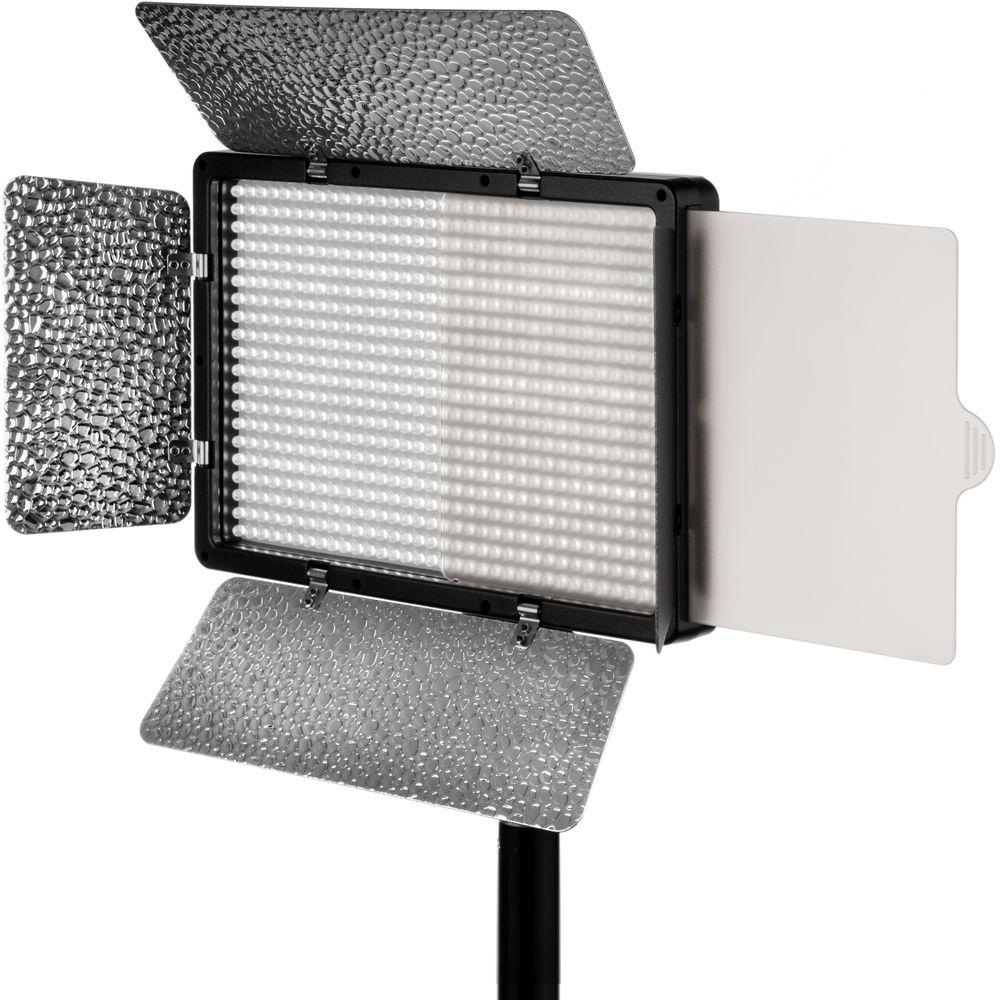

- The Escort has built-in barndoors to shape the output and comes with a diffuser to soften the light.
- Mounting Options

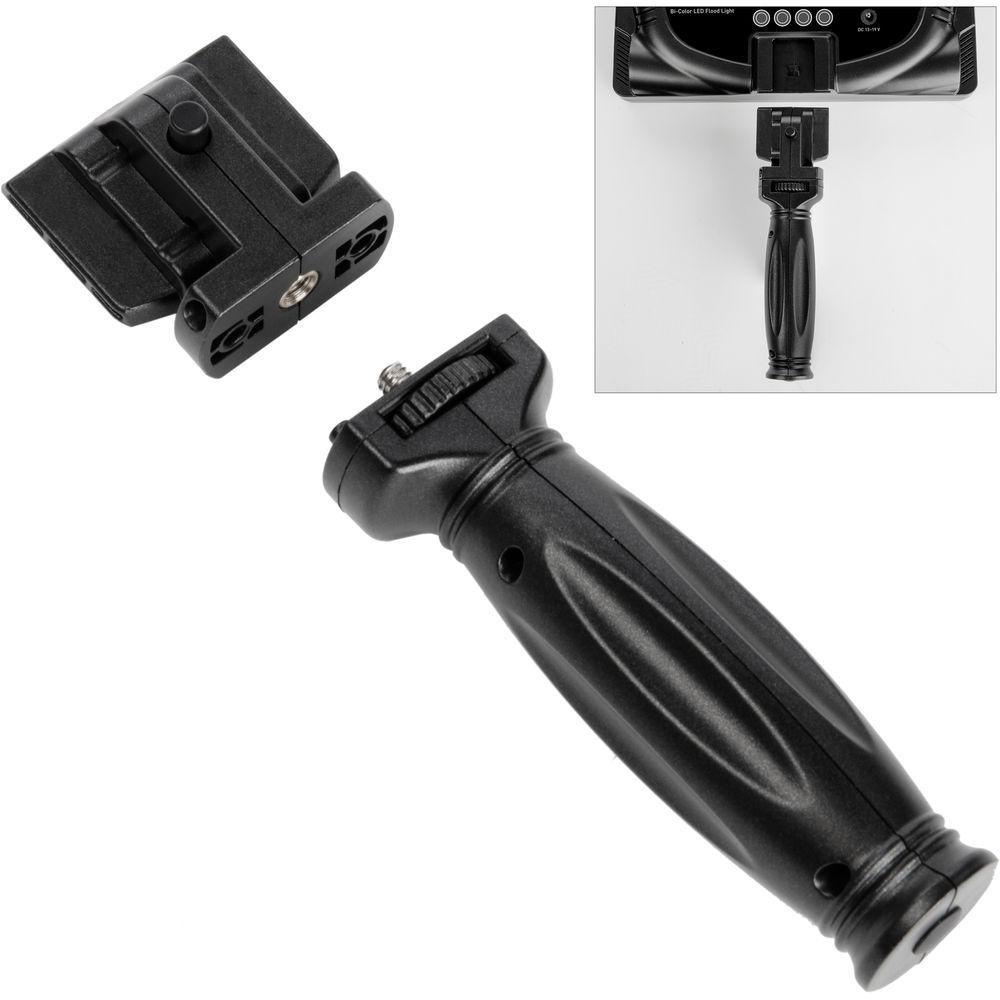

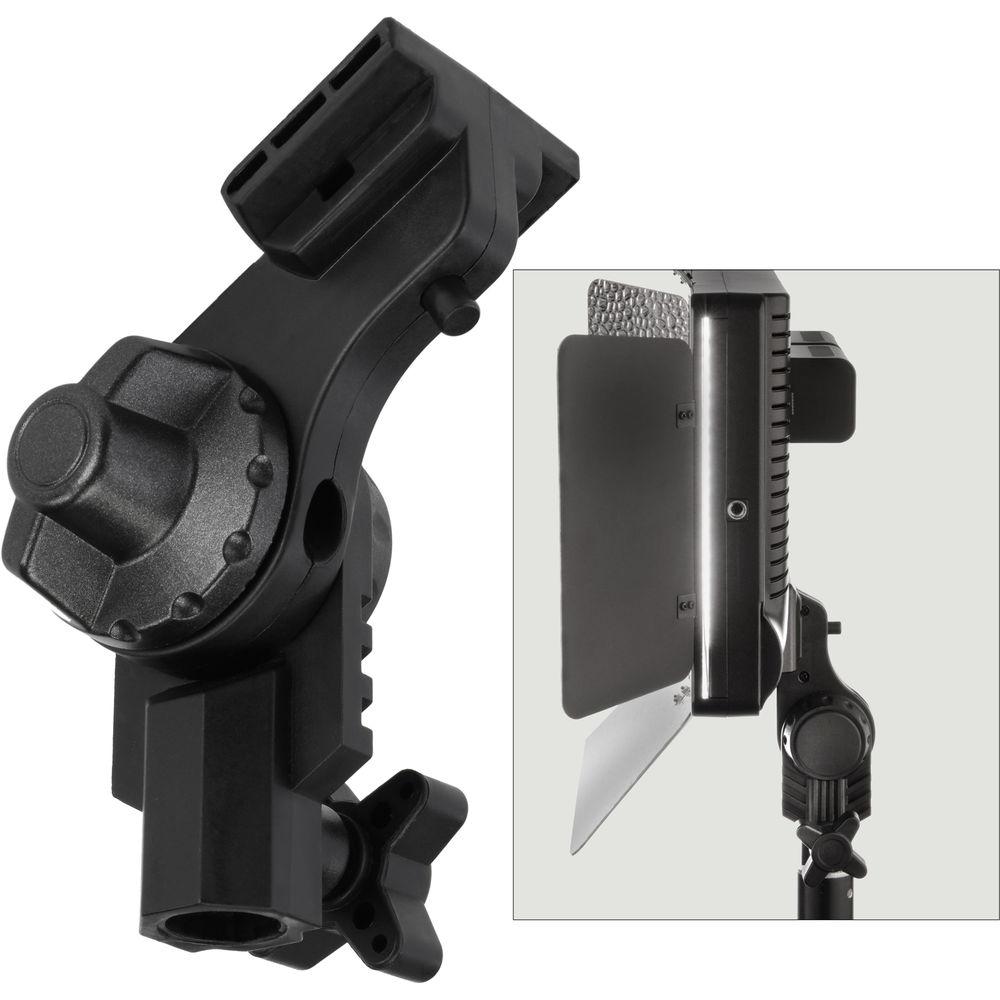

- Mount the Escort on a light a light stand with the included adapter or mount the portable light on the provided pistol grip for maximum flexibility.

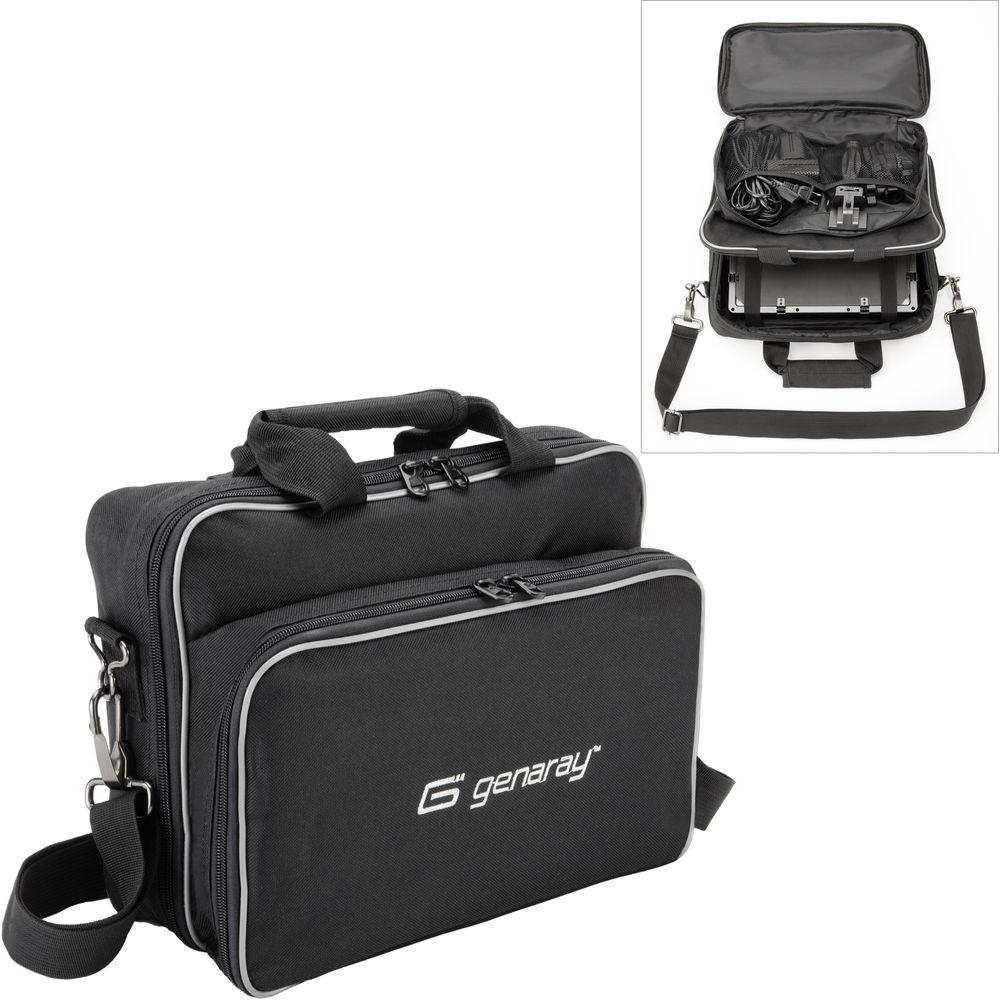

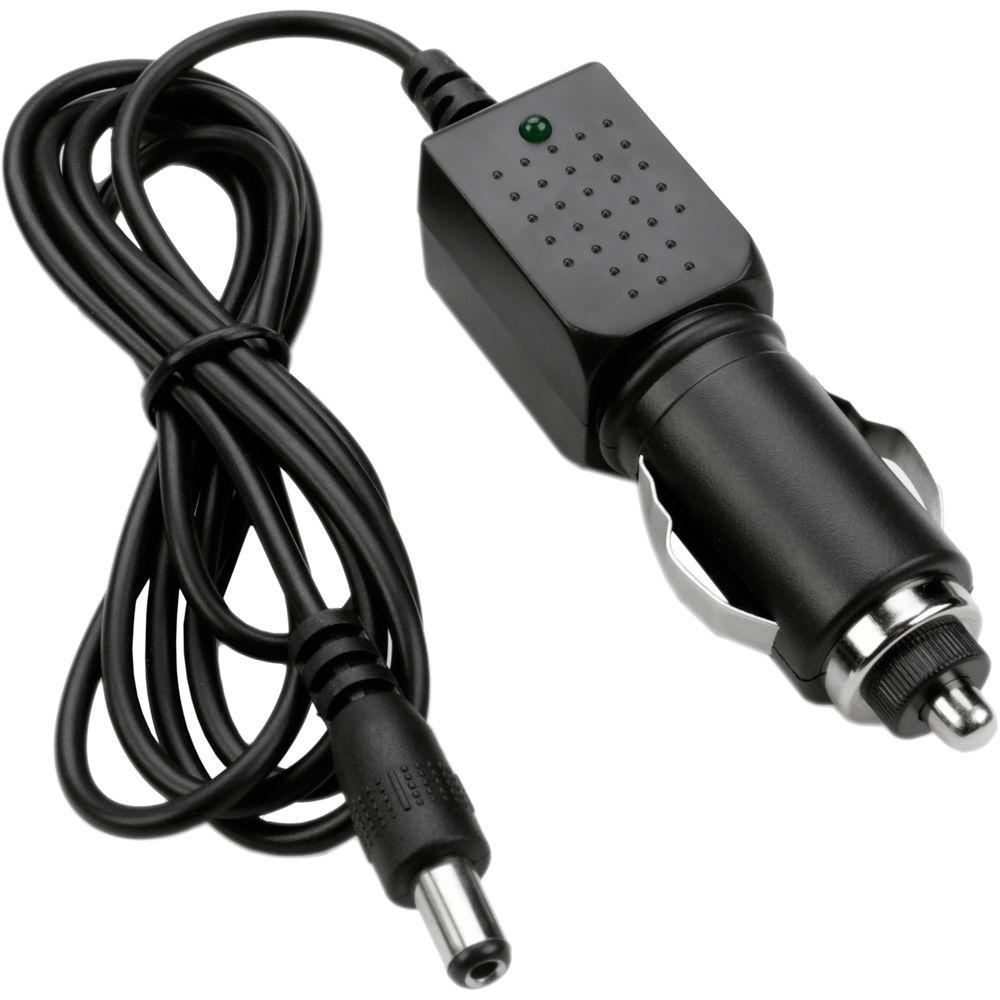

UPC: 639767568494 In the Box Genaray Escort Bi-Color LED Flood Light Diffusion Filter Stand Mount Pistol Grip Multi-Voltage AC Adapter Power Cable 2 x NP-F750 Battery 2 x Battery Charger 12 V Cigarette Lighter Adapter Cables Carry Case Limited 1-Year Warranty User Manual PDF 1.4mb Table of Contents
|
Upload User Manual
Have you got an user manual for the Genaray Escort Bi-Color LED Flood Light in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersGenaray ESBF-75 Specs | | | Beam Angle | 75° | | Color Temperature | 3200 to 5600K | | Color Accuracy Standard | CRI 96 at 3200K
CRI 94 at 4000K

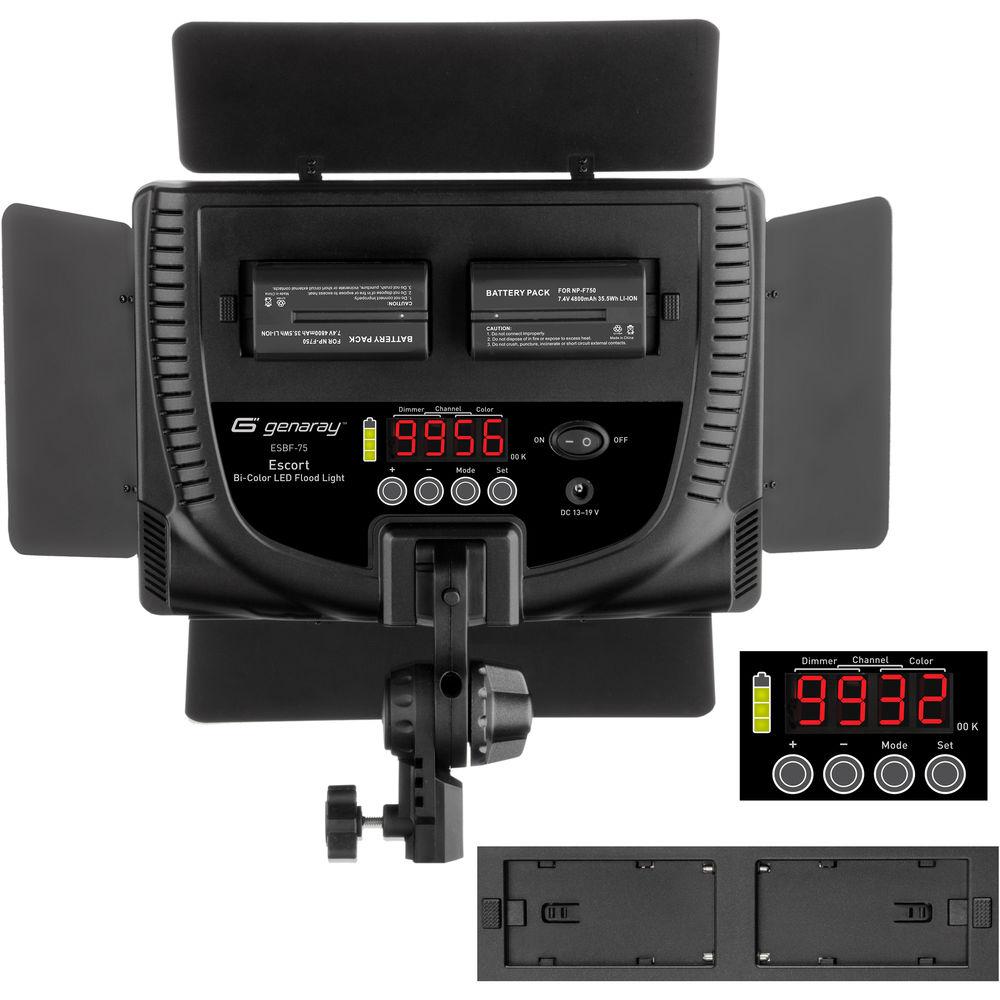

CRI 92 at 5600K | | Cooling System | None | | Dimming | Yes, 10 to 100% (Stepped) | | Display | None | | Number of LEDs | 680 | | Expected Lamp Life | 50,000 Hours | | Fixture Dimensions | 10.3 x 7.2 x 2.0" / 26.3 x 18.3 x 5.0 cm | | Fixture Weight | 2.2 lb / 1 kg | | | | Battery Plate | 2 x Sony L-Series (NP-F) | | | | Fixture Mount | 1/4"-20 Female Thread | | Mount via Included Adapter | 5/8" Receiver | | Accessory Mount | None | | | | Remote Control Type | Proprietary Wireless | | | | AC Input Power | 100 to 240 VAC, 50 / 60 Hz | | DC Input Power | 13 to 19 VDC | | Power Source | AC Adapter, External Battery | | Max Power Consumption | 40 W | | | | Cable Length | 15.5' / 4.7 m | | | | Certifications | UL, as per Manufacturer | | IP Rating | IP20 | | | | Package Weight | 7.465 lb | | Box Dimensions (LxWxH) | 13.6 x 10.45 x 7.45" |
