Product description - The Genaray ESDF-75 Escort Daylight LED Flood Light
The Escort Daylight LED Flood Light from Genaray is a powerful, versatile light source with a color temperature of 5600K and a high CRI of 96 for accurate color rendition. The light draws just 40W of current while outputting 300-400W of equivalent incandescent power that can be dimmed down to 10% on the unit. The Escort has a built-in in 2.4 GHz receiver making convenient, wireless dimming an option with separate purchase of a MonoBright Remote Control. You can also control and shape the 75-degree flood beam spread with the built-in barndoors. A diffusion filter in provided to soften the output and a CTO filter is also included to convert it to 3200K tungsten balance.Genaray provides a multi-voltage 100 to 240 VAC power adapter for worldwide use but they also include 2 NP-F750 batteries and chargers for situations where mains power is unavailable. The light's pistol grip is handy for maximum flexibility when using battery power and you can also stand mount the light with the provided adapter. A case is also included for storage and transport. - Bright and Powerful
- The Escort offers high output equivalent to 300-400W of incandescent wattage while drawing only 40W.
- AC or Battery Power

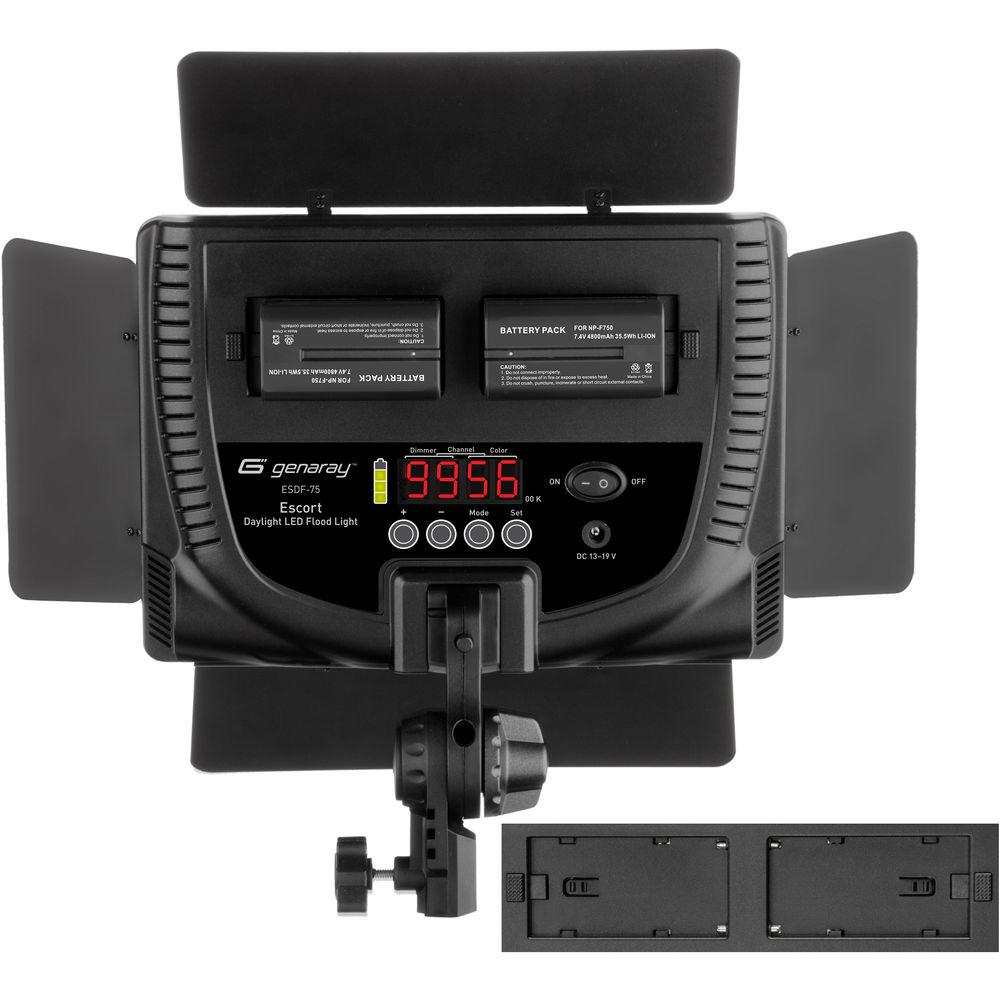

- You have the option of running the Escort on the provided multi-voltage adapter or with the included NP-F750 batteries when mains power is unavailable.
- LED Advantages
- Not only are LEDs power efficient to use but they operate barely warm to the touch, meaning less worries about delicate objects and no discomfort for your subject.
- Dimming
- Dim the Escort from full brightness to 10% power without flicker or color shifting.
- Accessories

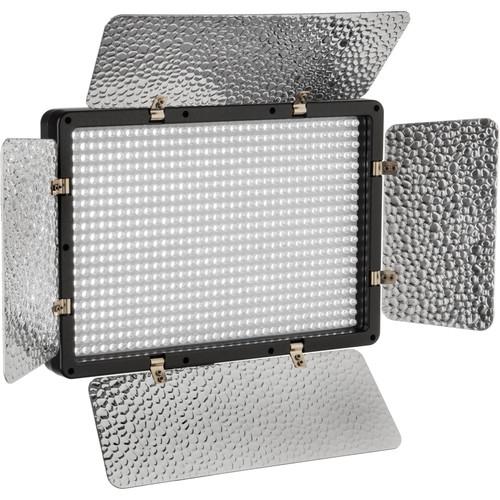

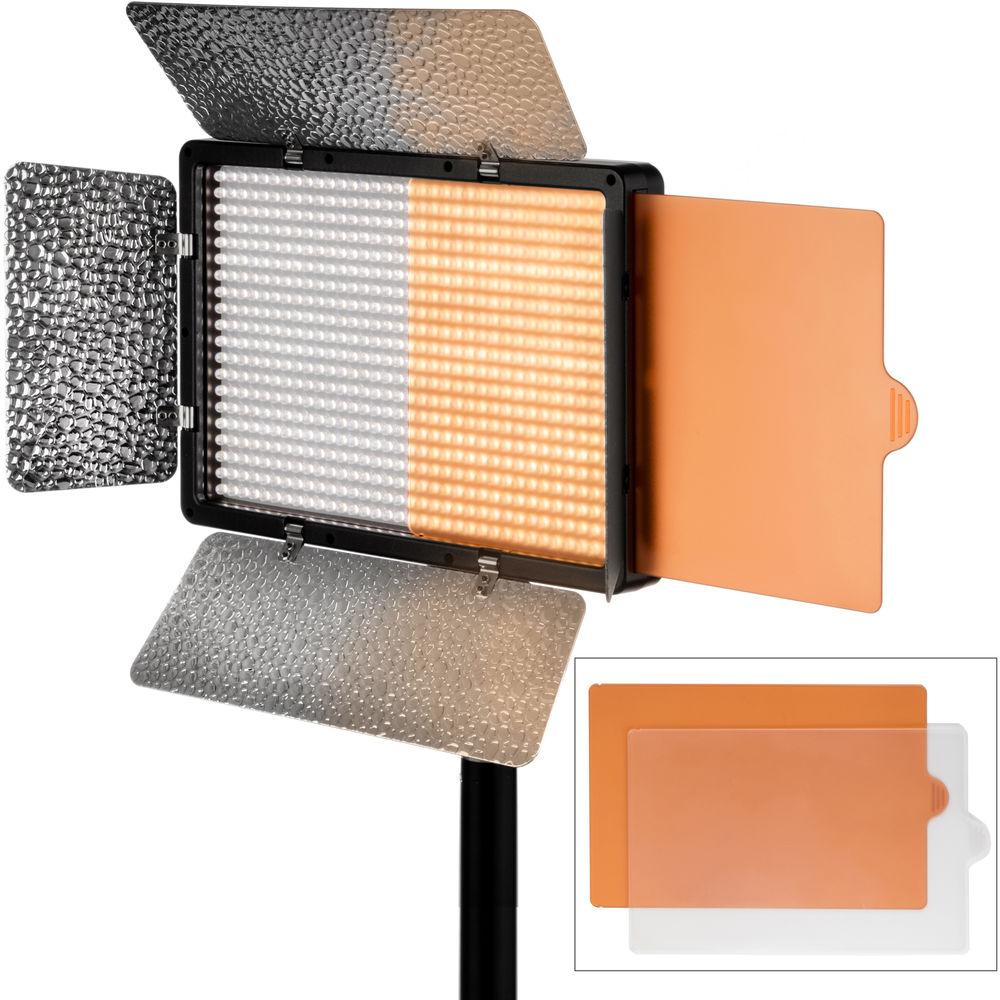

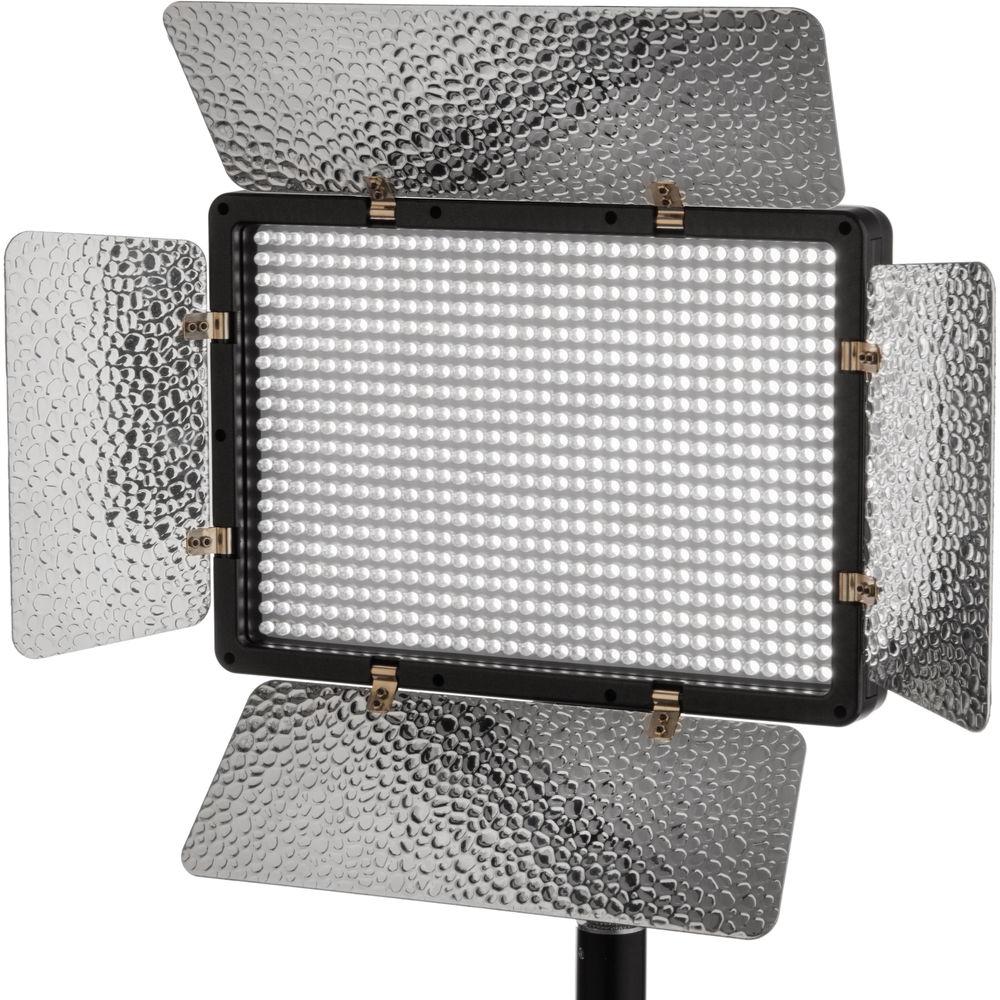

- The Escort has built-in barndoors to shape the output and comes with a diffuser to soften the light and a CTO filter to convert it to tungsten balance.
- Mounting Options

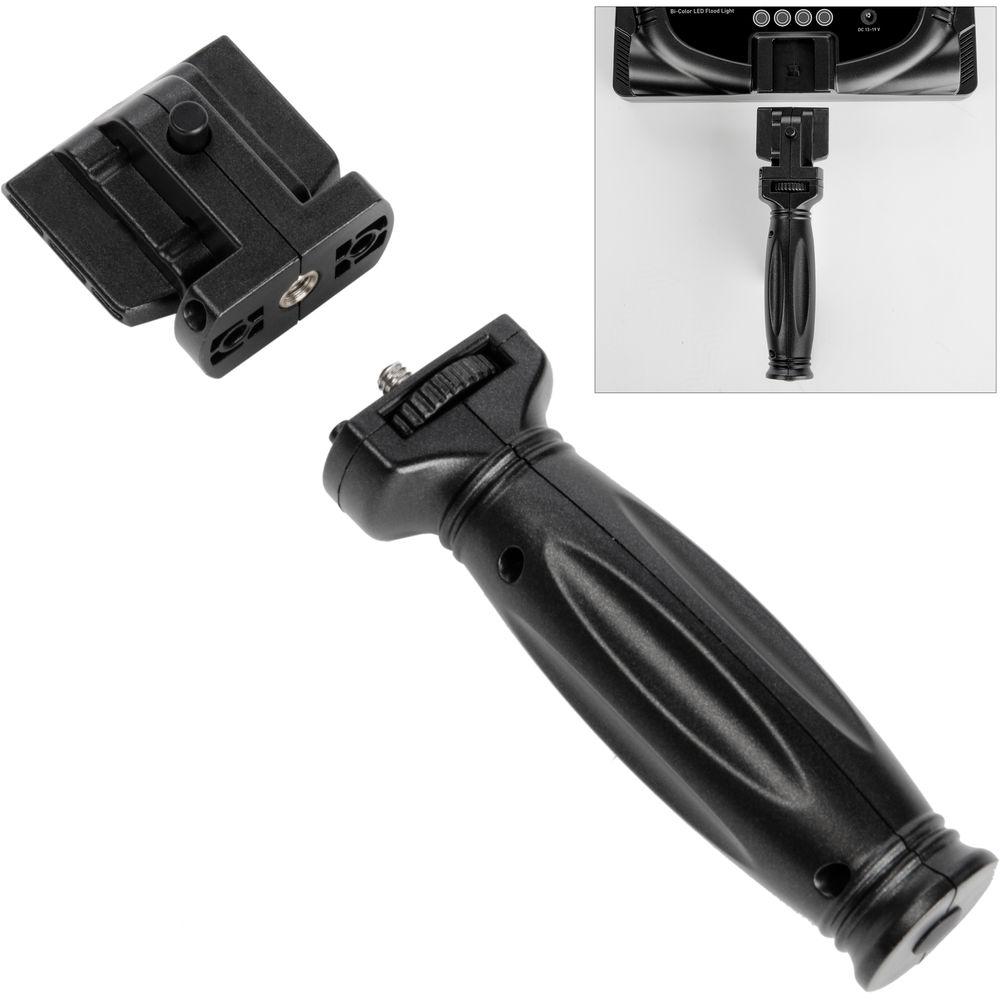

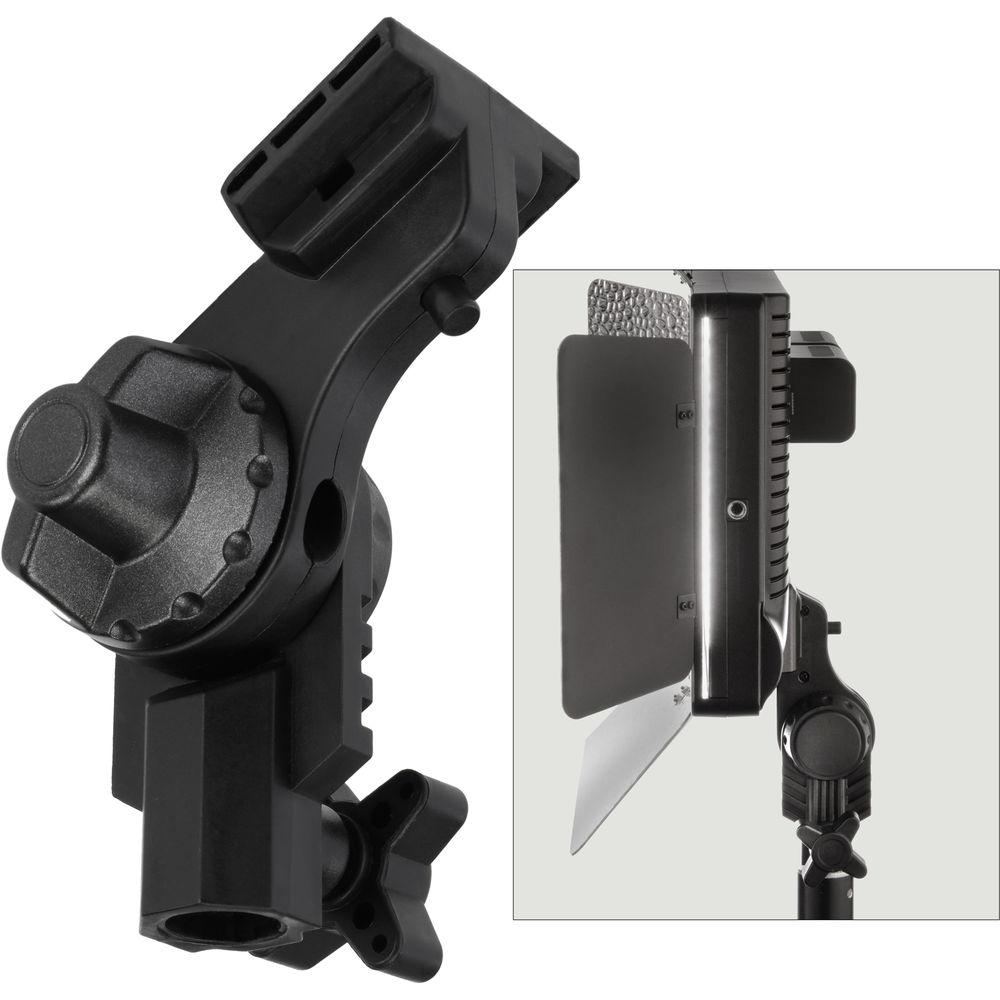

- Mount the Escort on a light a light stand with the included adapter or mount the portable light on the provided handle for maximum flexibility.

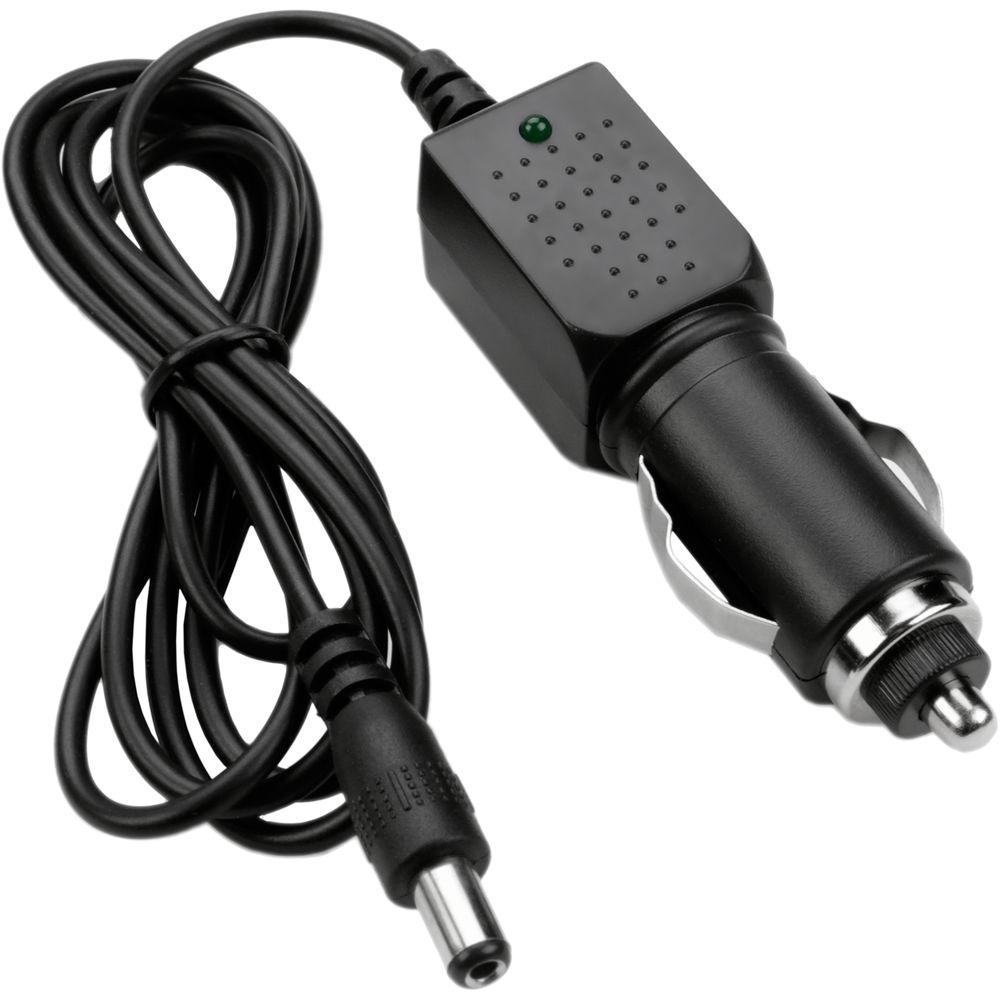

UPC: 639767568500 In the Box Genaray Escort Daylight LED Flood Light Diffusion Filter CTO Tungsten Conversion Filter Stand Mount Pistol Mount Multi-Voltage AC Adapter Power Cable 2 x NP-F750 Battery 2 x Battery Charger 12V Cigarette Lighter Adapter Cables Carry Case Limited 1-Year Warranty User Manual PDF 1.4mb Table of Contents
|
Upload User Manual
Have you got an user manual for the Genaray Escort Daylight LED Flood Light in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersGenaray ESDF-75 Specs | | | Beam Angle | 75° | | Color Temperature | 5600K | | Color Accuracy Standard | CRI 96 | | Cooling System | None | | Dimming | Yes, 10 to 100% (Stepped) | | Display | LCD | | Housing Material | Polycarbonate | | Number of LEDs | 680 | | Expected Lamp Life | 50,000 Hours | | Fixture Dimensions | 10.3 x 7.2 x 2.0" / 26.3 x 18.3 x 5.0 cm | | Fixture Weight | 2.2 lb / 1 kg | | | | Battery Plate | 2 x Sony L-Series (NP-F) | | | | Fixture Mount | 1/4"-20 Female Thread | | Mount via Included Adapter | 5/8" Receiver | | Accessory Mount | None | | | | Remote Control Type | Proprietary Wireless | | | | AC Input Power | 100 to 240 VAC, 50 / 60 Hz | | DC Input Power | 13 to 19 VDC | | Power Source | AC Adapter, External Battery | | Max Power Consumption | 40 W | | | | Cable Length | 15.5' / 4.7 m | | | | Certifications | UL, as per Manufacturer | | IP Rating | IP20 | | | | Package Weight | 7.95 lb | | Box Dimensions (LxWxH) | 13.4 x 10.3 x 7.2" |
