Genaray Escort Daylight LED Interview 3-Light

User Manual for Genaray Escort Daylight LED Interview 3-Light Kit

• Product category: LED Lights Genaray
• Brand: Genaray
• Description and content of package
• Technical information and basic settings
• Frequently asked questions – FAQ
• Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
• Authorized service for Genaray LED Lights

Product description

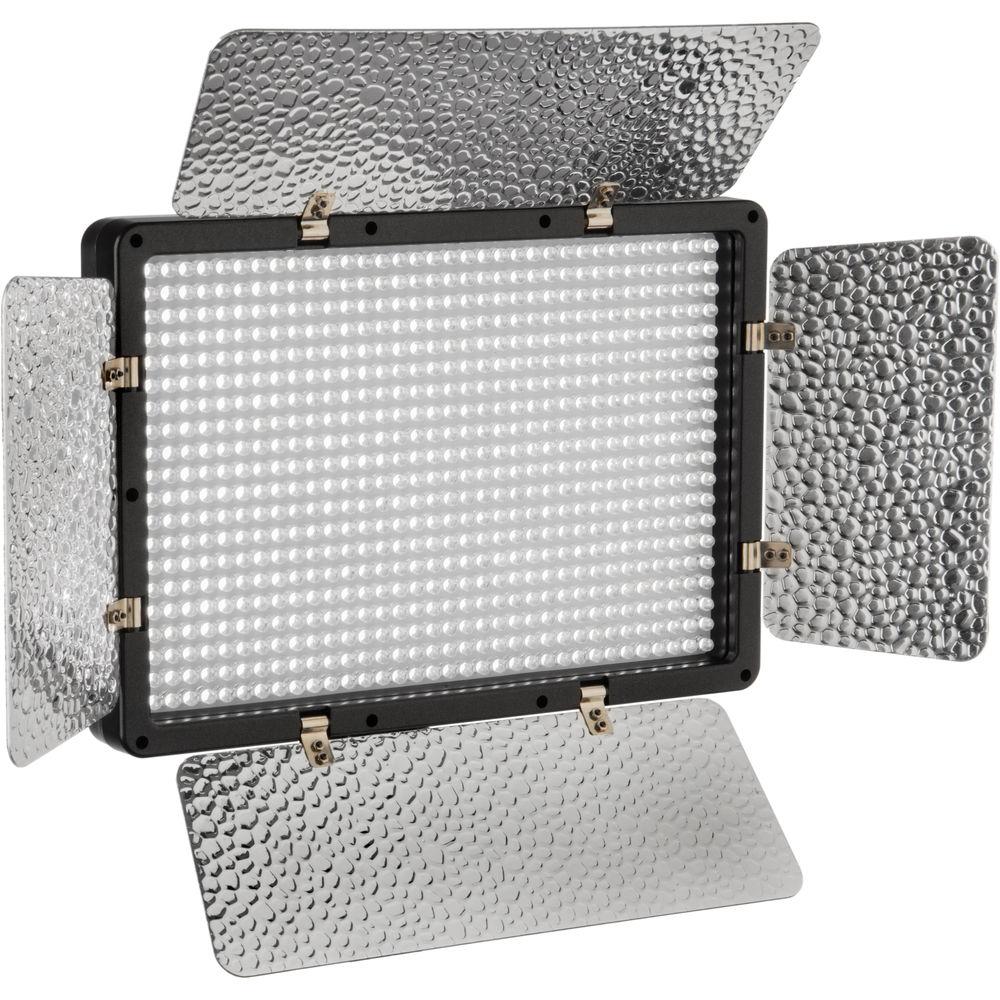

• Escort Daylight LED Flood Light

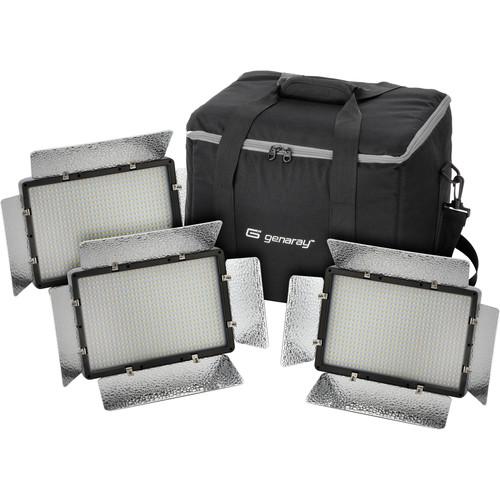

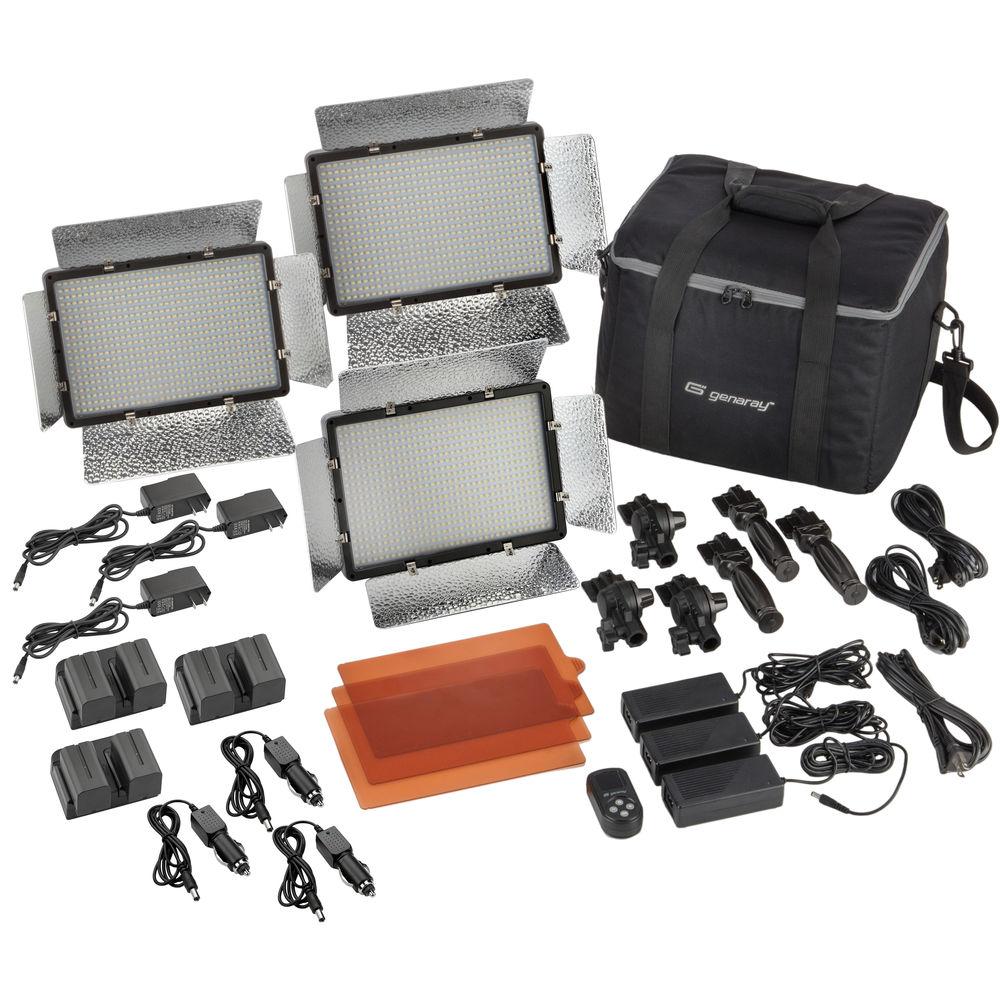

  • The Genaray ESDFS-KIT Escort Daylight LED Interview 3-Light Kit
  The Escort Daylight LED Flood Light from Genaray is a powerful, versatile light source with a color temperature of 5600K and a high CRI of 96 for accurate color rendition. The light draws just 40W of current while outputting 300-400W of equivalent incandescent power that can be dimmed down to 10% on the unit. The Escort has a built-in in 2.4 GHz receiver making convenient, wireless dimming an option with separate purchase of a MonoBright Remote Control. You can also control and shape the 75-degree flood beam spread with the built-in barndoors. A diffusion filter in provided to soften the output and a CTO filter is also included to convert it to 3200K tungsten balance.Genaray provides a multi-voltage 100 to 240 VAC power adapter for worldwide use but they also include 2 NP-F750 batteries and chargers for situations where mains power is unavailable. The light's pistol grip is handy for maximum flexibility when using battery power and you can also stand mount the light with the provided adapter. A case is also included for storage and transport.
  Bright and Powerful
  • The Escort offers high output equivalent to 300-400W of incandescent wattage while drawing only 40W.
  AC or Battery Power
  • You have the option of running the Escort on the provided multi-voltage adapter or with the included NP-F750 batteries when mains power is unavailable.
  LED Advantages
  • Not only are LEDs power efficient to use but they operate barely warm to the touch, meaning less worries about delicate objects and no discomfort for your subject.
  Dimming
  • Dim the Escort from full brightness to 10% power without flicker or color shifting.
  Accessories
  • The Escort has built-in barndoors to shape the output and comes with a diffuser to soften the light and a CTO filter to convert it to tungsten balance.
  Mounting Options
  • Mount the Escort on a light a light stand with the included adapter or mount the portable light on the provided handle for maximum flexibility.
  UPC: 639767568500

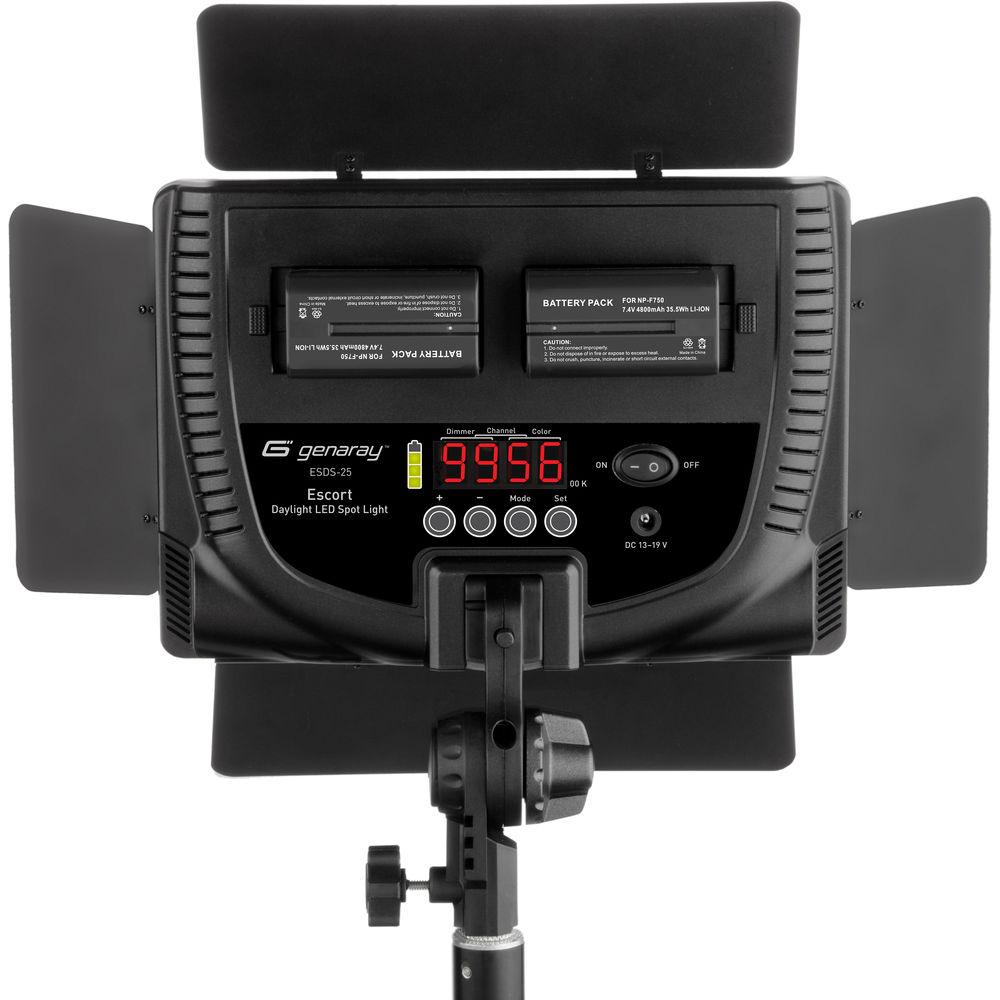

• Escort Daylight LED Spot Light The Escort Daylight LED Spot Light from Genaray is a powerful, versatile light source with a color temperature of 5600K and a high CRI of 91.5 for accurate color rendition. The light draws just 40W of current while outputting 300-400W of equivalent incandescent power that can be dimmed down to 10% on the unit. The Escort has a built-in in 2.4 GHz receiver making convenient, wireless dimming an option with separate purchase of a MonoBright Remote Control. You can also control and shape the 25-degree spot beam spread with the built-in barndoors. A diffusion filter in provided to soften the output and a CTO filter is also included to convert it to 3200K tungsten balance.Genaray provides a multi-voltage 100 to 240 VAC power adapter for worldwide use but they also include 2 NP-F750 batteries and chargers for situations where mains power is unavailable. The light's pistol grip is handy for maximum flexibility when using battery power and you can also stand mount the light with the provided adapter. A case is also included for storage and transport.
  Bright and Powerful
  • The Escort offers high output equivalent to 300-400W of incandescent wattage while drawing only 40W.
  AC or Battery Power
  • You have the option of running the Escort on the provided multi-voltage adapter or with the included NP-F750 batteries when mains power is unavailable.
  LED Advantages
  • Not only are LEDs power efficient to use but they operate barely warm to the touch, meaning less worries about delicate objects and no discomfort for your subject.
  Dimming
  • Dim the Escort from full brightness to 10% power without flicker or color shifting.
  Accessories
  • The Escort has built-in barndoors to shape the output and comes with a diffuser to soften the light and a CTO filter to convert it to tungsten balance.
  Mounting Options
  • Mount the Escort on a light a light stand with the included adapter or mount the portable light on the provided handle for maximum flexibility.
  UPC: 639767568517
• Wireless Remote for MonoBright & Escort Series LED The Wireless Remote for MonoBright, Beacon & Escort Series LED from Genaray allows wireless control of specific functions of the Beacon and Escort series, SpectroLED-14, MonoBright Daylight LED 750 and 1200, as well as the Bi-Color 750 from distances up to 98'. You can control On/Off and dimming functions of all 3 lights as well as color temperature of the Bi-Color 750. The remote has 99 channels so you could conceivably control 99 fixtures or even more by ganging multiple units on each channel. You can control each channel individually or all of them in unison. One of the remotes handy features is the ability to make incremental changes using your initial settings as a starting point. UPC: 639767568388

• Diffusion Filter

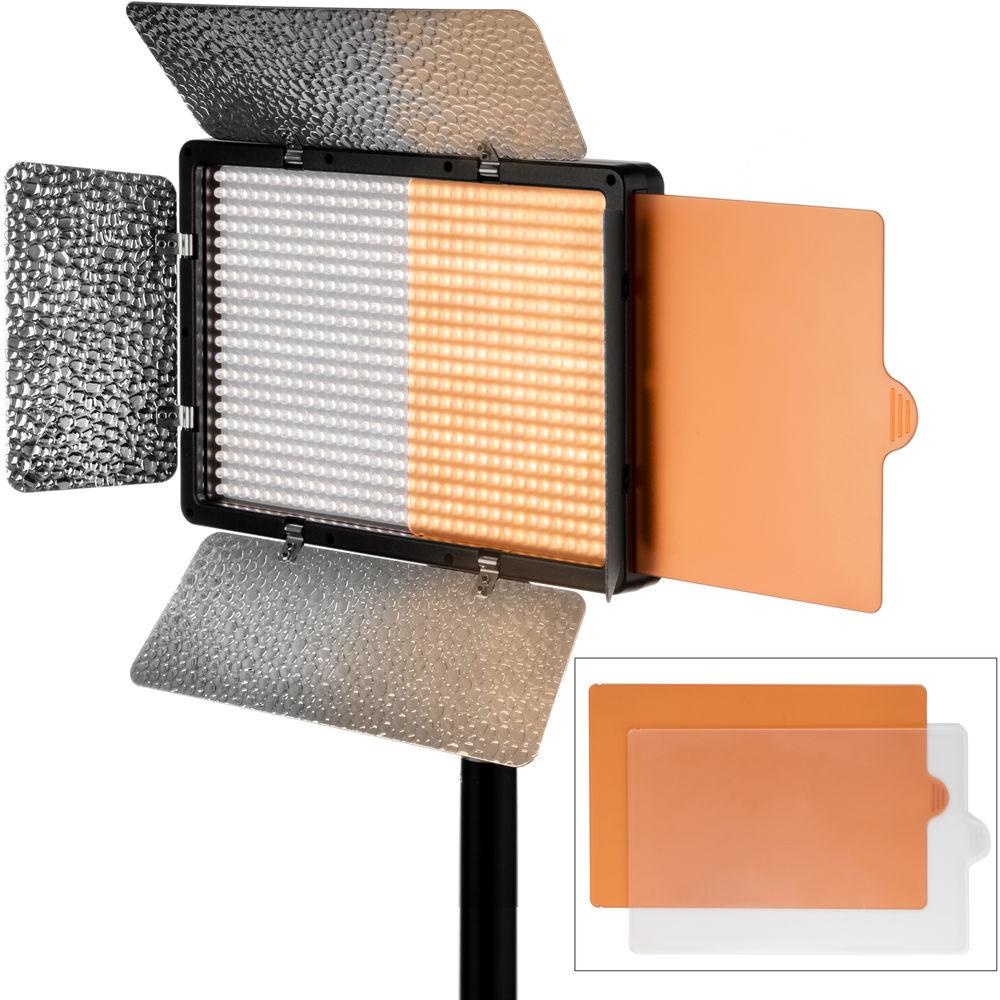

• CTO Tungsten Conversion Filter

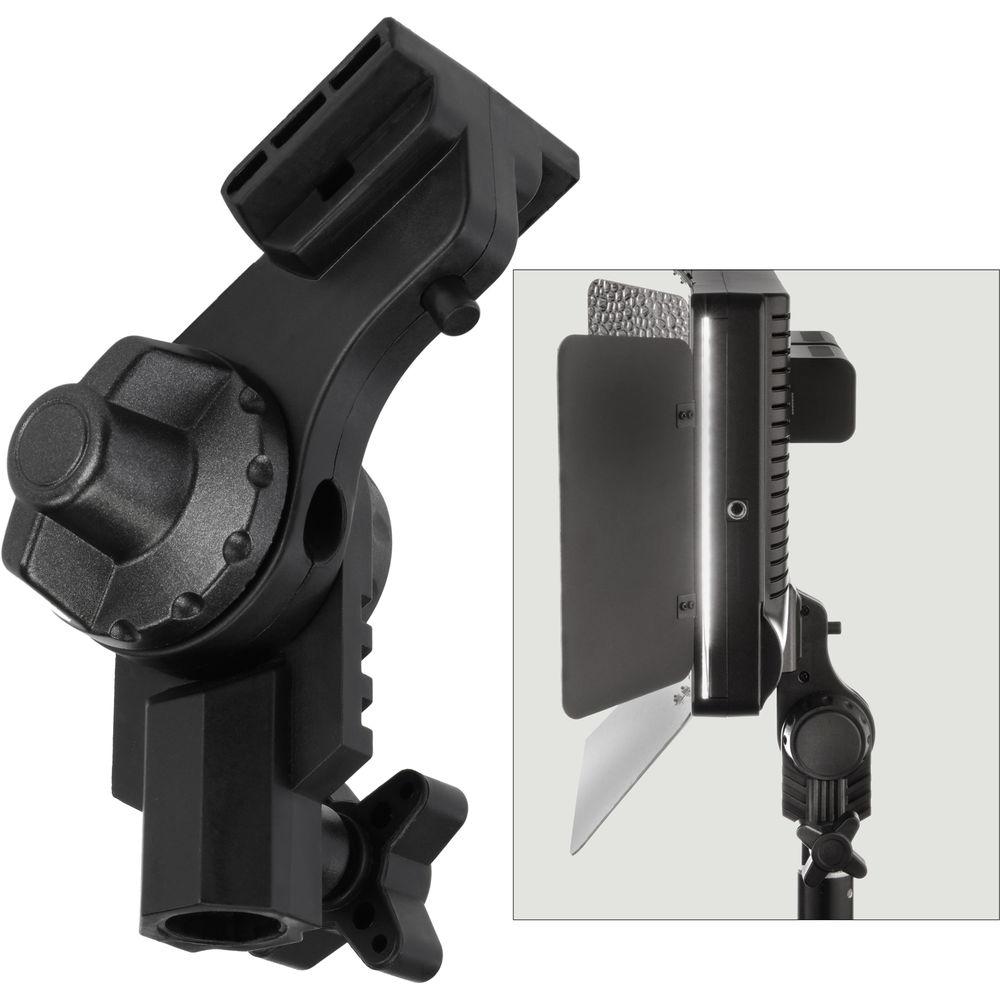

• Stand Mount

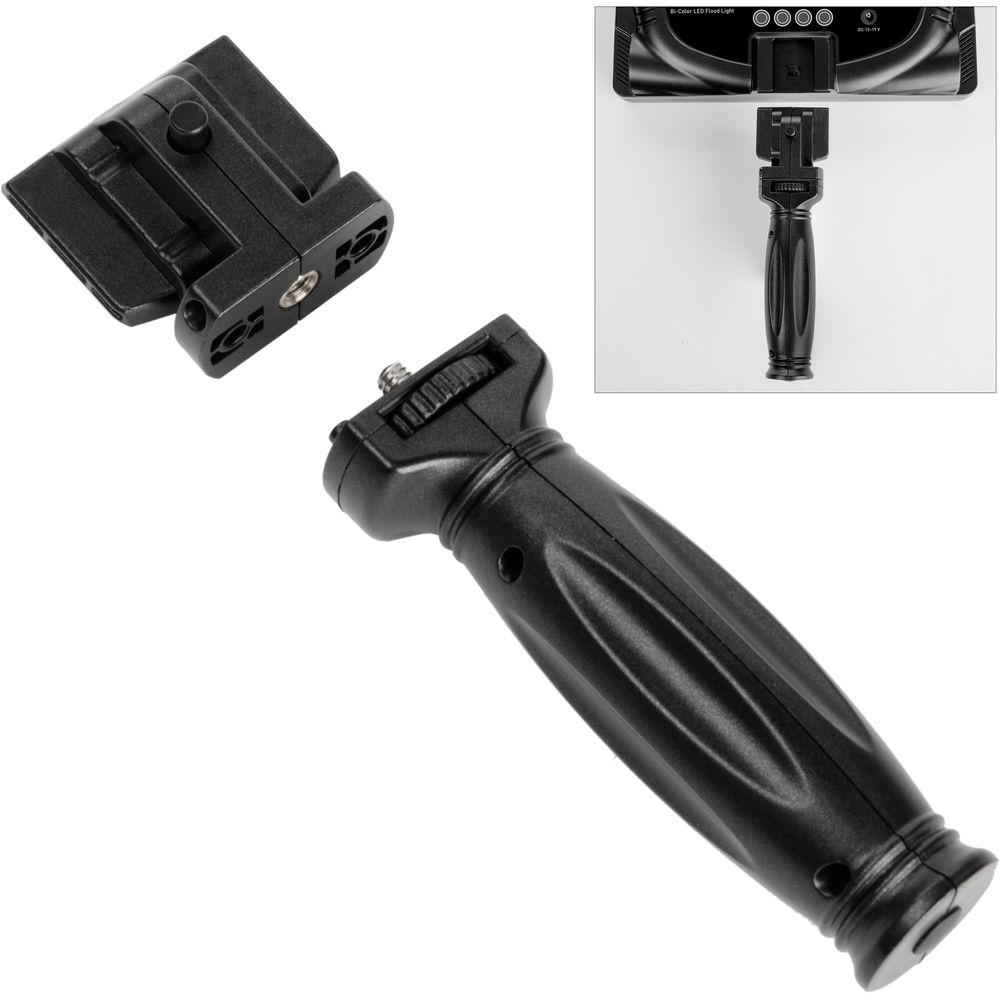

• Pistol Mount

• Multi-Voltage AC Adapter

• Power Cable

• 2 x NP-F750 Battery

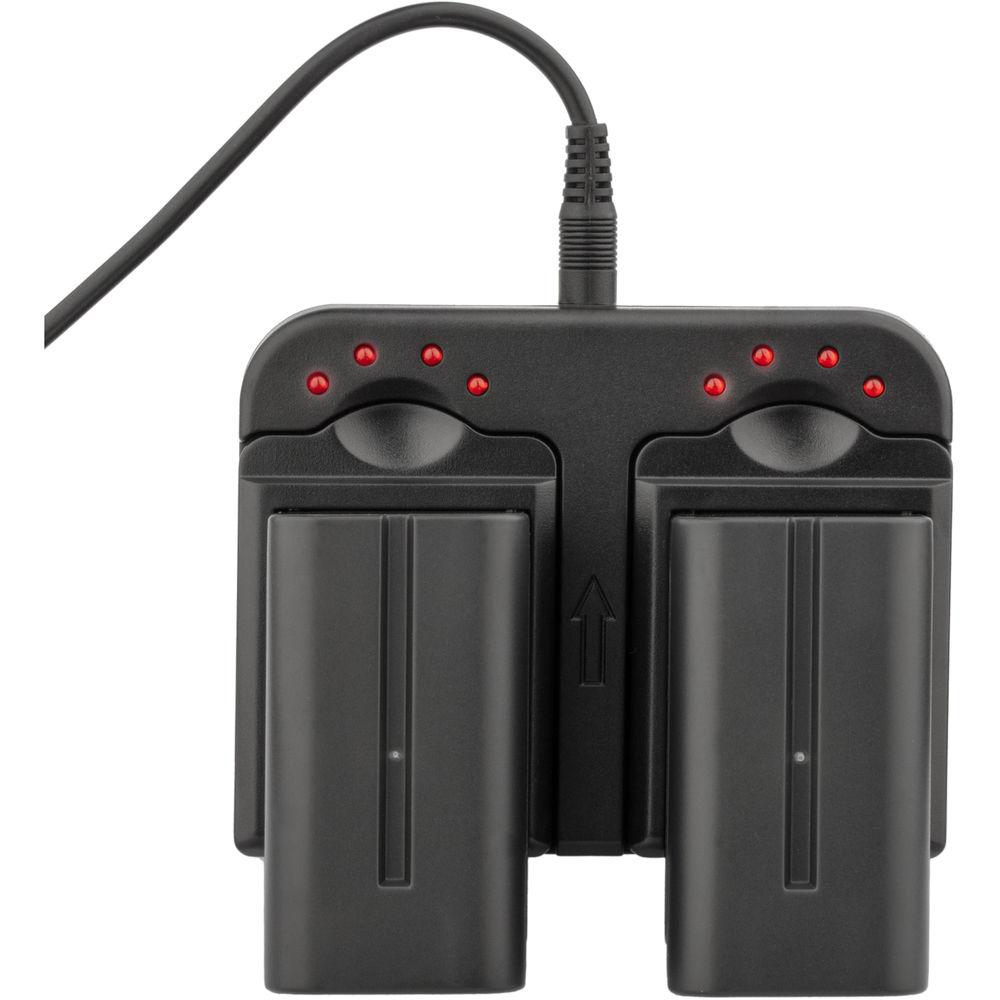

• 2 x Battery Charger

• 12V Cigarette Lighter Adapter Cables

• Carry Case

• Limited 1-Year Warranty

• Diffusion Filter

• CTO Tungsten Conversion Filter

• Stand Mount

• Pistol Mount

• Multi-Voltage AC Adapter

• Power Cable

• 2 x NP-F750 Battery

• 2 x Battery Charger

• 12V Cigarette Lighter Adapter Cables

• Carry Case

• Limited 1-Year Warranty

• Limited 1-Year Warranty

Also Includes

• Padded Kit Bag

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

• Escort Daylight LED Flood Light

  Beam Angle	75°
  Color Temperature	5600K
  Color Accuracy Standard	CRI 96
  Cooling System	None
  Dimming	Yes, 10 to 100% (Stepped)
  Display	LCD
  Housing Material	Polycarbonate
  Number of LEDs	680
  Expected Lamp Life	50,000 Hours
  Fixture Dimensions	10.3 x 7.2 x 2.0" / 26.3 x 18.3 x 5.0 cm
  Fixture Weight	2.2 lb / 1 kg

  Battery Plate	2 x Sony L-Series (NP-F)

  Fixture Mount	1/4"-20 Female Thread
  Mount via Included Adapter	5/8" Receiver
  Accessory Mount	None

  Remote Control Type	Proprietary Wireless

  AC Input Power	100 to 240 VAC, 50 / 60 Hz
  DC Input Power	13 to 19 VDC
  Power Source	AC Adapter, External Battery
  Max Power Consumption	40 W

  Cable Length	15.5' / 4.7 m

  Certifications	UL, as per Manufacturer
  IP Rating	IP20

  Box Dimensions (LxWxH)	13.4 x 10.3 x 7.2"

• Escort Daylight LED Spot Light

  Beam Angle	25°
  Color Temperature	5600K
  Color Accuracy Standard	CRI 91
  Cooling System	None
  Dimming	Yes, 10 to 100% (Stepped)
  Display	LCD
  Housing Material	Polycarbonate
  Number of LEDs	680
  Expected Lamp Life	50,000 Hours
  Fixture Dimensions	10.3 x 7.2 x 2.0" / 26.3 x 18.3 x 5.0 cm
  Fixture Weight	2.2 lb / 1 kg

  Battery Plate	2 x Sony L-Series (NP-F)

  Fixture Mount	1/4"-20 Female Thread
  Mount via Included Adapter	5/8" Receiver
  Accessory Mount	None

  Remote Control Type	Proprietary Wireless

  AC Input Power	100 to 240 VAC, 50 / 60 Hz
  DC Input Power	13 to 19 VDC
  Power Source	AC Adapter, External Battery
  Max Power Consumption	40 W

  Cable Length	15.5' / 4.7 m

  Certifications	UL, as per Manufacturer
  IP Rating	IP20

  Box Dimensions (LxWxH)	13.65 x 11.0 x 7.3"

• Wireless Remote for MonoBright & Escort Series LED

  Channels	99
  Functions Supported	On/Off, dimming, variable color (Bi-Color LED)
  Batteries	2x AAA (not included)
  Frequency	2.4 GHZ
  Frequency Range	98' (30 m)
  Dimensions	3.4 x 1.8 x 1.0" (8.6 x 4.5x 25.4 cm)
  Weight	With batteries: 2.5 oz (72 g) Without batteries: 1.7 oz (49 g)

  Box Dimensions (LxWxH)	5.85 x 5.3 x 2.2"
