User Manual for Genaray Full Moon 18" Bi-Color LED Light Click to enlarge the picture
Contents of the user manual for the Genaray Full Moon 18" Bi-Color LED
- Product category: LED Lights Genaray
- Brand: Genaray
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Genaray LED Lights
 |
User manual for the Genaray Full Moon 18" Bi-Color LED contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Genaray product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Genaray user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Genaray product will considerably shorten its lifespan!
|

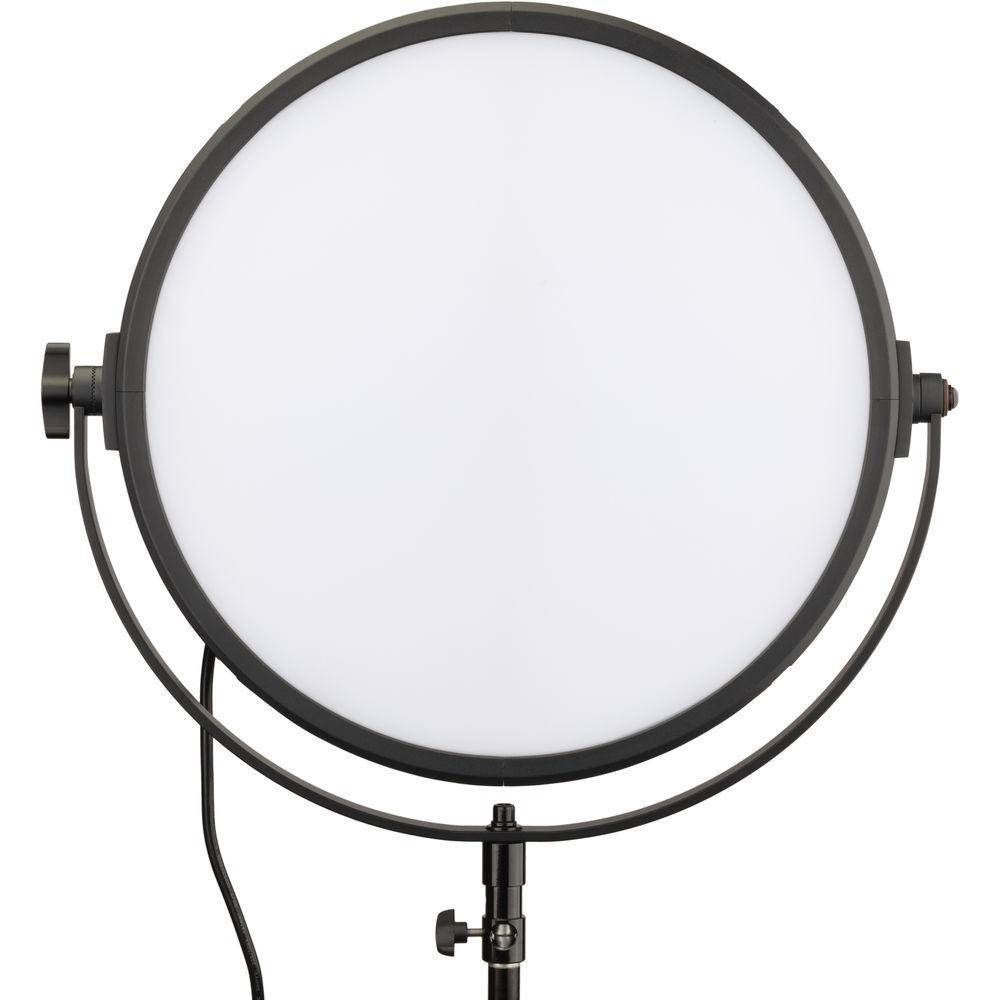

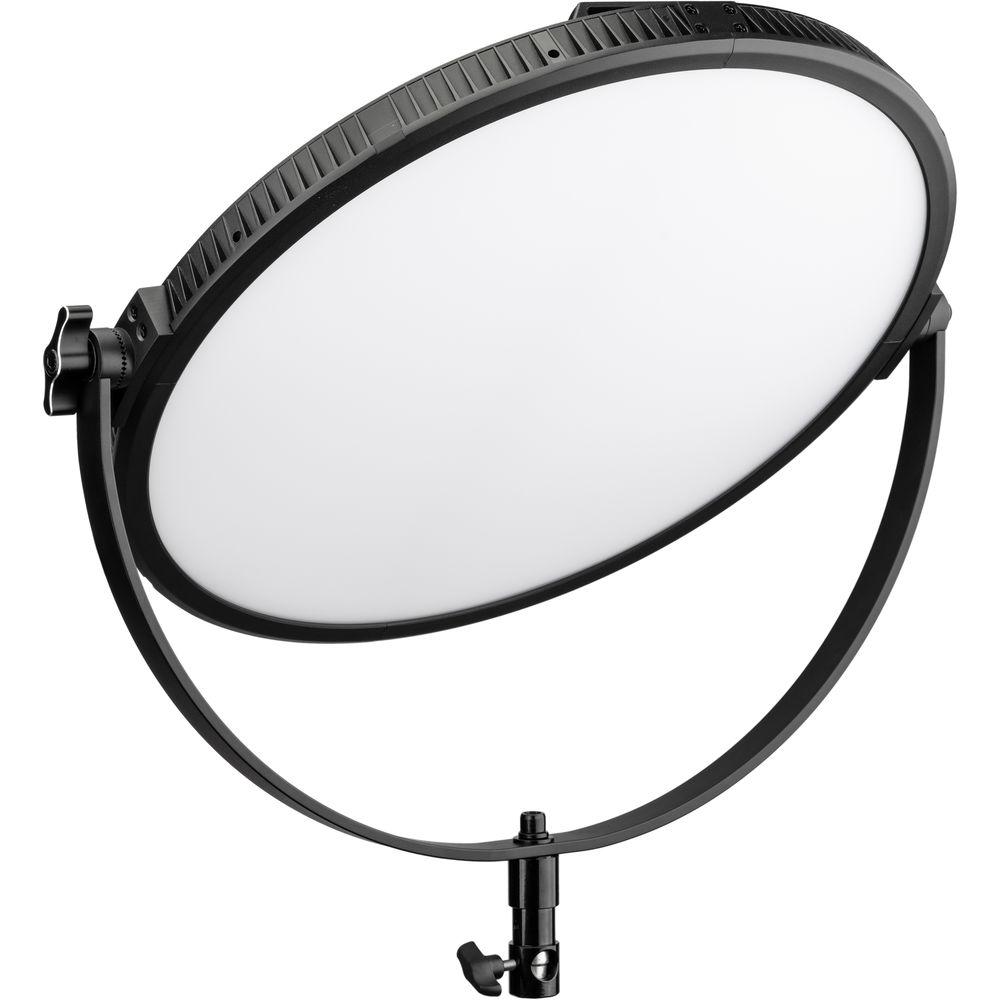

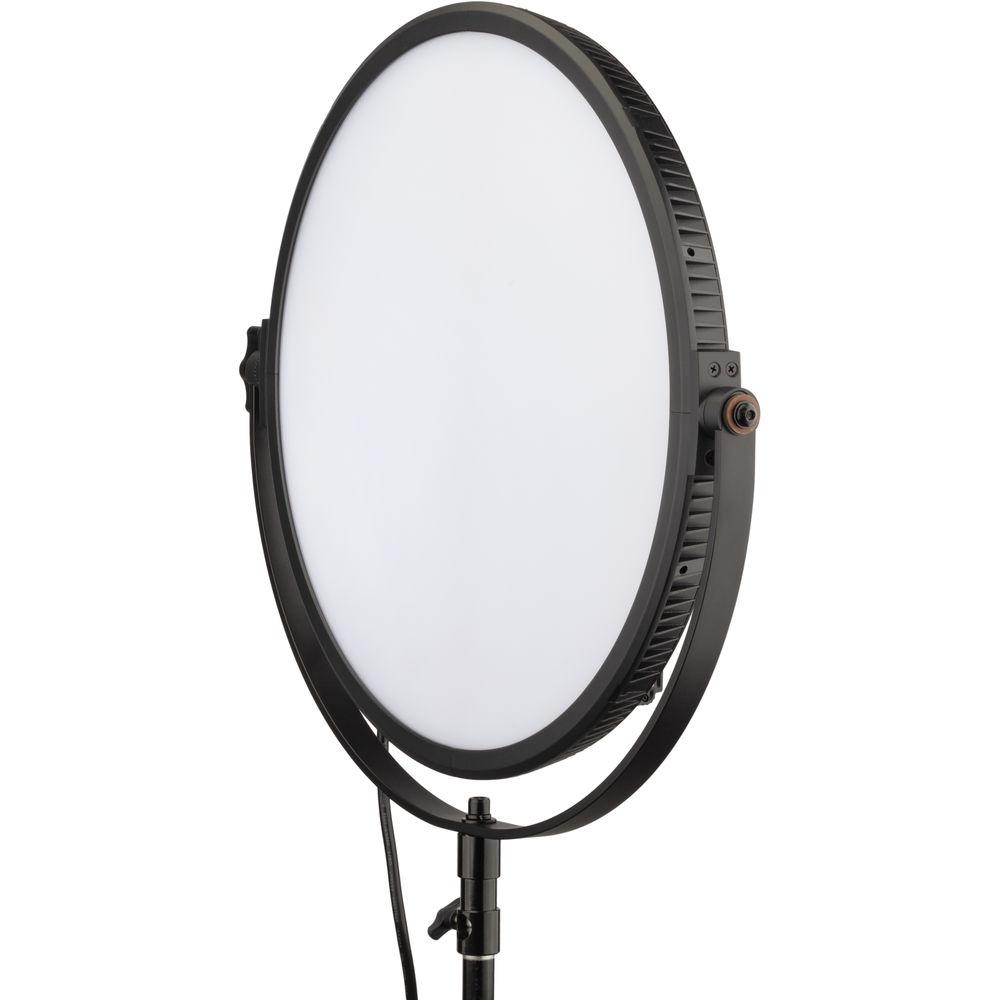

Product description - The Genaray Full Moon: The Hybrid Shooter's Dream
Well-suited to portraiture, interviews, beauty shots, and more, the Full Moon 18" Bi-Color LED Light packs a 1280 LEDs into a fixture with variable color from 3200 to 5600K that earn a high TLCI/CRI rating of 97. Flicker-Free light intensity is variable too, from 100 to 10% and while you can make color and dimming adjustments locally on the fixture, you can also do it remotely at distances up to 98' with Genaray's optional MB-WRT transmitter. The Full Moon can also be controlled remotely from a console via onboard DMX. Another hallmark of its versatility is its power options. The light is ready for worldwide use, thanks to its 100 to 240 VAC adapter but you can also run it on two optional V-mount batteries when mains current is unavailable. A carry case is included for storage and transport. - Illuminance
- With 1280 bright LEDs outputting an impressive 7000 lux, the Full Moon has plenty of power for use in large or small locations. With its low power draw and negligible generated heat, you won't miss your halogen hot lights at all.
- Color Fidelity
- The Full Moon's color temperature is variable from 3200K (tungsten) to 5600K (daylight) or anywhere in between while earning a CRI/TLCI rating of 97.
- Independent Lighting Controls
- Not only can you tweak the color balance to your requirements, but you can also dim the light from 100 to 10% without flicker, allowing shooting in slow motion or at high frame rates.
- Remote Control Options
- While you can make adjustments to brightness and color temperature locally on the fixture, you can also do it remotely from a console via onboard DMX. The Full Moon is also compatible with Genaray's MB-WRT wireless remote which has a range of 98'

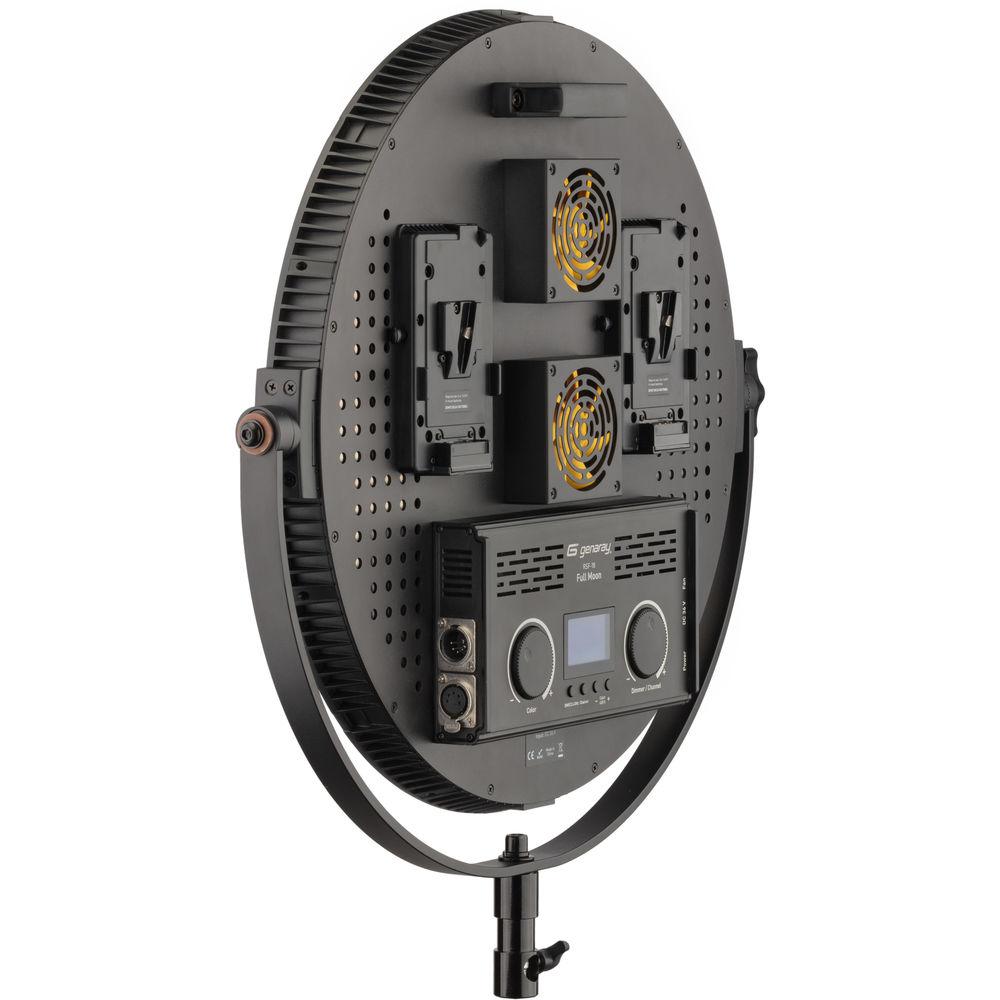

- Dual Power Solutions
- The Full Moon is ready for worldwide use thanks to its 100 to 240VAC power supply, but you can also run it on two high-load V-mount batteries in situations where mains current is unavailable.

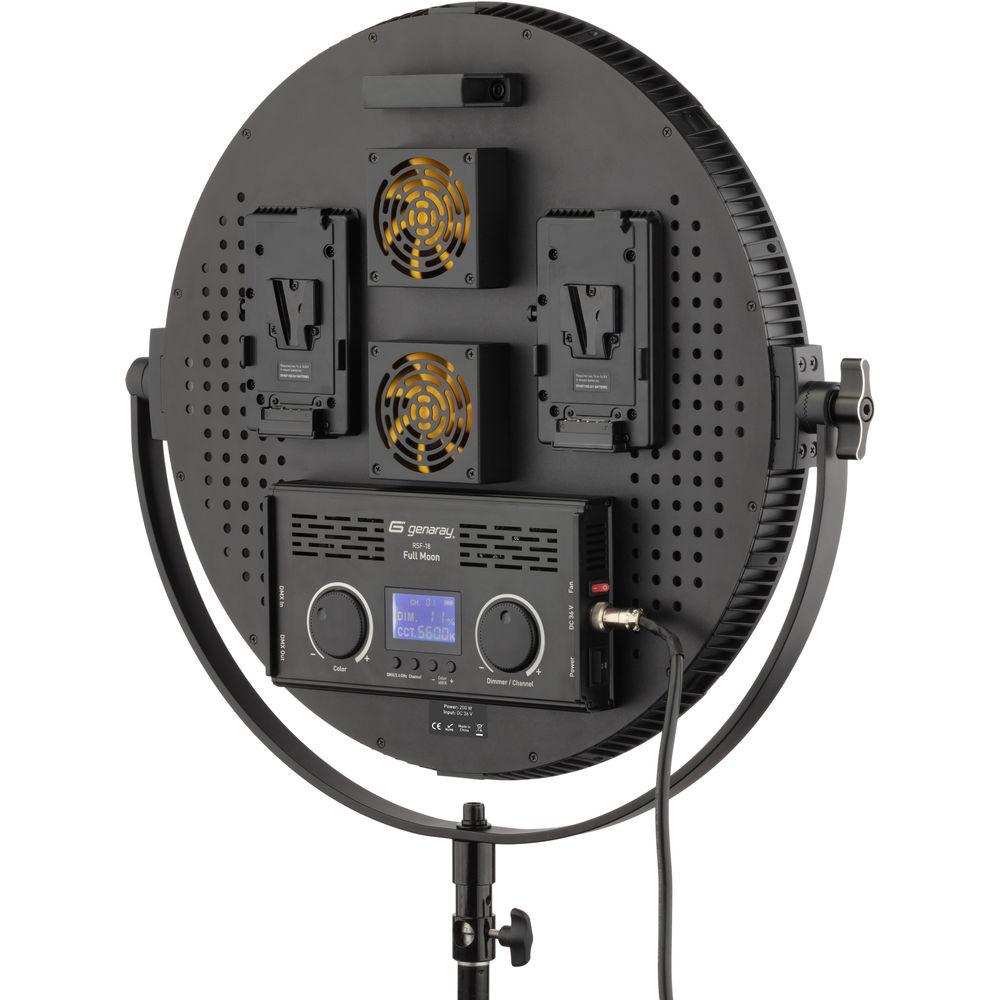

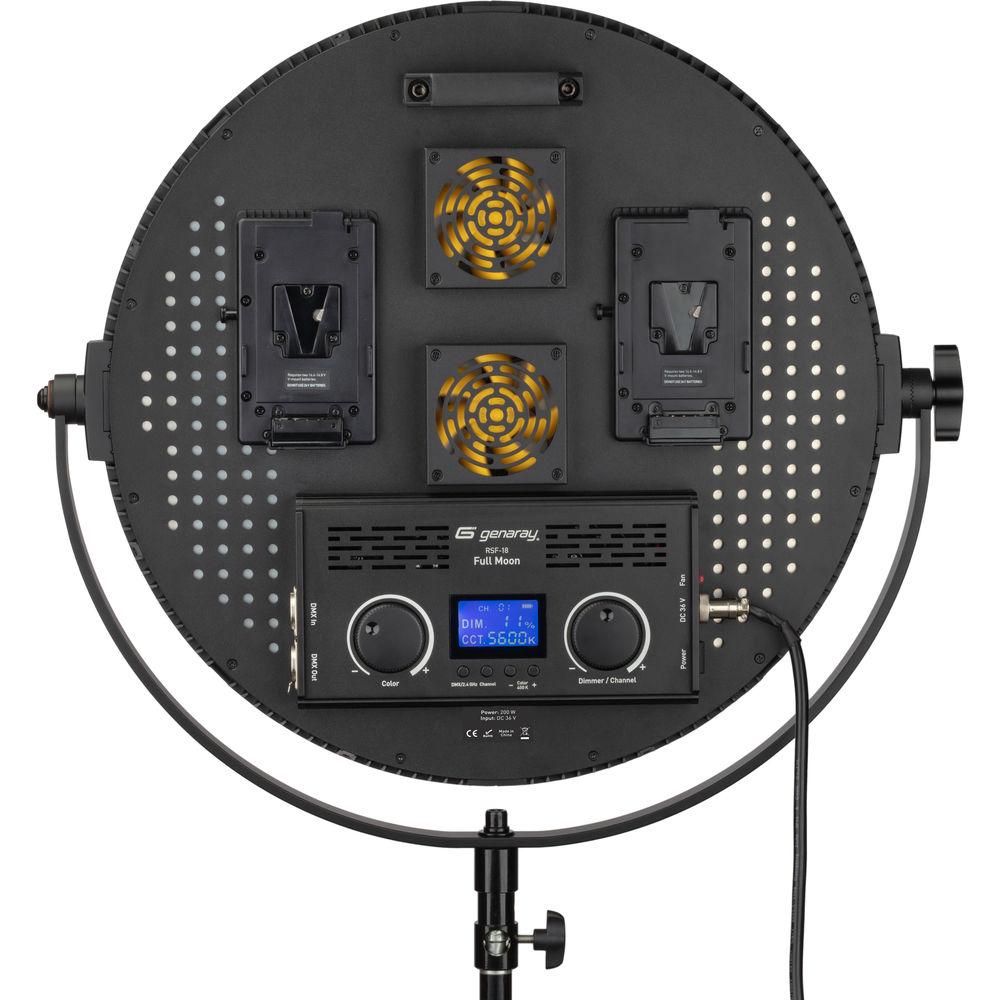

- Intelligent Temperature Control
- The whisper-quiet fans protect the light's electronics and make for a very long life for its LED but you can also turn the fans off - a valuable asset for sound-sensitive situations.
- Carry Case
- The Full Moon sets up and breaks down quickly and easily to stow in the provided case for storage or transport.
UPC: 847628013469 In the Box Genaray Full Moon 18" Bi-Color LED Light Yoke AC Adapter Power Cord Carry Case Limited 1-Year Warranty User Manual PDF 691.3kb Table of Contents
|
Upload User Manual
Have you got an user manual for the Genaray Full Moon 18" Bi-Color LED Light in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersGenaray Full Moon 18 Specs | | | Beam Angle | 120° | | Color Temperature | 3200 to 5600K | | Color Accuracy Standard | CRI 97
TLCI 97 | | Cooling System | Fan Can be Turned Off Manually | | Dimming | Yes, 100 to 10% | | Display | None | | Photometrics | 650.3 fc / 7000 lux at 3' / 0.91 m | | Number of LEDs | 1280 | | Fixture Dimensions | 23.4 x 22.1 x 2.9" / 59.4 x 56.1 x 7.4 cm | | Fixture Weight | 11 lb / 4.99 kg (Including Yoke) | | | | Battery Plate | 2 x V-Mount | | | | Fixture Mount | Combination 1-1/8" Stud and 5/8" Receiver | | Accessory Mount | None | | | | Remote Control Type | DMX, Proprietary Wireless | | Wireless Range | 98' / 29.9 m | | | | AC Input Power | 100 to 240 VAC, 50 / 60 Hz | | DC Input Power | 26 VDC | | Power Source | AC Adapter, External Battery | | Max Power Consumption | 200 W | | | | Certifications | CE, RoHS, as per Manufacturer | | | | Package Weight | 20.78 lb | | Box Dimensions (LxWxH) | 22.6 x 22.2 x 5.2" |
