Genaray Hex Lighting 36" Soft Strip

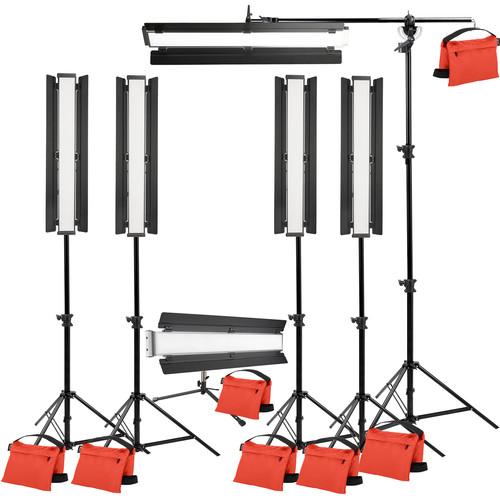

User Manual for Genaray Hex Lighting 36" Soft Strip 6-Light Standard Kit with Light Stands

• Product category: LED Lights Genaray
• Brand: Genaray
• Description and content of package
• Technical information and basic settings
• Frequently asked questions – FAQ
• Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
• Authorized service for Genaray LED Lights

Product description

• 6 x Genaray 36" Soft Strip LED Light
  • Genaray: 10 Beautiful LED Strip Light Setups
  Offering 256 bright LEDs with a soft wrap-around quality thanks to its long, narrow form factor, the 36" long Soft Strip LED Light from Genaray is a versatile fixture with features easy to use in the studio or on location. The light has color temperature that's a solid, daylight-balanced 5600K with a high CRI/TLCI rating of 95/98.3, an indicator of precise color rendering. Light intensity is conveniently variable from 10 to 100% without flicker, avoiding moving the fixture back and forth to achieve the desired illumination level. The SSL-36 runs barely warm to the touch, allowing you to work close to the subject without causing discomfort or hot light hazards. The power-saving light produces an output of 977 lux at 3.3' while consuming just 56W of power, ensuring a fast return on investment. The long, narrow fixture can be used vertically or horizontally. In vertical orientation, the SSL-36 is ideal for use as a sidelight or for dramatic lighting. It also creates long, elegant reflections when shooting products. It horizontal mode, the light has a wrap-around quality with appealing falloff at the top and bottom of the frame. Another use is overhead as a hairlight. The SSL-36 has a beam angle coverage of 60 degrees which can be modified and controlled by its 2-way barndoors. The fixture comes with a multi-voltage adapter that makes it ready for world use, but it can also run on optional V-mount batteries when AC power is unavailable. A case is included to store and transport the light.
  Horizontal or Vertical Orientation
  • The long, thin form factor gives a wrap-around quality when used horizontally. Used vertically, it's well-suited for a sidelight or for lighting objects and casting a long, elegant reflection.
  2-Way Barndoors
  • This simple but effective modifier allows you to swing one or more leaves into the light's beam for selective lighting of your subject.
  Lollipop Mount
  • The mount incorporates a ball head attachment that allows fine-tuning of the light's positioning.
  AC or Optional Battery Power
  • The SSL-36 ships with a multi-voltage 100-240 VAC power supply but it can also run on V-mount batteries when mains power is unavailable.
  Even Illumination
  • The SSL-36 provides even illumination along its 36-inch length, without noticeable hot spots. When shooting full-length portraits or group shots, this fixture bathes your subjects in soft and diffuse wraparound light without multiple shadows.
  Cool Running
  • The SSL-36 runs barely warm to the touch allowing you to work close to your subject without discomfort and without losing time waiting for the fixture to cool down.
  Dimming
  • The light features 10 to 100% dimming to adjust the output without moving the fixture back and forth.
  Dead Quiet Operation
  • The light's fanless convection cooling is a valuable asset in sound-sensitive environments.
  UPC: 855193007349
• 5 x Impact Heavy-Duty Air-Cushioned Light Stand (Black, 9.5')
  • Genaray: 10 Beautiful LED Strip Light Setups
  This Impact Heavy-Duty Air-Cushioned Light Stand is a black anodized aluminum support that rises to a height of 9.5' and folds down to 42" for storage and transport. The stand will handle up to 22 lb and is topped with a removable 5/8" spigot with 1/4"-20 and 3/8"-16 threads. It has a wide footprint of 52" for greater stability. Air cushioning gently lowers the light when making height adjustments to protect equipment and fingers.
  Air-Cushioned
  • Protects equipment and fingers from damage
  Compact Design
  • Will fit easily into most location cases
  Accepts Casters
  • For easy positioning of lights
  UPC: 847628012004
• Impact Combo Boom Stand - 12.95'
  • Genaray: 10 Beautiful LED Strip Light Setups
  The Impact Combo Boom Stand is a clever lighting support solution that provides you with a strong, 12.95' stand with a 19.8 lb load capacity when used in the traditional way or a 6.25' boom that supports 4.4 lb, when fully extended. The legs feature heavy duty bracing and a wide footprint of 43" for extra stability. The black anodized aluminum Combo Boom Stand ships with a 5/8" reversible spigot and an empty cordura nylon sandbag counterweight capable of holding 15 lb of ballast. UPC: 847628565913
• 7 x Impact Filled Saddle Sandbag (15 lb, Orange)
  • Genaray: 10 Beautiful LED Strip Light Setups
  Made of thick, weather- and water-resistant Cordura nylon, the 15 lb Impact Filled Orange Saddle Sandbag is a staple in studios or on location for stabilizing light stands, booms, tripods, and backgrounds. The bag features rugged and durable assembly throughout. A double-zipper design is employed for safe containment and removal of the sand, as well as a webbed handle for hanging or moving.
  Saddle-Style Sandbag
  • The two-winged saddle sandbag is designed to conform to studio equipment such as light stands, tripods, backgrounds, or any other equipment that needs support and stabilization
  Sturdy Handles
  • Strong top and bottom handles made with nylon webbing offer options for providing a counterweight to boom arms and make transporting the sandbag easy
  Weather and Water Resistant
  • The thick Cordura fabric stands up to the elements and keeps the contents dry
  Double-Zipper Design
  • The double-zipper design ensures that the contents of the bag do not spill out
  UPC: 847628589971
• Impact Two Section Back Light Stand (3')
  • Genaray: 10 Beautiful LED Strip Light Setups
  This 3' Impact Back Light Stand consists of a base and riser. Use the lower part as a base to place a mounted light at floor or table level, as low as 5.5". Add the extension to the base to raise the height of the light from 22.8" (57.9 cm) to a maximum of 3' (90 cm). The stand is constructed of black anodized aluminum.
  Quick Set Up
  • Sets up easily in the matter of seconds
  Very Stable
  • Stable under recommended loads
  5/8" Reversible Stand Mount
  • Fitted with a reversible 5/8" top stud, with 1/4"-20 and 3/8" threads
  UPC: 847628011939
• 2 x Impact Super Clamp with Ratchet Handle
  • Genaray: 10 Beautiful LED Strip Light Setups
  The Impact Super Clamp with Ratchet Handle is a versatile grip tool made of lightweight cast alloy. With a load capacity of 33 lb, the clamp can hold a wide variety of items such as cameras, lights, umbrellas, hooks, shelves, plate glass, cross bars, even other Super Clamps.The Super Clamp can be securely mounted on any tube or pipe from 0.5" to 2.1" and is supplied with a wedge insert for clamping onto flat surfaces. The ratchet handle allows you to disengage it and tighten it down from any angle; a very handy feature when you're using the clamp in tight quarters. A built-in socket holds 5/8" accessories such as the supplied SRP-102 Hex Stud with 1/4"-20 male thread. UPC: 847628538870
• 2 x Impact 5/8" Snap-in Pin for Super Clamps (Black)
  • Genaray: 10 Beautiful LED Strip Light Setups
  This is a 4.7" (11.9 cm) black 5/8" Snap-in Pin for Super Clamps from Impact. It has a 5/8" (16 mm) spigot (non-threaded) attachment one end, and the hexagonal Super Clamp type fitting on the other end. It can be used to connect a lighting fixture that has a 5/8" female receptor to a Super Clamp. It is constructed from aluminum, and comes finished in black. UPC: 847628538924

• 6 x 36" Soft Strip LED Light ufswwcuuefeduxfdxrsrxcwrvxby
• Lollipop Mount
• Dimmer Control Box with V-Mount
• V-Mount Strap
• AC Adapter
• AC Cable
• Carry Case
• Limited 1-Year Warranty

• 5 x Impact - Heavy-Duty Air-Cushioned Light Stand (Black, 9.5')

• Impact - Combo Boom Stand - 12.95'

• 7 x Impact - Filled Saddle Sandbag (15 lb, Orange)

• Impact - Two Section Back Light Stand (3')

• 2 x Impact - Super Clamp with Ratchet Handle

• 2 x Impact - 5/8" Snap-in Pin for Super Clamps (Black)

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

• 6 x Genaray 36" Soft Strip LED Light

  Beam Angle	60°
  Color Temperature	5600K
  Color Accuracy Standard	CRI 95 TLCI 98.3
  Cooling System	Passive
  Dimming	Yes, 10 to 100% (Continuous)
  Display	None
  Housing Material	Metal
  Photometrics	91 fc / 979.2 lux at 3.28' / 1 m
  Number of LEDs	256 (Daylight)
  Expected Lamp Life	50000 Hours
  Fixture Dimensions	Overall: 37.6 x 4.2 x 1.9" / 95.5 x 10.7 x 4.8 cm
  Fixture Weight	6.4 lb / 2.90 kg

  Battery Plate	1 x V-Mount

  Fixture Mount	5/8" Receiver
  Accessory Mount	None

  Remote Control Type	None

  AC Input Power	100 to 240 VAC, 50 / 60 Hz
  Power Source	AC Adapter, External Battery
  Max Power Consumption	56 W
  Power Pass-Thru	None

  Cable Length	36" / 91.44 cm

  Power Supply Output	15 VDC, 5 A
  Power Supply Dimensions	1.5 x 2.9 x 5.9" / 3.8 x 7.4 x 15.0 cm
  Power Supply Weight	0.9 lb / 0.41 kg

  Box Dimensions (LxWxH)	40.0 x 5.1 x 5.1"

• 5 x Impact Heavy-Duty Air-Cushioned Light Stand (Black, 9.5')

  Maximum Load	22 lb (10 kg)
  Maximum Height	114" (290 cm)
  Minimum Height	48" (123 cm)
  Closed Length	42" (106.7 cm)
  Footprint Diameter	52" (132 cm)
  Leg Tip	0.98" (25 mm)
  Attachment Size	Removable 5/8" (16 mm) spigot with 1/4"-20 and 3/8"-16 threaded ends
  Accepts Wheels	Yes, casters
  Air Cushioned	Yes
  Weight	4.4 lb (2.0 kg)

  Box Dimensions (LxWxH)	42.8 x 5.5 x 5.2"

• Impact Combo Boom Stand - 12.95'

  Load Capacity	19.84 lb / 9 kg
  Mounting Options	5/8" Stud
  Number of Sections	4
  Column Diameter	1.38" / 3.5 cm 1.18" / 3 cm 0.98" / 2.5 cm 0.79" / 2 cm
  Maximum Working Height	154.3" / 392 cm
  Minimum Working Height	51.6" / 131 cm
  Collapsed Height	44.5" / 113 cm
  Footprint Diameter	43" / 109 cm
  Arm Length	75.2" / 191 cm
  Leg Shape	Round
  Accepts Wheels	Yes
  Air Cushioned	No
  Detachable Base	No
  Leveling Leg	No
  Reverse Legs	No
  Finish	Black
  Material	Aluminum
  Weight	6 lb / 2.7 kg

  Box Dimensions (LxWxH)	46.0 x 5.7 x 4.5"

• 7 x Impact Filled Saddle Sandbag (15 lb, Orange)

  Design	Saddle Bag
  Weight Capacity	15 lb / 6.8 kg
  Number of Bags	1
  Fill Material	Sand
  Closure Type	Zipper
  Water Resistance	Water Resistant
  Material	Nylon
  Dimensions (L x W)	17.8 x 11.0" / 45.0 x 28.0 cm
  Strap Width	1.5" / 4.0 cm

  Box Dimensions (LxWxH)	10.5 x 10.5 x 8.0"

• Impact Two Section Back Light Stand (3')

  Load Capacity	7 lb / 3.2 kg
  Mounting Options	1/4"-20 Male Thread 3/8"-16 Male Thread 5/8" Receiver 5/8" Stud
  Number of Sections	2
  Maximum Working Height	3' / 0.9 m
  Minimum Working Height	5.5" / 14 cm
  Collapsed Height	20" / 51 cm
  Footprint Diameter	23.6" / 60 cm
  Accepts Wheels	No
  Air Cushioned	No
  Detachable Base	Yes
  Leveling Leg	No
  Reverse Legs	No
  Finish	Black
  Material	Aluminum
  Weight	2.9 lb / 1.3 kg
  Warranty Length	Limited 1-Year Warranty

  Box Dimensions (LxWxH)	20.55 x 3.3 x 3.25"

• 2 x Impact Super Clamp with Ratchet Handle

  Clamp Type	Jaw
  Jaw Shape	Round
  Jaw Opening	0.5 to 2.1 " / 1.3 to 5.3 cm
  Load Capacity	33 lb / 15 kg
  Weight	1.4 lb / 0.6 kg

  Box Dimensions (LxWxH)	10.2 x 5.35 x 2.3"

• 2 x Impact 5/8" Snap-in Pin for Super Clamps (Black)

  Mounting	5/8" / 16 mm Hex Stud (Connector 1) 5/8" / 16 mm Stud (Connector 2)
  Material	Aluminum
  Dimensions	L: 4.7" / L: 11.9 cm
  Weight	1.8 oz / 50 g

  Box Dimensions (LxWxH)	6.8 x 3.9 x 0.65"
