User Manual for Genaray LED-5300 120 LED Dimmable Compact On-Camera Light Click to enlarge the picture
Contents of the user manual for the Genaray LED-5300 120 LED Dimmable Compact
- Product category: On Camera Lights Genaray
- Brand: Genaray
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Genaray On Camera Lights
 |
User manual for the Genaray LED-5300 120 LED Dimmable Compact contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Genaray product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Genaray user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Genaray product will considerably shorten its lifespan!
|

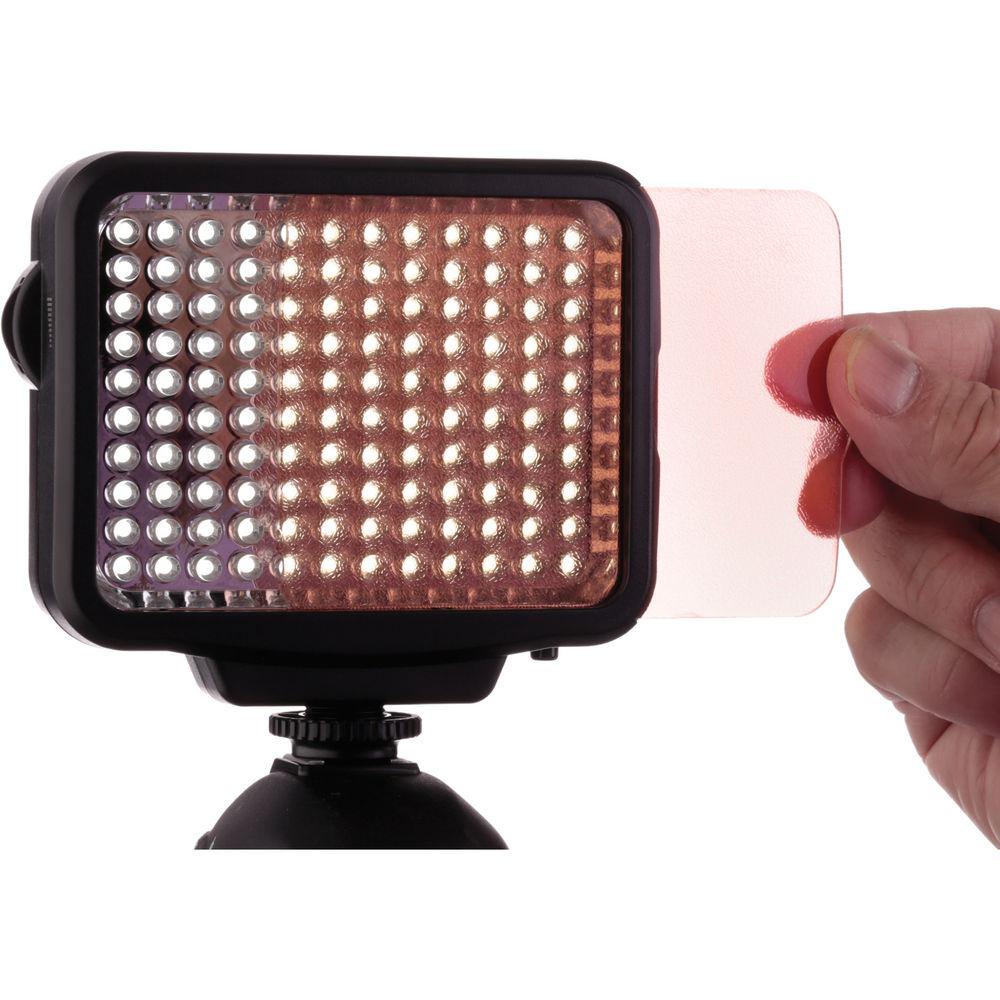

Product description Genaray Introduces New On-Camera LED Lights Read More The Genaray LED-5300 120 LED Dimmable Compact On-Camera Light is 5600K daylight balanced and delivers a 640 lux brightness at 3 ft distance. The brightness is adjustable by a flicker-free dimmer that also powers the light on and off. A 4300K filter is included for warming the daylight balanced color, and a diffusion filter is included to soften the light output so that your subjects are lit more gently and with less contrast from area to area. The filters interchangeably slide in from the side and lock into place. A button on the bottom releases them.

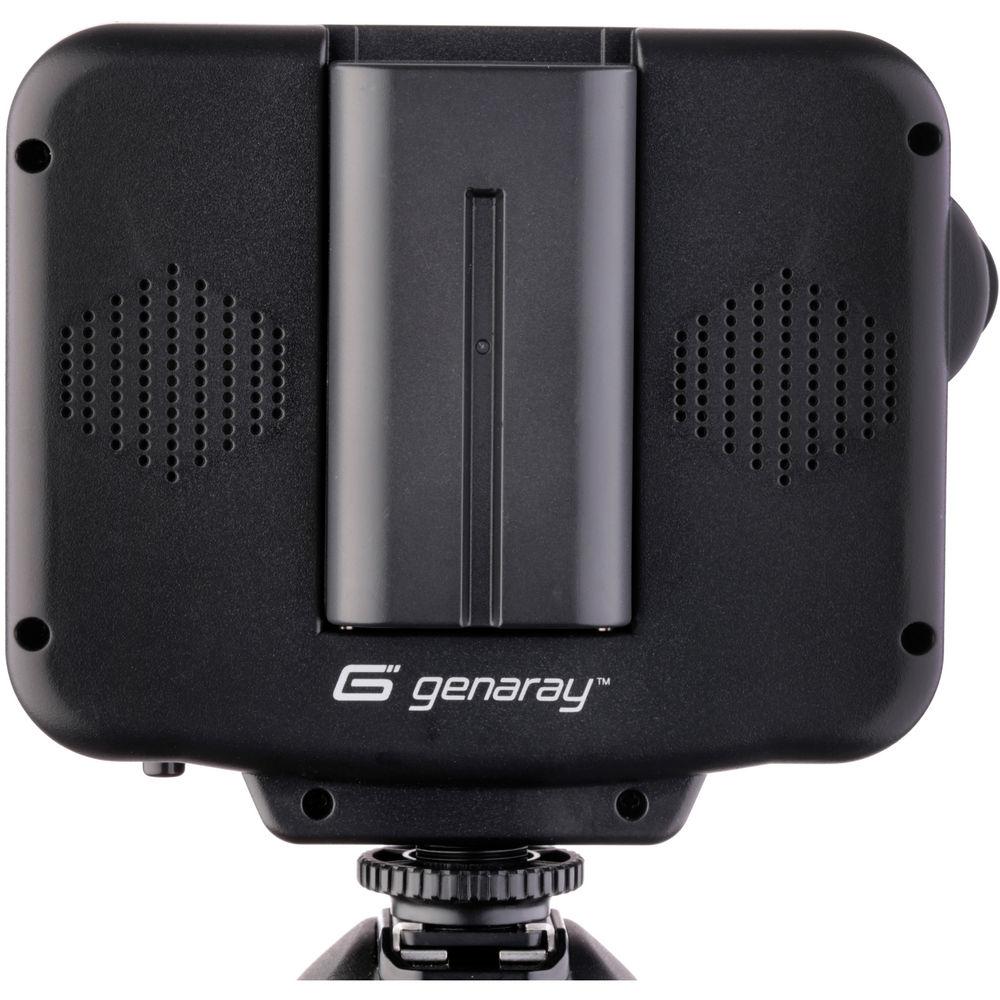

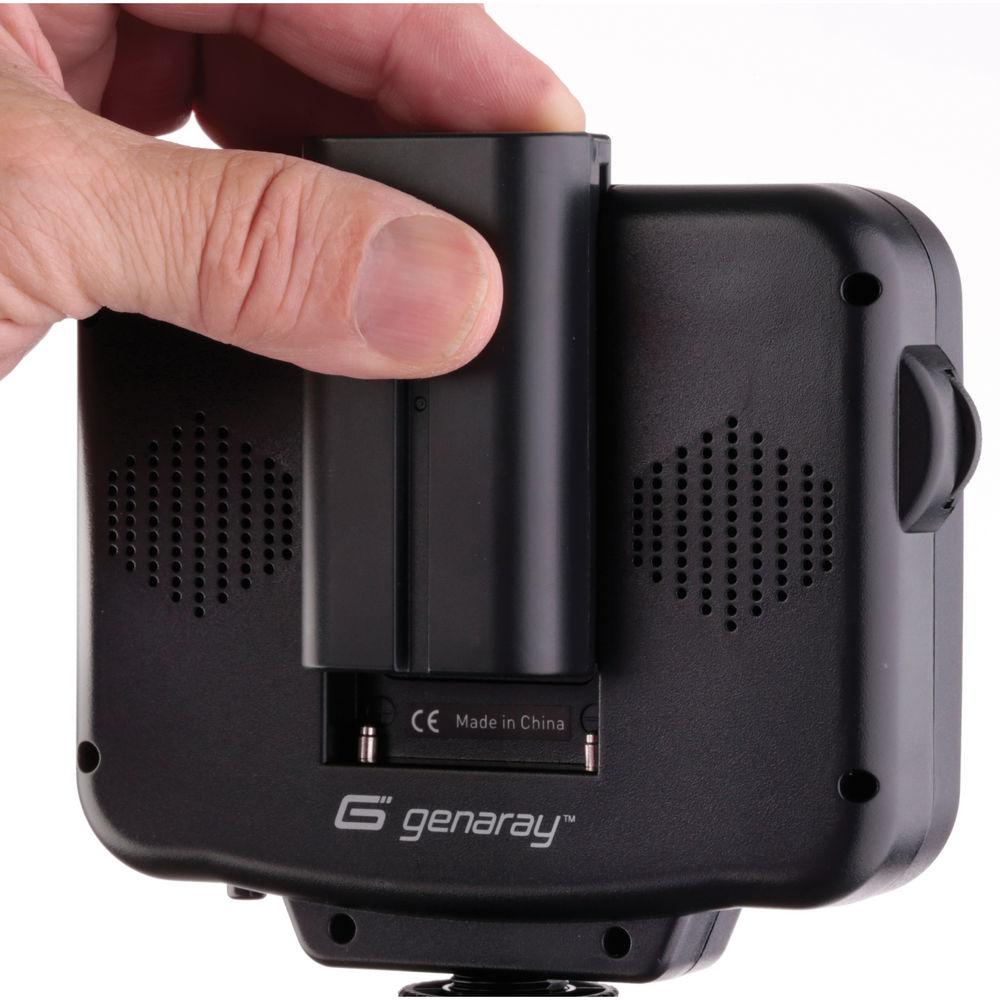

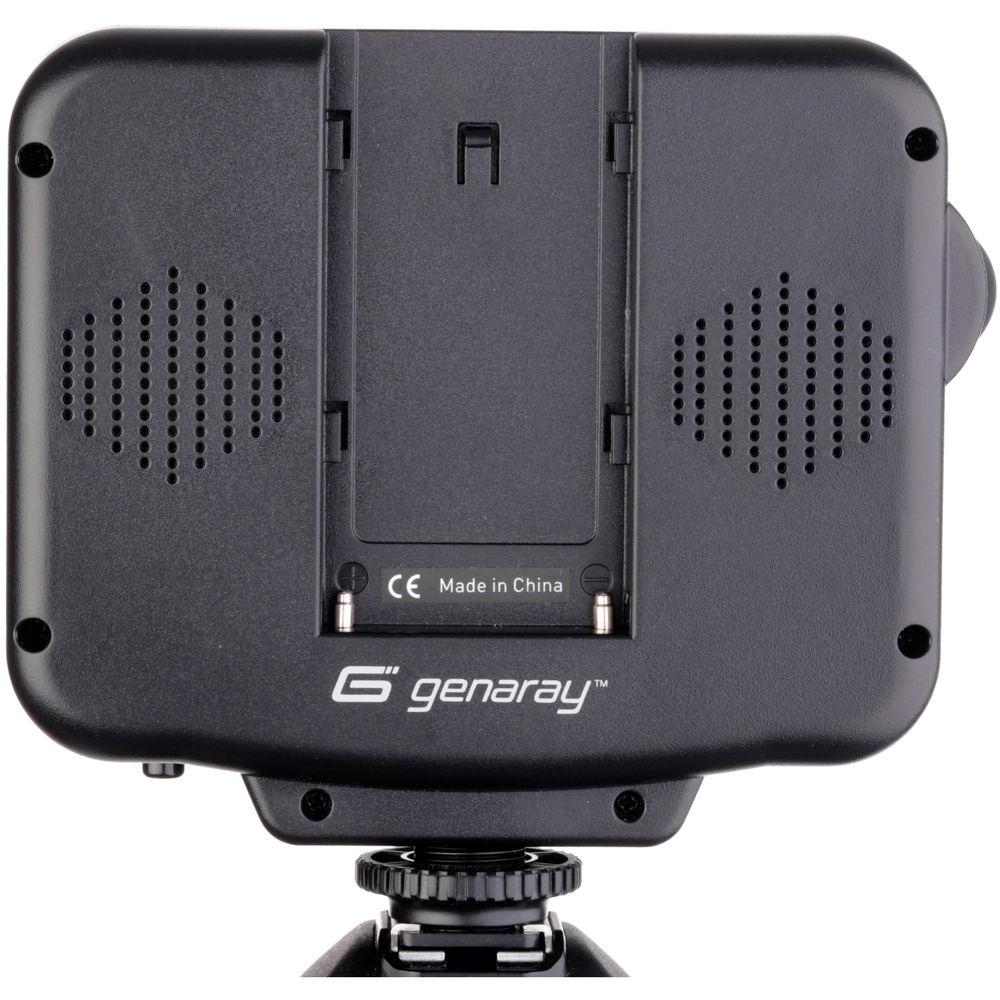

The light runs on any Sony L-series type battery and on AC power. An NP-F550 L-series battery, a charger, and an AC adapter are included. The AC adapter connects to the light via a dummy battery.
A cold shoe is integrated for mounting to a camera, and inside the shoe is a 1/4" thread for attaching onto stands and rigs. The cold shoe also features a locking ring that tightens the connection to a camera. A thread adapter for mounting on Sony's proprietary AIS shoe mount is also included. - Key Features
-
- 5600K daylight balanced
- 640 lux brightness at 3 ft distance
- Flicker-free brightness dimmer and on/off switch
- Integrated cold shoe with locking ring and 1/4" thread inside
- Included Accessories
-
- Slide-in 4300K warming filter
- Slide-in diffuser
- NP-F550 battery
- Charger
- AC adapter
- Thread adapter for Sony AIS shoe mount
- Carry case
UPC: 639767567909 In the Box Genaray LED-5300 120 LED Dimmable Compact On-Camera Light Slide-In Warming Filter Slide-In Diffuser NP-F550 Battery Charger AC Adapter Thread Adapter for Sony AIS Shoe Mount User's Manual Carry Case Limited 1-Year Warranty User Manual PDF 934.2kbxxaafybuvrzudruyeyfwbfyvzqcbzw Table of Contents
|
Upload User Manual
Have you got an user manual for the Genaray LED-5300 120 LED Dimmable Compact On-Camera Light in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersGenaray LED-5300 Specs | | | Light Source | 120 Daylight LEDs | | Brightness | 640 lux @ 3 ft (@ 91 cm) Lux values vary greatly between manufacturers; different testing methods can produce varying results. Generay LEDs are metered in strict tests, aimed at producing accurate measurements. | | Color Temperature | 5600K | | Voltage | 6-9 VDC | | Dimensions | 5 x 4.5 x 1.25" (12.7 x 11.4 x 3.2 cm) | | Weight | .32 lb (147 g) | | | | Chemistry | Lithium-ion | | Voltage | 7.4 V | | Capacity | 2200 mAh | | | | Input | 100-240 VAC, 50/60 Hz | | Output | 9 VDC, 1000 mA | | | | Input | 100-240 VAC, 50/60 Hz | | Output | 4.2 VDC, 500 mA | | | | Package Weight | 1.45 lb | | Box Dimensions (LxWxH) | 7.2 x 5.45 x 3.85" |
