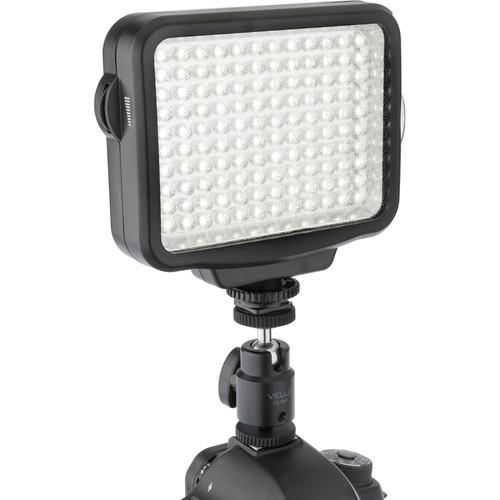

User Manual for Genaray LED-5300 Dimmable Light & Multi-Function Ball Head Kit Click to enlarge the picture
Contents of the user manual for the Genaray LED-5300 Dimmable Light & Multi-Function
- Product category: On Camera Lights Genaray
- Brand: Genaray
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Genaray On Camera Lights
|
User manual for the Genaray LED-5300 Dimmable Light & Multi-Function contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Genaray product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Genaray user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Genaray product will considerably shorten its lifespan!
|
Product description The Genaray LED-5300 Dimmable Light & Multi-Function Ball Head Kit from includes a 5600K daylight balanced on-camera light and a tilt and swivel ball head with a removable shoe mount and a 1/4" stud underneath on each end.
The light features 120 LEDs and delivers a 640 lux brightness at 3 ft distance. The brightness is intense relative to the size of the light, and it's dimmable by a flicker-free dimmer. The light comes with a warming filter, diffuser, L-series battery, charger, AC adapter, AIS shoe mount, and a carry case. The warming filter and diffuser are the slide-in type -- they slide in from the side and lock into place. A button on the bottom releases them.
The multi-function ball head supports a 2 lb load capacity and has a single adjustment knob. - Genaray LED-5300 120 LED Dimmable Compact On-Camera Light The Genaray LED-5300 120 LED Dimmable Compact On-Camera Light is 5600K daylight balanced and delivers a 640 lux brightness at 3 ft distance. The brightness is adjustable by a flicker-free dimmer that also powers the light on and off. A 4300K filter is included for warming the daylight balanced color, and a diffusion filter is included to soften the light output so that your subjects are lit more gently and with less contrast from area to area. The filters interchangeably slide in from the side and lock into place. A button on the bottom releases them.
The light runs on any Sony L-series type battery and on AC power. An NP-F550 L-series battery, a charger, and an AC adapter are included. The AC adapter connects to the light via a dummy battery.
A cold shoe is integrated for mounting to a camera, and inside the shoe is a 1/4" thread for attaching onto stands and rigs. The cold shoe also features a locking ring that tightens the connection to a camera. A thread adapter for mounting on Sony's proprietary AIS shoe mount is also included. - Key Features
-
- 5600K daylight balanced
- 640 lux brightness at 3 ft distance
- Flicker-free brightness dimmer and on/off switch
- Integrated cold shoe with locking ring and 1/4" thread inside
- Included Accessories
-
- Slide-in 4300K warming filter
- Slide-in diffuser
- NP-F550 battery
- Charger
- AC adapter
- Thread adapter for Sony AIS shoe mount
- Carry case
UPC: 639767567909 - Vello Multi-Function Ball Head with Removable Top & Bottom Shoe Mounts The Vello Multi-Function Ball Head with Removable Top & Bottom Shoe Mounts can mount directly to a camcorder or camera's shoe mount or rig, and allows for the attachment of a full array of video accessories. Specifically meant to attach monitors or small lights to your camcorder or camera while shooting video, this ball head has a single locking knob for fast and safe operation, and is easily removable. This head features removable shoe mounts at both ends to each reveal 1/4"-20 screws, making this a truly Multi-Function Ball Head. The head itself allows for 90º vertical articulation.
- Removable shoe mounts on top and bottom and 1/4"-20 screws underneath allow for multiple applications
- Single locking knob for safe and fast operation
- Fits most standard shoe mounts (except for Sony DSLR flash shoe)
UPC: 847628538689 In the Box - LED-5300 120 LED Dimmable Compact On-Camera Light uxqrvvucrsvqbxf
- Slide-In Warming Filter
- Slide-In Diffuser
- NP-F550 Battery
- Charger
- AC Adapter
- Thread Adapter for Sony AIS Shoe Mount
- User's Manual
- Carry Case
- Limited 1-Year Warranty
- Vello - Multi-Function Ball Head with Removable Top & Bottom Shoe Mounts uxqrvvucrsvqbxf
Table of Contents
|
Upload User Manual
Have you got an user manual for the Genaray LED-5300 Dimmable Light & Multi-Function Ball Head Kit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - Genaray LED-5300 120 LED Dimmable Compact On-Camera Light
| | | Light Source | 120 Daylight LEDs | | Brightness | 640 lux @ 3 ft (@ 91 cm) Lux values vary greatly between manufacturers; different testing methods can produce varying results. Generay LEDs are metered in strict tests, aimed at producing accurate measurements. | | Color Temperature | 5600K | | Voltage | 6-9 VDC | | Dimensions | 5 x 4.5 x 1.25" (12.7 x 11.4 x 3.2 cm) | | Weight | .32 lb (147 g) | | | | Chemistry | Lithium-ion | | Voltage | 7.4 V | | Capacity | 2200 mAh | | | | Input | 100-240 VAC, 50/60 Hz | | Output | 9 VDC, 1000 mA | | | | Input | 100-240 VAC, 50/60 Hz | | Output | 4.2 VDC, 500 mA | | | | Box Dimensions (LxWxH) | 7.2 x 5.45 x 3.85" | - Vello Multi-Function Ball Head with Removable Top & Bottom Shoe Mounts
| Bottom Mount | 1 x 1/4"-20 Female
1 x Accessory Foot | | Top Mount | 1 x 1/4"-20 Male
1 x Accessory Shoe | | Load Capacity | 2.2 lb / 1 kg | | Dimensions | 2.8 x 1.6 x 1.2" / 7 x 4 x 3 cm | | Weight | 3.2 oz / 90.0 g | | | | Box Dimensions (LxWxH) | 6.5 x 4.8 x 1.2" |
