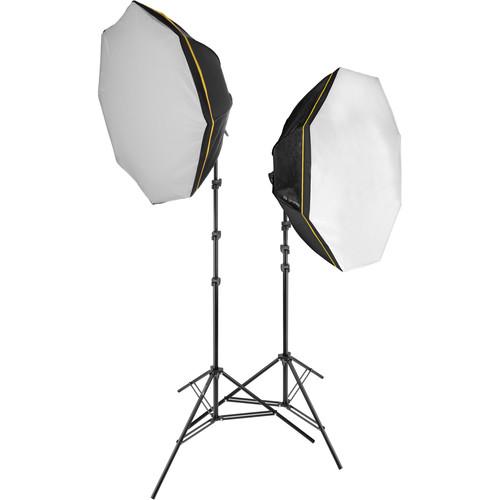

Genaray LED OctaLux 2-Light Kit

User Manual for Genaray LED OctaLux 2-Light Kit

• Product category: LED Lights Others
• Brand: Others
• Description and content of package
• Technical information and basic settings
• Frequently asked questions – FAQ
• Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
• Authorized service for Others LED Lights

Product description

• 2 x Genaray OctaLux LED Light
  • The Genaray OLED-55 OctaLux LED Light
  Obtain a soft, diffused continuous light for your portraits and fashion shots with the OctaLux LED Light from Genaray. By using 240 LEDs with a rated CRI of 89, this daylight-balanced 5500K light source will be able to accurately and easily illuminate your subject all while keeping heat to a minimum. LEDs are ideal for lengthy shoots because of this and can be used closer to subjects. This 10.75" diameter circular fixture also has a long lifetime and has a physical dimmer dial on the back for changing the output from 10-100%. The housing can hold up to demanding environments and LEDs will easily last longer than equivalent fluorescent or tungsten bulbs.

  Taking softness to the next level, the OctaLux comes with a 31.5" octabox and three separate diffusion attachments: a diffusion cap that slips right on the light head along with inner and front diffusers for the softbox. All can be used with or without the others depending on your specific needs. The softbox is simple to set up as the light has an integrated speed ring and the fixture has a 5/8" mount with tilt adjustment for setting up on standard light stands. Additionally, an AC power adapter is included as well as a removable handle for added control over light placement.
  Photometrics
  • No Diffusers: 2000 lux at 3' / 1m
    Front Diffuser Only: 1500 lux at 3' / 1m
    Inner Diffuser Only: 1800 lux at 3' / 1m
    Diffuser Cap Only: 1700 lux at 3' / 1m
  UPC: 639767568456
• 2 x Impact Heavy-Duty Air-Cushioned Light Stand (Black, 9.5')
  • The Genaray OLED-55 OctaLux LED Light
  This Impact Heavy-Duty Air-Cushioned Light Stand is a black anodized aluminum support that rises to a height of 9.5' and folds down to 42" for storage and transport. The stand will handle up to 22 lb and is topped with a removable 5/8" spigot with 1/4"-20 and 3/8"-16 threads. It has a wide footprint of 52" for greater stability. Air cushioning gently lowers the light when making height adjustments to protect equipment and fingers.
  Air-Cushioned
  • Protects equipment and fingers from damage
  Compact Design
  • Will fit easily into most location cases
  Accepts Casters
  • For easy positioning of lights
  UPC: 847628012004

• 2 x OctaLux LED Light rtyawyxqeuezaduyzx
• Diffuser Cap
• AC Power Adapter and Cable
• 31.5" (80cm) OctaLux Softbox
• Front Diffuser
• Inner Diffuser
• 8 x Tension Rods
• OctaLux Light Head Handle
• Limited 1-Year Warranty

• 2 x Impact - Heavy-Duty Air-Cushioned Light Stand (Black, 9.5')

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

• 2 x Genaray OctaLux LED Light

  Color Temperature	5500K ± 200K
  Color Accuracy Standard	CRI 89
  Cooling System	None
  Dimming	Yes, 10 to 100% (Stepped)
  Display	None
  Number of LEDs	240
  Expected Lamp Life	50,000 Hours
  Fixture Dimensions	10.8 x 10.8 x 7.0" / 27.3 x 27.3 x 17.8 cm
  Fixture Weight	2.85 lb / 1.3 kg

  Fixture Mount	5/8" Receiver
  Accessory Mount	None

  AC Input Power	100 to 240 VAC, 50 / 60 Hz
  Power Source	AC Adapter, External Battery
  Max Power Consumption	55 W

  IP Rating	IP20

  Box Dimensions (LxWxH)	14.5 x 14.5 x 9.3"

• 2 x Impact Heavy-Duty Air-Cushioned Light Stand (Black, 9.5')

  Maximum Load	22 lb (10 kg)
  Maximum Height	114" (290 cm)
  Minimum Height	48" (123 cm)
  Closed Length	42" (106.7 cm)
  Footprint Diameter	52" (132 cm)
  Leg Tip	0.98" (25 mm)
  Attachment Size	Removable 5/8" (16 mm) spigot with 1/4"-20 and 3/8"-16 threaded ends
  Accepts Wheels	Yes, casters
  Air Cushioned	Yes
  Weight	4.4 lb (2.0 kg)

  Box Dimensions (LxWxH)	42.8 x 5.5 x 5.2"
