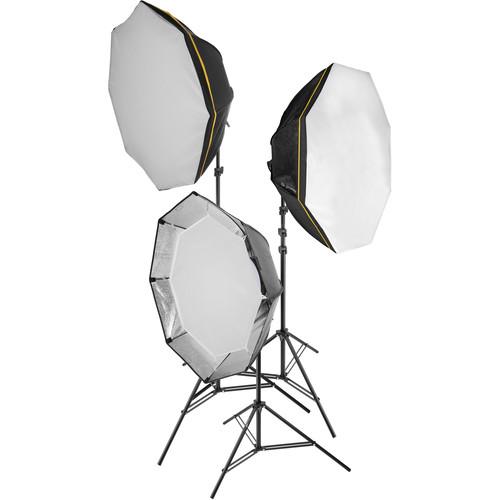

User Manual for Genaray LED OctaLux 3-Light Kit Click to enlarge the picture
Contents of the user manual for the Genaray LED OctaLux 3-Light Kit
- Product category: LED Lights Others
- Brand: Others
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Others LED Lights
|
User manual for the Genaray LED OctaLux 3-Light Kit contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Others product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Others user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Others product will considerably shorten its lifespan!
|
Product description The Genaray LED OctaLux 3-Light Kit was put together by B&H to offer photographers and videographers a great core kit for products, portraits, and fashion. The kit comes with 3 daylight-balanced, dimmable Genaray LED lights, each with a 31.5" Octabox, multi-voltage power adapter, and a heavy-duty, 9.5' air-cushioned Impact light stand. - 3 x Genaray OctaLux LED Light
- The Genaray OLED-55 OctaLux LED Light
Obtain a soft, diffused continuous light for your portraits and fashion shots with the OctaLux LED Light from Genaray. By using 240 LEDs with a rated CRI of 89, this daylight-balanced 5500K light source will be able to accurately and easily illuminate your subject all while keeping heat to a minimum. LEDs are ideal for lengthy shoots because of this and can be used closer to subjects. This 10.75" diameter circular fixture also has a long lifetime and has a physical dimmer dial on the back for changing the output from 10-100%. The housing can hold up to demanding environments and LEDs will easily last longer than equivalent fluorescent or tungsten bulbs.
Taking softness to the next level, the OctaLux comes with a 31.5" octabox and three separate diffusion attachments: a diffusion cap that slips right on the light head along with inner and front diffusers for the softbox. All can be used with or without the others depending on your specific needs. The softbox is simple to set up as the light has an integrated speed ring and the fixture has a 5/8" mount with tilt adjustment for setting up on standard light stands. Additionally, an AC power adapter is included as well as a removable handle for added control over light placement. - Photometrics
- No Diffusers: 2000 lux at 3' / 1m
Front Diffuser Only: 1500 lux at 3' / 1m
Inner Diffuser Only: 1800 lux at 3' / 1m
Diffuser Cap Only: 1700 lux at 3' / 1m UPC: 639767568456 - 3 x Impact Heavy-Duty Air-Cushioned Light Stand (Black, 9.5')
- The Genaray OLED-55 OctaLux LED Light
This Impact Heavy-Duty Air-Cushioned Light Stand is a black anodized aluminum support that rises to a height of 9.5' and folds down to 42" for storage and transport. The stand will handle up to 22 lb and is topped with a removable 5/8" spigot with 1/4"-20 and 3/8"-16 threads. It has a wide footprint of 52" for greater stability. Air cushioning gently lowers the light when making height adjustments to protect equipment and fingers. - Air-Cushioned
- Protects equipment and fingers from damage
- Compact Design
- Will fit easily into most location cases
- Accepts Casters
- For easy positioning of lights
UPC: 847628012004 In the Box - 3 x OctaLux LED Light vsavfwxtrcrrwsdatrcfddfsfctvwfwzzxzts
- Diffuser Cap
- AC Power Adapter and Cable
- 31.5" (80cm) OctaLux Softbox
- Front Diffuser
- Inner Diffuser
- 8 x Tension Rods
- OctaLux Light Head Handle
- Limited 1-Year Warranty
- 3 x Impact - Heavy-Duty Air-Cushioned Light Stand (Black, 9.5')
Table of Contents
|
Upload User Manual
Have you got an user manual for the Genaray LED OctaLux 3-Light Kit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - 3 x Genaray OctaLux LED Light
| | | Color Temperature | 5500K ± 200K | | Color Accuracy Standard | CRI 89 | | Cooling System | None | | Dimming | Yes, 10 to 100% (Stepped) | | Display | None | | Number of LEDs | 240 | | Expected Lamp Life | 50,000 Hours | | Fixture Dimensions | 10.8 x 10.8 x 7.0" / 27.3 x 27.3 x 17.8 cm | | Fixture Weight | 2.85 lb / 1.3 kg | | | | Fixture Mount | 5/8" Receiver | | Accessory Mount | None | | | | AC Input Power | 100 to 240 VAC, 50 / 60 Hz | | Power Source | AC Adapter, External Battery | | Max Power Consumption | 55 W | | | | Box Dimensions (LxWxH) | 14.5 x 14.5 x 9.3" | - 3 x Impact Heavy-Duty Air-Cushioned Light Stand (Black, 9.5')
| Maximum Load | 22 lb (10 kg) | | Maximum Height | 114" (290 cm) | | Minimum Height | 48" (123 cm) | | Closed Length | 42" (106.7 cm) | | Footprint Diameter | 52" (132 cm) | | Leg Tip | 0.98" (25 mm) | | Attachment Size | Removable 5/8" (16 mm) spigot with 1/4"-20 and 3/8"-16 threaded ends | | Accepts Wheels | Yes, casters | | Air Cushioned | Yes | | Weight | 4.4 lb (2.0 kg) | | | | Box Dimensions (LxWxH) | 42.8 x 5.5 x 5.2" |
