Product description

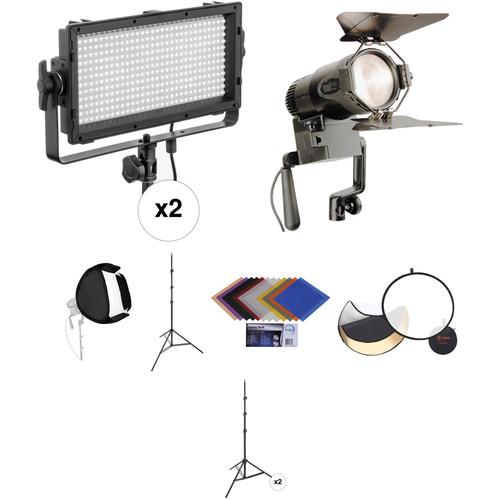

• 2 x Genaray SpectroLED Essential 365 Daylight LED Light
  • The Genaray SpectroLED Essential 365 Daylight LED Light
  The SpectroLED Essential 365 Daylight LED Light by Genaray is a 360 LED panel with a daylight-balanced, digital-friendly color temperature of 5600K and 100-0% dimming without color shift or flickering. The SpectroLED offers a 60° flood beam angle and a high CRI for precise and faithful color rendering. The 9.25 x 13.6 x 2.2" panel weighs just 2.5 lb and with its slim profile and barely perceptible warmth can be placed in areas that traditional fixtures just can't go. Another benefit of using LEDs is low power draw; although it uses just 40W of power, it outputs many times that number meaning a rapid return on investment. If you need more power Genaray has got that covered too; the light's removable yoke and included clips allow you to stack up to 3 units for triple the power. You can even "daisy chain" several units using the separately purchased SP-E-MLC Multi Link Cable, which allows one "master" unit to control light intensity of the others. Power options are equally versatile. Use the included multi-voltage AC adapter to run the SpectroLED anywhere in the world, or shed the power cord and employ two optional Sony L-series NP-F type batteries when mains current is unavailable.
  Daylight Color Balance
  • The SpectroLED has a digital-friendly, daylight-balanced color temperature of 5600K that facilitates shooting outdoors or in venues with large windows. Filters are easily applied to alter the Kelvin temperature to fit your needs.
  100-0% Dimming
  • The SpectroLED is dimmable from 100-0% without color shift and flicker.
  High CRI
  • The SpectroLED's high CRI rating ensures vibrant, accurate rendition of color.
  Removable Yoke
  • The removable yoke can be mounted horizontally or vertically on a light stand, allowing you to position the fixture so the yoke doesn't cast a shadow.
  Battery or AC Power
  • Power your light with the included multi-voltage AC adapter or with two optional Sony L-series NP-F batteries when mains power is unavailable.
  Flexible Mounting
  • The light has an industry-standard 5/8" receiver for stand mounting as well as 1/4"-20 top and bottom taps for supports such as ball heads.
  Daisy Chain Control
  • Using Genaray's SP-E-MLC Multi Link Cable, you can connect multiple SpectroLEDs together and brightness of all of them from one master unit.
  Stackable
  • Thanks to its removable yoke, you can use the included clips to stack up to three lights for triple the power.
  UPC: 639767568821
• Lowel PRO Power Daylight LED Fresnel
  • The Genaray SpectroLED Essential 365 Daylight LED Light
  The PRO Power Daylight LED Fresnel from Lowel is a compact lighting solution designed for optimal color rendition with a CRI of 90. This version features a 5,000K color temperature for matching color to your existing lights or other ambient sources. Also, it can focus the beam from 52 to 17° and output up to 391 fc at 5' when set to spot. This model can take 82mm threaded filters on the front for adjusting color temperature or other effects.

  The PRO Power LED light provides an equivalent output to that of a 200W tungsten halogen lamp without some of the limitations. This light will run cool and has a built-in dimming control and switch. It is also flicker-free, enabling work with high-speed shoots at 2350+ fps. Additionally, the PRO Power can run on either AC power with the included adapter or DC battery power with optional accessories. It includes two-way barndoors for simple light control.
  Photometrics
  • 17° Spot: 391 fc / 4209 lux at 5' / 1.5 m
    52° Flood: 60 fc / 646 lux at 5' / 1.5 m
  UPC: 884613024338
• Lowel PRO Power LED Softbox
  • The Genaray SpectroLED Essential 365 Daylight LED Light
  The PRO Power LED Softbox is a collapsible accessory that attaches easily to the PRO Power LED accessory slot and sets up quickly to give a softer, more flattering output. UPC: 884613024284
• Impact Air-Cushioned Light Stand (Black, 10')
  • The Genaray SpectroLED Essential 365 Daylight LED Light
  This Impact Air-Cushioned Light Stand is a black anodized aluminum support that rises to a height of 10' and folds down to 33.5" for storage and transport. The stand will handle up to 8.5 lb and is topped with a 5/8" stud with 1/4"-20 threads. It has a wide footprint of 38" for greater stability. Air cushioning gently lowers the light when making height adjustments to protect equipment and fingers.
  Air-Cushioned
  • Protects equipment and fingers from damage
  Compact Design
  • Will fit easily into most location cases
  Accepts Casters
  • For easy positioning of lights
  UPC: 847628030626
• Pro Gel Variety Filter Pack 12 x 12" (30 x 30 cm)
  • The Genaray SpectroLED Essential 365 Daylight LED Light
  These Colour Lite Gel Filters are consistently accurate, premium quality filters, made specifically for theatrical, motion picture, television and still photographic applications.This handy variety pack provides you with 12 of the most commonly used filters. The pack contains twelve 12" x 12" (30 x 30cm) filters.
  • Color dyes are selected for their resistance to high temperatures and dissolved in special fire retardant lacquers.
  • The dyed lacquer is then applied to extraordinary clear, dimensionally stable, polymeric film.
  • Color control and consistency are maintained by a computerized spectrometer capable of correcting color application to within 0.0004 grams per square meter (~10.75 sq ft).
  UPC: 702811533721
• Raya 5-in-1 Collapsible Reflector Disc (32")
  • The Genaray SpectroLED Essential 365 Daylight LED Light
  The 32" 5-in-1 Collapsible Reflector Disc from Raya is a versatile light modification tool than can find uses in the studio and on location. This disc provides white, silver, gold, and black surfaces as well as a one stop translucent diffusion panel. The 32" size is designed for mid-range or 2-person portrait shoots as well as small still life setups. The tool allows you to quickly and easily make adjustments to your lighting in order to get the look you want. Also, the disc is able to fold down to 1/3 its size and be stored inside the included carrying bag.
  • White provides a neutral soft reflection useful for fill light
  • Silver offers a neutral color balance similar to the white but with a higher contrast, increasing specular highlights
  • Gold reflects a warmer light onto a subject, useful to enhancing skin tones or balancing a cool scene
  • Black will block unwanted reflections and eliminate spill
  • The translucent diffuser lessens light power by 1 stop and will help create a broader, softer light source that will wrap around your subject
  UPC: 847628576902
• 2 x Impact Air-Cushioned Light Stand (Black, 8')
  • The Genaray SpectroLED Essential 365 Daylight LED Light
  This aluminum Impact Air-Cushioned Light Stand rises to a height of 8' and folds down to 29.6". The stand has sure-twist section locks and 4 sections and will support up to 8 lb. If you forget to tighten any section with your light mounted, the light slowly descends, thanks to the air-cushioned action. This useful feature saves equipment and fingers from harm during busy photo sessions.
  Air Cushioned
  • Protects equipment from impact damage.
  Compact Design
  • Will fit easily into most location cases.
  Accepts Casters
  • Eases positioning of heavy lights.
  • Available as accessories.
  UPC: 847628012349

• 2 x SpectroLED Essential 365 Daylight LED Light svadcevqscvxvsrezadvfzawvb
• Yoke
• AC Adapter
• AC Power Cord
• Diffuser
• 2 x Stacking Clips
• Limited 1-Year Warranty

• Lowel - PRO Power Daylight LED Fresnel

• Lowel - PRO Power LED Softbox

• Impact - Air-Cushioned Light Stand (Black, 10')

• Pro Gel - Variety Filter Pack 12 x 12" (30 x 30 cm)

• Raya - 5-in-1 Collapsible Reflector Disc (32")

• 2 x Impact - Air-Cushioned Light Stand (Black, 8')

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

• 2 x Genaray SpectroLED Essential 365 Daylight LED Light

  Beam Angle	60°
  Color Temperature	5600K
  Color Accuracy Standard	CRI 95
  Cooling System	None
  Dimming	Yes, 0 to 100%
  Display	None
  Number of LEDs	360
  Expected Lamp Life	30,000 Hours
  Fixture Dimensions	9.2 x 13.6 x 2.6" / 23.4 x 34.5 x 6.6 cm
  Fixture Weight	1.6 lb / 0.7 kg 2.5 lb / 1.1 kg (Including Yoke)

  Battery Plate	2 x Sony L-Series (NP-F)

  Fixture Mount	5/8" Receiver
  Accessory Mount	2 x 1/4"-20 Female

  AC Input Power	100 to 240 VAC, 50 / 60 Hz
  DC Input Power	12 to 14.4 VDC
  Power Source	AC Adapter, External Battery
  Max Power Consumption	30 W

  IP Rating	IP20

  Box Dimensions (LxWxH)	15.9 x 10.5 x 4.7"

• Lowel PRO Power Daylight LED Fresnel

  Beam Angle	10 to 43°
  Color Temperature	5000K
  Color Accuracy Standard	CRI 95
  Cooling System	None
  Dimming	Yes
  Display	None
  Housing Material	Aluminum, Steel
  Lumens	2500
  Fixture Dimensions	10.3 x 4.3 x 6.3" / 26.2 x 10.9 x 16.0 cm
  Fixture Weight	1.8 lb / 0.8 kg

  Fixture Mount	5/8" Receiver
  Accessory Mount	None

  Remote Control Type	None

  AC Input Power	120 to 240 VAC, 50 / 60 Hz
  Power Source	AC Adapter, External Battery

  IP Rating	IP20

  Box Dimensions (LxWxH)	24.0 x 15.0 x 8.0"

• Lowel PRO Power LED Softbox

  Shape	Square
  Interior	Silver
  Removable Front Face	Yes

  Box Dimensions (LxWxH)	16.55 x 15.65 x 2.6"

• Impact Air-Cushioned Light Stand (Black, 10')

  Maximum Load	8.5 lb (3.8 kg)
  Maximum Height	121.5" (308.6 cm)
  Minimum Height	40.5" (102.9 cm)
  Closed Length	33.5" (85 cm)
  Footprint Diameter	38" (96.5 cm)
  Leg Tip	0.8" (20 mm)
  Attachment Size	5/8" (16 mm) stud with 1/4"-20 male threads
  Accepts Wheels	Yes, casters
  Air Cushioned	Yes
  Weight	2.4 lb (1.1 kg)

  Box Dimensions (LxWxH)	34.0 x 3.0 x 3.0"

• Pro Gel Variety Filter Pack 12 x 12" (30 x 30 cm)

  Pack	12 Sheets
  Size	12 x 12" (30 x 30 cm)
  Colors	1 each of: Heavy Frost, White Diffusion, Hampton Frost, Full C.T. Blue, Full C.T. Orange, .3ND, Yellow, Primary Red, Primary Green, Congo Blue, Pale Lavender and Bastard Amber

  Box Dimensions (LxWxH)	16.25 x 13.9 x 0.65"

• Raya 5-in-1 Collapsible Reflector Disc (32")

  Surfaces	Black, Diffusion, Gold, Silver, White
  Shape	Circle
  Working Size	32 x 32" / 81.3 x 81.3 cm
  Collapsed Size	1/3 of Working Size
  Light Loss	1 Stop

  Box Dimensions (LxWxH)	11.7 x 11.55 x 2.5"

• 2 x Impact Air-Cushioned Light Stand (Black, 8')

  Maximum Load	8 lb (3.6 kg)
  Leg Tip	20 mm
  Attachment Size	5/8" Stud with 1/4"-20 in threaded tip
  Accepts Wheels	Yes
  Air Cushioned	Yes
  Maximum Height	96" (243.8 cm)
  Minimum Height	34" (86.3 cm)
  Folded Height	29.6 (75.2 cm)
  Footprint Diameter	36" (91.4 cm)
  Weight	2.05 lb (1 kg)

  Box Dimensions (LxWxH)	29.75 x 3.2 x 3.15"
