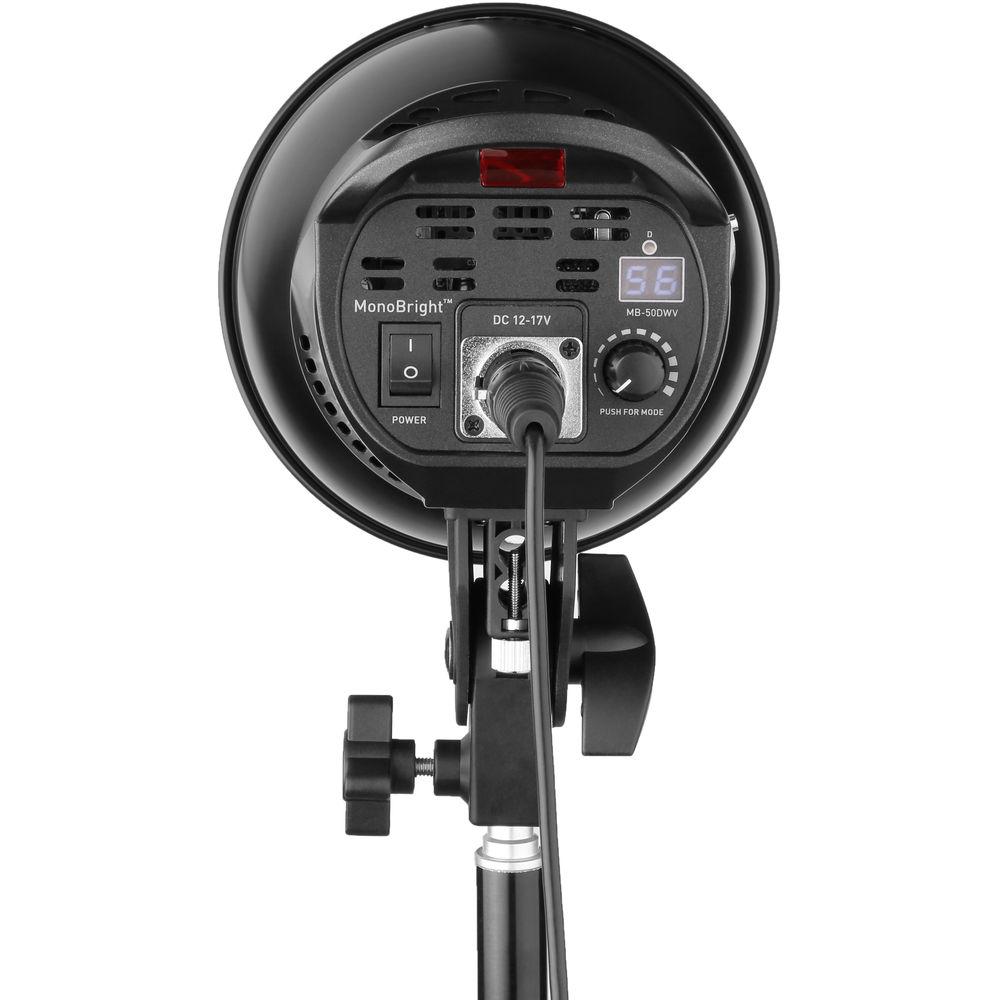

Product description - The Genaray MB-50DWV MonoBright Daylight LED 750

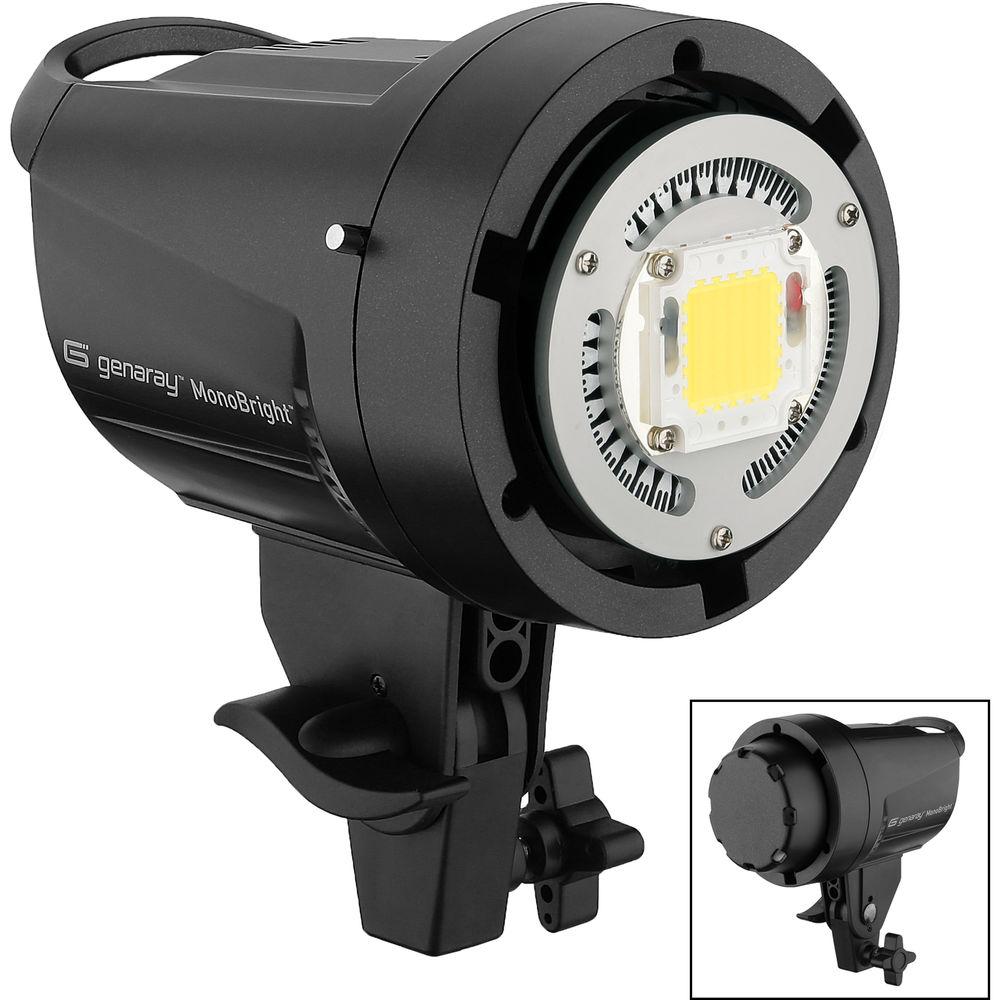

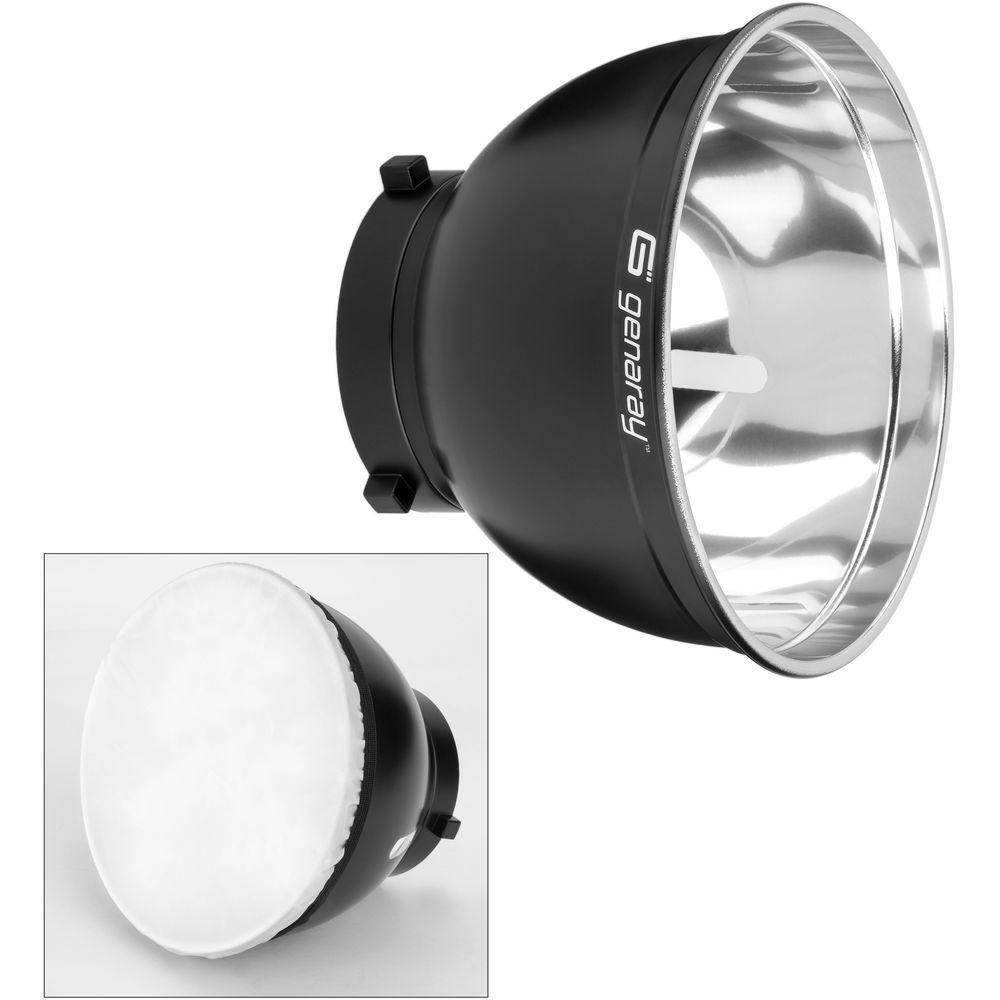

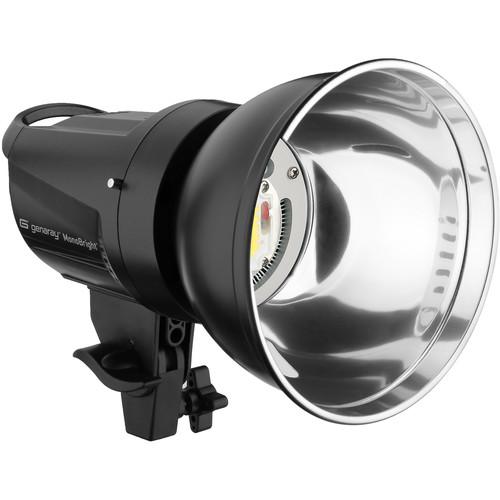

With its monolight form factor, S-Type front accessory mount and AC or 12 VDC battery power options, the MonoBright Daylight LED 750 fixture from Genaray can be easily integrated into a wide range of projects. The MonoBright employs a HiBrite 5200K microLED PCB to output the equivalent power of a 750W tungsten fixture while consuming only 50W of current. Its high CRI rating of >90 means that the light packs precision with power for faithful rendition of colors down to the subtlest tones. Another handy feature is the dimming range of 10-100% so you won't have to move the light once you have it perfectly positioned. And if you've mounted the MonoBright in a hard to reach place you'll appreciate the inclusion of a 2.4 GHz wireless remote control that can dim the light at distances up to 98' as well as turn it on or off. The MonoBright can run on 100-240 VAC mains voltage for worldwide use but the light also has a 4-pin XLR input for a battery cable and 12V battery (available separately). Also included are a 7", 60 degree umbrella/grid reflector, and shower cap-style diffuser. - HiBrite microLED PCB

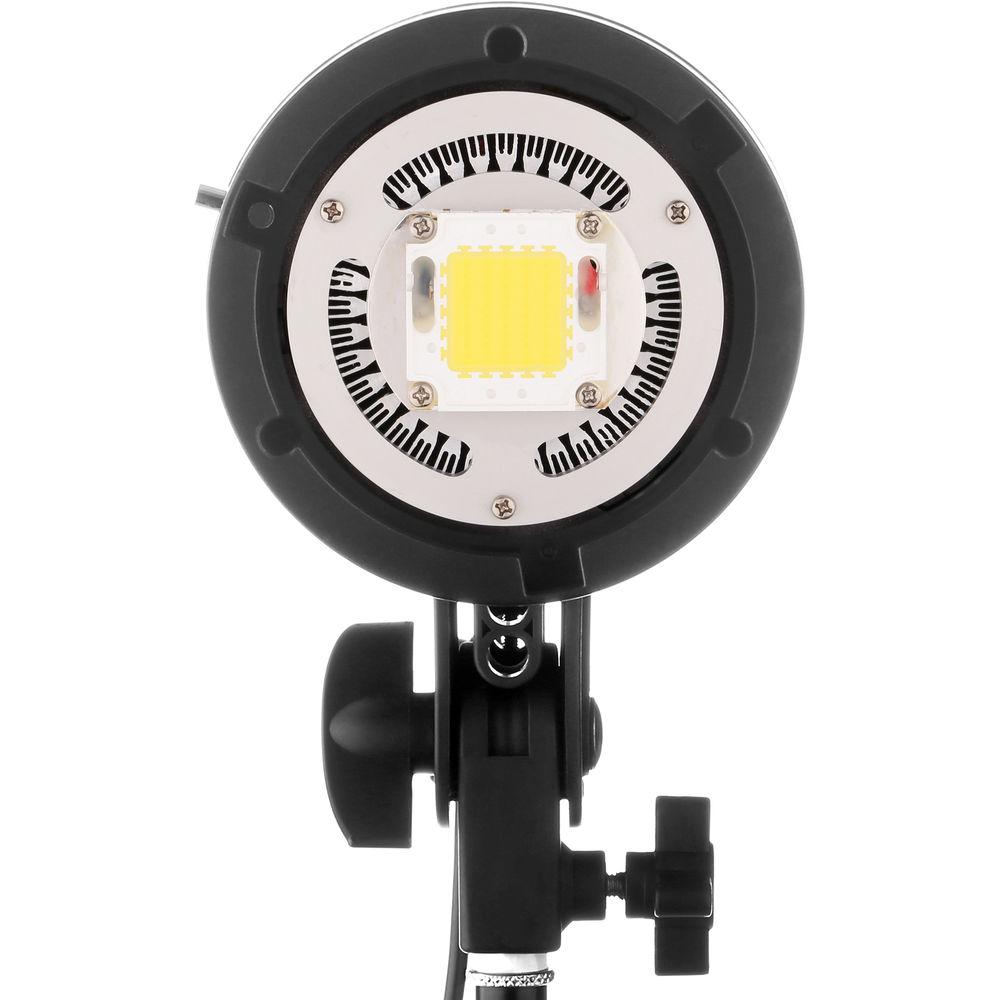

- Thanks to its HiBrite microLED PCB, the Genaray MonoBright LED 750 delivers 8,000 lux of continuous light and draws only 50W to produce the equivalent output of a 750W open-face tungsten light
- Dimming 10-100%
- Dim the brightness from 10 to 100% via the onboard controls or the included wireless remote
- Color Rendering Index (CRI) of >90
- High CRI ensures faithful rendering of colors - even the subtlest tones

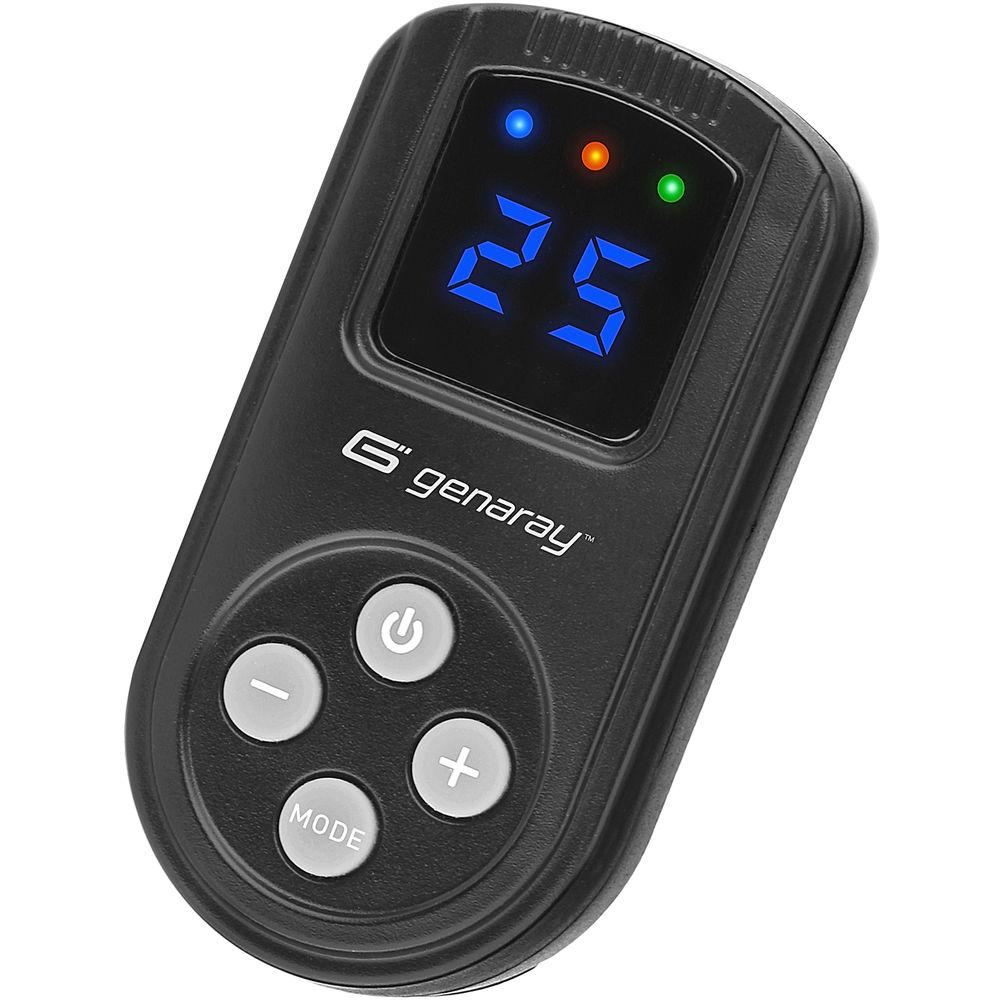

- Wireless Remote
- The included 2.4 GHz remote control allows you to wirelessly adjust output for multiple MonoBright units - even at different settings. The 99 channel unit has a wireless range of up to 98'

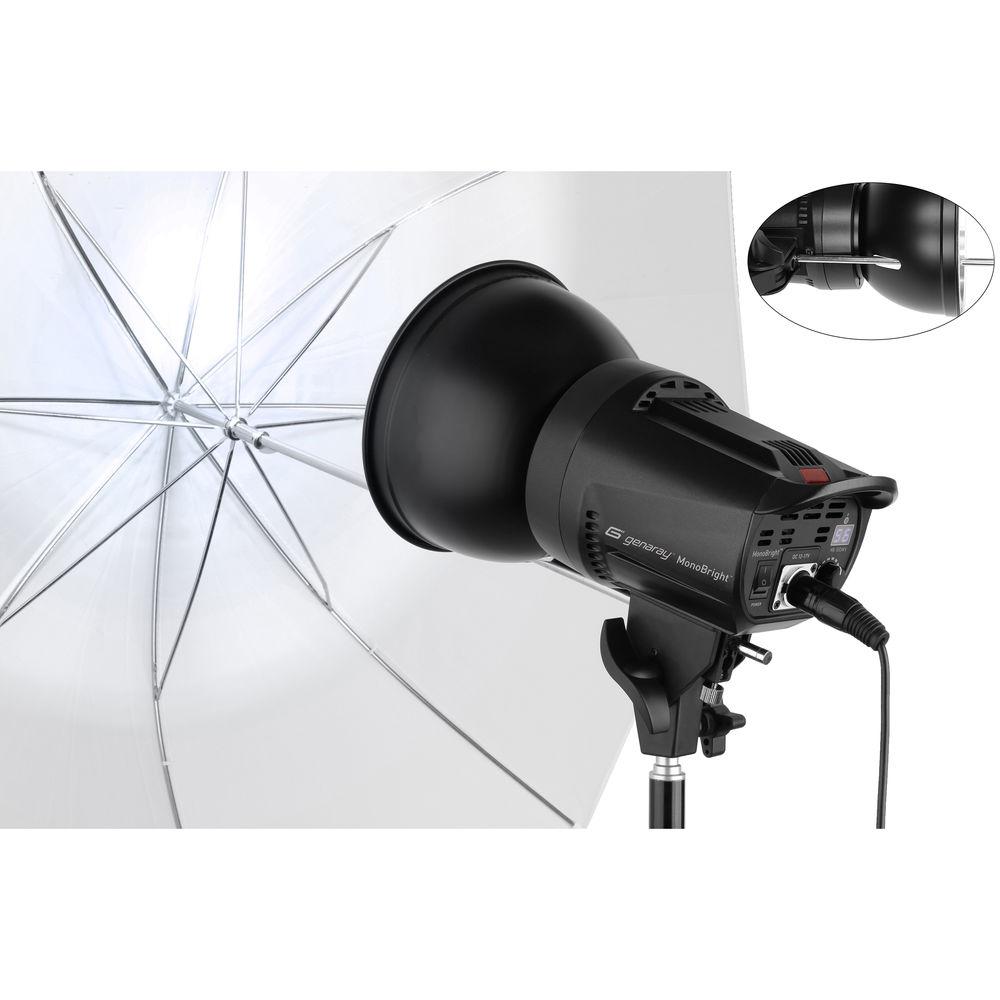

- S-Type Front Accessory Mount and Umbrella Channel
- The MonoBright has an S-type front accessory mount for the included umbrella/grid reflector and the many accessories made by other brands that use this mount. Additionally, the stand mount has a built-in channel for umbrella shafts

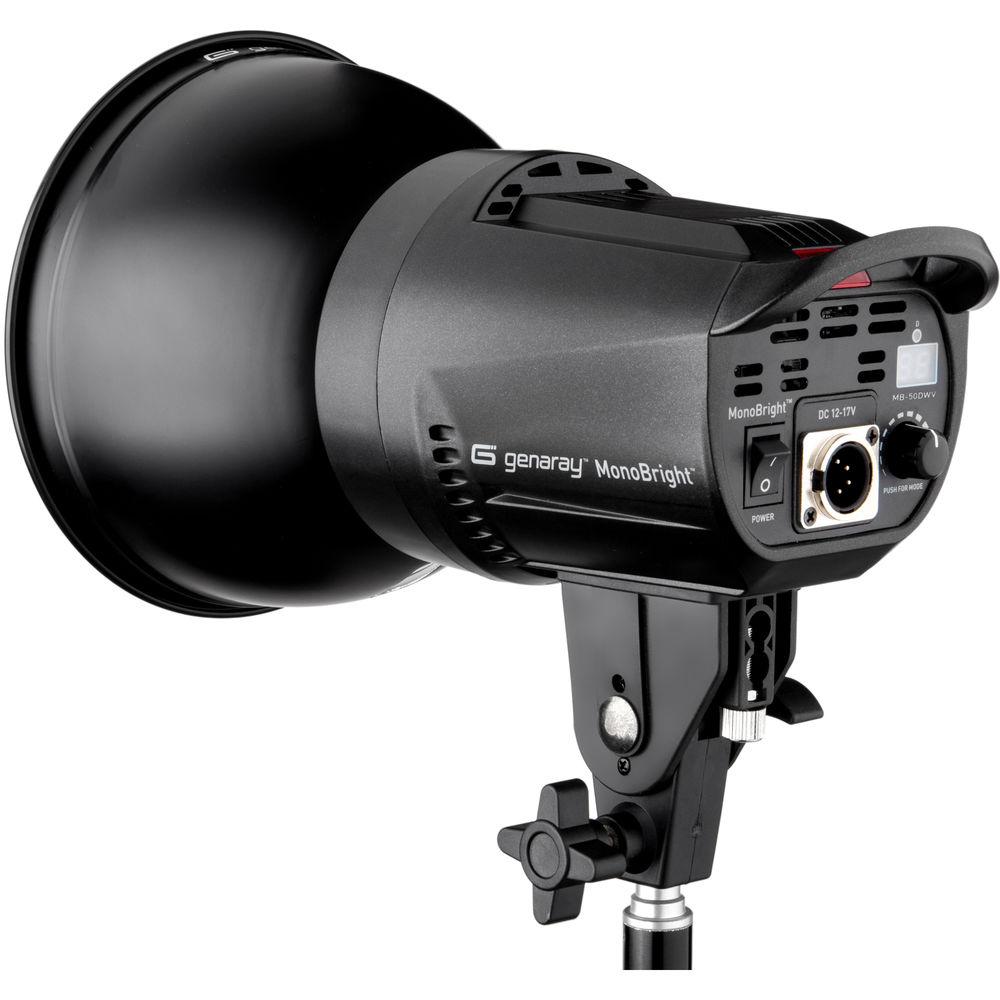

- Worldwide AC Voltage and Optional DC Battery
- The MonoBright can run on worldwide AC voltage or an optional 12 VDC battery via a Genaray MonoBright battery cable (available separately)
- Built-In Memory
- A built-in memory function saves your settings on the MonoBright control panel. The next time you turn on the MonoBright- even with the wireless remote - your previous settings will appear on the control panel

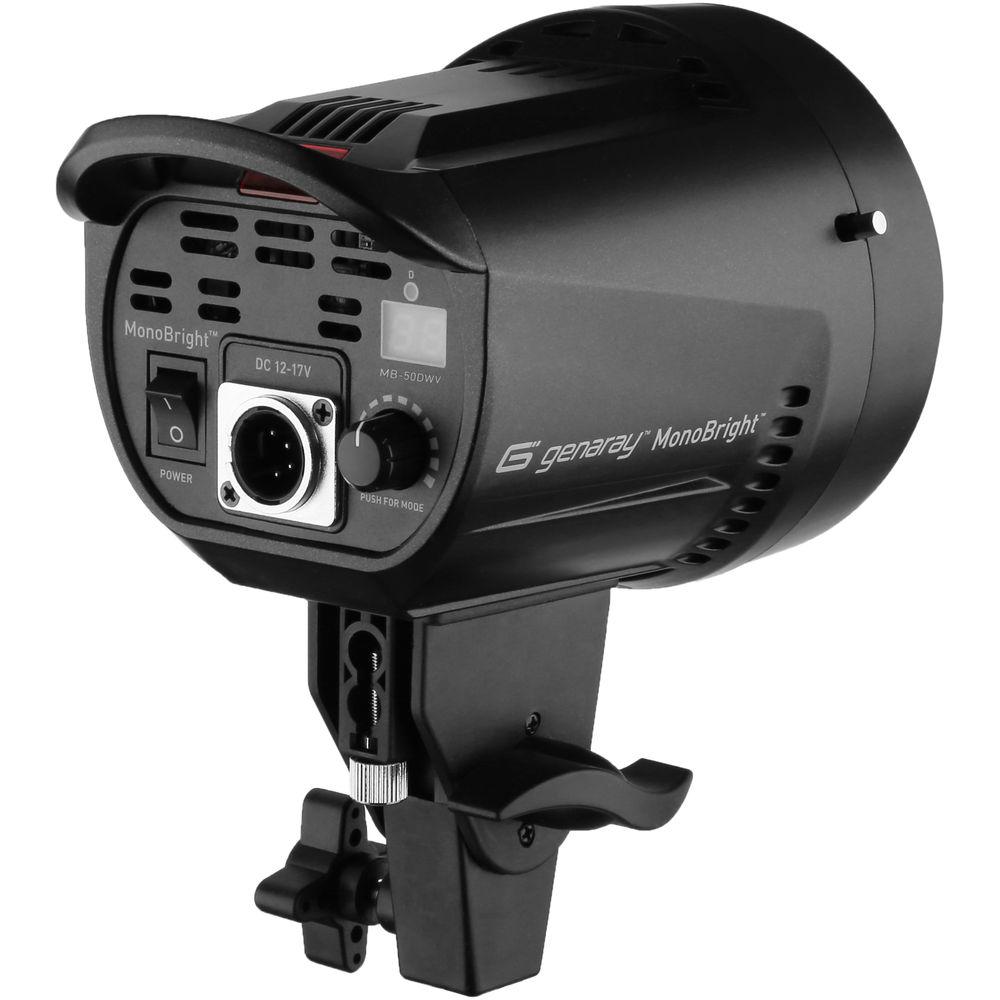

- LCD Readout
- LCD display with large numbers for optimal readability, even in bright daylight
- Sleep Mode
- Powers down the light when not in use
UPC: 639767568340 In the Box Genaray MonoBright Daylight LED 750 Wireless Transmitter Reflector: 7" Transport Cap Diffuser Cover AC Cable Limited 1-Year Warranty User Manual PDF 1.3mb Table of Contents
|
Upload User Manual
Have you got an user manual for the Genaray MonoBright Daylight LED 750 in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersGenaray MonoBright 750 Specs | | | Beam Angle | 60° | | Color Temperature | 5200K ± 300K | | Color Accuracy Standard | CRI 90 | | Cooling System | Fan | | Dimming | Yes, 10 to 100% (Stepped) | | Display | LCD | | Housing Material | Polymer | | Photometrics | 60° at 5200K:
743.2 fc / 8000 lux at 3' / 0.91 m | | Expected Lamp Life | 50,000 Hours | | Fixture Dimensions | 8.0 x 6.0 x 8.2" / 20.3 x 15.2 x 21.0 cm | | Fixture Weight | 2.45 lb / 1.1 kg | | | | Battery Plate | None | | Power Input Connector | 4-Pin XLR | | DMX Connector | None | | | | Reflector Mount | Bowens S-Type | | Lens Diameter | 7" / 17.78 cm | | | | Fixture Mount | 5/8" Receiver | | Accessory Mount | None | | | | Remote Control Type | Proprietary Wireless | | Wireless Range | 98' / 30 m | | Wireless Channels / Groups | 99 / X | | | | AC Input Power | 100 to 240 VAC, 50 / 60 Hz | | DC Input Power | 12 to 17 VDC | | Power Source | AC Adapter, External Battery | | Max Power Consumption | 50 W | | Fuse | None | | | | Certifications | CE, FCC, RoHS, as per Manufacturer | | IP Rating | IP20 | | | | Package Weight | 5.75 lb | | Box Dimensions (LxWxH) | 13.7 x 10.3 x 8.7" |
