User Manual for Genaray MonoBright Daylight LED 750 2-Light Kit

Click to enlarge the picture
Genaray MonoBright Daylight LED 750 2-Light Kit Contents of the user manual for the Genaray MonoBright Daylight LED 750 2-Light
  • Product category: LED Lights Genaray
  • Brand: Genaray
  • Description and content of package
  • Technical information and basic settings
  • Frequently asked questions – FAQ
  • Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
  • Authorized service for Genaray LED Lights

User manual for the Genaray MonoBright Daylight LED 750 2-Light contain basic instructions that need to be followed during installation and operation. Before starting your appliance, the user manual should be read through carefully. Follow all the safety instructions and warnings, and be guided by the given recommendations. User manual is an integral part of any Genaray product, and if it is sold or transferred, they should be handed over jointly with the product. Following the instructions for use is an essential prerequisite for protecting health and property during use, as well as recognition of liability on the part of the manufacturer for possible defects should you make a warranty claim. Download an official Genaray user manual in which you will find instructions on how to install, use, maintain and service your product.

And do not forget – unsuitable use of a Genaray product will considerably shorten its lifespan!



Product description

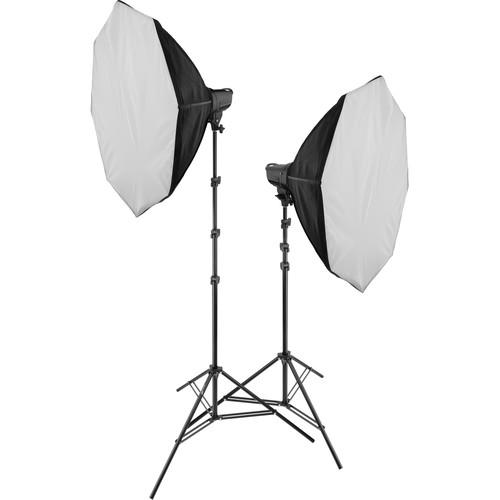

The Genaray MonoBright Daylight LED 750 2-Light Kit from is built around monolight-style lamps head with 5200K daylight color balance. The kit contains two MonoBright Daylight 750s, each with a 32" Octabox and speed ring as well as a 10' air-cushioned light stand. With its monolight form factor, S-Type front accessory mount and multi-voltage AC or 12 VDC battery power options, the MonoBright Daylight LED 750 fixture can be easily integrated into a wide range of projects. The MonoBright employs a HiBrite microLED PCB to output the equivalent power of a 750W tungsten fixture while consuming only 50W of current while its negligible heat generation enables low running costs and a comfortably cool studio. The MonoBright's high CRI rating of >90 means that the light packs precision with power for faithful rendition of colors down to the subtlest tones. Another handy feature is the dimming range of 10-100% so you won't have to move the light once you have it perfectly positioned. And if you've mounted the MonoBright in a hard to reach place you'll appreciate the option of a 2.4 GHz wireless remote control that can dim the light at distances up to 98' as well as turn it on or off. The remote has 99 channels, so you can control at least that many lights in unison or individually. The MonoBright is rated for 100-240 VAC for worldwide use but the light will also work with 12 VDC batteries via its 4-pin XLR input. Also included are a 7", 60° umbrella/grid reflector, and shower cap-style diffuser. The included Octaboxes are a favorite of fashion photographers for their wrap-around quality of light when used up close.
  • 2 x Genaray MonoBright Daylight LED 750
    • The Genaray MB-50DWV MonoBright Daylight LED 750
    With its monolight form factor, S-Type front accessory mount and AC or 12 VDC battery power options, the MonoBright Daylight LED 750 fixture from Genaray can be easily integrated into a wide range of projects. The MonoBright employs a HiBrite 5200K microLED PCB to output the equivalent power of a 750W tungsten fixture while consuming only 50W of current. Its high CRI rating of >90 means that the light packs precision with power for faithful rendition of colors down to the subtlest tones. Another handy feature is the dimming range of 10-100% so you won't have to move the light once you have it perfectly positioned. And if you've mounted the MonoBright in a hard to reach place you'll appreciate the inclusion of a 2.4 GHz wireless remote control that can dim the light at distances up to 98' as well as turn it on or off. The MonoBright can run on 100-240 VAC mains voltage for worldwide use but the light also has a 4-pin XLR input for a battery cable and 12V battery (available separately). Also included are a 7", 60 degree umbrella/grid reflector, and shower cap-style diffuser.
      HiBrite microLED PCB
    • Thanks to its HiBrite microLED PCB, the Genaray MonoBright LED 750 delivers 8,000 lux of continuous light and draws only 50W to produce the equivalent output of a 750W open-face tungsten light
      Dimming 10-100%
    • Dim the brightness from 10 to 100% via the onboard controls or the included wireless remote
      Color Rendering Index (CRI) of >90
    • High CRI ensures faithful rendering of colors - even the subtlest tones
      Wireless Remote
    • The included 2.4 GHz remote control allows you to wirelessly adjust output for multiple MonoBright units - even at different settings. The 99 channel unit has a wireless range of up to 98'
      S-Type Front Accessory Mount and Umbrella Channel
    • The MonoBright has an S-type front accessory mount for the included umbrella/grid reflector and the many accessories made by other brands that use this mount. Additionally, the stand mount has a built-in channel for umbrella shafts
      Worldwide AC Voltage and Optional DC Battery
    • The MonoBright can run on worldwide AC voltage or an optional 12 VDC battery via a Genaray MonoBright battery cable (available separately)
      Built-In Memory
    • A built-in memory function saves your settings on the MonoBright control panel. The next time you turn on the MonoBright- even with the wireless remote - your previous settings will appear on the control panel
      LCD Readout
    • LCD display with large numbers for optimal readability, even in bright daylight
      Sleep Mode
    • Powers down the light when not in use
    UPC: 639767568340
  • 2 x Impact Air-Cushioned Light Stand (Black, 10')
    • The Genaray MB-50DWV MonoBright Daylight LED 750
    This Impact Air-Cushioned Light Stand is a black anodized aluminum support that rises to a height of 10' and folds down to 33.5" for storage and transport. The stand will handle up to 8.5 lb and is topped with a 5/8" stud with 1/4"-20 threads. It has a wide footprint of 38" for greater stability. Air cushioning gently lowers the light when making height adjustments to protect equipment and fingers.
      Air-Cushioned
    • Protects equipment and fingers from damage
      Compact Design
    • Will fit easily into most location cases
      Accepts Casters
    • For easy positioning of lights
    UPC: 847628030626
  • 2 x Raya Octa Soft Box for Octa Fluorescent 7 (32")
    • The Genaray MB-50DWV MonoBright Daylight LED 750
    The 32" OC-OSB80 Octa Softbox from Raya is an 8-sided light modifier supported by aluminum flexrods which are attached to the separately purchased Octa Fluorescent 7 fixture.The softbox features a highly reflective pebbled interior and a removable front face that attaches with simple touch-fasteners. It also has a detachable interior clip-on diffuser for additional soft light if desired. In use, it renders the signature wrap-around look that the modifier's shape is well known for, as well as natural circular catch-lights in your subjects eyes. This softbox is made to be used with the OC-OF7 Fluorescent 7 fixture and fluorescent lamps only. UPC: 847628581173
  • 2 x Raya Speed Ring for SDR-400 Alpha Monolight
    • The Genaray MB-50DWV MonoBright Daylight LED 750
    Featuring all metal construction and rapid bayonet-action installation, the Raya Speed Ring for SDR-400 Alpha Monolight is designed to quickly and conveniently mount the Raya OC-OSB80 32" or Impact FF-OSB60 24" Octa softboxes to the Raya SDR-400 Alpha Monolight or other Bowens mount strobe fixtures.
      Exclusive Speed Ring Design
    • The Raya SR-OCFF Speed Ring makes it easy to mount the Raya OC-OSB80 32" or Impact FF-OSB60 24" Octa Softboxes to the Raya SDR-400 Alpha Monolight and other similar Bowens mount fixtures. Compatible exclusively with these lighting tools, the speed ring offers hassle-free setup and takedown with quick attachment to your SDR-400's mount, or other similar Bowens mount fixtures. This allows you to create soft, diffuse lighting on location or in the studio.
      Metal Construction
    • The SR-OCFF's durable metal construction insures reliable performance that can withstand the rigors of professional use.
    UPC: 847628586659
In the Box
  • 2 x MonoBright Daylight LED 750 bfcyxvfe
  • Wireless Transmitter
  • Reflector: 7"
  • Transport Cap
  • Diffuser Cover
  • AC Cable
  • Limited 1-Year Warranty
  • 2 x Impact - Air-Cushioned Light Stand (Black, 10')
  • 2 x Raya - Octa Soft Box for Octa Fluorescent 7 (32")
  • 2 x Raya - Speed Ring for SDR-400 Alpha Monolight
Table of Contents




Upload User Manual

Have you got an user manual for the Genaray MonoBright Daylight LED 750 2-Light Kit in electronic form? Please send it to us and help us expand our library of instruction manuals. Thank you, too, on behalf of other users.

To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Upload PDF user manual Upload DOC user manual
Please enter here the link to the user manual of this product:





OR

Enter here the file with the user manual of this product from your computer/phone:
(60MB max; Permitted formats: PDF)

0%


Technical parameters

  • 2 x Genaray MonoBright Daylight LED 750
    Beam Angle 60°
    Color Temperature 5200K ± 300K
    Color Accuracy Standard CRI 90
    Cooling System Fan
    Dimming Yes, 10 to 100% (Stepped)
    Display LCD
    Housing Material Polymer
    Photometrics 60° at 5200K:
    743.2 fc / 8000 lux at 3' / 0.91 m
    Expected Lamp Life 50,000 Hours
    Fixture Dimensions 8.0 x 6.0 x 8.2" / 20.3 x 15.2 x 21.0 cm
    Fixture Weight 2.45 lb / 1.1 kg
    Battery Plate None
    Power Input Connector 4-Pin XLR
    DMX Connector None
    Reflector Mount Bowens S-Type
    Lens Diameter 7" / 17.78 cm
    Fixture Mount 5/8" Receiver
    Accessory Mount None
    Remote Control Type Proprietary Wireless
    Wireless Range 98' / 30 m
    Wireless Channels / Groups 99 / X
    AC Input Power 100 to 240 VAC, 50 / 60 Hz
    DC Input Power 12 to 17 VDC
    Power Source AC Adapter, External Battery
    Max Power Consumption 50 W
    Fuse None
    Certifications CE, FCC, RoHS, as per Manufacturer
    IP Rating IP20
    Box Dimensions (LxWxH) 13.7 x 10.3 x 8.7"
  • 2 x Impact Air-Cushioned Light Stand (Black, 10')
    Maximum Load 8.5 lb (3.8 kg)
    Maximum Height 121.5" (308.6 cm)
    Minimum Height 40.5" (102.9 cm)
    Closed Length 33.5" (85 cm)
    Footprint Diameter 38" (96.5 cm)
    Leg Tip 0.8" (20 mm)
    Attachment Size 5/8" (16 mm) stud with 1/4"-20 male threads
    Accepts Wheels Yes, casters
    Air Cushioned Yes
    Weight 2.4 lb (1.1 kg)
    Box Dimensions (LxWxH) 34.0 x 3.0 x 3.0"
  • 2 x Raya Octa Soft Box for Octa Fluorescent 7 (32")
    Shape Octagon
    Interior Silver
    Requires Speed Ring No
    Accepts Grids No
    Maximum Wattage 400 W (Cool Lights)
    Removable Front Face Yes
    Removable Interior Baffle Yes
    Circular Dimensions
