User Manual for Genaray MonoBright LED Bi-Color 750 Click to enlarge the picture
Contents of the user manual for the Genaray MonoBright LED Bi-Color 750
- Product category: LED Lights Genaray
- Brand: Genaray
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Genaray LED Lights
 |
User manual for the Genaray MonoBright LED Bi-Color 750 contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Genaray product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Genaray user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Genaray product will considerably shorten its lifespan!
|

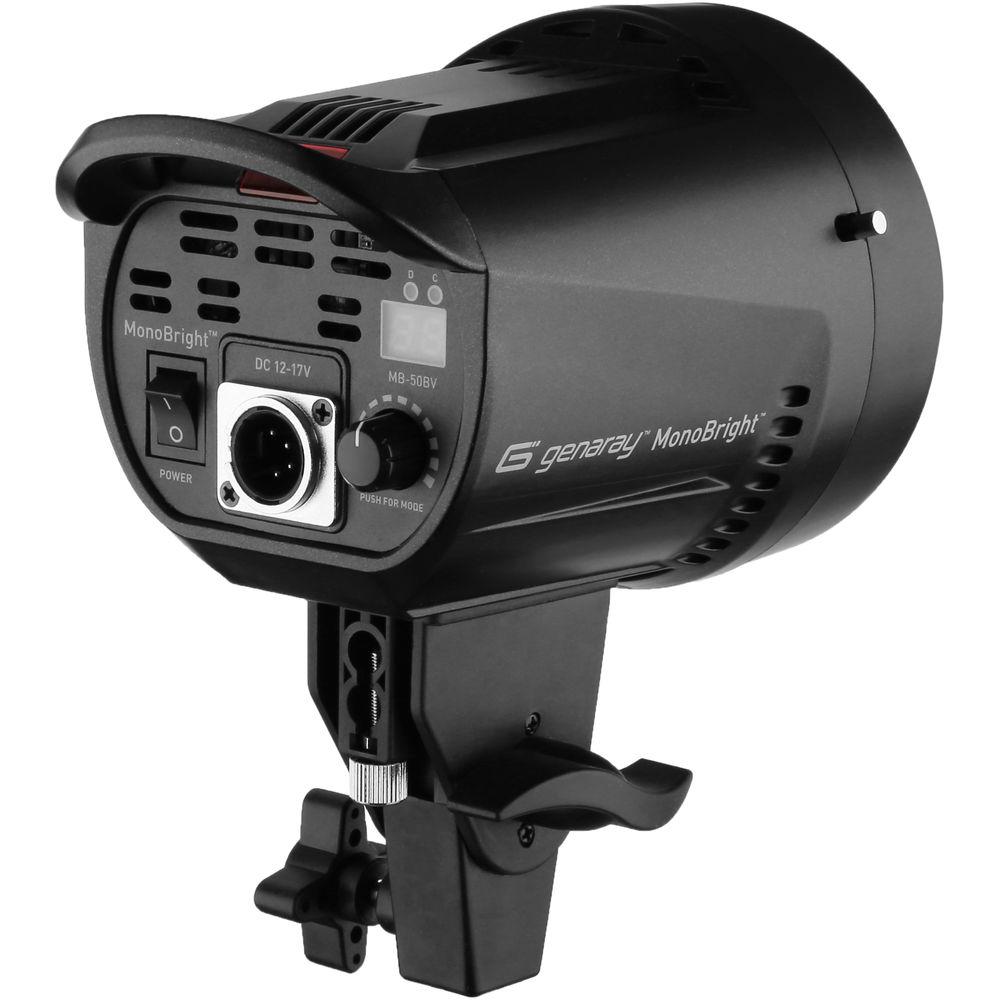

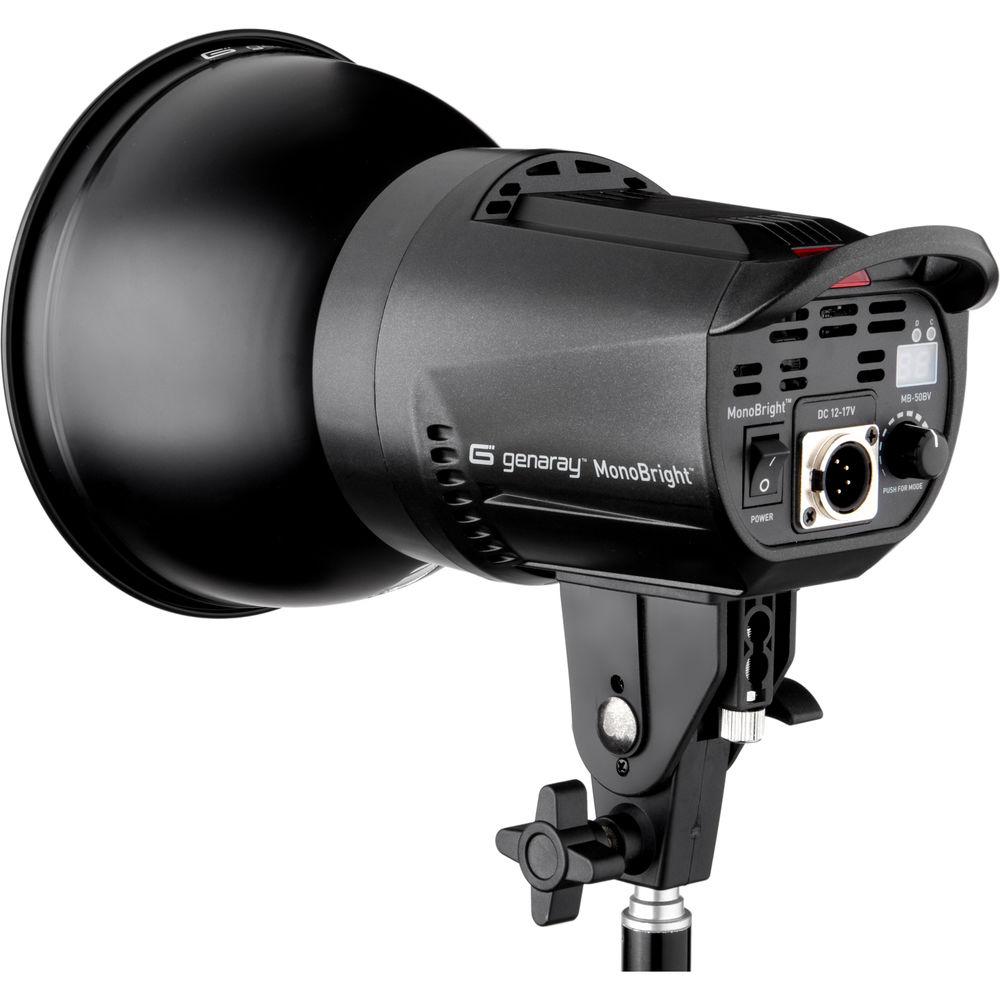

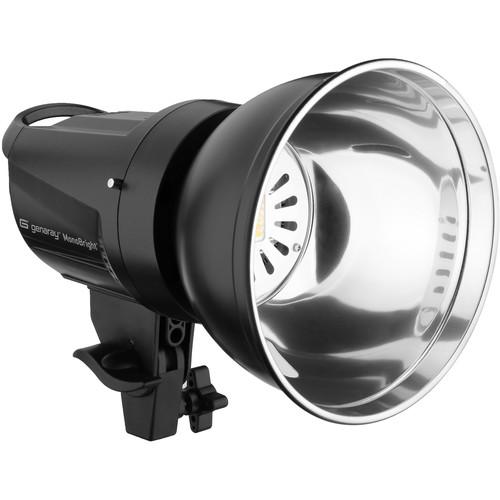

Product description - The Genaray MB-50BV MonoBright LED BiColor 750
With its monolight form factor, S-Type front accessory mount, variable color temperature, and AC or 12 VDC battery power options, the MonoBright LED Bi-Color 750 fixture from Generay can be easily integrated into a wide range of projects. The MonoBright employs a HiBrite microLED PCB to output the equivalent power of a 750W tungsten fixture while consuming only 100W of current. The MonoBright's high CRI rating of >90 means that the light packs precision with power for faithful rendition of colors down to the subtlest tones. And since the color is variable from 3200 to 5600K you won't have to worry about fumbling with filters whether you're shooting in daylight or tungsten color temperature environments. Another handy feature is the dimming range of 10-100% so you won't have to move the light once you have it perfectly positioned. And if you've mounted the MonoBright in a hard to reach place you'll appreciate the option of a 2.4 GHz wireless remote control that can dim the light at distances up to 98' as well as turn it on or off. The remote has 99 channels, so you can control at least that many lights in unison or individually. The remote can also control the color temperature from 3200 to 5600K or anywhere in between. The MonoBright is rated for use with 100-240 VAC for worldwide use but the light will also work with 12 VDC batteries via its 4-pin XLR input. Also included are a 7", 60° umbrella/grid reflector, and shower cap-style diffuser. - HiBrite microLED PCB

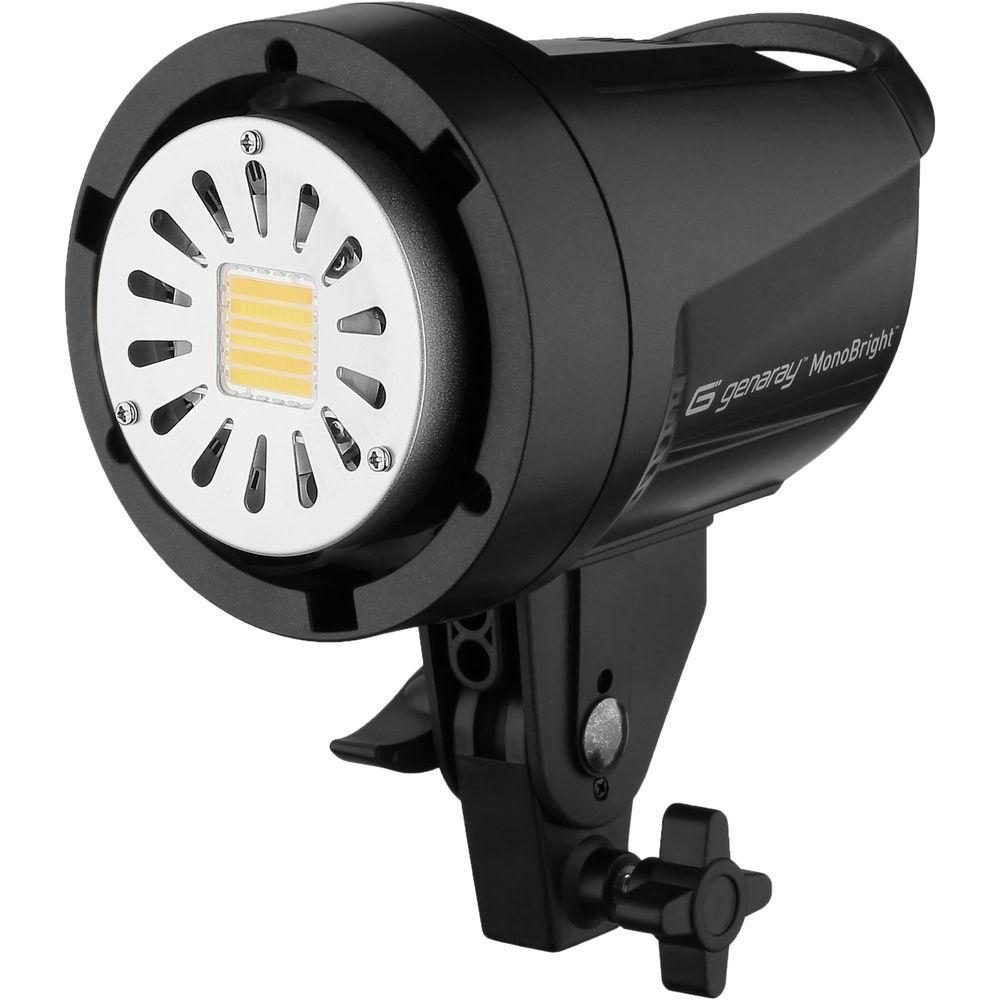

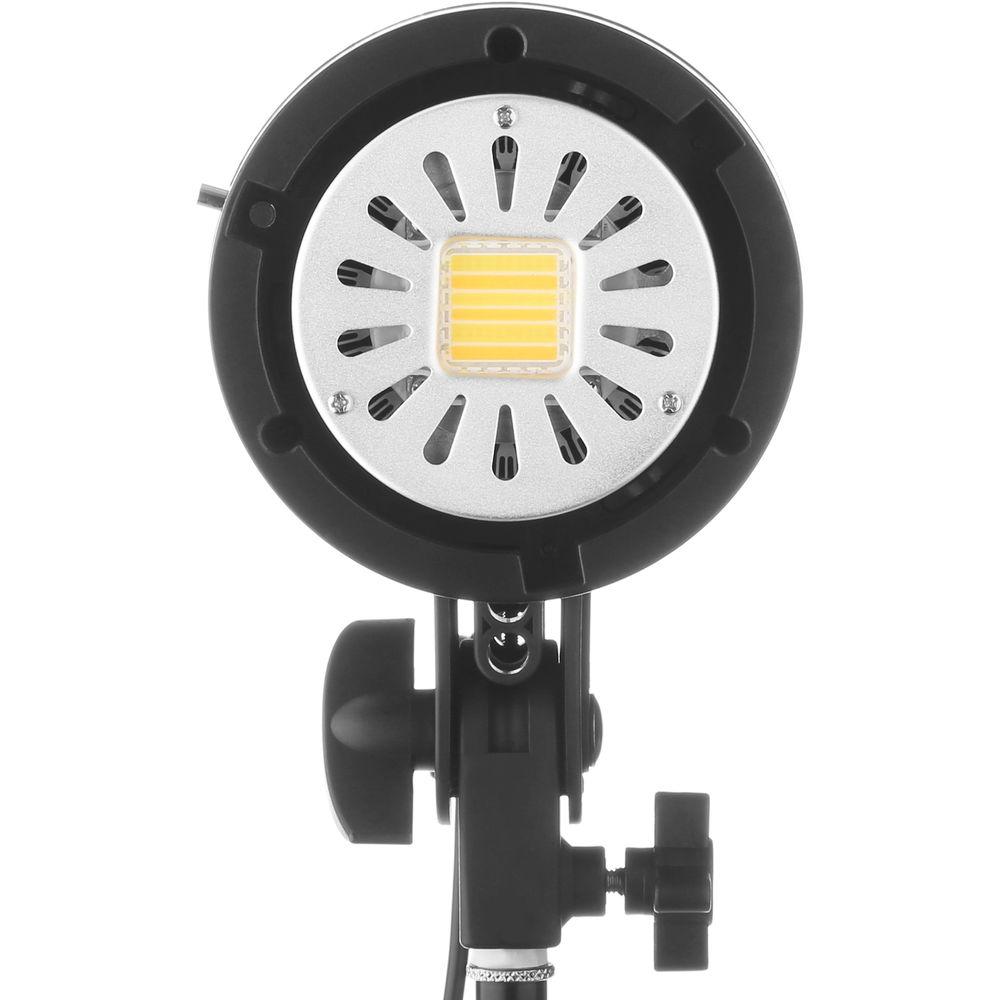

- Thanks to its HiBrite microLED PCB, the Genaray MonoBright LED Bi-Color 750 delivers 8,000 lux of continuous light and draws only 100W to produce the equivalent output of a 750W open-face tungsten light
- Variable Color Temperature
- With color variable from 3200 to 5600K or anywhere in between, you won't be losing time taping on filters. Shoot anywhere you like from daylight conditions to tungsten balanced indoor lighting. Just dial in the correct color temperature to match your environment.
- Dimming 10-100%
- Dim the brightness from 10 to 100% via the onboard controls or the optional wireless remote
- Color Rendering Index (CRI) of >90
- High CRI ensures faithful rendering of colors - even the subtlest tones

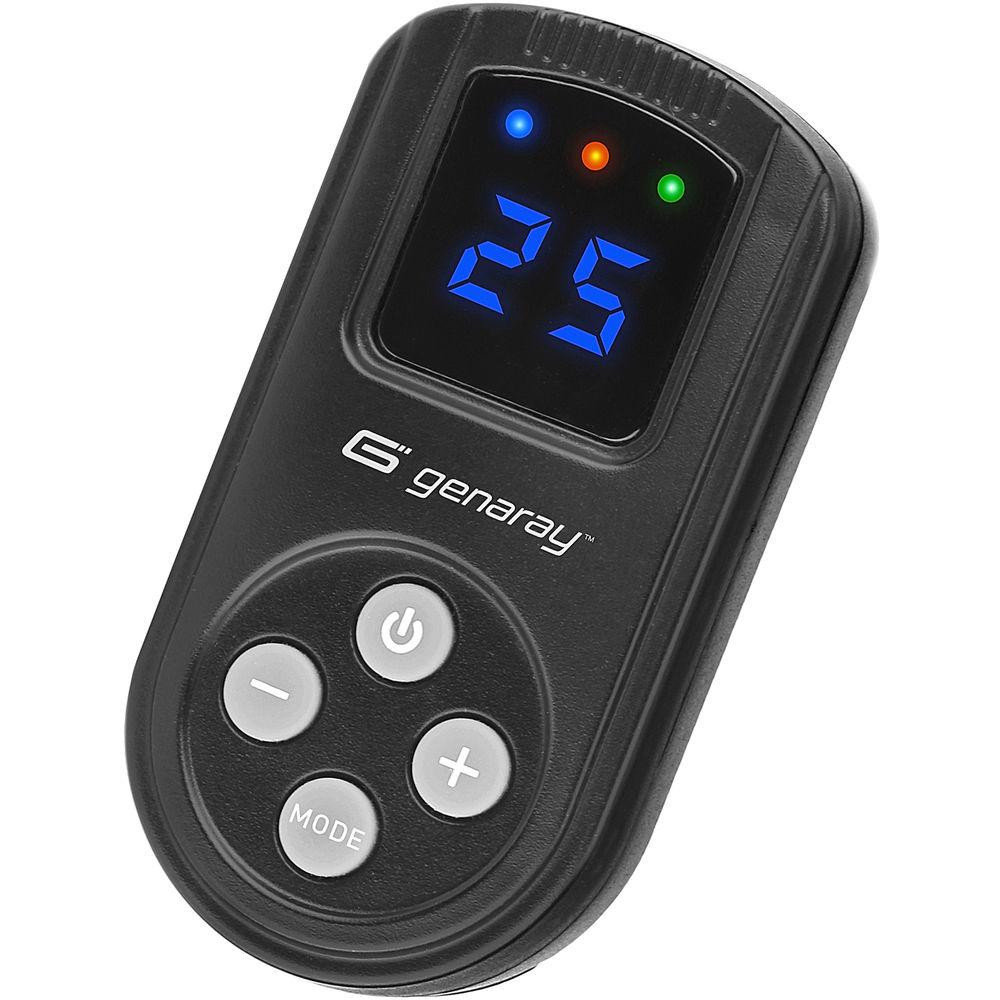

- Wireless Remote
- The optional 2.4 GHz remote control allows you to wirelessly adjust output and color temperature for multiple MonoBright units - even at different settings. The 99 channel unit has a wireless range of up to 98' (30 m)

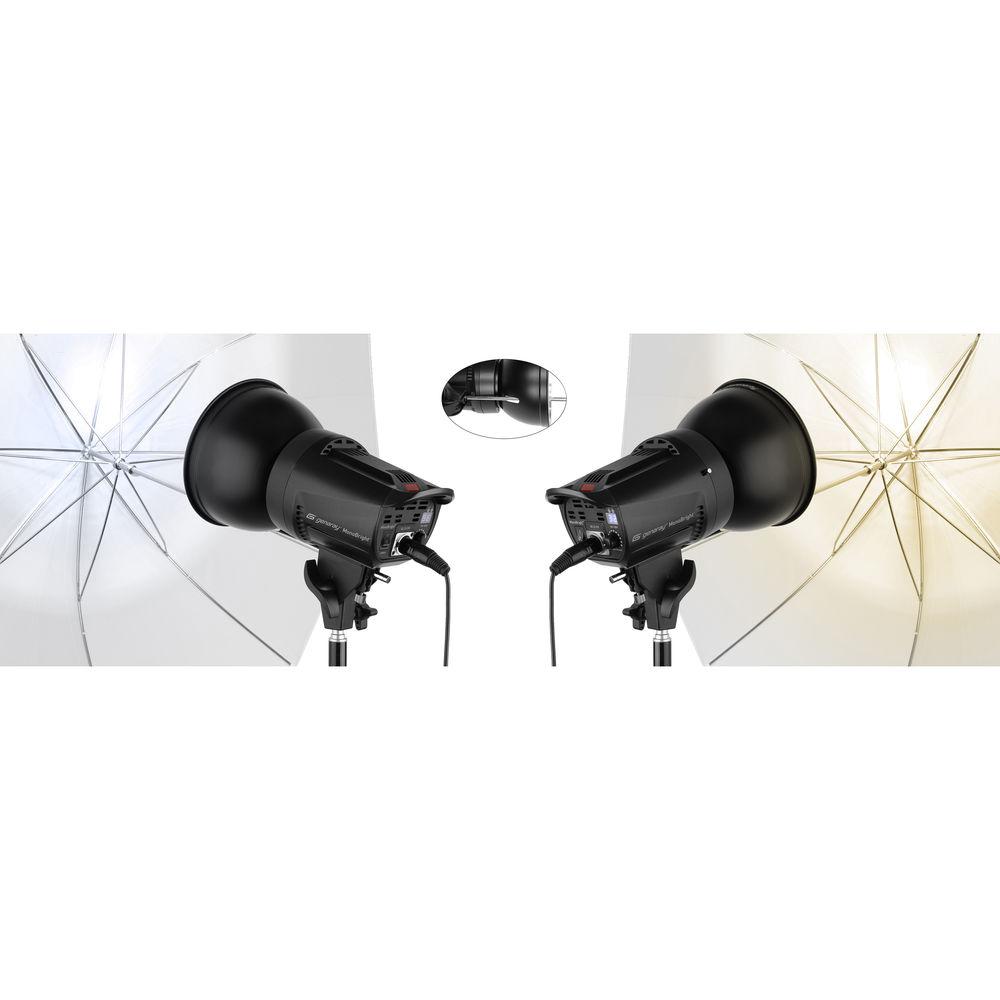

- S-Mount Front Accessory Mount and Umbrella Channel
- The MonoBright has an S-mount front accessory mount for the included umbrella/grid reflector and the many accessories made by other brands that use this mount. Additionally the stand mount has a built-in channel for umbrella shafts
- Worldwide AC Voltage and Optional DC Battery
- The MonoBright can run on worldwide AC voltage or an optional 12 VDC battery via a Genaray MonoBright battery cable (available separately)
- Built-In Memory
- A built-in memory function saves your settings on the MonoBright control panel. The next time you turn on the MonoBright- even with the optional wireless remote - your previous settings will appear on the control panel

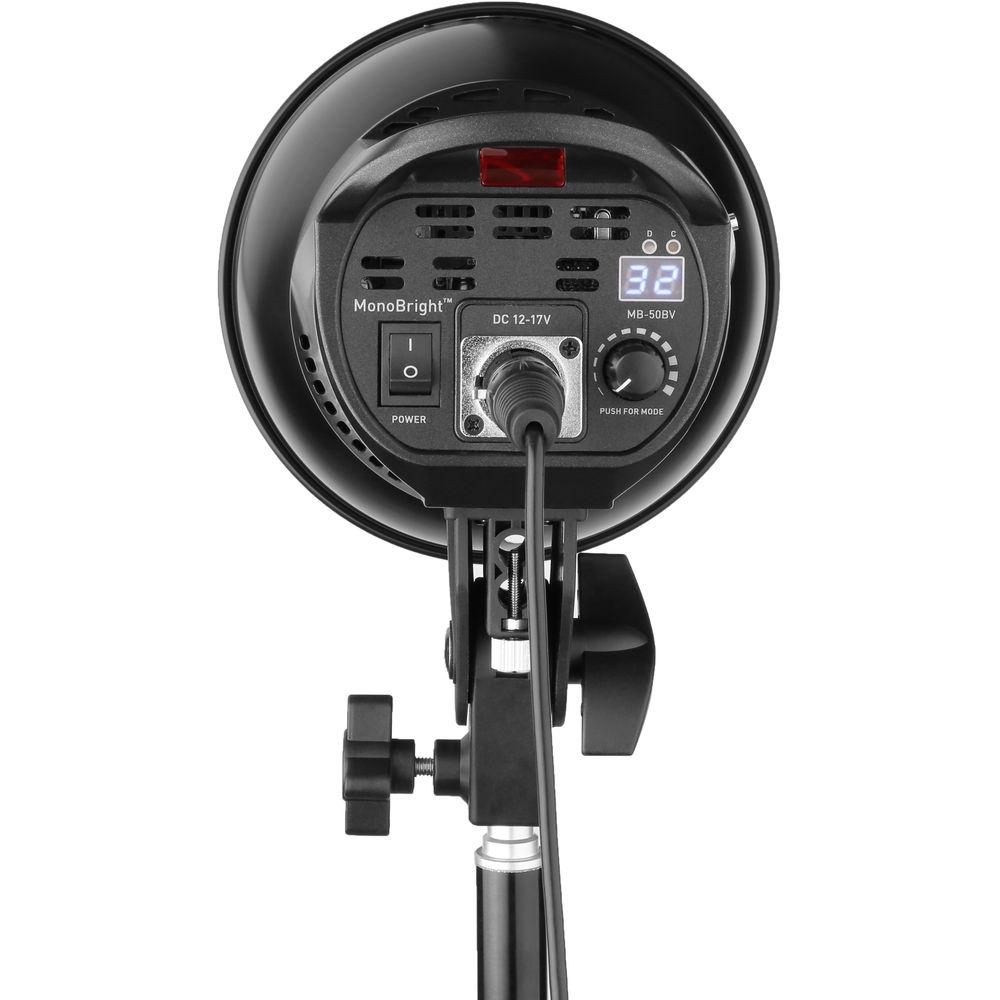

- LCD Readout
- LCD display with large numbers for optimal readability, even in bright daylight
- Sleep Mode
- Powers down the light when not in use

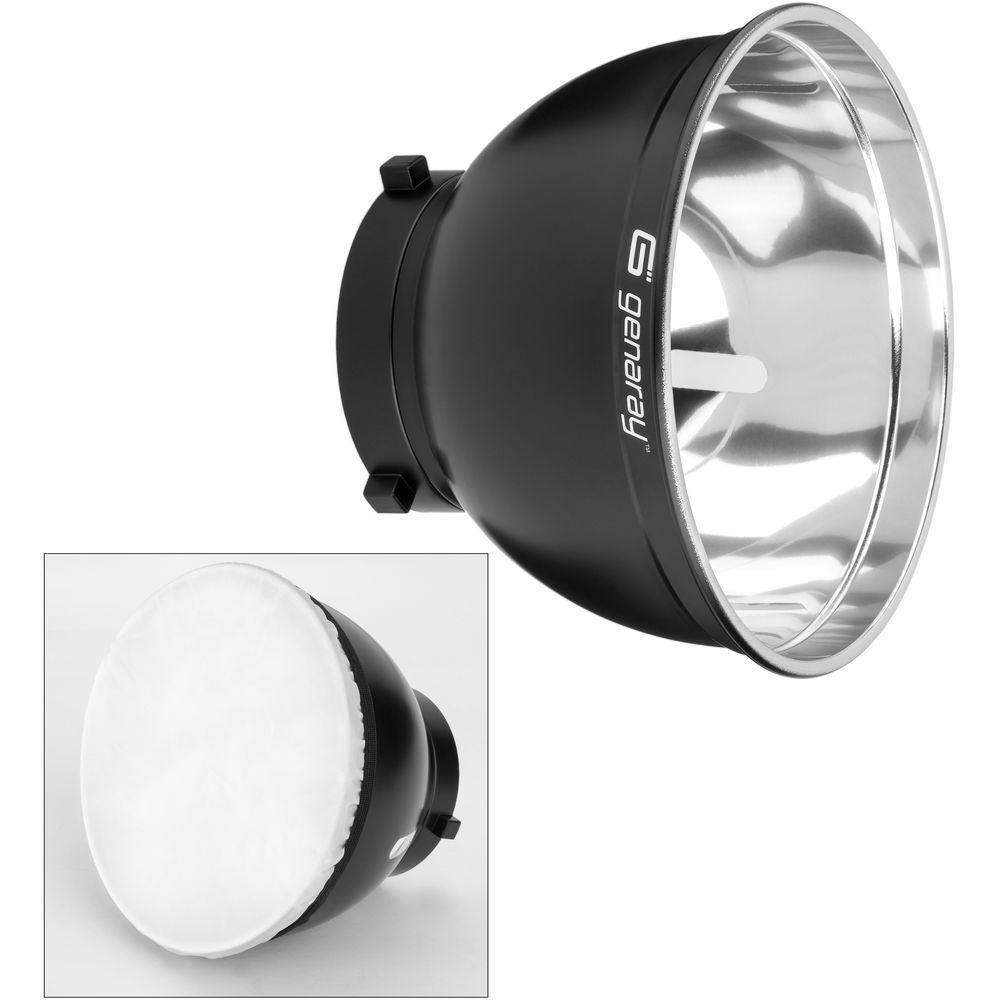

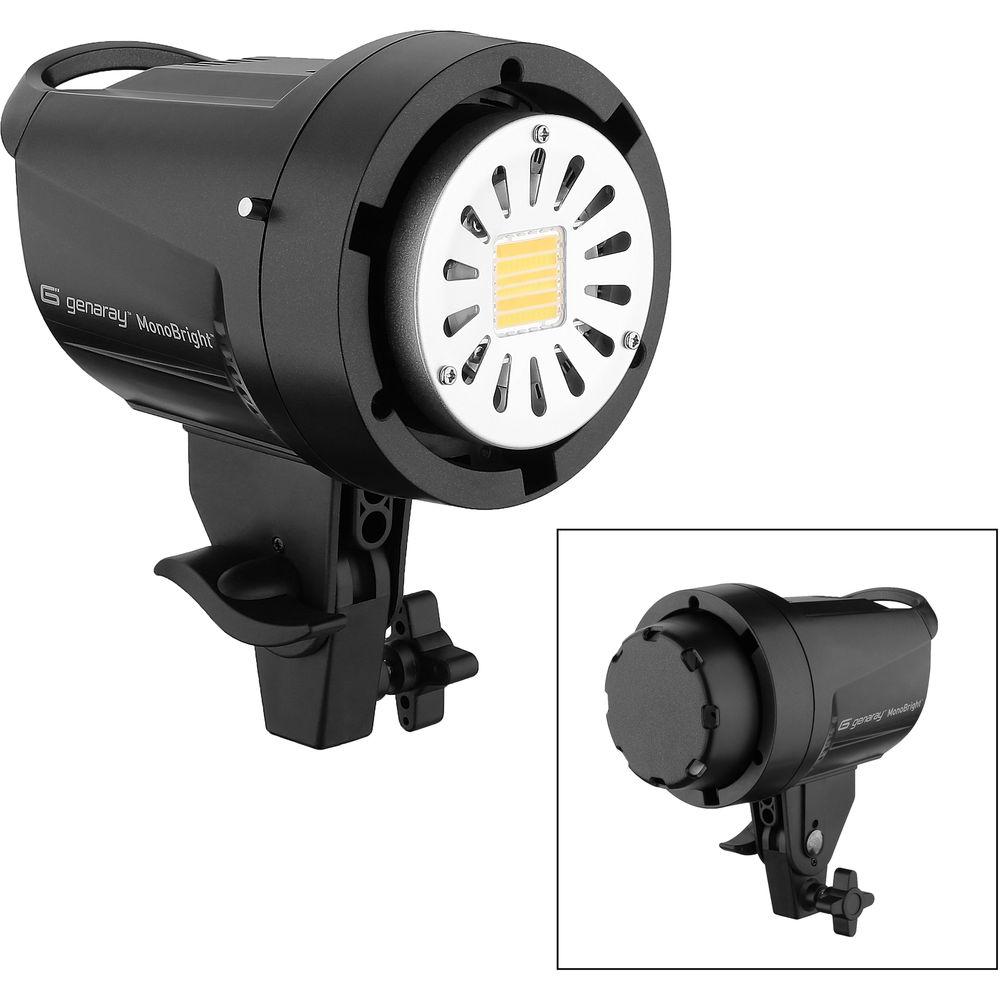

UPC: 639767568395 In the Box Genaray MonoBright LED Bi-Color 750 Reflector: 7" Transport Cap Diffuser Cover AC/DC Adapter AC Cable User Manual Limited 1-Year Warranty User Manual PDF 1.1mbrabryvedbcvxywtbrsyvx Table of Contents
|
Upload User Manual
Have you got an user manual for the Genaray MonoBright LED Bi-Color 750 in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersGenaray MonoBright 750 Specs | | | Color Temperature | 3200 to 5600K ± 300K | | Color Accuracy Standard | CRI 90 | | Cooling System | Fan | | Dimming | Yes, 10 to 100% (Stepped) | | Display | None | | Expected Lamp Life | 50,000 Hours | | Fixture Dimensions | 8.0 x 6.0 x 8.2" / 20.3 x 15.2 x 21.0 cm | | Fixture Weight | 2.6 lb / 1.2 kg | | | | Power Input Connector | 4-Pin XLR | | | | Fixture Mount | 5/8" Receiver | | Accessory Mount | None | | | | AC Input Power | 100 to 240 VAC, 50 / 60 Hz | | DC Input Power | 12 to 17 VDC | | Power Source | AC Adapter, External Battery | | Max Power Consumption | 100 W | | | | Cable Length | 15.5' / 4.7 m | | | | Package Weight | 6.2 lb | | Box Dimensions (LxWxH) | 14.0 x 10.0 x 9.0" |
Rating60% users recommend this product to others. And what about you?
This product has already been rated by 55 owners. Add your rating and experience with the product.
