User Manual for Genaray PortaSun Round Flexible Bi-Color LED Light with Softbox and Grid Click to enlarge the picture
Contents of the user manual for the Genaray PortaSun Round Flexible Bi-Color LED
- Product category: LED Lights Genaray
- Brand: Genaray
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Genaray LED Lights
 |
User manual for the Genaray PortaSun Round Flexible Bi-Color LED contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Genaray product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Genaray user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Genaray product will considerably shorten its lifespan!
|

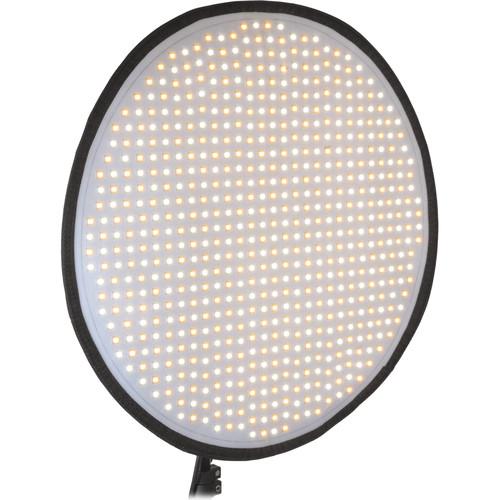

Product description Genaray introduces the 20" PortaSun Round Flexible Bi-Color LED Light with Softbox and Grid for image-makers who require a unique light source with form factor, color control, and power options. The distinctive round LED array has a broad 120° beam spread for accenting or lighting large areas or groups, with the bonus of natural-looking catchlights in your subject's eyes. A lot of lights tout their product's "flexibility", referring to its features, but the PortaSun is literally flexible. You can roll it into a tube, or bend or arc it into any shape that suits your lighting requirements. Color is variable from 2750 to 6500K to deal with ambient conditions, match other fixtures, or just for creative freedom. The PortaSun has two color modes: Auto Mode automatically adjusts the level of the daylight and tungsten LEDs as you change the color temperature. Manual Mode lets you control the strength of each set of the LEDs individually. However you use it, you'll benefit from the light's high CRI/TLCI rating of 95/96 - an indicator of high accuracy in the reproduction of color. Light intensity is also variable from 100 to 0% without flicker. Genaray also provides a cleverly-designed X-bracket to give rigidity to the light, that enables use of light-shapers and stand mounting. The included softbox takes the edge off the bright LEDs while reducing spill and rendering a flattering quality of light. The provided grid fits on the softbox, further reduces spill, and adds directional control that facilitates selective lighting. You can always use the PortaSun on a light stand or on any clamp or grip that has a 5/8" pin. Without the X-bracket, you can bend and squeeze the PortaSun into tight spots and with the LEDs barely generating heat, you won't have the worry of hazard or discomfort. Ready for worldwide use, the PortaSun runs on the included 100 to 240 VAC power adapter, but you can also run it on optional batteries via the fixture's V-Mount. The PortaSun also comes with a Controller, Safety Cable, Collapsible Diffuser in Pouch, and a Carry Bag. - Round and Flexible

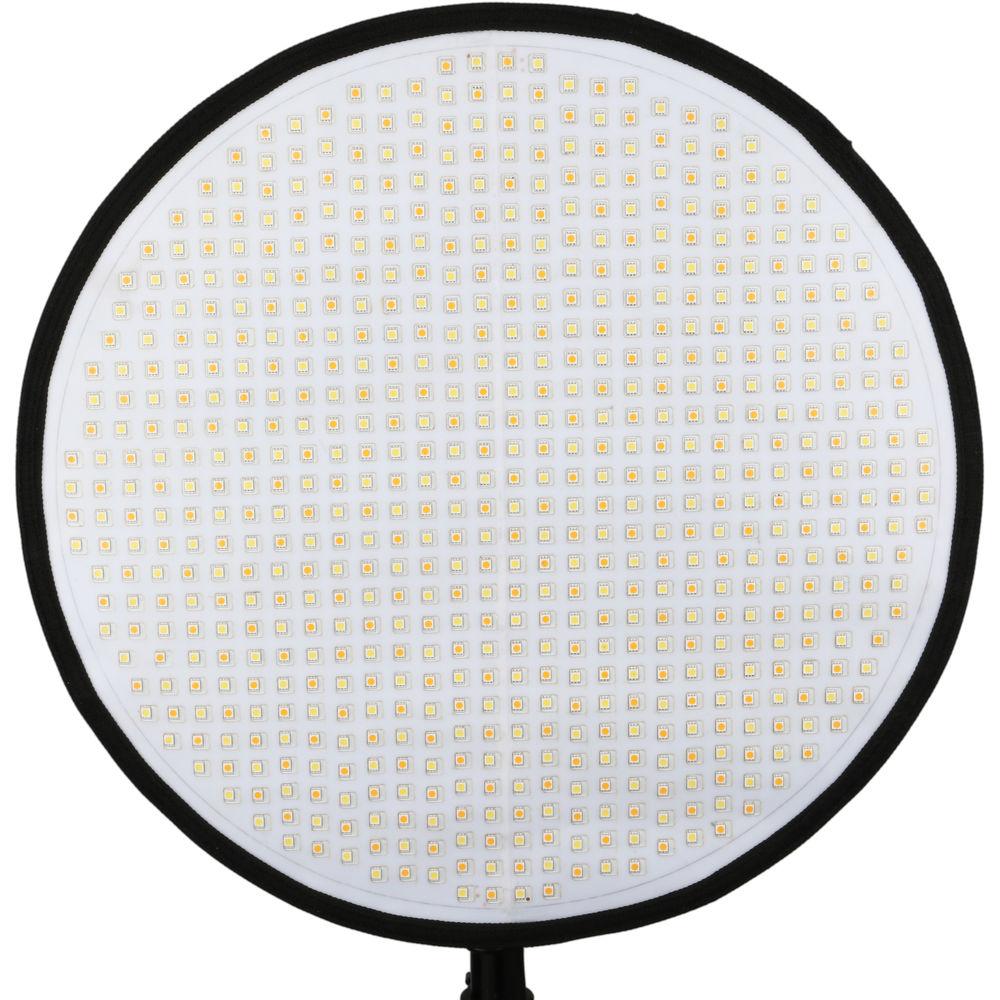

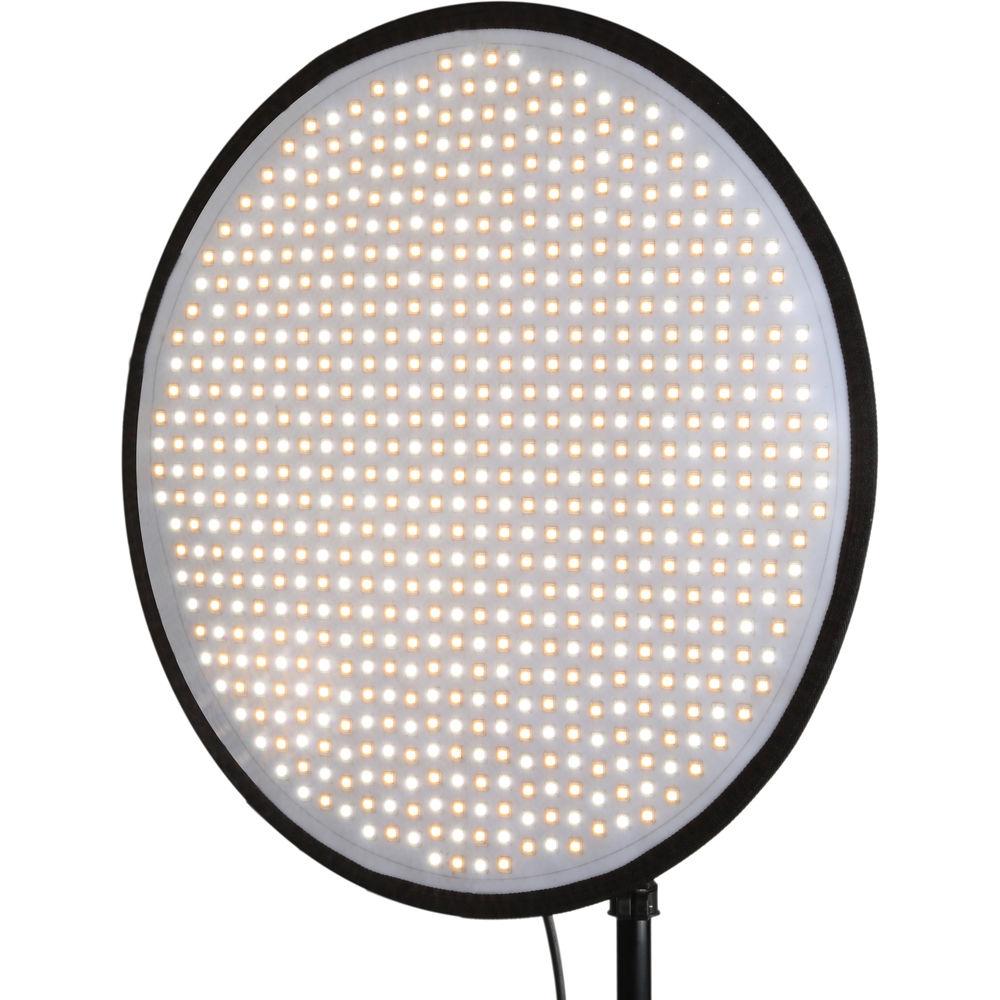

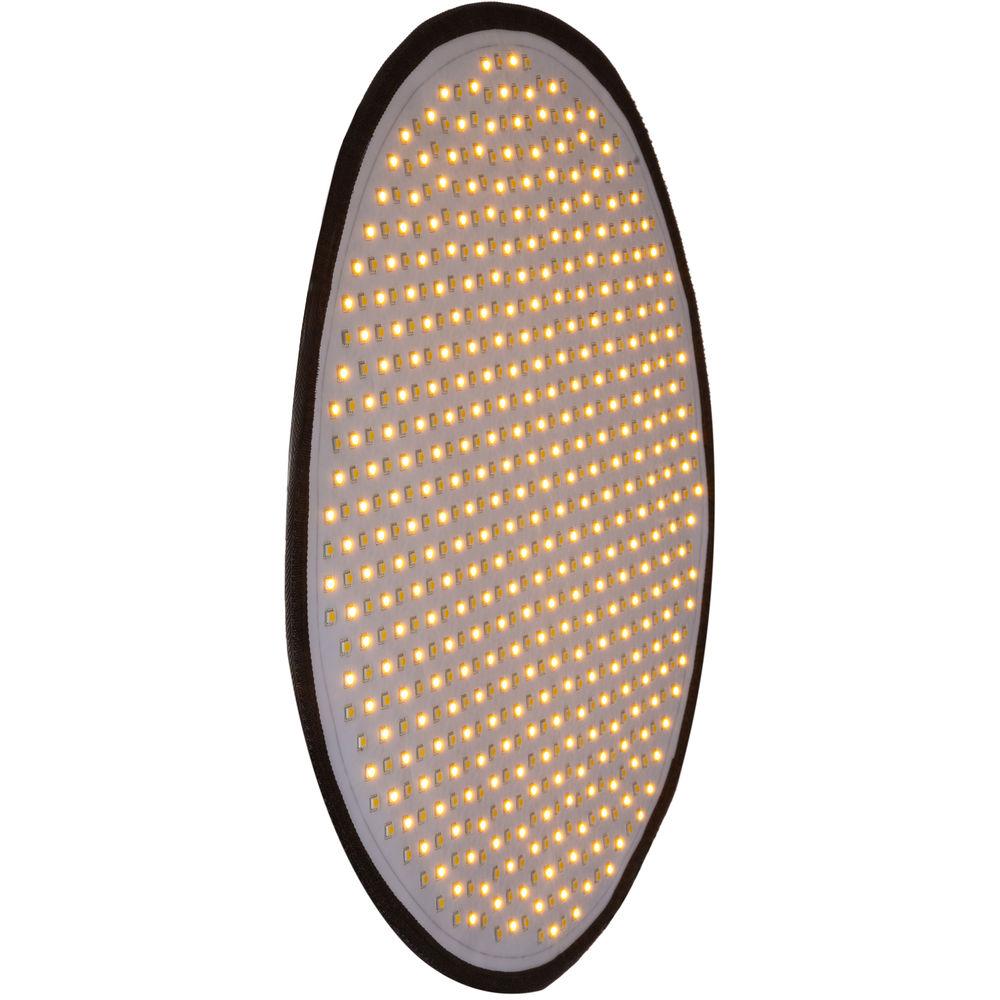

- The distinctive round LED array outputs a broad 120° beam spread for lighting large areas or groups with the bonus of natural-looking catchlights in your subject's eyes. A lot of lights tout their "flexibility", referring features, but PortaSun is literally flexible. You can roll it into a tube, or bend or arc it into any shape that suits your lighting requirements.
- Variable Color Temperature with Two Operation Modes and Color Accuracy
- Color is variable from 2750 to 6500K to deal with ambient conditions, match other fixtures, or just for creative freedom. The PortaSun has two color modes: Auto mode automatically adjusts the level of the daylight and tungsten LEDs as you change the color temperature. Manual mode lets you control the strength of each set of LEDs individually. However you use it you benefit from the light's high CRI/TLCI rating of 95/96 - an indicator of high accuracy in the reproduction of color
- Dimming
- Besides color you also have light intensity control from 100 to 0% with consistent output and without flicker.

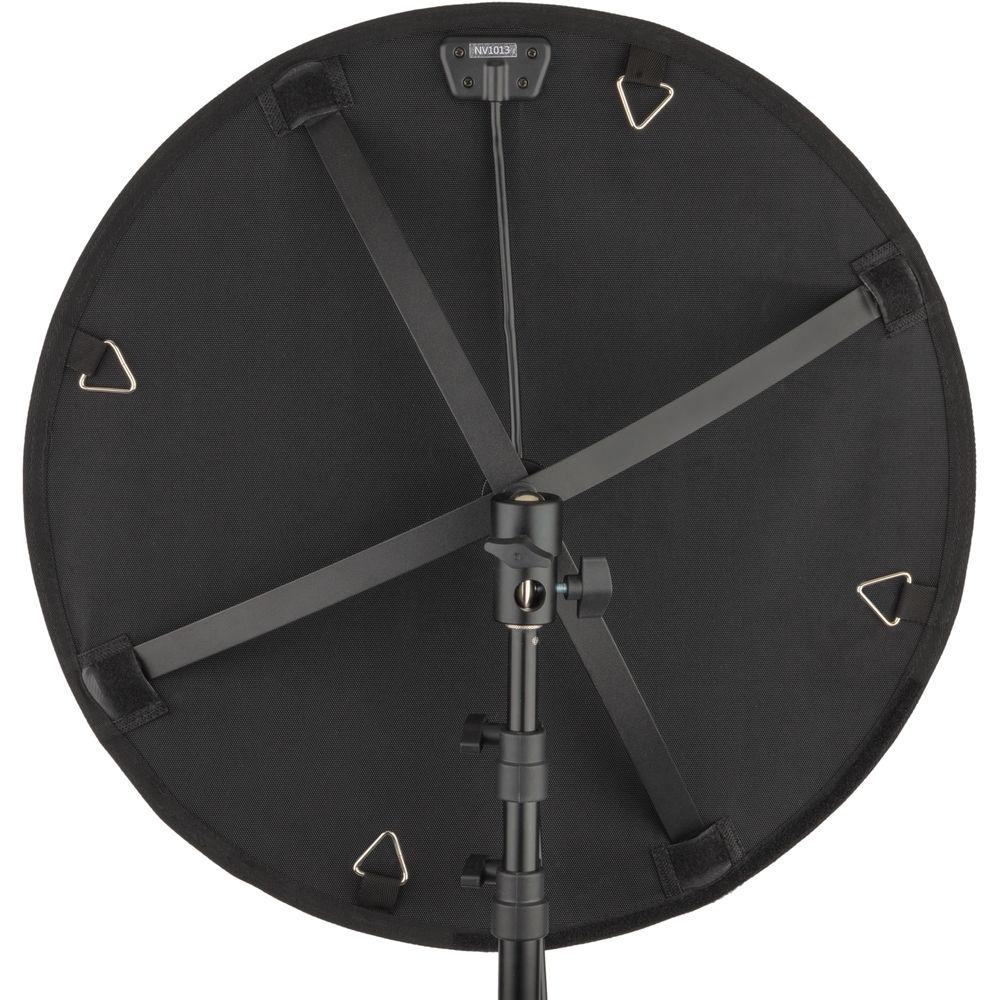

- X-Style Mounting Bracket

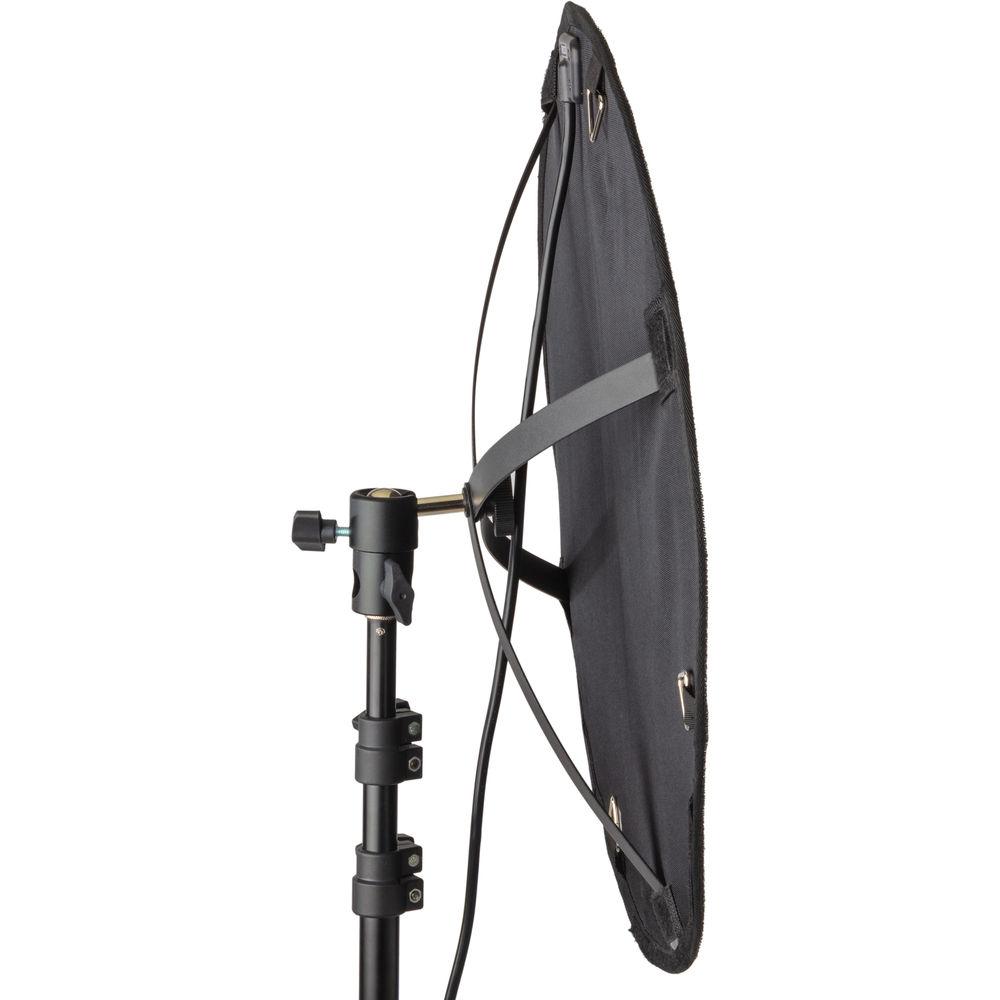

- The included X-bracket and its 5/8" receiver lets you mount the PortaSun on a light stand, as well as providing the rigidity you need to use the included grid and softbox.
- Light Shaping

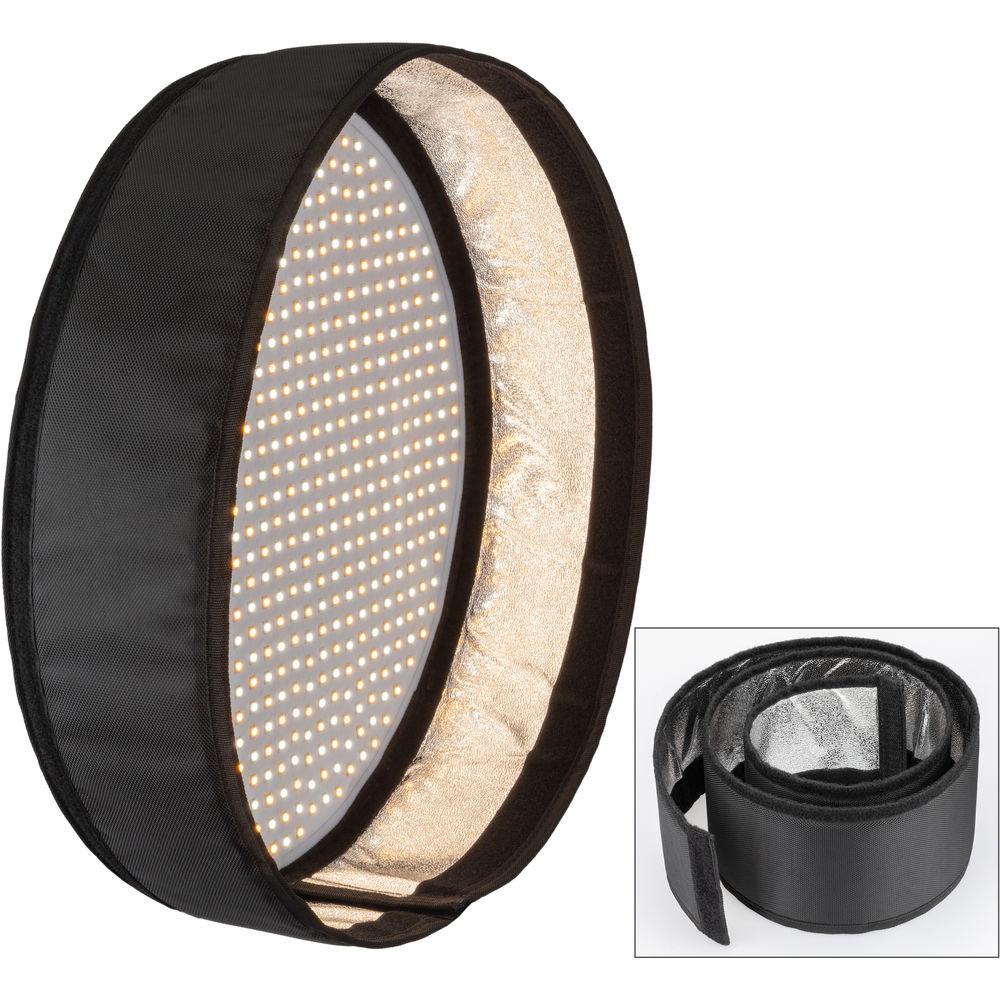

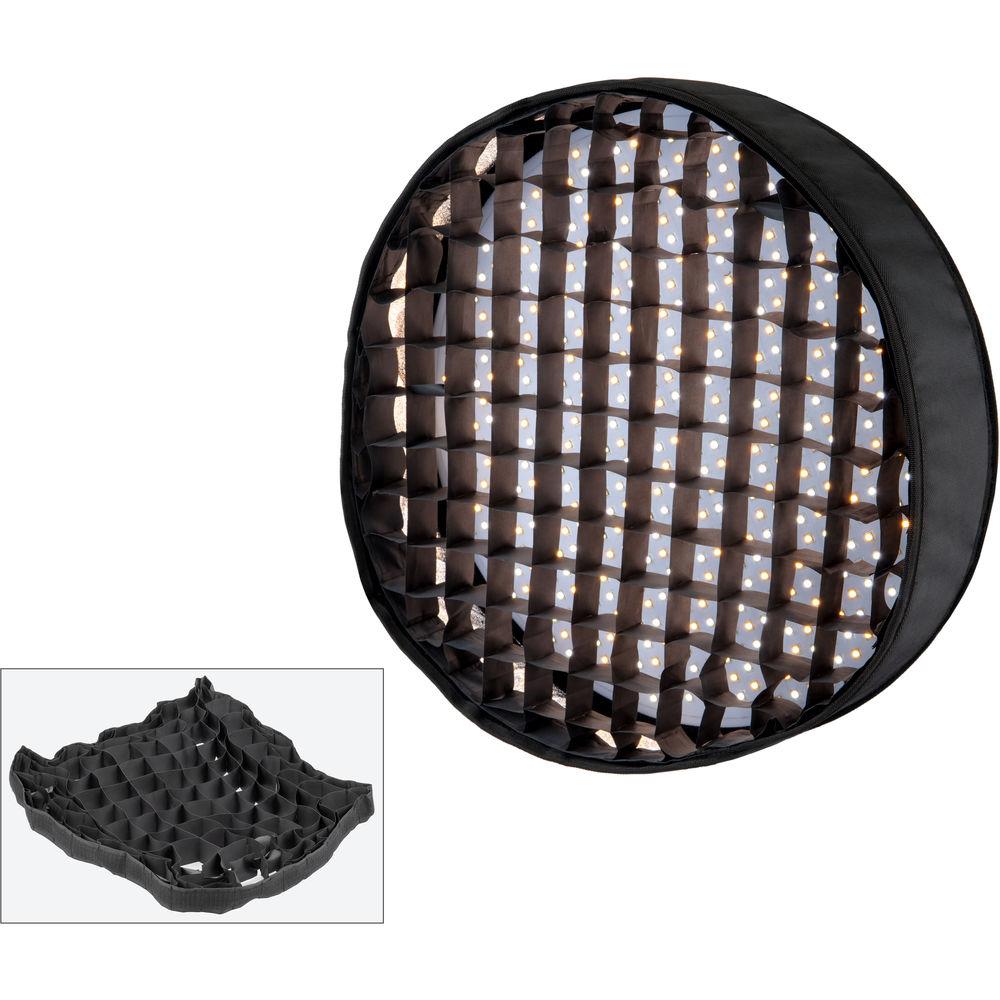

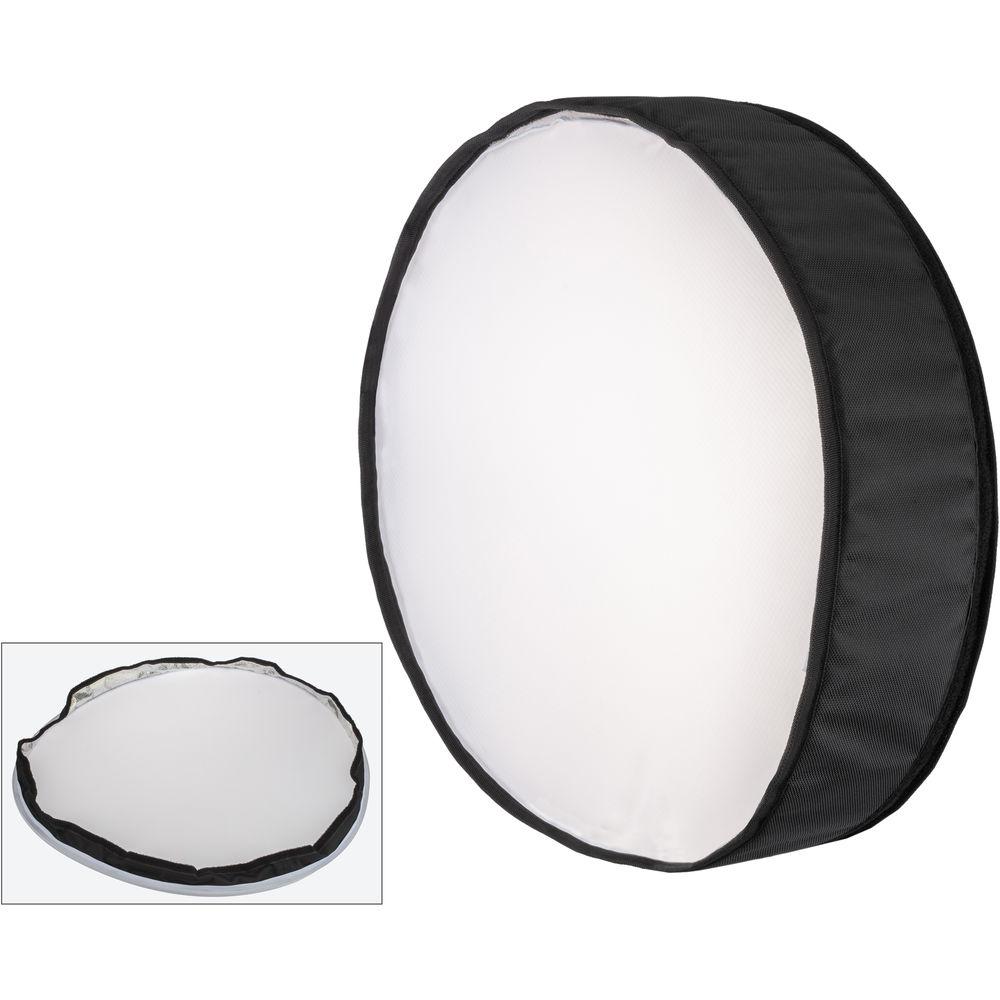

- With the X-bracket giving the PortaSun the rigidity it needs, the attached softbox softens the bright output of the LEDs while reducing spill and rendering a flattering quality of light. The provided grid fits on the softbox, further reduces spill, and adds directional control that facilitates selective lighting.
- Versatile Cool-Running LEDs
- Use the light on a light stand or on any clamp or grip that has a 5/8" pin. Without the X-bracket, you can bend and squeeze the PortaSun into tight spots and with the LEDs barely generating heat, you won't have the worry of hazard or discomfort.
- Power Options
- Ready for worldwide use, the PortaSun runs on the included 100 to 240 VAC power adapter, but you can also run it on optional batteries via the built-in V-Mount when mains power is unavailable.

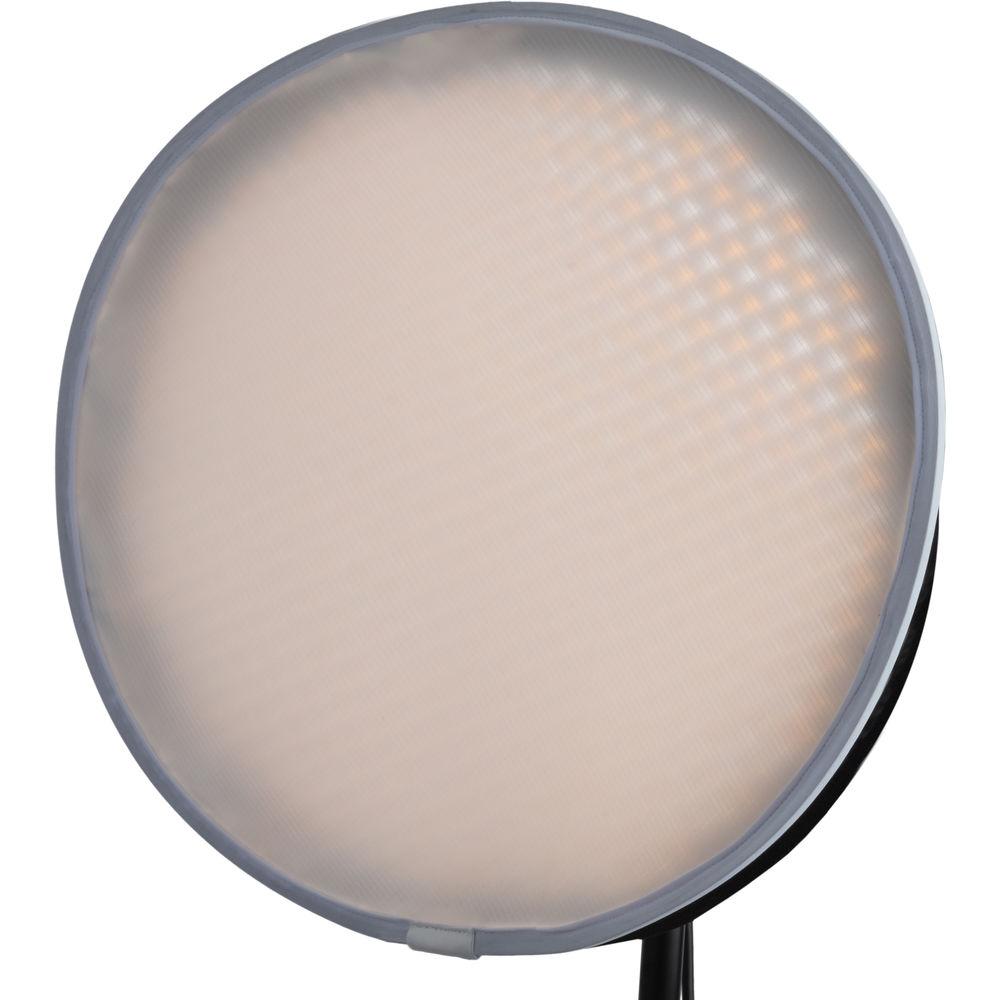

UPC: 847628015609 In the Box Genaray PortaSun Round Flexible Bi-Color LED Light with Softbox and Grid (20") Controller Power Adapter Power Cord X-Bracket with 5/8" Receiver V-Mount Strap Safety Cable Softbox Grid Collapsible Diffuser and Carry Pouch Carry Bag Limited 1-Year Warranty User Manual PDF 1.4mb Table of Contents
|
Upload User Manual
Have you got an user manual for the Genaray PortaSun Round Flexible Bi-Color LED Light with Softbox and Grid in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersGenaray PortaSun Specs | | | Beam Angle | 120° | | Color Temperature | 2750 to 6500K | | Color Accuracy Standard | CRI 95
TLCI 96 | | Cooling System | Passive | | Dimming | Yes, 100 to 10% (Continuous) | | Display | LCD | | Housing Material | Metal, Plastic | | Photometrics | 507.2 fc / 5460 lux at 3.02' / 0.92 m
411 fc / 4424 lux at 3.28' / 1 m
45.7 fc / 492 lux at 9.84' / 3 m
16.4 fc / 177 lux at 16.4' / 5 m | | Number of LEDs | 672 | | Circular Panel Size | 20" / 50.80 cm Diameter (Circle) | | Fixture Weight | 1 lb / 454 g | | | | Battery Plate | 1 x V-Mount | | Power Input Connector | 4-Pin XLR | | | | Fixture Mount | 5/8" Receiver | | Mount via Included Adapter | 5/8" Receiver | | Accessory Mount | None | | | | Yoke Type | Yoke/Bracket | | Tilt | 180
Rating94% users recommend this product to others. And what about you?
This product has already been rated by 42 owners. Add your rating and experience with the product.
