Product description - The Genaray Radiance: Super Powerful, Whisper Silent

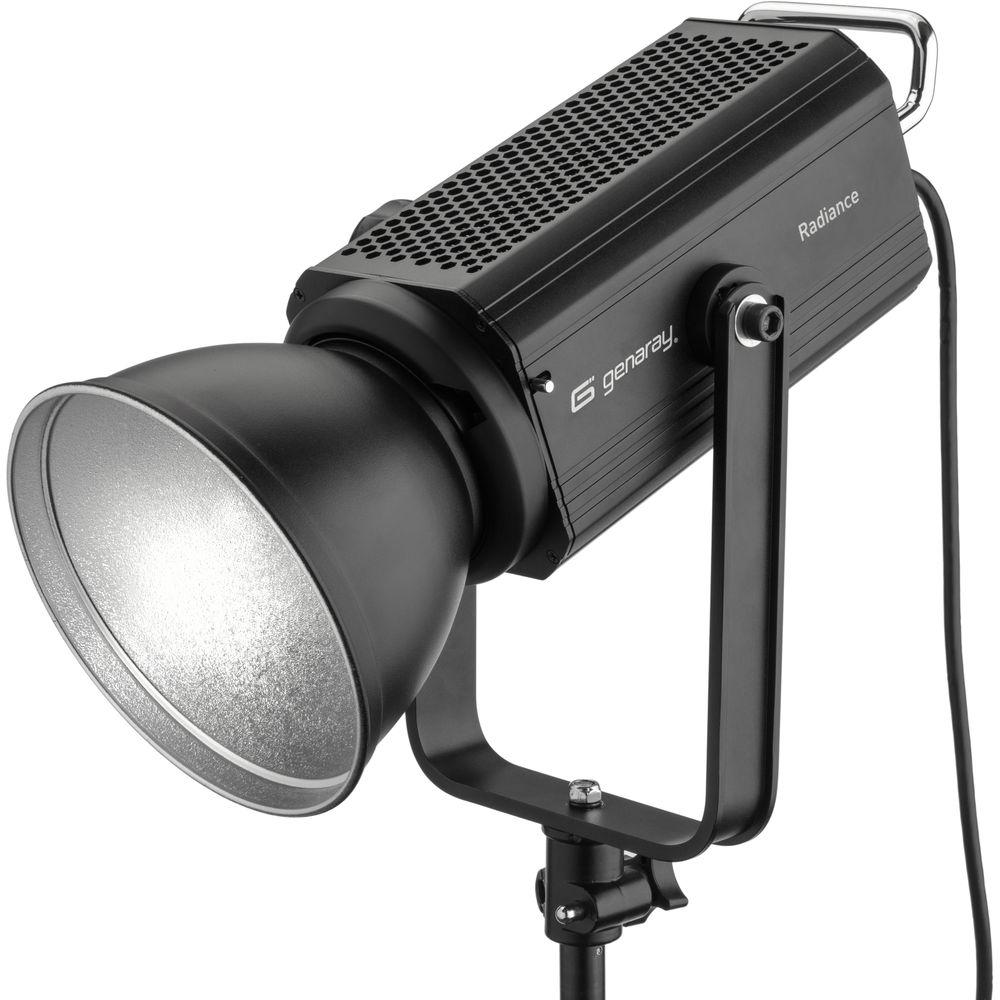

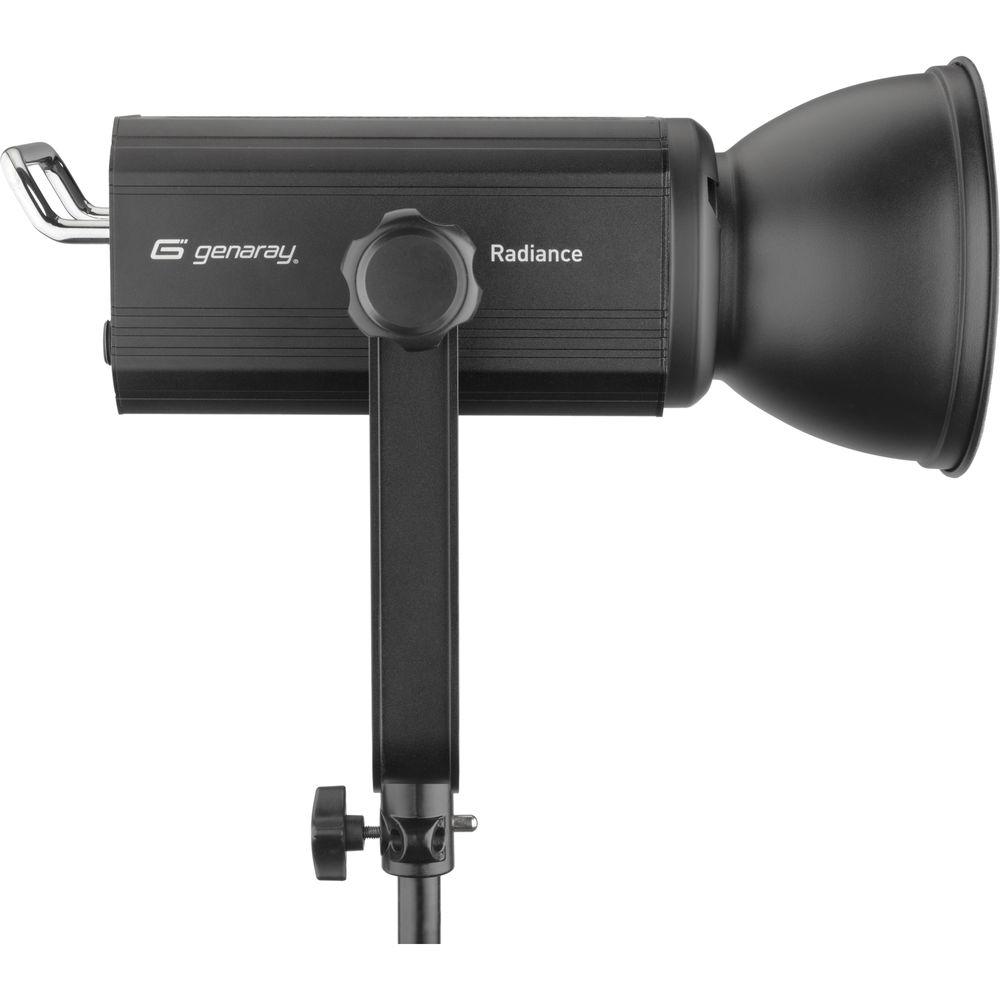

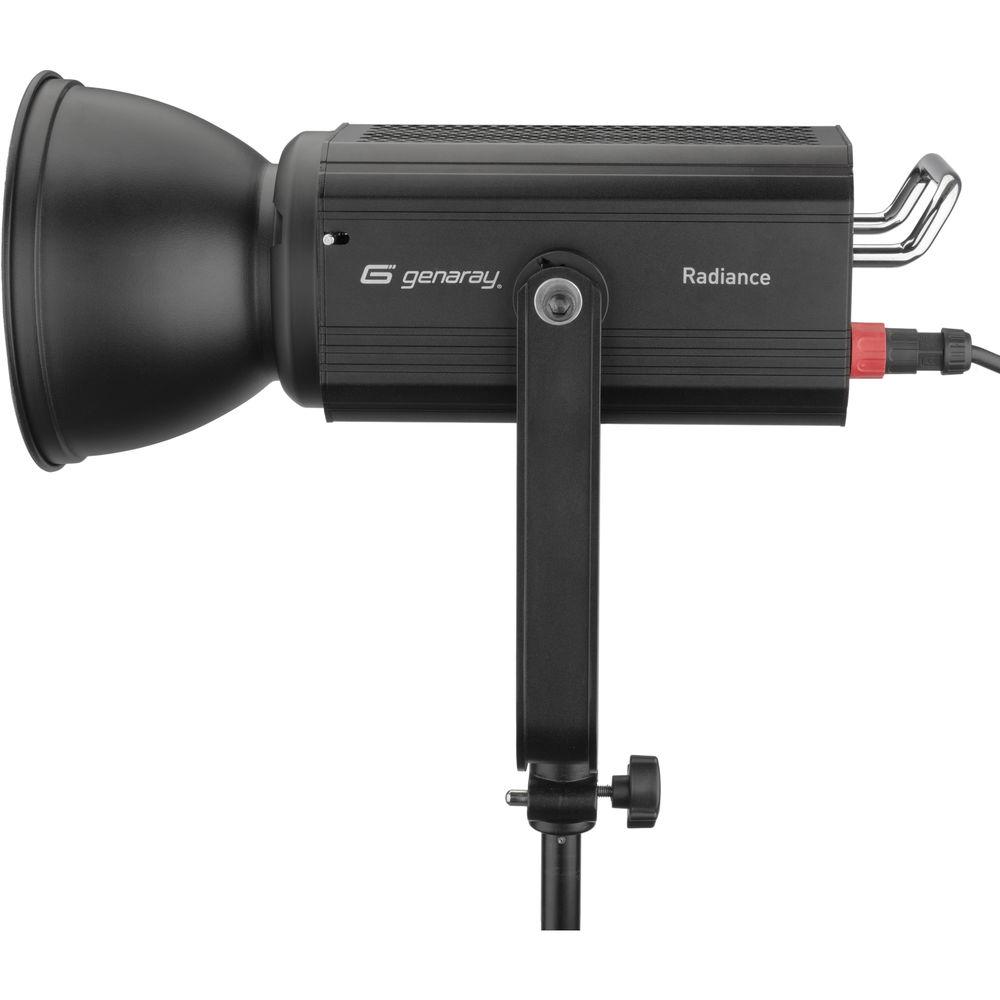

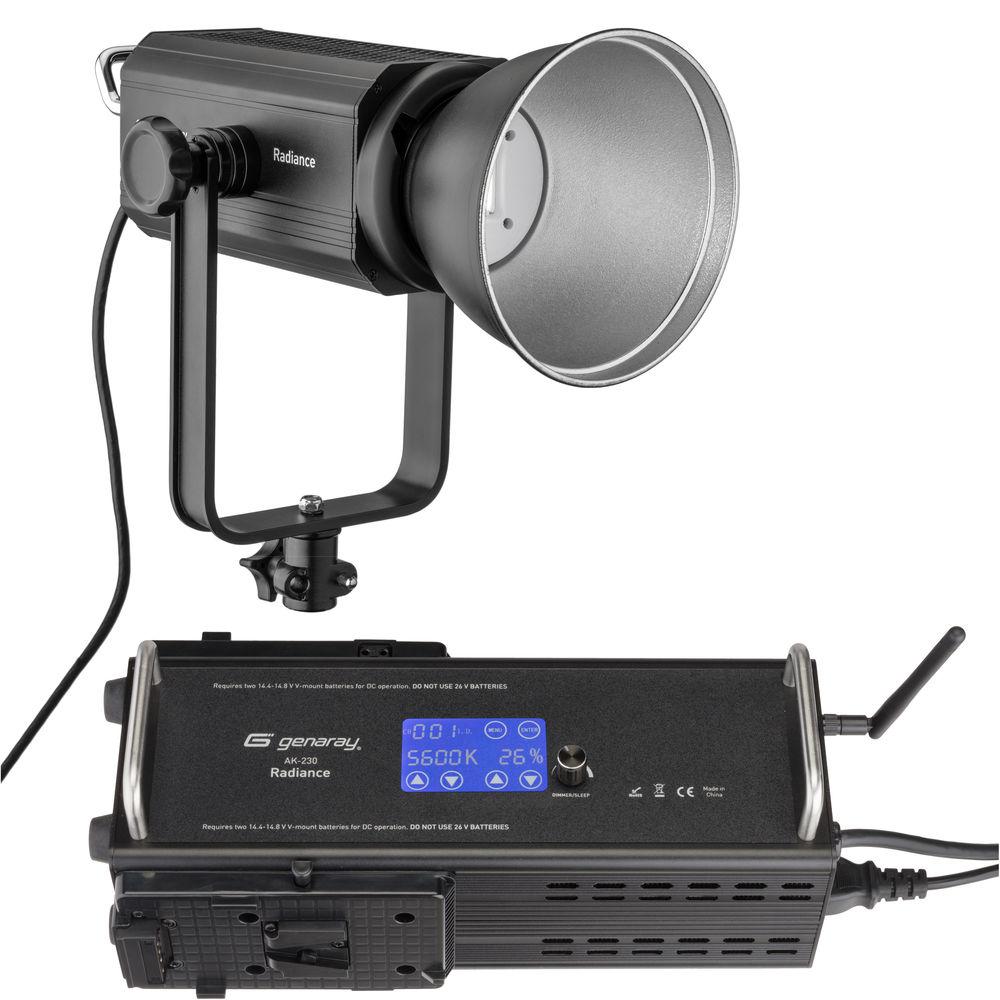

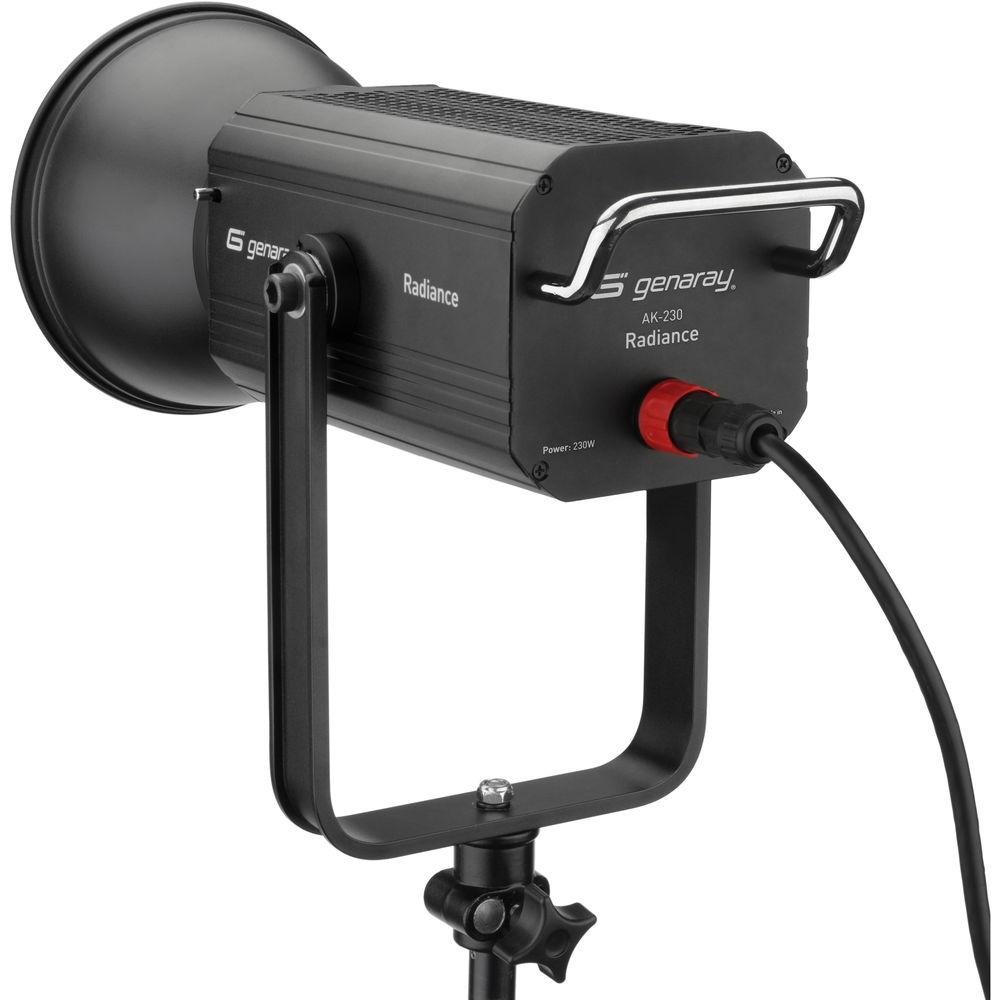

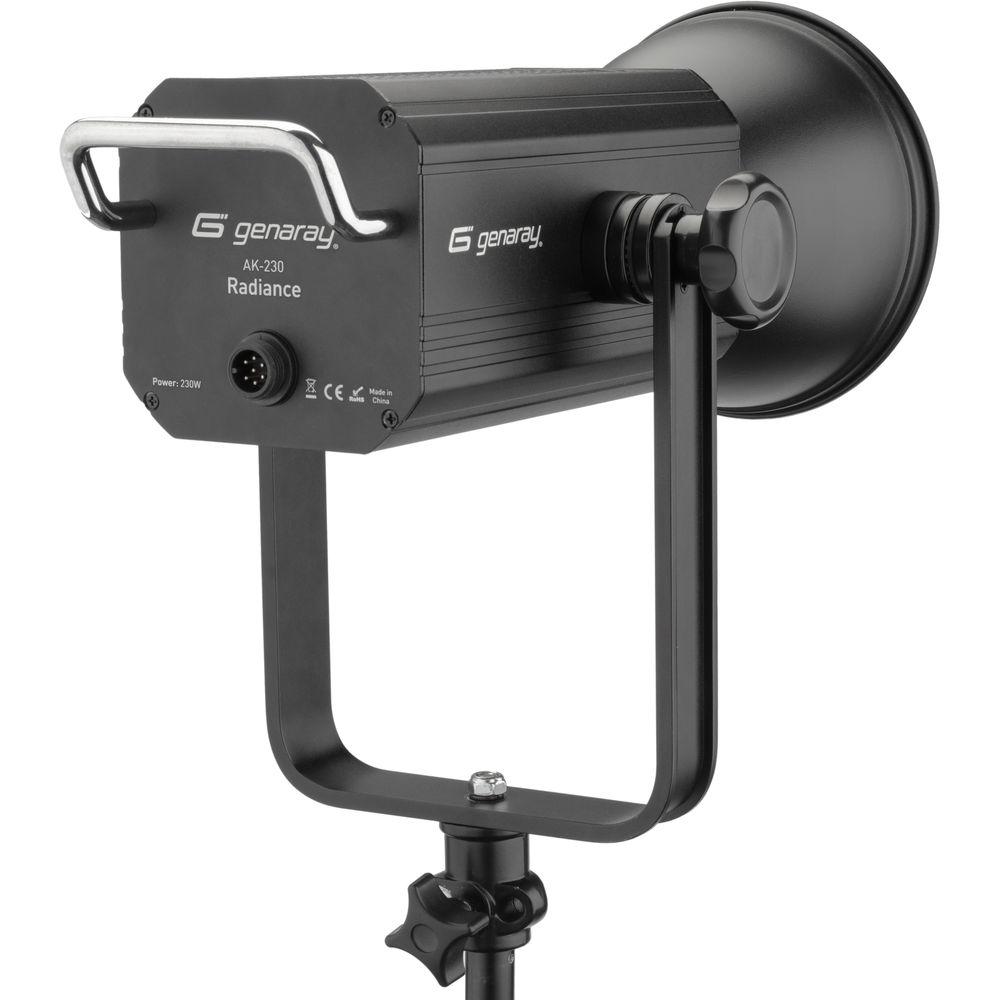

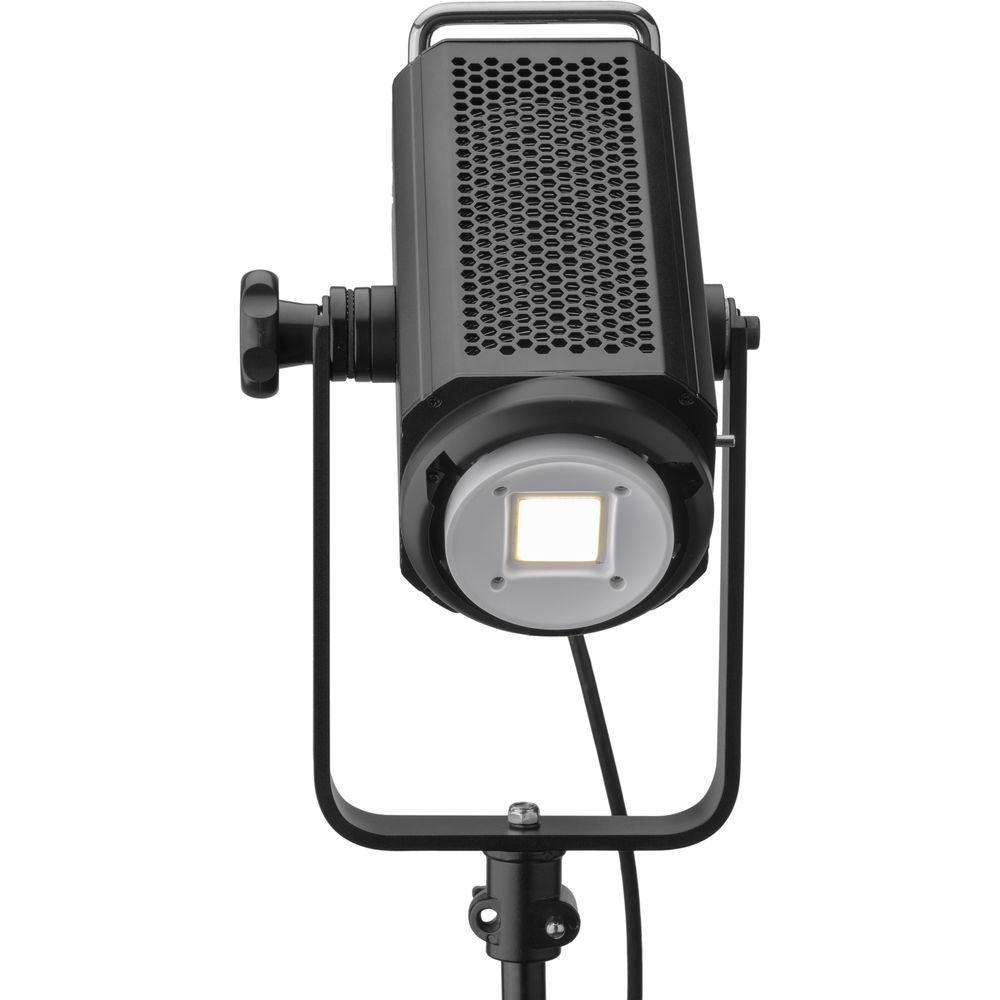

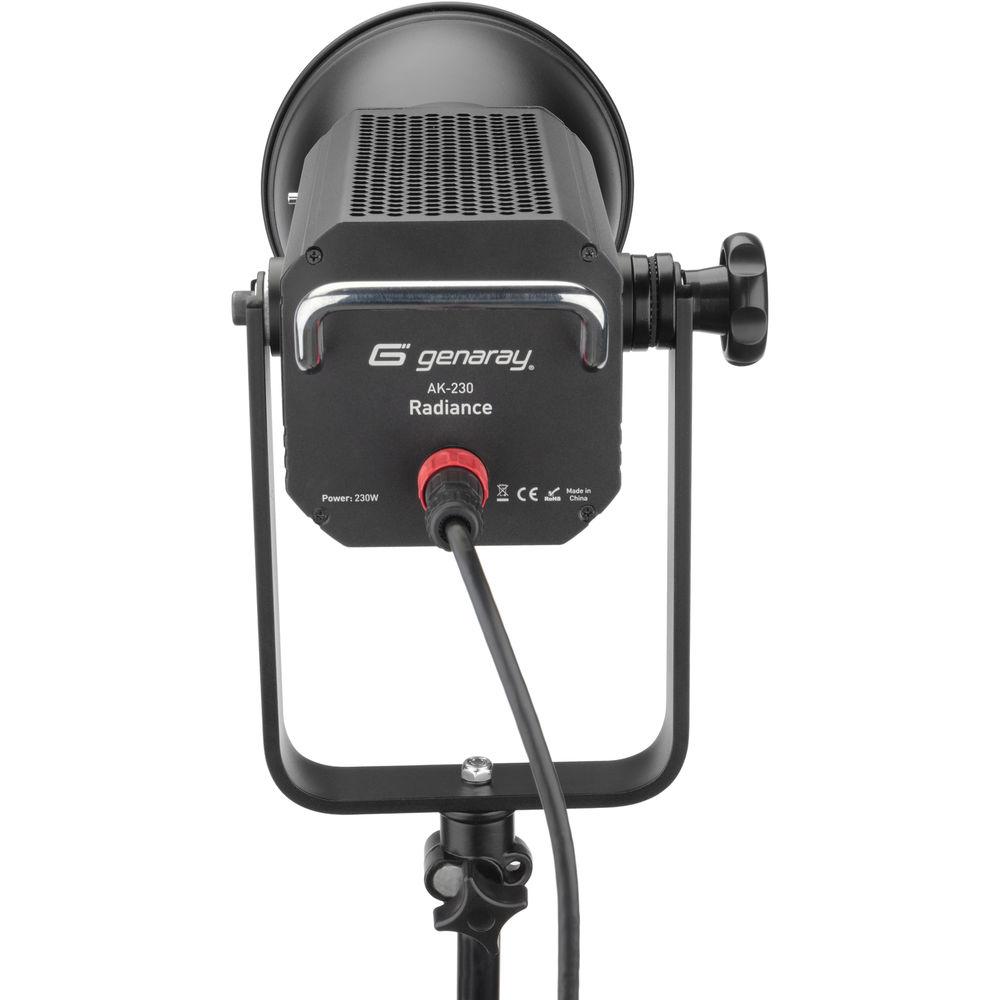

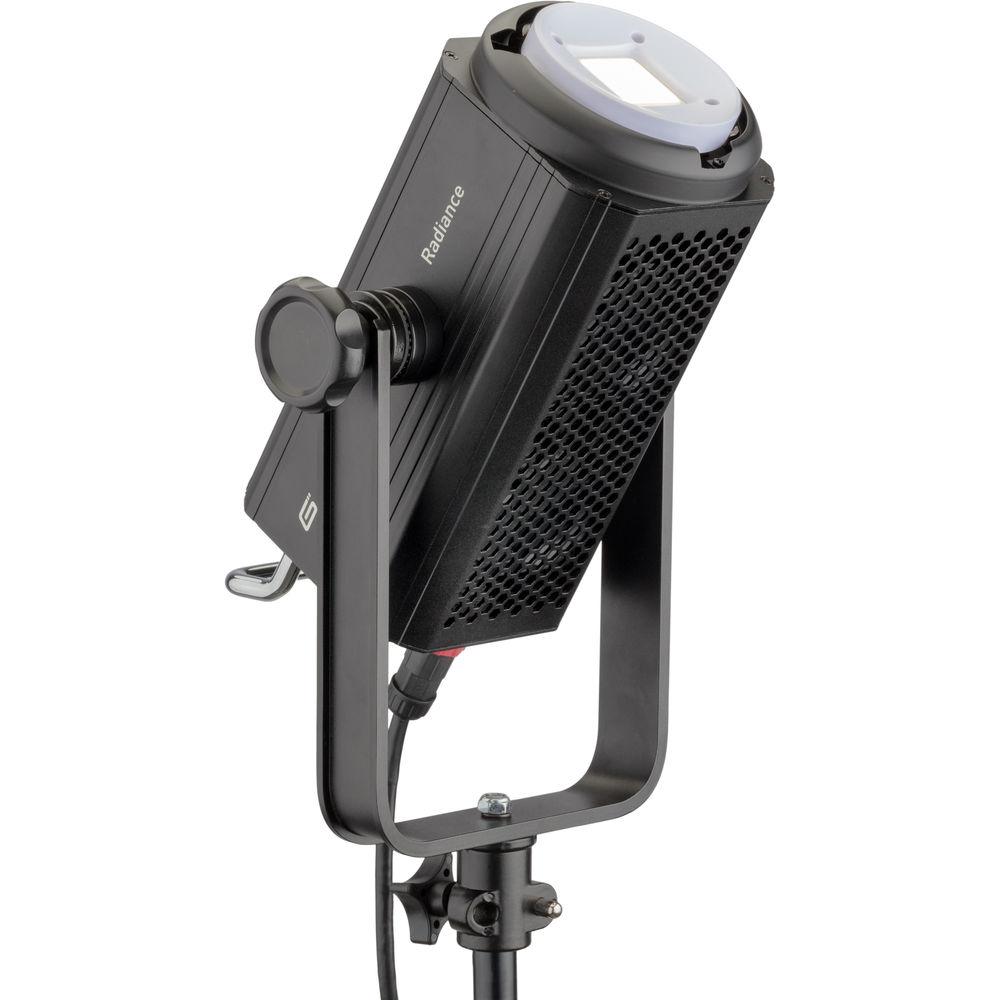

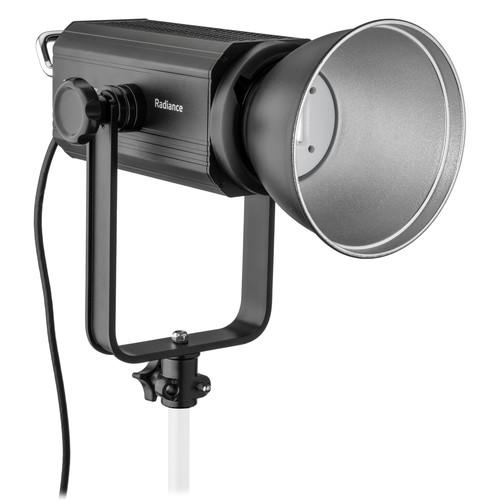

The Radiance Daylight LED Monolight from Genaray is a Chip-on- Board (COB)-powered fixture with a 5600K color temperature that consumes only 230W of power while outputting up to 23,000 lux at a distance of 3', while maintaining a high CRI/TLCI rating of 95. Output is flicker-free to allow shooting at high frame rates and is dimmable from 100 to 0%. While you can make light intensity adjustments locally on the fixture, you can also can also do it remotely from a console via onboard DMX or make them at distances up to 164' using the included wireless remote control. Ideal for sound-sensitive environments, the Radiance employs whisper- quiet fans that dispel what little heat that the unit generates, both protecting the light's electronics and lengthening the life of the LEDs. The performance of the Radiance is backed by its clever design. The all-metal construction provides years of rigorous use, while the separate controller/power supply reduces the weight of the lamp head allowing greater mounting options. The Radiance is ready for worldwide use thanks to its 100-240 VAC power supply, but you can also run it on two optional V-mount batteries when mains power is unavailable. The Radiance ships with a reflector and a carrying case for storage and transport. - Illuminance
- The Radiance COB LEDs output an impressive daylight-balanced 23,000 lux - plenty of power for use in large locations. Low power draw and negligible generated heat make it an easy replacement for your hot light.
- Color Fidelity
- The light's color temperature is a solid 5600K with CRI/TLCI rating of 95.
- Flicker-free Dimming
- You can you tweak the light intensity from 100 to 10% without flicker, allowing shooting in slow motion or at high frame rates.
- Remote Control Options
- While you can make adjustments to brightness locally on the fixture, you can also do it remotely from a console via onboard DMX. For another control option, Genaray also includes a wireless remote with a range of 164'.
- Dual Power Solutions
- The Radiance is ready for worldwide use thanks to its 100 to 240 VAC power supply, but you can also run it on two V-mount batteries in situations where mains current is unavailable.
- Intelligent Temperature Control
- The whisper-quiet fans protect the light's electronics and make for a very long life for its LEDs.
- Cool-Running LEDs
- Cool-running COB LED array generates next to no heat, dispelling concerns about placing it close to your subject and allowing you to position it in tight quarters.
- Bowens S-Type Accessory Mount
- The Bowens front accessory mount makes it not only compatible with Genaray light-shapers, but also with those made by the many manufacturers who employ this popular mount.
UPC: 847628013742 In the Box Genaray Radiance Daylight LED Monolight Reflector Power Supply Power Cord Remote Control Yoke Carry Case Limited 1-Year Warranty User Manual PDF 1.7mbrqvxyavwcccb Table of Contents
|
Upload User Manual
Have you got an user manual for the Genaray Radiance Daylight LED Monolight in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersGenaray Radiance Specs | | | Beam Angle | 46 to 64° 46 Degrees w/o Reflector, 64 Degrees w/ Reflector | | Color Temperature | 5600K | | Color Accuracy Standard | CRI 95
TLCI 95 | | Cooling System | Fan | | Dimming | Yes, 100 to 0% | | Display | LCD | | Housing Material | Metal | | Photometrics | 2136.7 fc / 23,000 lux at 2.99' / 0.91 m
1787.4 fc / 19,240 lux at 3.28' / 1 m
197.9 fc / 2130 lux at 9.84' / 3 m
71.4 fc / 769 lux at 16.4' / 5 m | | Fixture Dimensions | 10.1 x 4.9 x 4.8" / 25.6 x 12.4 x 12.2 cm | | Fixture Weight | 6.17 lb / 2.8 kg | | | | Battery Plate | 2 x V-Mount | | Power Input Connector | 9-PIN TE | | DMX Connector | RJ45 | | | | Fixture Mount | 5/8" Receiver | | Accessory Mount | None | | | | Remote Control Type | DMX, Proprietary Wireless Wireless Radio Remote | | Number of DMX Channel Modes | 512 | | Wireless Range | 100' / 30.5 m 164' / 50 m with Antenna | | | | AC Input Power | 100 to 240 VAC, 50 / 60 Hz | | DC Input Power | 24 VDC at 15 A | | Power Source | AC Adapter, External Battery | | Max Power Consumption | 230 W | | | | Power Supply Dimensions | 11.3 x 4.6 x 4.8" / 28.6 x 11.7 x 12.1 cm | | Power Supply Weight | 6.4 lb / 2.90 kg | | | | Certifications | CE, RoHS, as per Manufacturer | | | | Package Weight | 20.045 lb | | Box Dimensions (LxWxH) | 24.1 x 16.9 x 8.9" |
