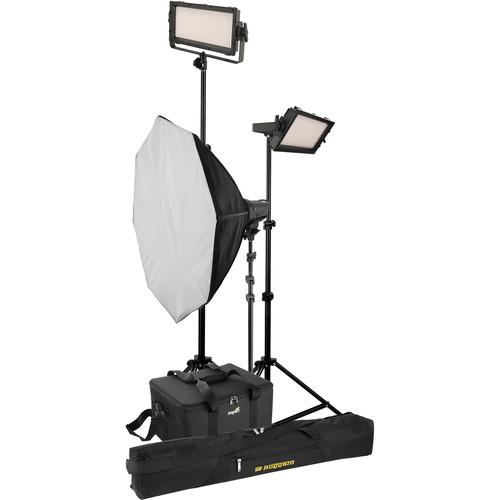

Genaray Softbox Interview Kit

User Manual for Genaray Softbox Interview Kit

• Product category: LED Lights Genaray
• Brand: Genaray
• Description and content of package
• Technical information and basic settings
• Frequently asked questions – FAQ
• Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
• Authorized service for Genaray LED Lights

Product description

• 2 x Genaray SpectroLED Essential 500 Bi-Color LED Light
  • The Genaray SP-E-500B SpectroLED Essential 500 Bi-Color LED Light
  The SpectroLED Essential 500 Bi-Color LED Light by Genaray is a 504 LED panel with color temperature that's variable from tungsten-balanced 3200K to daylight-balanced 5600K or anywhere in between. Instead of fumbling with filters you can match other light sources or ambient light conditions, or just use color creatively. Light intensity is also variable from 100 - 0% without color shift or flickering.The SpectroLED Essential 500 offers a 60° flood beam angle and a high CRI for precise and faithful color rendering. The 9.25 x 13.6 x 2.2" panel weighs just 2.5 lb and with its slim profile and barely perceptible warmth can be placed in areas that traditional fixtures just can't go. Another benefit of using LEDs is low power draw; although it uses just 40W of power, it outputs many times that number meaning a rapid return on investment. If you need more power Genaray has got that covered too; the light's included clips allow you to stack up to 3 units for triple the power. You can even daisy-chain several units using the separately purchased SP-E-MLC Multi Link Cable which allows one master unit to control the color and light intensity of the others.Power options are equally versatile. Use the included multi-voltage AC adapter to run the SpectroLED anywhere in the world, or shed the power cord and employ two optional Sony L-series NP-F type batteries when mains current is unavailable.
  Adjustable Color Temperature
  • Variable color output from 3200-5600K allows you to balance color without filters.
  100-0% Dimming
  • The SpectroLED is dimmable from 100 - 0% without color shift and flicker.
  High CRI
  • The SpectroLED's high CRI rating ensures vibrant, accurate rendition of color.
  Battery or AC Power
  • Power your light with the included multi-voltage AC adapter or with two optional Sony L-series NP-F batteries when mains power is unavailable.
  Flexible Mounting
  • The light has an industry-standard 5/8" receiver for stand mounting as well as 1/4"-20 top and bottom taps for stacking and supports such as ball heads.
  Daisy-Chain Control
  • Using Genaray's SP-E-MLC Multi Link Cable, you can connect multiple SpectroLEDs together and control color and brightness from one master unit.
  Stackable
  • Thanks to its removable yoke, you can use the included clips to stack up to 3 lights for triple the power.
  UPC: 639767568609
• Genaray MonoBright LED Bi-Color 750
  • The Genaray SP-E-500B SpectroLED Essential 500 Bi-Color LED Light
  With its monolight form factor, S-Type front accessory mount, variable color temperature, and AC or 12 VDC battery power options, the MonoBright LED Bi-Color 750 fixture from Generay can be easily integrated into a wide range of projects. The MonoBright employs a HiBrite microLED PCB to output the equivalent power of a 750W tungsten fixture while consuming only 100W of current. The MonoBright's high CRI rating of >90 means that the light packs precision with power for faithful rendition of colors down to the subtlest tones. And since the color is variable from 3200 to 5600K you won't have to worry about fumbling with filters whether you're shooting in daylight or tungsten color temperature environments. Another handy feature is the dimming range of 10-100% so you won't have to move the light once you have it perfectly positioned. And if you've mounted the MonoBright in a hard to reach place you'll appreciate the option of a 2.4 GHz wireless remote control that can dim the light at distances up to 98' as well as turn it on or off. The remote has 99 channels, so you can control at least that many lights in unison or individually. The remote can also control the color temperature from 3200 to 5600K or anywhere in between. The MonoBright is rated for use with 100-240 VAC for worldwide use but the light will also work with 12 VDC batteries via its 4-pin XLR input. Also included are a 7", 60° umbrella/grid reflector, and shower cap-style diffuser.
  HiBrite microLED PCB
  • Thanks to its HiBrite microLED PCB, the Genaray MonoBright LED Bi-Color 750 delivers 8,000 lux of continuous light and draws only 100W to produce the equivalent output of a 750W open-face tungsten light
  Variable Color Temperature
  • With color variable from 3200 to 5600K or anywhere in between, you won't be losing time taping on filters. Shoot anywhere you like from daylight conditions to tungsten balanced indoor lighting. Just dial in the correct color temperature to match your environment.
  Dimming 10-100%
  • Dim the brightness from 10 to 100% via the onboard controls or the optional wireless remote
  Color Rendering Index (CRI) of >90
  • High CRI ensures faithful rendering of colors - even the subtlest tones
  Wireless Remote
  • The optional 2.4 GHz remote control allows you to wirelessly adjust output and color temperature for multiple MonoBright units - even at different settings. The 99 channel unit has a wireless range of up to 98' (30 m)
  S-Mount Front Accessory Mount and Umbrella Channel
  • The MonoBright has an S-mount front accessory mount for the included umbrella/grid reflector and the many accessories made by other brands that use this mount. Additionally the stand mount has a built-in channel for umbrella shafts
  Worldwide AC Voltage and Optional DC Battery
  • The MonoBright can run on worldwide AC voltage or an optional 12 VDC battery via a Genaray MonoBright battery cable (available separately)
  Built-In Memory
  • A built-in memory function saves your settings on the MonoBright control panel. The next time you turn on the MonoBright- even with the optional wireless remote - your previous settings will appear on the control panel
  LCD Readout
  • LCD display with large numbers for optimal readability, even in bright daylight
  Sleep Mode
  • Powers down the light when not in use
  UPC: 639767568395
• 3 x Impact Air-Cushioned Light Stand (Black, 8')
  • The Genaray SP-E-500B SpectroLED Essential 500 Bi-Color LED Light
  This aluminum Impact Air-Cushioned Light Stand rises to a height of 8' and folds down to 29.6". The stand has sure-twist section locks and 4 sections and will support up to 8 lb. If you forget to tighten any section with your light mounted, the light slowly descends, thanks to the air-cushioned action. This useful feature saves equipment and fingers from harm during busy photo sessions.
  Air Cushioned
  • Protects equipment from impact damage.
  Compact Design
  • Will fit easily into most location cases.
  Accepts Casters
  • Eases positioning of heavy lights.
  • Available as accessories.
  UPC: 847628012349
• Raya Octa Soft Box for Octa Fluorescent 7 (32")
  • The Genaray SP-E-500B SpectroLED Essential 500 Bi-Color LED Light
  The 32" OC-OSB80 Octa Softbox from Raya is an 8-sided light modifier supported by aluminum flexrods which are attached to the separately purchased Octa Fluorescent 7 fixture.The softbox features a highly reflective pebbled interior and a removable front face that attaches with simple touch-fasteners. It also has a detachable interior clip-on diffuser for additional soft light if desired. In use, it renders the signature wrap-around look that the modifier's shape is well known for, as well as natural circular catch-lights in your subjects eyes. This softbox is made to be used with the OC-OF7 Fluorescent 7 fixture and fluorescent lamps only. UPC: 847628581173
• Raya Speed Ring for SDR-400 Alpha Monolight
  • The Genaray SP-E-500B SpectroLED Essential 500 Bi-Color LED Light
  Featuring all metal construction and rapid bayonet-action installation, the Raya Speed Ring for SDR-400 Alpha Monolight is designed to quickly and conveniently mount the Raya OC-OSB80 32" or Impact FF-OSB60 24" Octa softboxes to the Raya SDR-400 Alpha Monolight or other Bowens mount strobe fixtures.
  Exclusive Speed Ring Design
  • The Raya SR-OCFF Speed Ring makes it easy to mount the Raya OC-OSB80 32" or Impact FF-OSB60 24" Octa Softboxes to the Raya SDR-400 Alpha Monolight and other similar Bowens mount fixtures. Compatible exclusively with these lighting tools, the speed ring offers hassle-free setup and takedown with quick attachment to your SDR-400's mount, or other similar Bowens mount fixtures. This allows you to create soft, diffuse lighting on location or in the studio.
  Metal Construction
  • The SR-OCFF's durable metal construction insures reliable performance that can withstand the rigors of professional use.
  UPC: 847628586659
• Ruggard Padded Tripod / Light Stand Case (35")
  • The Genaray SP-E-500B SpectroLED Essential 500 Bi-Color LED Light
  The black with yellow embroidery, 35" Padded Tripod or Light Stand Case from Ruggard is an affordable, lightweight, and functional way to store or carry your tripod, light stand, and umbrellas. The durable 400D nylon exterior is complemented by a smooth 150D nylon lining. Dual top zippers provide full-length rapid access to your tripod.

  This case can be transported by its two top carry handles, or by its very useful fixed-length shoulder sling. For added storage, there is an exterior 13.5" zippered pocket. The case is accented with a large, handsome yellow embroidered Ruggard logo. This 35" Padded Case is backed by a one-year limited warranty from Ruggard.
  • Padded, lightweight tripod bag
  • 13.5" exterior zippered accessory pocket
  • Dual-zippered access
  • Two carry handles
  • Fixed shoulder sling
  • 400D nylon exterior with 150D lining
  • Embroidered exterior yellow Ruggard logo
  UPC: 847628001718
• Impact LKB-4C Light Kit Bag (Black)
  • The Genaray SP-E-500B SpectroLED Essential 500 Bi-Color LED Light
  The 22 x 16 x 13", black LKB-4C Light Kit Bag from Impact is a lightweight yet durable case designed to safely transport and protect lighting equipment. Ideally sized for LED panels, it is also suitable for studio strobe systems, continuous light systems, and a variety of equipment needed in the studio or on location.

  The outer shell and interior walls are all reinforced with heavy-duty plastic panels to ensure the structural integrity of the bag. Adjustable dividers can be configured to your needs within the 20 x 14 x 11" interior to keep your lights and gear organized and secure. A generous zippered mesh storage compartment provides plenty of room for cables and other small accessories.

  The LKB-4C has a weather-resistant, heavy-duty 600-denier ballistic nylon shell fitted with anti-slip rubber feet. Carrying options include a detachable, adjustable shoulder strap, overlapping top handles, and rubber grip side handles. For added security, the heavy-gauge dual zippers accept an optional lock.
  Weather Resistant
  • A heavy-duty 600D nylon shell shields your lighting equipment from moisture and dust.
  Reinforced Wall Construction
  • Sides of the bag are reinforced with heavy-duty plastic panels to ensure the protection of your gear from impacts encountered during transport.
  Interior Lining
  • The interior lining is gray for locating gear in low light.
  Double Zipper
  • The double zipper closure provides easy access to your gear, and features loops that accept a lock (sold separately).
  Mesh Storage Compartment in Lid
  • The zippered mesh storage compartment in the lid is ideal for securing and organizing cables and small accessories.
  Shoulder Strap
  • The removable, easily adjustable shoulder strap includes a cushioned shoulder pad for comfort.
  Side Handles
  • Heavy-duty rubber grip side handles add lifting and carrying options.
  Adjustable Dividers
  • The four internal dividers can be configured to your needs, keeping your gear secure by preventing contact that could result in scratches.
  One-Time Setup
  • The padded L-shaped side panels use multiple strong touch-fastener strips on the interior walls of the bag, forming a rigid rectangular shape under the weather-resistant outer shell. Once the panels are secured in place, no further setup for future use is needed.
  Rubber Feet
  • For added security, non-slip rubber feet are attached to the bottom of the bag.
  UPC: 847628002319

• 2 x SpectroLED Essential 500 Bi-Color LED Light raqrqfrawaxaxdbf
• Yoke
• AC Adapter
• AC Power Cord
• Diffuser
• 2 x Stacking Clips
• Limited 1-Year Warranty

• MonoBright LED Bi-Color 750

• 3 x Impact - Air-Cushioned Light Stand (Black, 8')

• Raya - Octa Soft Box for Octa Fluorescent 7 (32")

• Raya - Speed Ring for SDR-400 Alpha Monolight

• Ruggard - Padded Tripod / Light Stand Case (35")

• Impact - LKB-4C Light Kit Bag (Black)

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

• 2 x Genaray SpectroLED Essential 500 Bi-Color LED Light

  Beam Angle	60°
  Color Temperature	3200 to 5600K
  Color Accuracy Standard	CRI 95
  Cooling System	None
  Display	None
  Number of LEDs	504
  Expected Lamp Life	30,000 Hours
  Fixture Dimensions	9.2 x 13.6 x 2.2" / 23.5 x 34.5 x 5.5 cm
  Fixture Weight	1.6 lb / 0.7 kg 2.5 lb / 1.1 kg (Including Yoke)

  Battery Plate	2 x Sony L-Series (NP-F)

  Yoke Mount	TVMP/ Hex Bolt
  Fixture Mount	5/8" Receiver
  Accessory Mount	None

  AC Input Power	100 to 240 VAC, 50 / 60 Hz
  DC Input Power	12 VDC
  Power Source	AC Adapter, External Battery
  Max Power Consumption	40 W

  IP Rating	IP20

  Box Dimensions (LxWxH)	15.85 x 10.7 x 4.65"

• Genaray MonoBright LED Bi-Color 750

  Color Temperature	3200 to 5600K ± 300K
  Color Accuracy Standard	CRI 90
  Cooling System	Fan
  Dimming	Yes, 10 to 100% (Stepped)
  Display	None
  Expected Lamp Life	50,000 Hours
  Fixture Dimensions	8.0 x 6.0 x 8.2" / 20.3 x 15.2 x 21.0 cm
  Fixture Weight	2.6 lb / 1.2 kg

  Power Input Connector	4-Pin XLR

  Fixture Mount	5/8" Receiver
  Accessory Mount	None

  AC Input Power	100 to 240 VAC, 50 / 60 Hz
  DC Input Power	12 to 17 VDC
  Power Source	AC Adapter, External Battery
  Max Power Consumption	100 W

  Cable Length	15.5' / 4.7 m

  IP Rating	IP20

  Box Dimensions (LxWxH)	14.0 x 10.0 x 9.0"

• 3 x Impact Air-Cushioned Light Stand (Black, 8')

  Maximum Load	8 lb (3.6 kg)
  Leg Tip	20 mm
  Attachment Size	5/8" Stud with 1/4"-20 in threaded tip
  Accepts Wheels	Yes
  Air Cushioned	Yes
  Maximum Height	96" (243.8 cm)
  Minimum Height	34" (86.3 cm)
  Folded Height	29.6 (75.2 cm)
  Footprint Diameter	36" (91.4 cm)
  Weight	2.05 lb (1 kg)

  Box Dimensions (LxWxH)	29.75 x 3.2 x 3.15"

• Raya Octa Soft Box for Octa Fluorescent 7 (32")

  Shape	Octagon
  Interior	Silver
  Requires Speed Ring	No
  Accepts Grids	No
  Maximum Wattage	400 W (Cool Lights)
  Removable Front Face	Yes
  Removable Interior Baffle	Yes
