Product description - The Genaray SP-S-1200B SpectroLED 1200 Bi-Color Studio LED Light

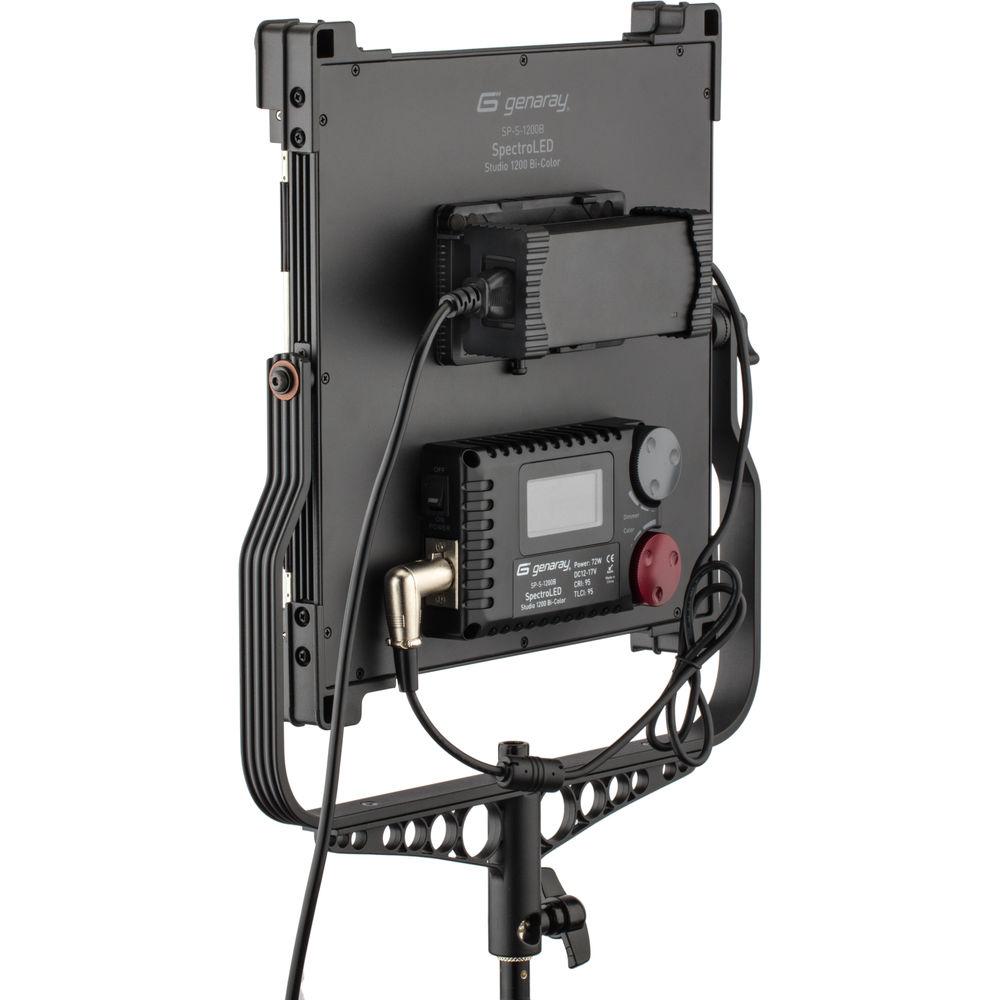

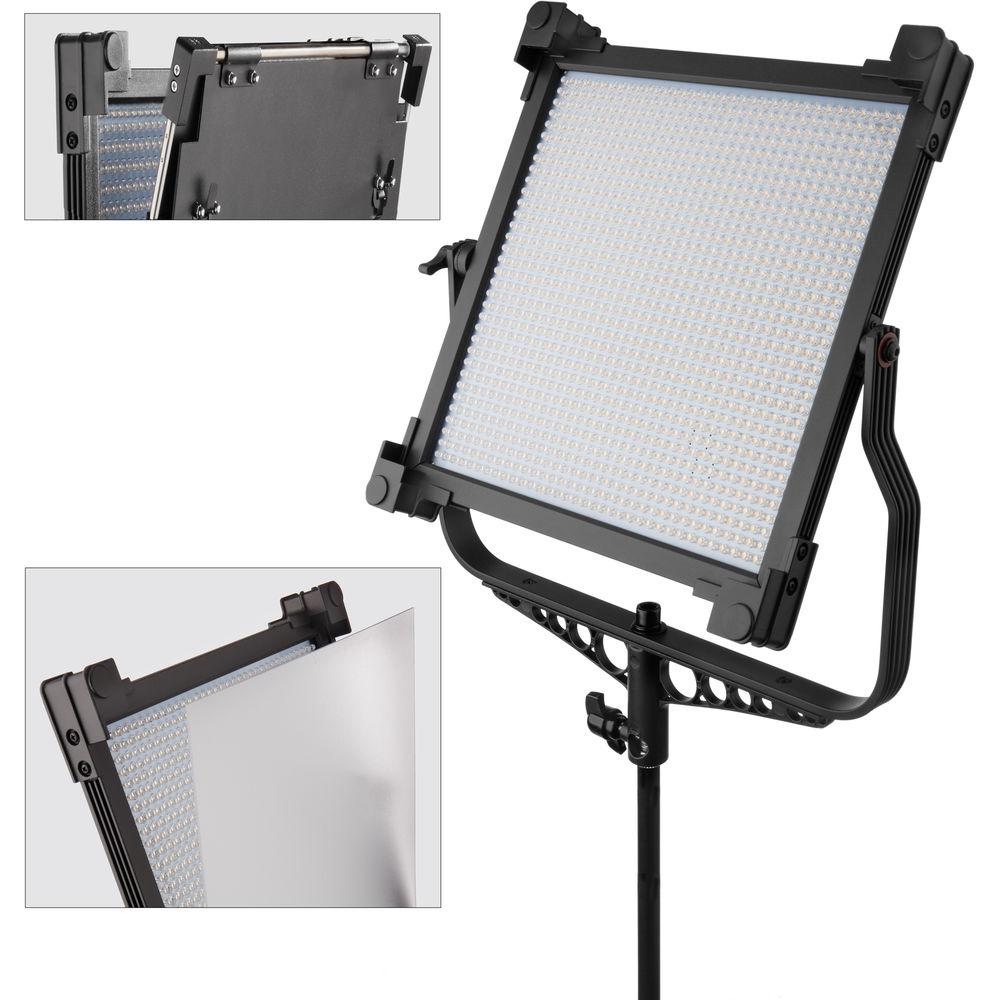

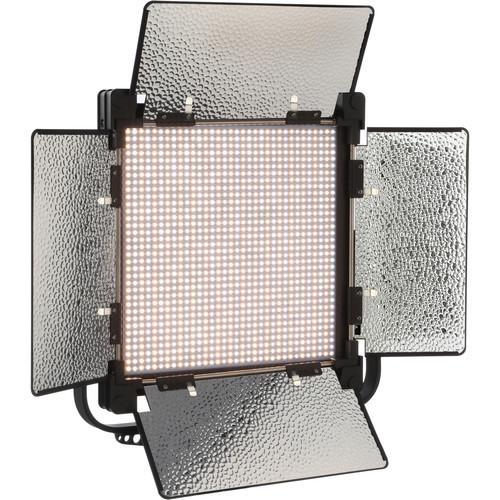

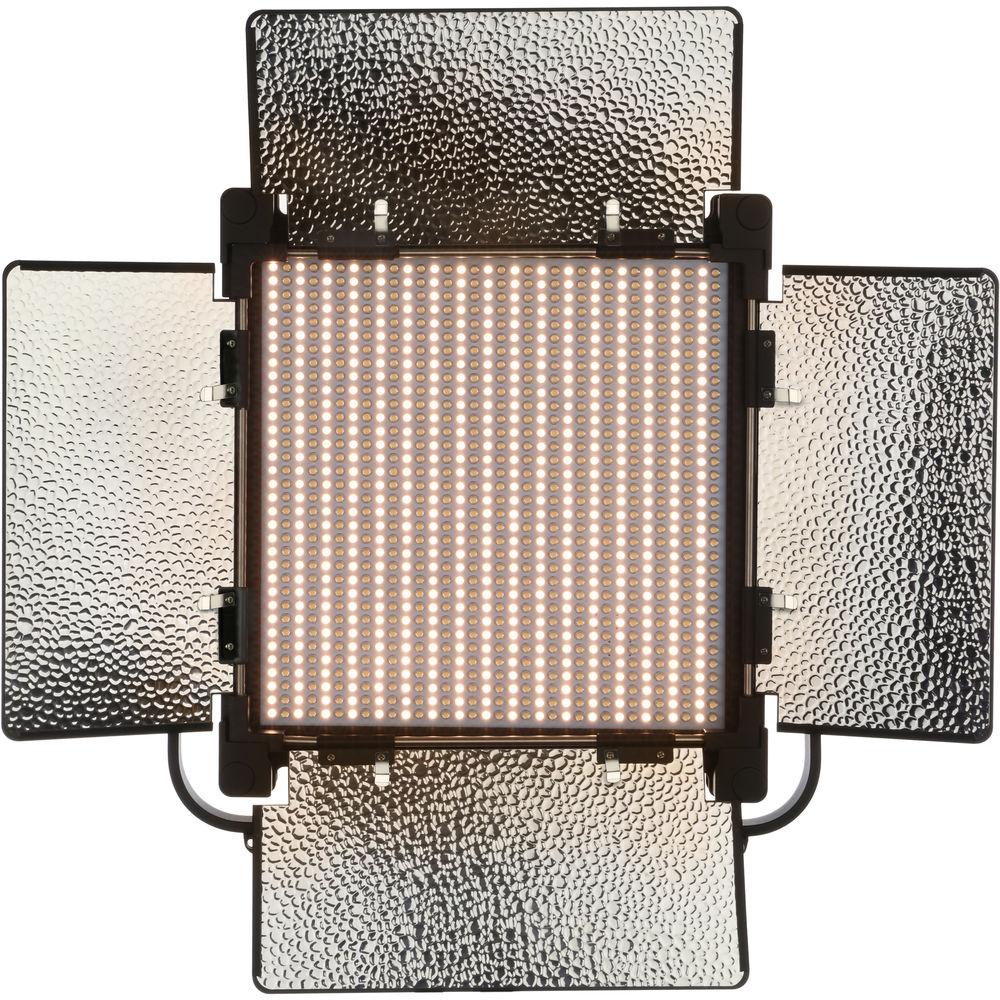

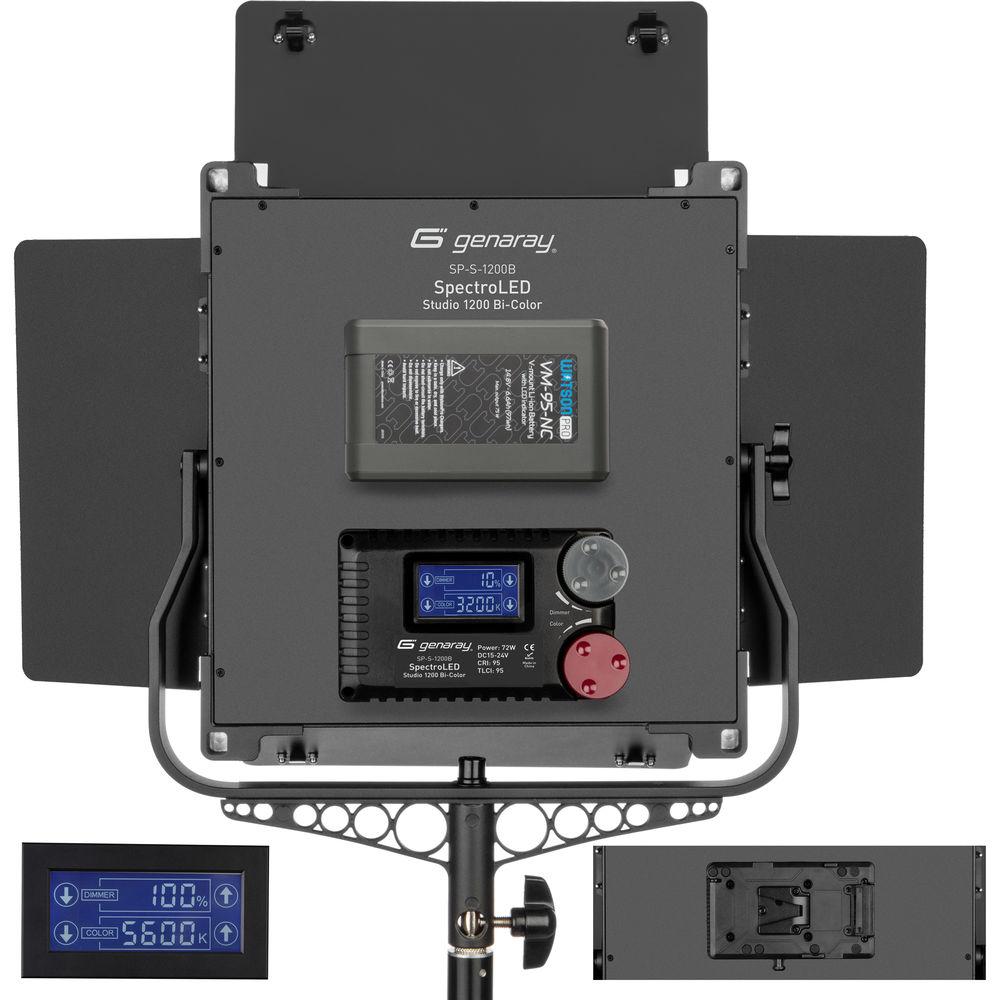

An asset in the studio or on location, the 11 x 11" panel SpectroLED 1200 Bi-Color Studio LED Light by Genaray employs 1200 LEDs for output that's variable from 3200-5600K for matching other fixtures or ambient light conditions while maintaining a high CRI/TLCI of 95 indicating faithful and accurate rendition of color. Light intensity is variable from 100-10%. Both functions are adjustable locally on the fixture or remotely at distances up to 65' with the included wireless remote control. Settings are displayed on the light's back panel LCD screen.The SpectroLED 1200 ships with removable 4-way barndoors that limit spill light and allow you to further control the light's tight 45-degree beam spread to illuminate parts of your subject that you want to and keep the light from areas where you don't want it. The barndoors have removable textured inserts that ensure maximum output while lending a slightly specular, snappy quality of light. Remove the inserts if you prefer a softer look. The SpectroLED 1200 has a yoke that permits tilting when stand mounting with its 5/8" receiver. The receiver also has side access to offer a more horizontal mount that allows for an expanded tilt range without the barndoors being impeded by the light stand. The receiver offers an additional benefit accessed by removing the tightening knob which converts the receiver to a 1-1/8" pin for stands with a Junior receiver.The SpectroLED 1200 Bi-Color is ready for worldwide use thanks to its included multi-voltage 100-240 VAC adapter but you can also take advantage of the light's V-Mount battery plate to operate the light on optional batteries when mains power is unavailable. - Adjustable Color Temperature
- Color is adjustable from 3200K-5600K or anywhere in between in 100K increments.
- Dimming
- The Spectro-LED 1200 is conveniently dimmable from 100-10% and can be adjusted by 1% increments to ensure the ideal light level for your requirements.
- High CRI/TLCI
- The high CRI/TLCI rating of 95 indicates faithful and accurate color rendering.
- Flicker-Free Output
- Flicker-free output allows you to shoot at a high frame rate for slow motion.
- Power Options

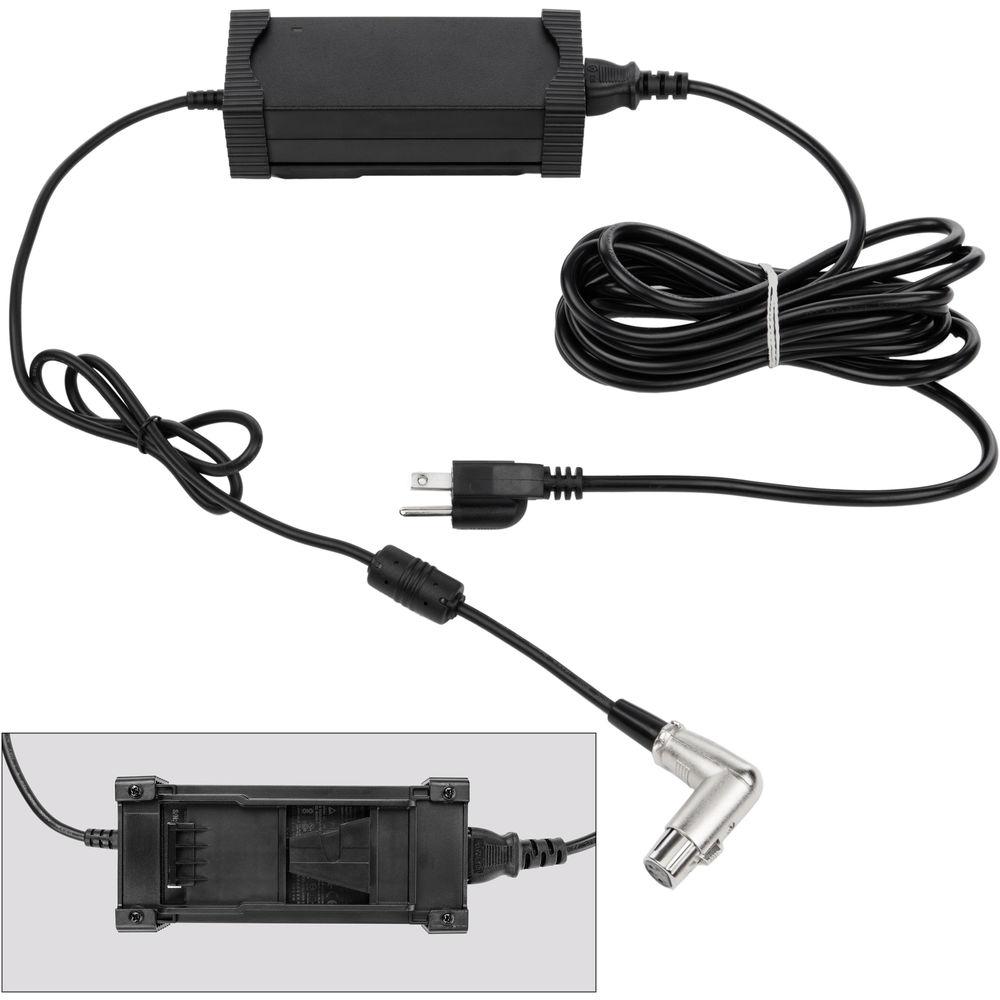

- The Spectro-LED 1200 runs on the included multi-voltage 100-240 VAC power supply or on optional V-Mount batteries when mains power is unavailable.
- Remote Control
- Adjust both color temperature and light intensity from distances up to 65' with the included wireless remote control.
- Mounting

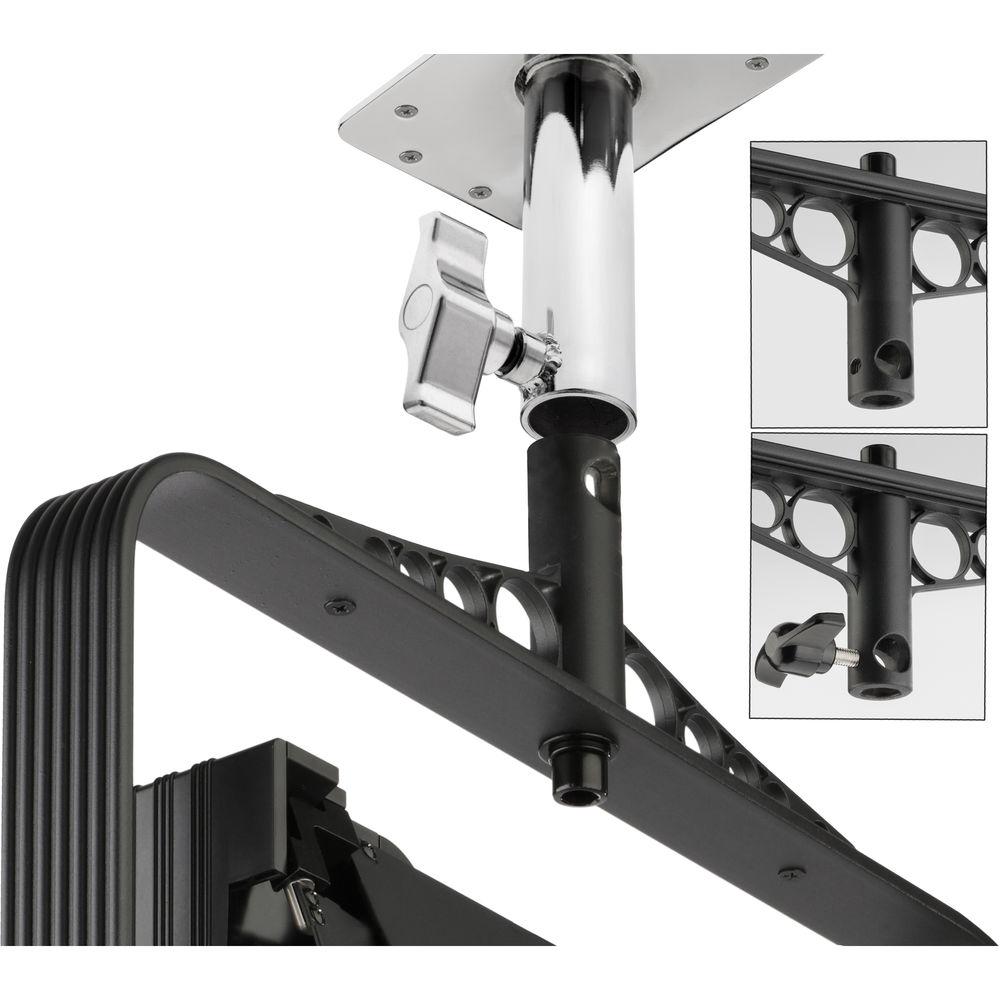

- The Spectro-LED 1200 has a combination 5/8" receiver / 1-1/8" pin for stand mounting.
- Barndoors

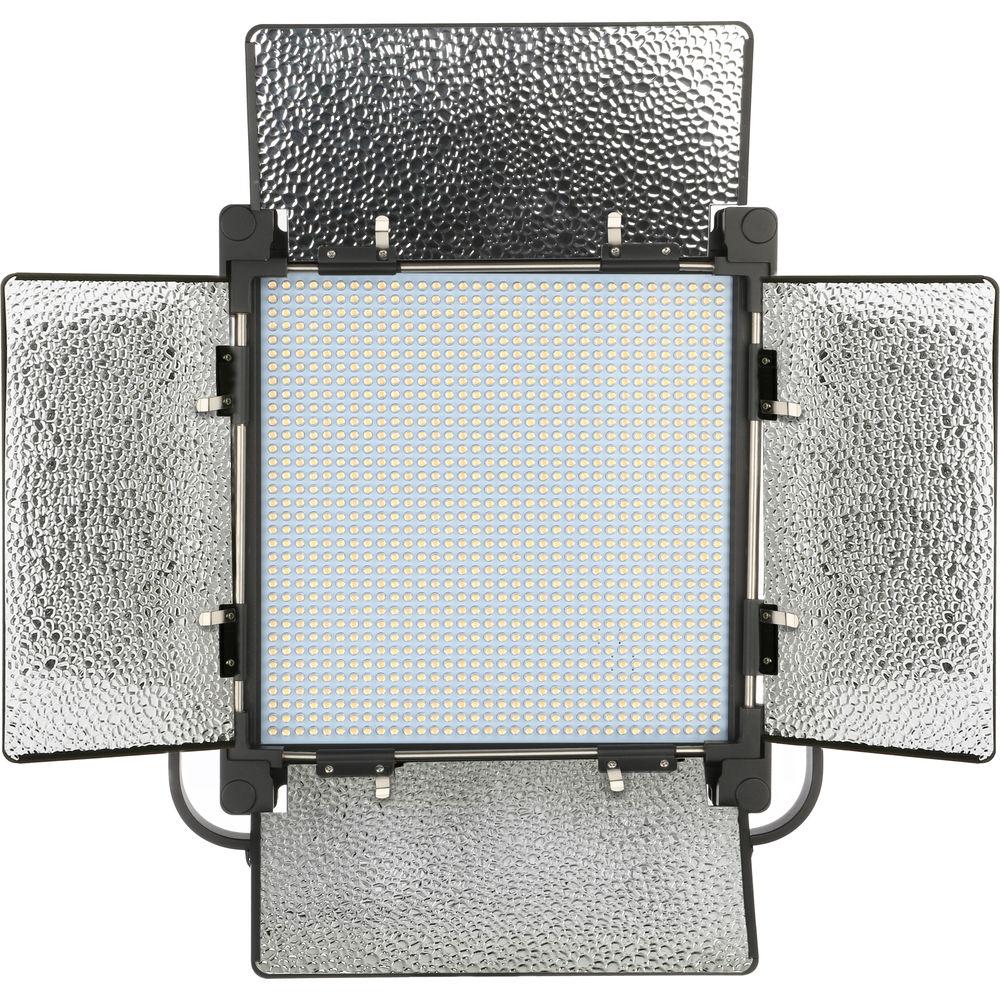

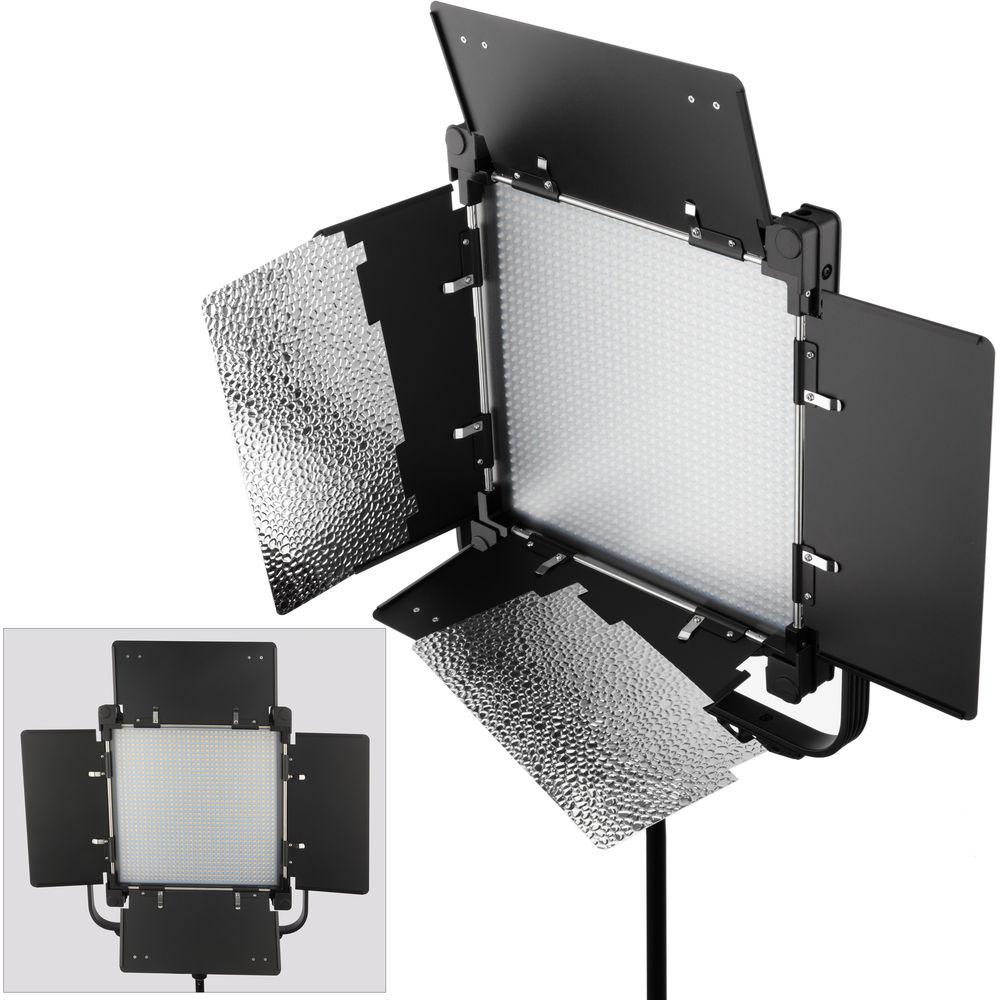

- The removable 4-way barndoors have textured silver inserts for enhanced output that can be removed for a softer look. The barndoors provide control of the light's tight 45-degree spread.
- Photometrics
- At 5600K: 3456 lux @ 3' / 0.9m
At 4400K: 7653 lux @ 3' / 0.9m
At 3200K: 4592 lux @ 3' / 0.9m UPC: 855193007073 In the Box Genaray SpectroLED 1200 Bi-Color Studio LED Light Yoke Wireless Remote Control 23A 12 V Battery for Remote Diffusion Filter Barndoors AC Power Adapter Power Cord Carry Case Limited 1-Year Warranty User Manual PDF 1.5mb Table of Contents
|
Upload User Manual
Have you got an user manual for the Genaray SpectroLED 1200 Bi-Color Studio LED Light in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersGenaray Studio 1200 Specs | | | Beam Angle | 45° | | Color Temperature | 3200 to 5600K ± 150K (with 300K Shift over Lifetime) | | Color Accuracy Standard | CRI 95 at 5600K
TLCI 95 at 5600K | | Cooling System | Passive | | Dimming | Yes, 100 to 10% (Continuous) | | Display | LCD | | Photometrics | 45° at 5600K:
321.1 fc / 3456 lux at 3' / 0.91 m
45° at 4400K:
711 fc / 7653 lux at 3' / 0.91 m
45° at 3200K:
426.6 fc / 4592 lux at 3' / 0.91 m | | Number of LEDs | 1200 | | Rectangular Panel Size | 11 x 11" / 27.94 x 27.94 cm | | Fixture Dimensions | 18.5 x 15.2 x 2.9" / 47.0 x 38.7 x 7.4 cm (Including Yoke) | | Fixture Weight | 9 lb / 4.08 kg (Including Yoke, Barndoors) | | | | Battery Plate | 1 x V-Mount | | Power Input Connector | 4-Pin XLR, D-Tap | | | | Fixture Mount | Combination 1-1/8" Stud and 5/8" Receiver | | | | Yoke Type | Yoke/Bracket | | Tilt | 90
