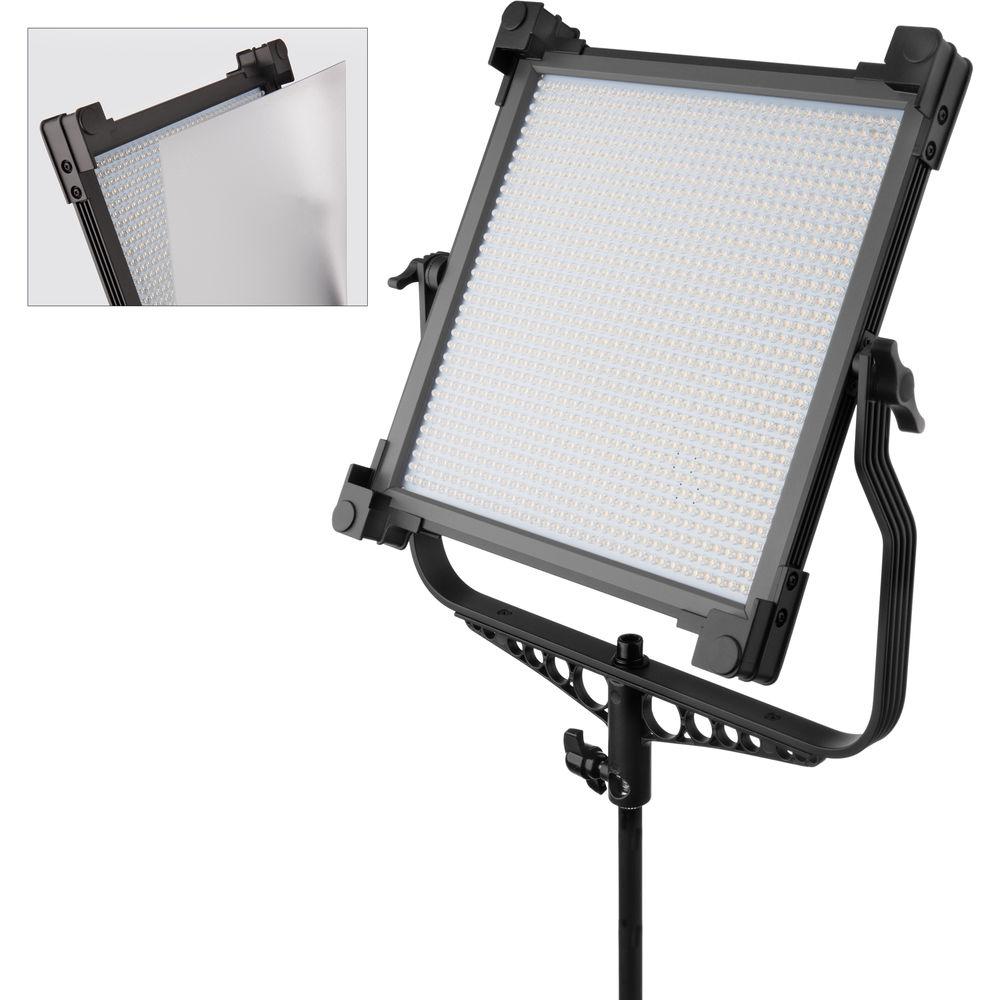

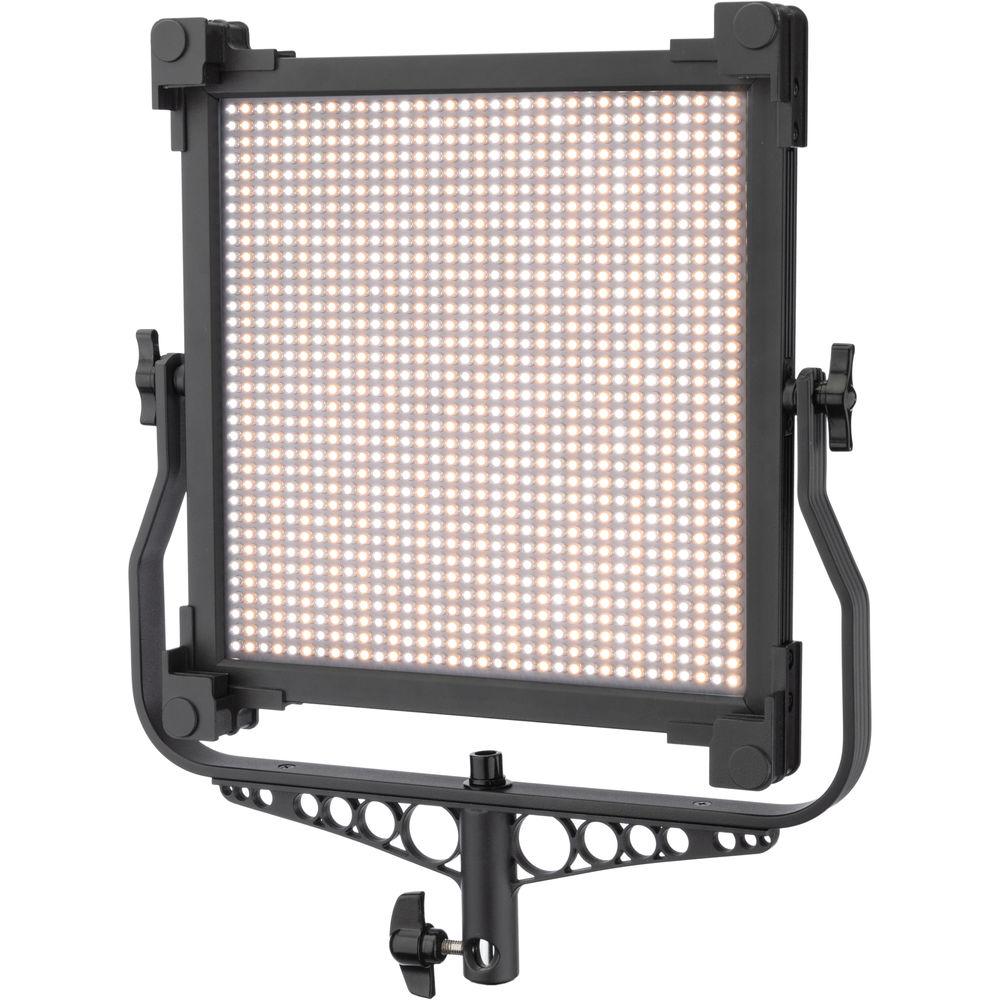

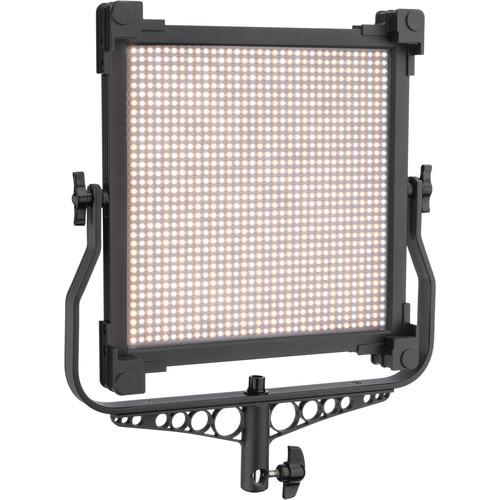

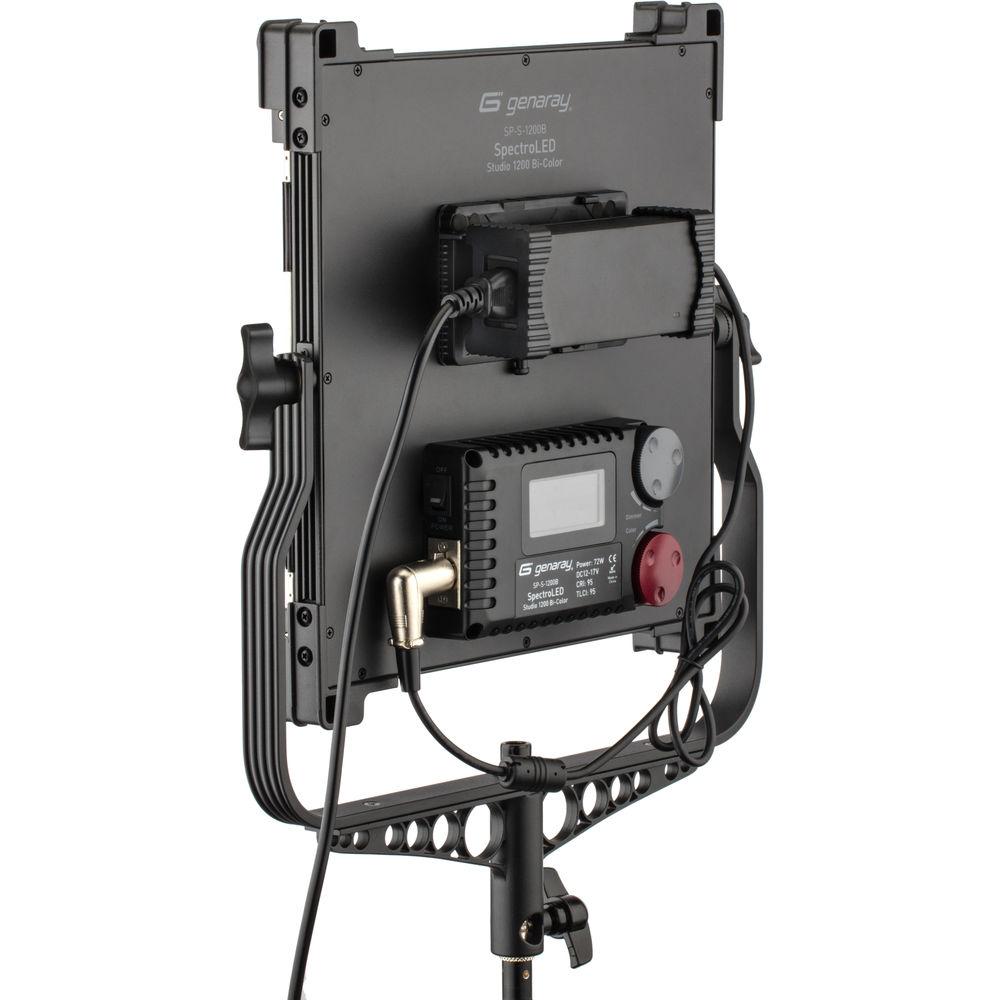

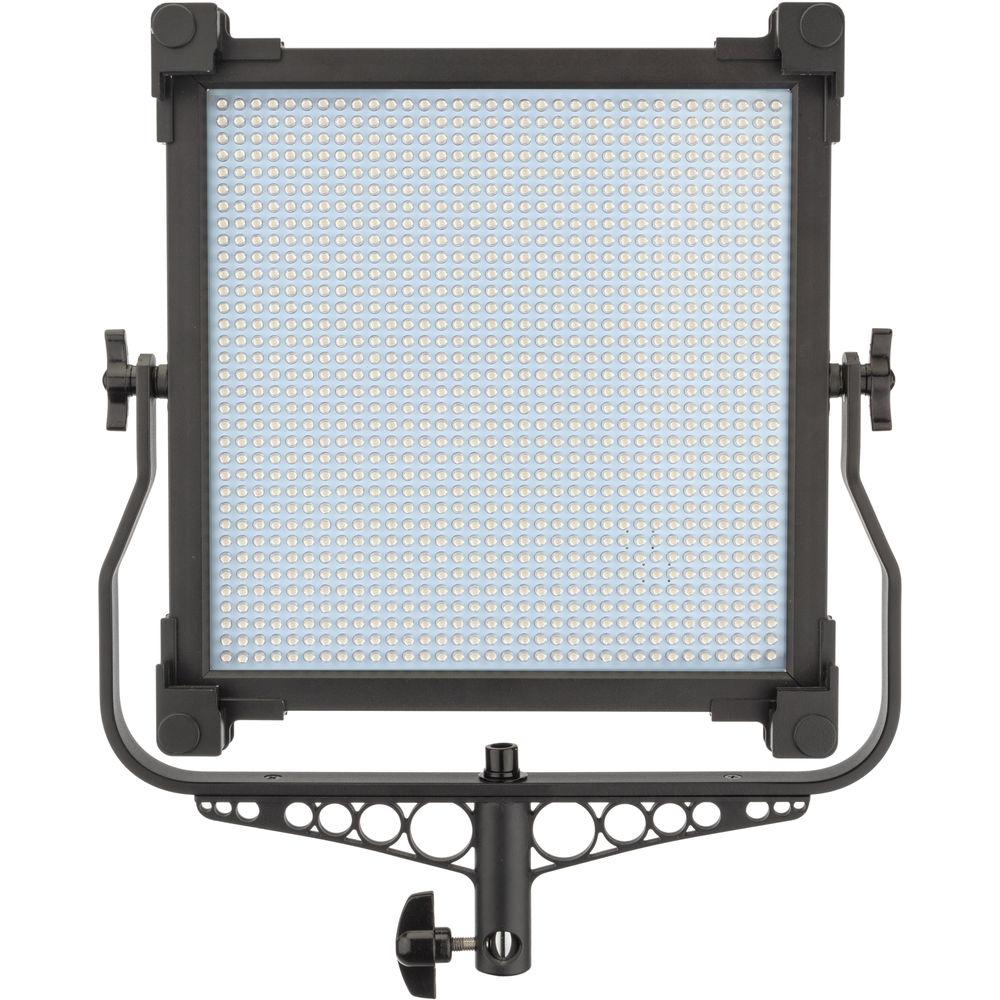

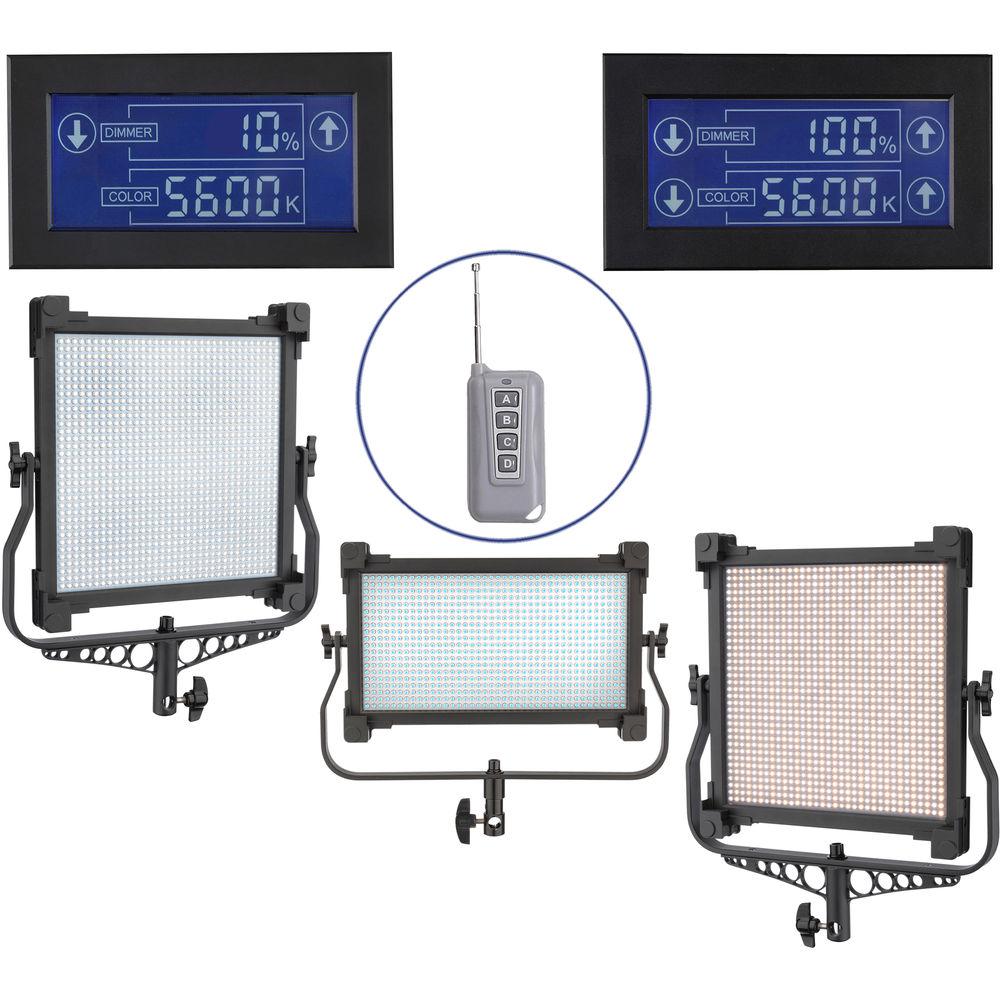

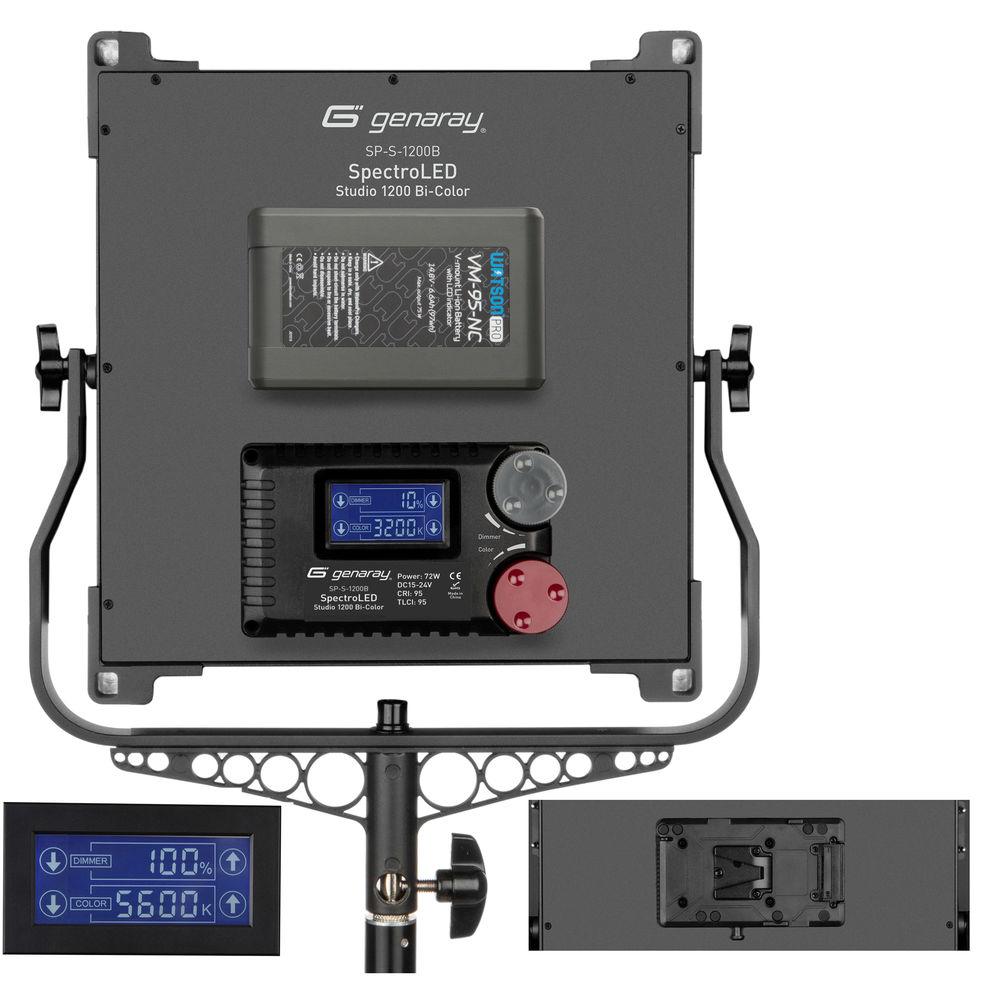

Product description An asset in the studio or on location, the 13.9 x 12.7" panel SpectroLED 1200B1 Bi-Color Studio LED Light by Genaray employs 1200 LEDs for output that's variable from 3200-5600K for matching other fixtures or ambient light conditions while maintaining a high CRI/TLCI of 95 indicating faithful and accurate rendition of color. Light intensity is variable from 100-10%. Both functions are adjustable locally on the fixture or remotely at distances up to 65' with the included wireless remote control. Settings are displayed on the light's back panel LCD screen. The SpectroLED 1200B1 has a yoke that permits tilting when stand mounting with its 5/8" receiver. The receiver also has side access to offer a more horizontal mount that allows for an expanded tilt range without the barndoors being impeded by the light stand. The receiver offers an additional benefit accessed by removing the tightening knob which converts the receiver to a 1-1/8" pin for stands with a Junior receiver.The fixture is ready for worldwide use thanks to its included multi-voltage 100-240 VAC adapter but you can also take advantage of the light's V-Mount battery plate to operate the light on optional batteries when mains power is unavailable. Optional accessories include removable 4-way barndoors that limit spill light and allow you to further control the light's tight 45-degree beam spread. The barndoors have removable textured inserts that ensure maximum output while lending a slightly specular, snappy quality of light. Remove the inserts if you prefer a softer look. - Adjustable Color Temperature
- Color is adjustable from 3200K-5600K or anywhere in between in 100K increments.
- Dimming
- The SpectroLED 1200B1 is conveniently dimmable from 100-10% and can be adjusted by 1% increments to ensure the ideal light level for your requirements.
- High CRI/TLCI
- The high CRI/TLCI rating of 95 indicates faithful and accurate color rendering.
- Flicker-Free Output
- Flicker-free output allows you to shoot at a high frame rate for slow motion.
- Power Options

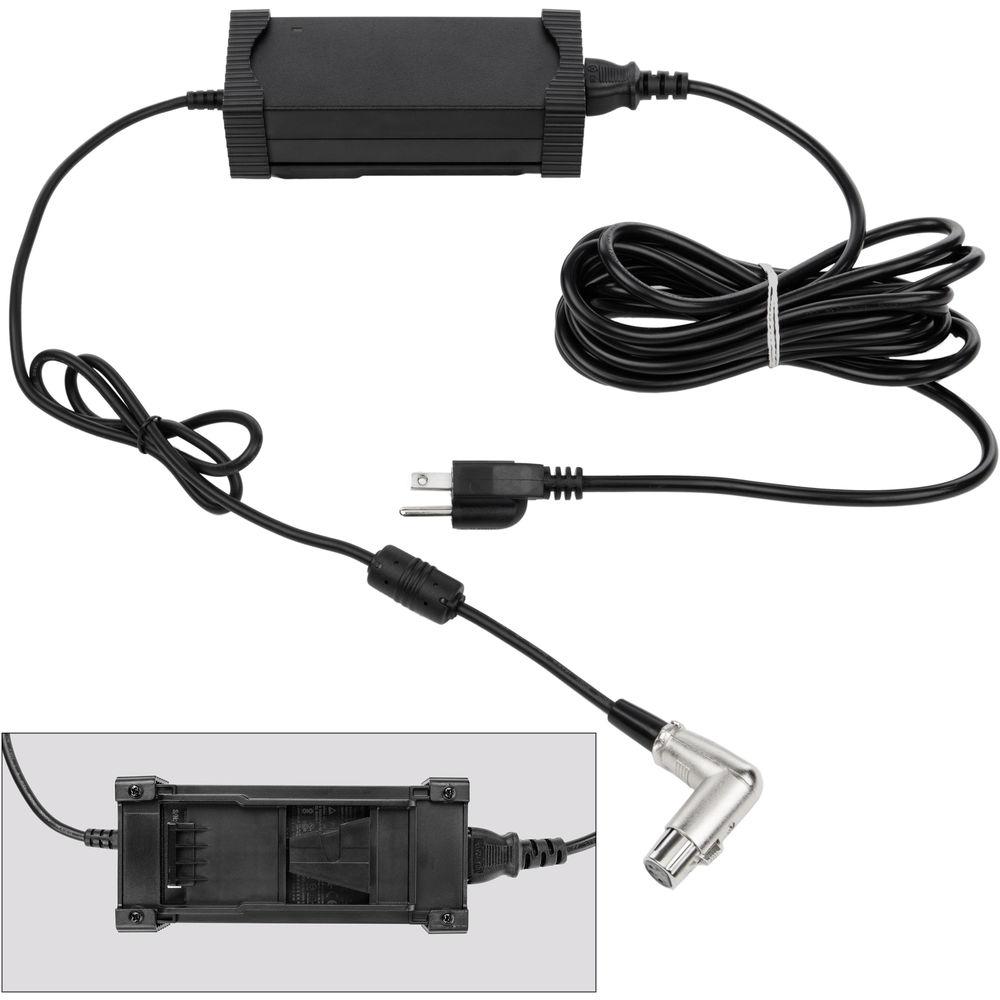

- The SpectroLED 1200B1 runs on the included multi-voltage 100-240 VAC power supply or on optional V-Mount batteries when mains power is unavailable.
- Remote Control
- Adjust both color temperature and light intensity from distances up to 65' with the included wireless remote control.
- Mounting

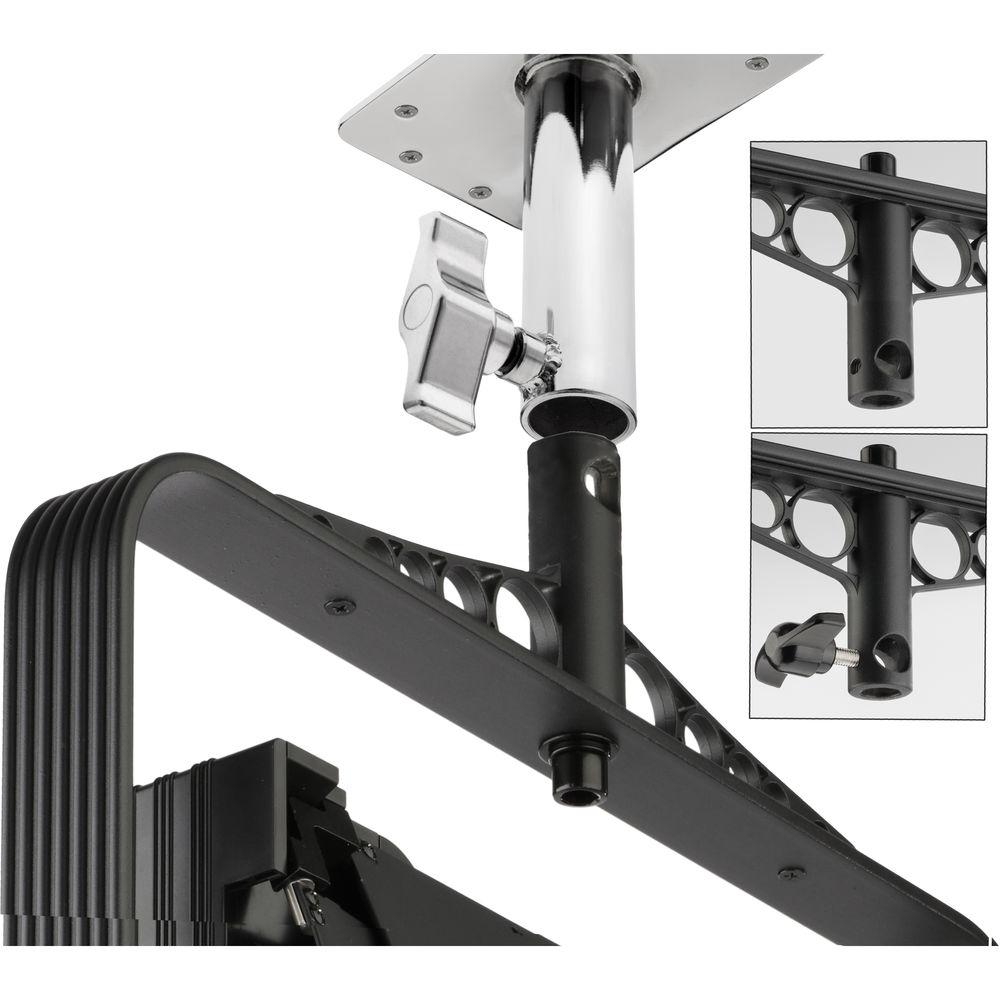

- The SpectroLED 1200B1 has a combination 5/8" receiver / 1-1/8" pin for stand mounting.
- Optional Barndoors
- The optional 4-way barndoors have textured silver inserts for enhanced output that can be removed for a softer look. The barndoors provide control of the light's tight 45-degree spread.

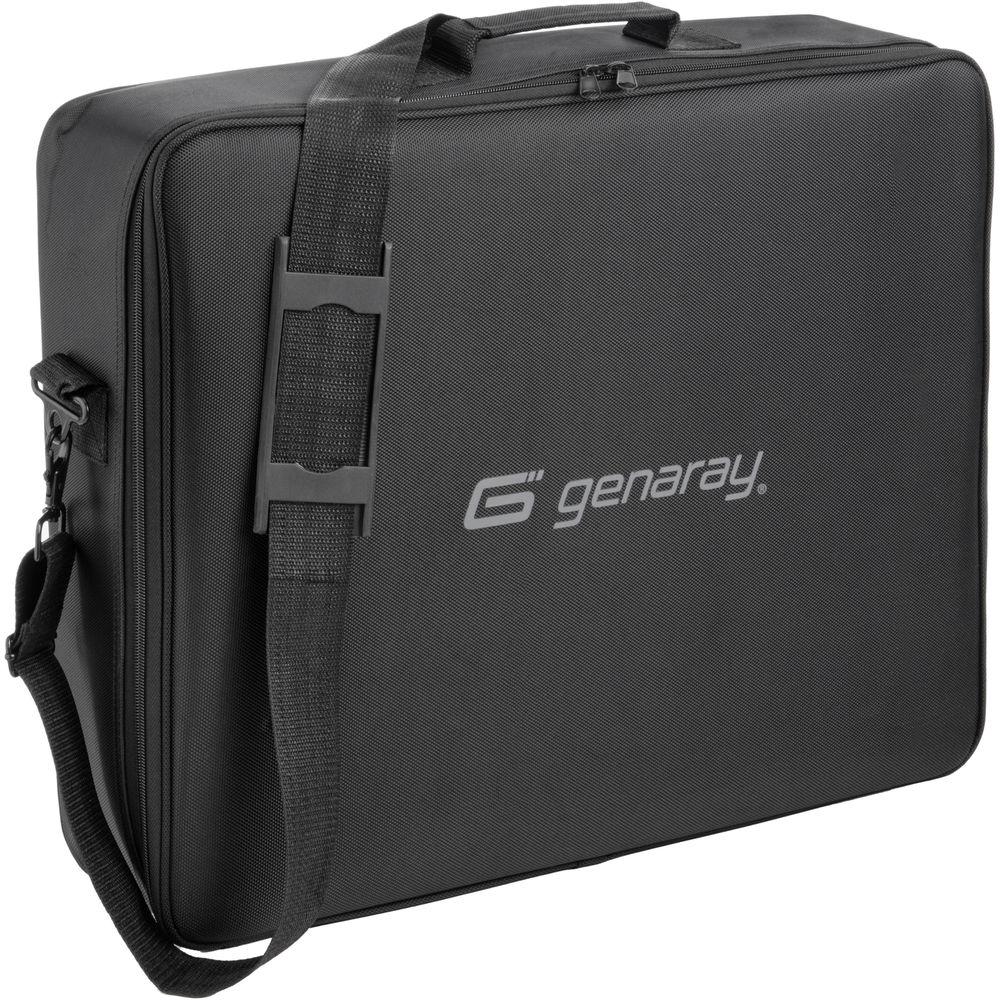

UPC: 847628012905 In the Box Genaray SpectroLED 1200B1 Bi-Color Studio LED Light Yoke Wireless Remote Control 23A 12V Battery for Remote Diffusion Filter AC Power Adapter Power Cord Carry Case Limited 1-Year Warranty User Manual PDF 1.5mbstecbrxszcussf Table of Contents
|
Upload User Manual
Have you got an user manual for the Genaray SpectroLED 1200B1 Bi-Color Studio LED Light in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersGenaray 1200B1 Specs | | | Beam Angle | 45° | | Color Temperature | 3200 to 5600K ± 150K (with 300K Shift over Lifetime) | | Color Accuracy Standard | CRI 95 at 5600K
TLCI 95 at 5600K | | Cooling System | Passive | | Dimming | Yes, 100 to 10% (Continuous) | | Display | LCD | | Photometrics | 45° at 5600K:
321.1 fc / 3456 lux at 3' / 0.91 m
45° at 4400K:
711 fc / 7653 lux at 3' / 0.91 m
45° at 3200K:
426.6 fc / 4592 lux at 3' / 0.91 m | | Number of LEDs | 1200 | | Rectangular Panel Size | 13.9 x 12.7" / 35.31 x 32.26 cm | | Fixture Dimensions | 18.5 x 15.2 x 3.0" / 47.0 x 38.7 x 7.6 cm (Including Yoke) | | Fixture Weight | 9 lb / 4.08 kg (Including Yoke, Barndoors) Weight Includes Yoke and Optional Barndoors | | | | Battery Plate | 1 x V-Mount | | Power Input Connector | 4-Pin XLR, D-Tap | | | | Fixture Mount | Combination 1-1/8" Stud and 5/8" Receiver | | | | Yoke Type | Yoke/Bracket | | Tilt | 90
