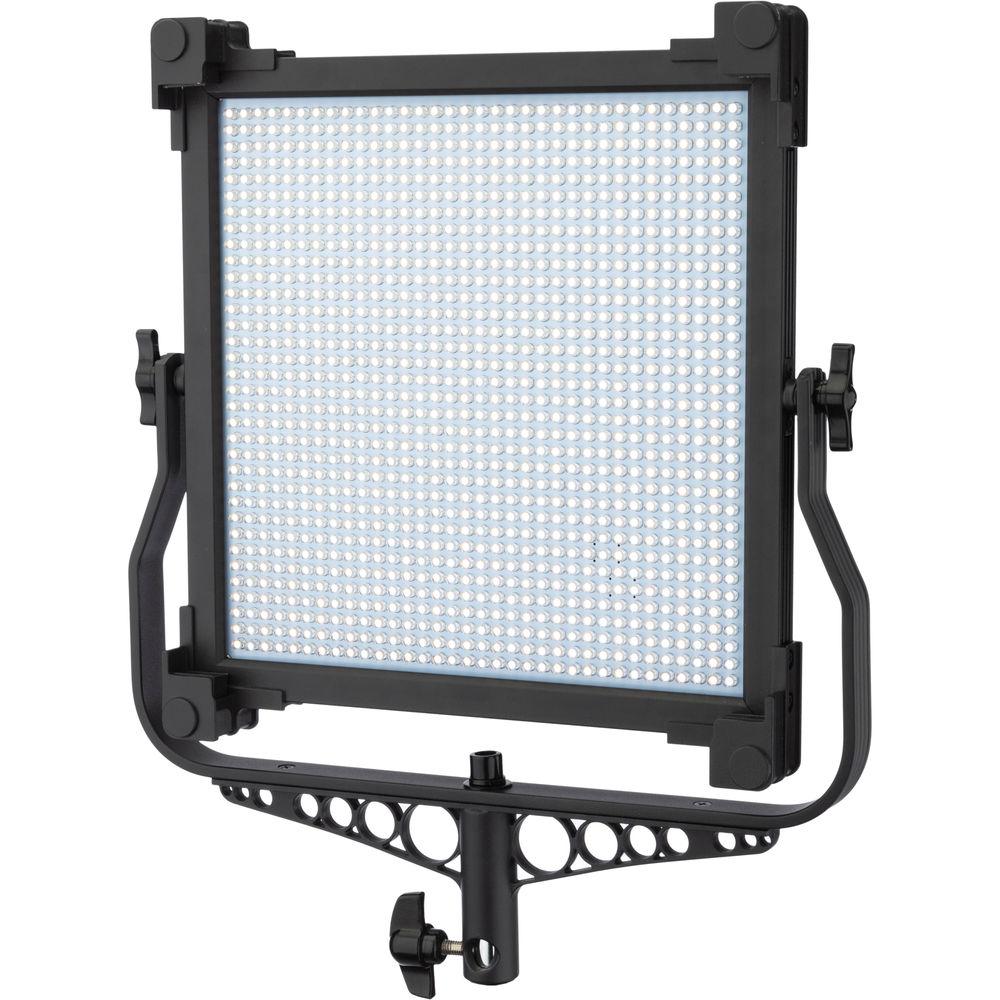

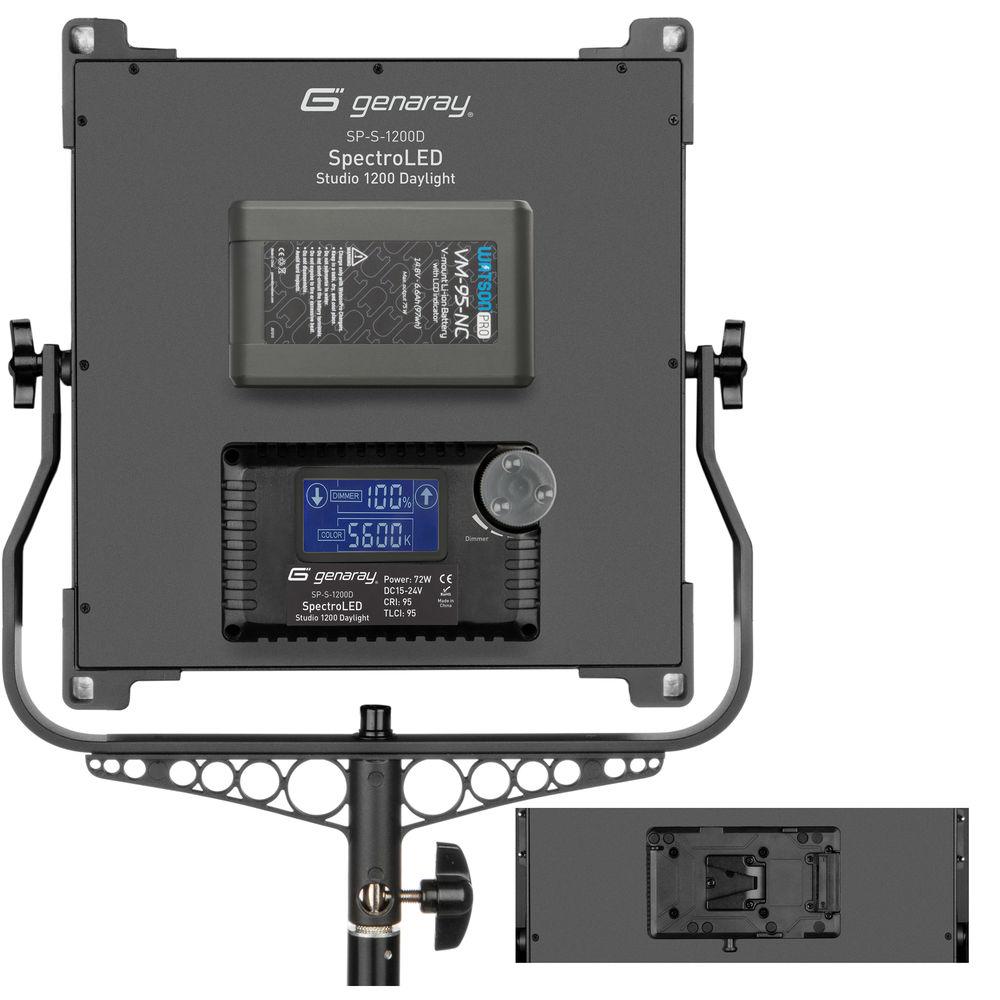

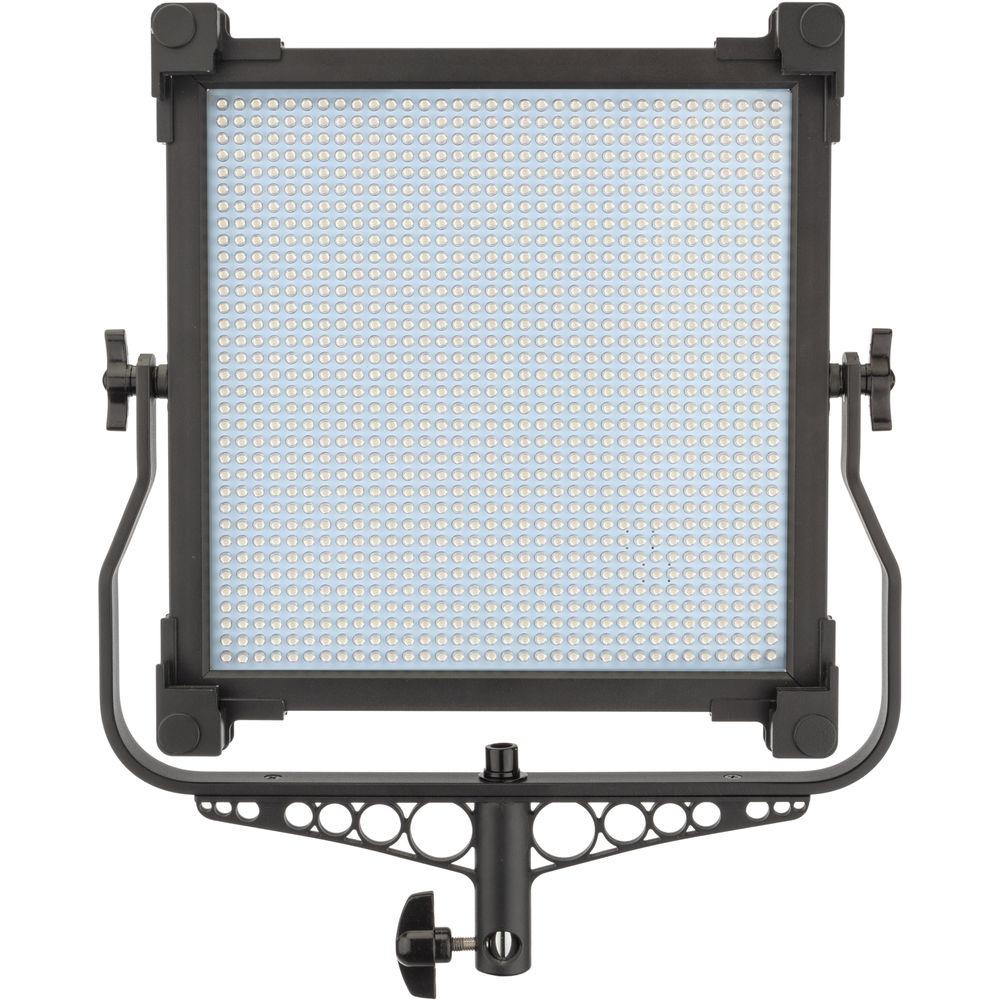

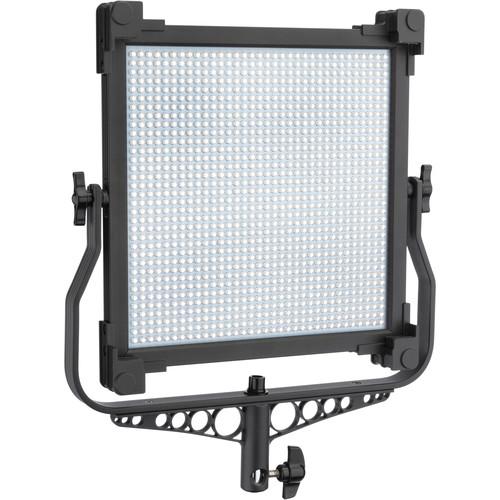

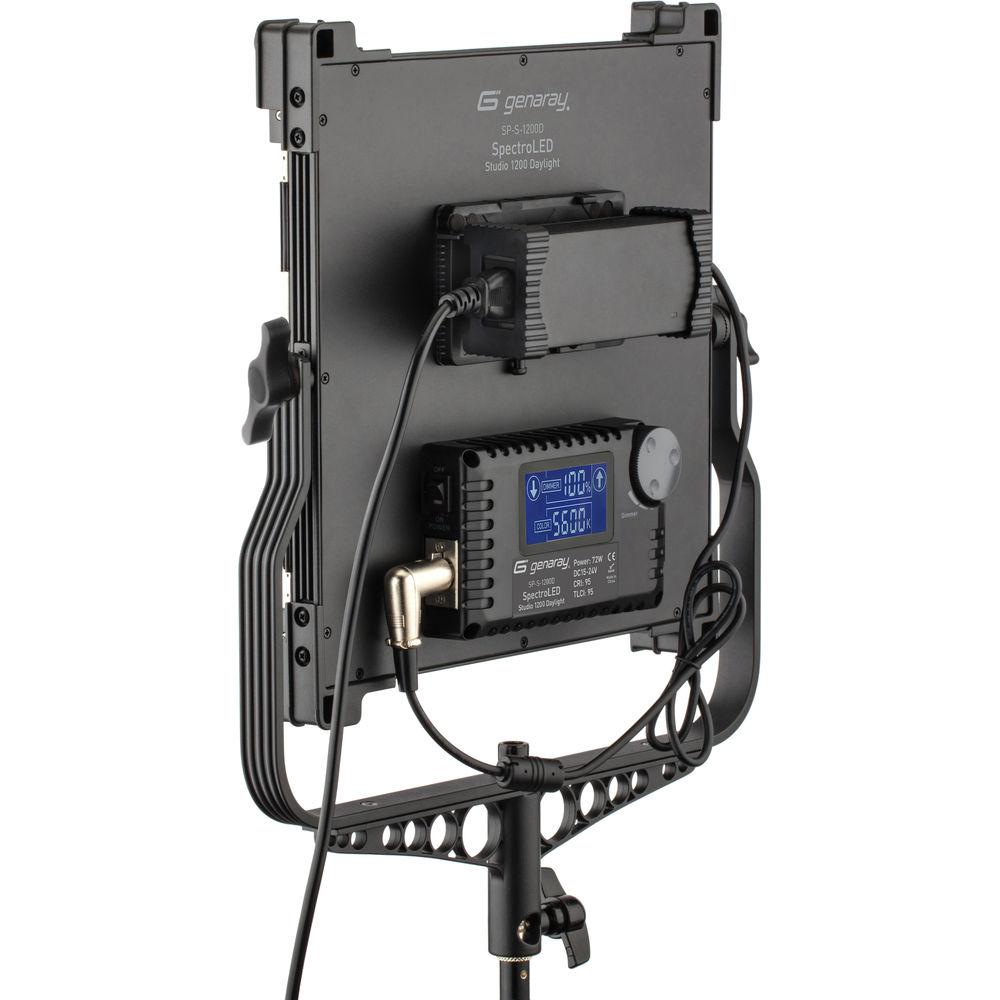

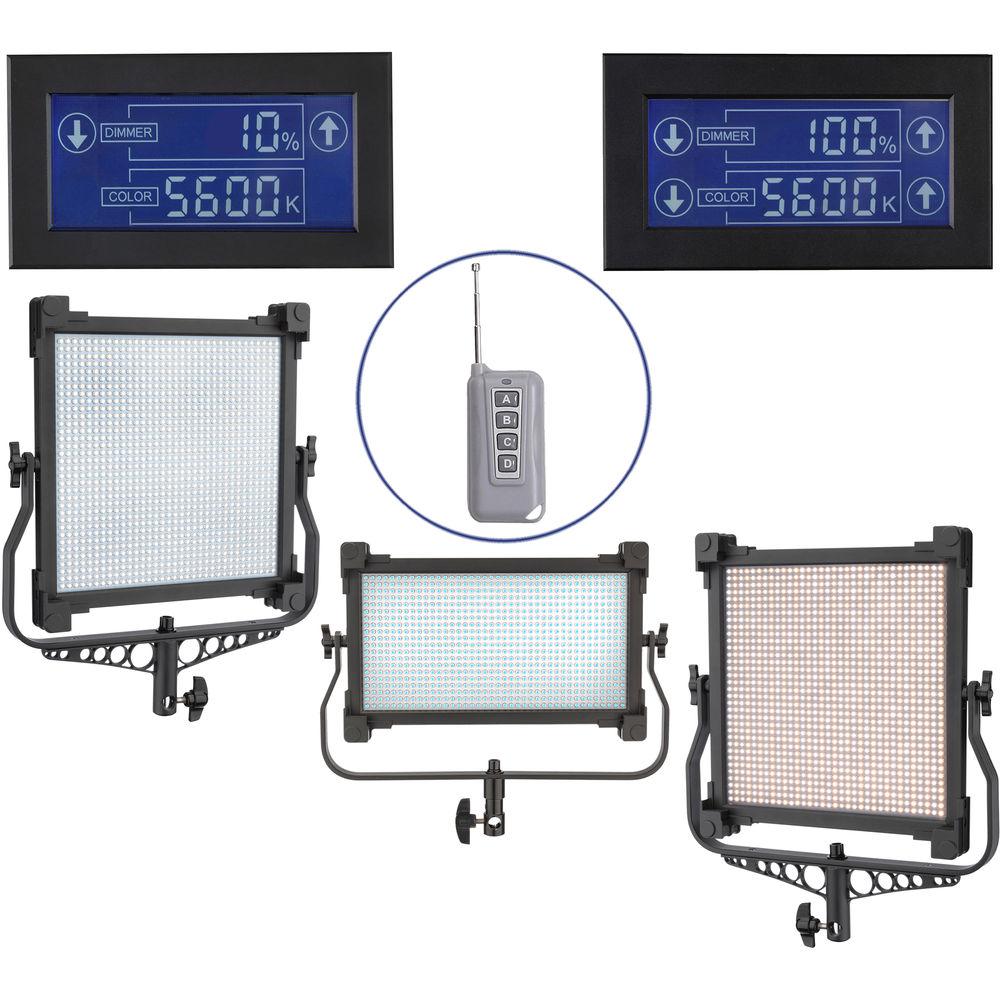

Product description An asset in the studio or on location, the 1200D1 SpectroLED Daylight Studio LED Light by Genaray employs 1200 LEDs for output that's 5600K-balanced for daylight shooting or to match other fixtures that are daylight-balanced. A high CRI/TLCI of 95 indicates faithful and accurate rendition of color. The fixture comes with a removable tungsten-conversion filter that allows you to seamlessly blend in with traditional fixtures or for shooting in venues dominated by tungsten light. Light intensity is variable from 100-10% both locally on the SpectroLED 1200D1, or remotely at distances up to 65' with the included wireless remote control. Settings are displayed on the light's back panel LCD screen. The SpectroLED 1200D1 has a yoke that permits tilting when stand mounting with its 5/8" and 1-1/8" combo receiver/pin. The receiver offers an additional benefit accessed by removing the tightening knob which converts the receiver to a 1-1/8" pin for stands with a Junior receiver. The fixture is ready for worldwide use thanks to its included multi-voltage 100-240 VAC adapter but you can also take advantage of the light's V-Mount battery plate to operate the light on optional batteries when mains power is unavailable. Optional accessories include 4-way barndoors that limit spill light and allow you to further control the light's tight 45-degree beam spread. The barndoors have gel clips and removable textured inserts that ensure maximum output while lending a slightly specular, snappy quality of light. Remove the inserts if you prefer a softer look. - Daylight Color Temperature

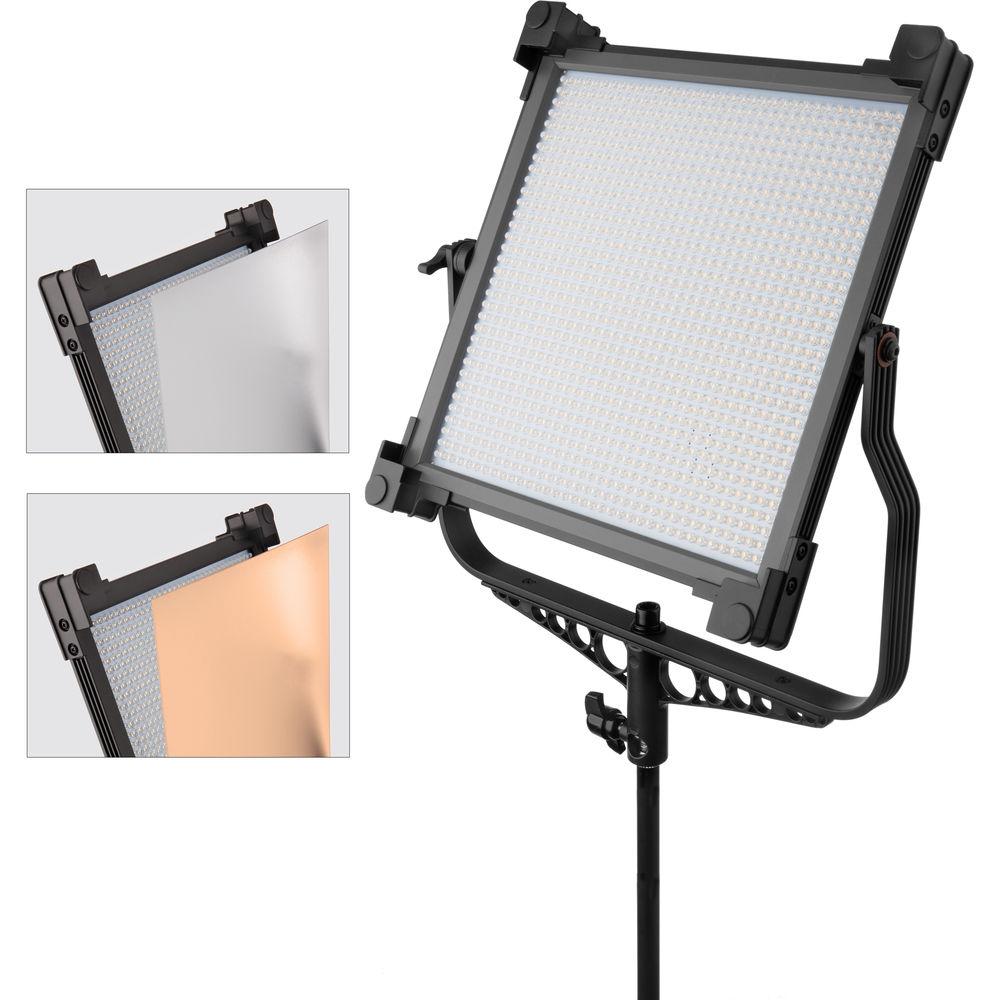

- With a color temperature of 5600K, the 1200D1 blends in seamlessly in daylight venues or with other daylight-balanced fixtures. A tungsten conversion filter is provided to match situations with warm color temperature or just for creative use.
- Dimming
- The SpectroLED 1200D1 is conveniently dimmable from 100-10% to ensure the preferred light level for your requirements.
- High CRI/TLCI
- The high CRI/TLCI rating of 95 indicates faithful and accurate color rendering.
- Flicker-Free Output
- Flicker-free output allows you to shoot at a high frame rate for slow motion.
- Power Options

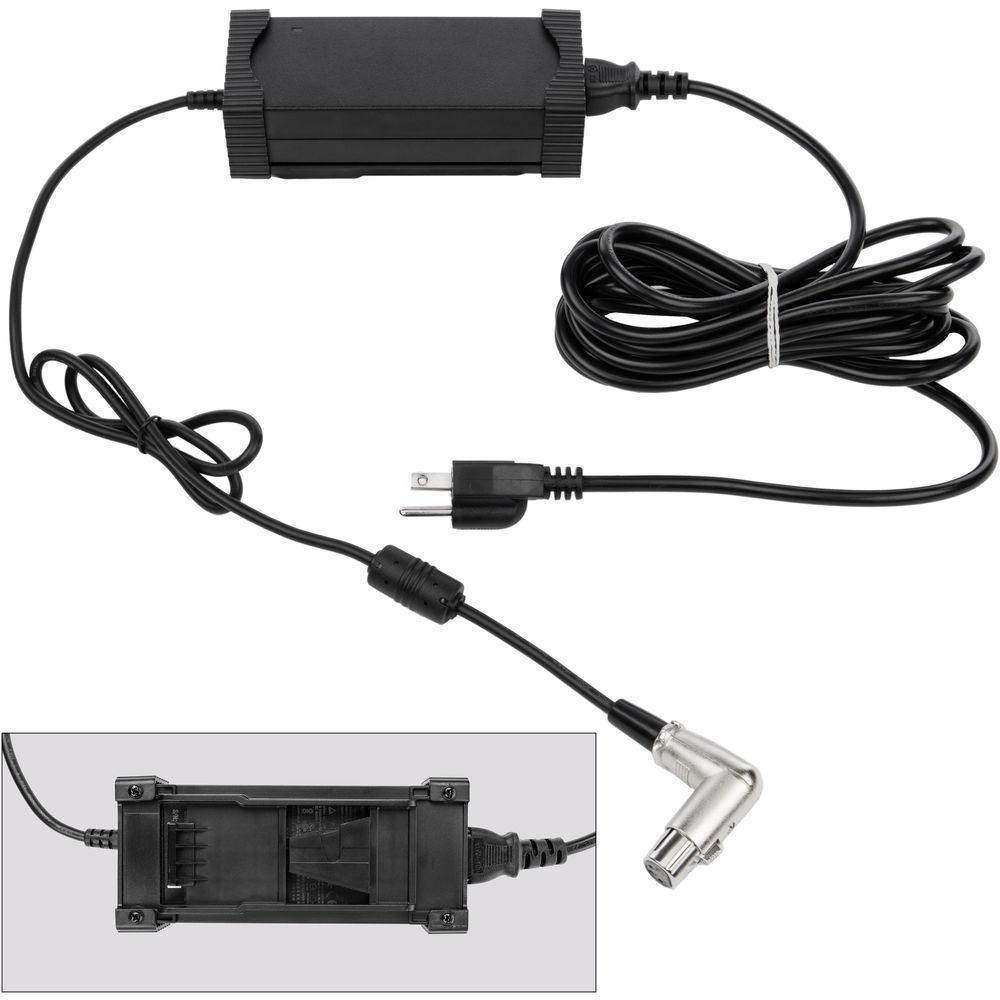

- The SpectroLED 1200D1 runs on the included multi-voltage 100-240 VAC power supply or on optional V-Mount batteries when mains power is unavailable.
- Remote Control
- Adjust light intensity from distances up to 65' with the included wireless remote control.
- Mounting

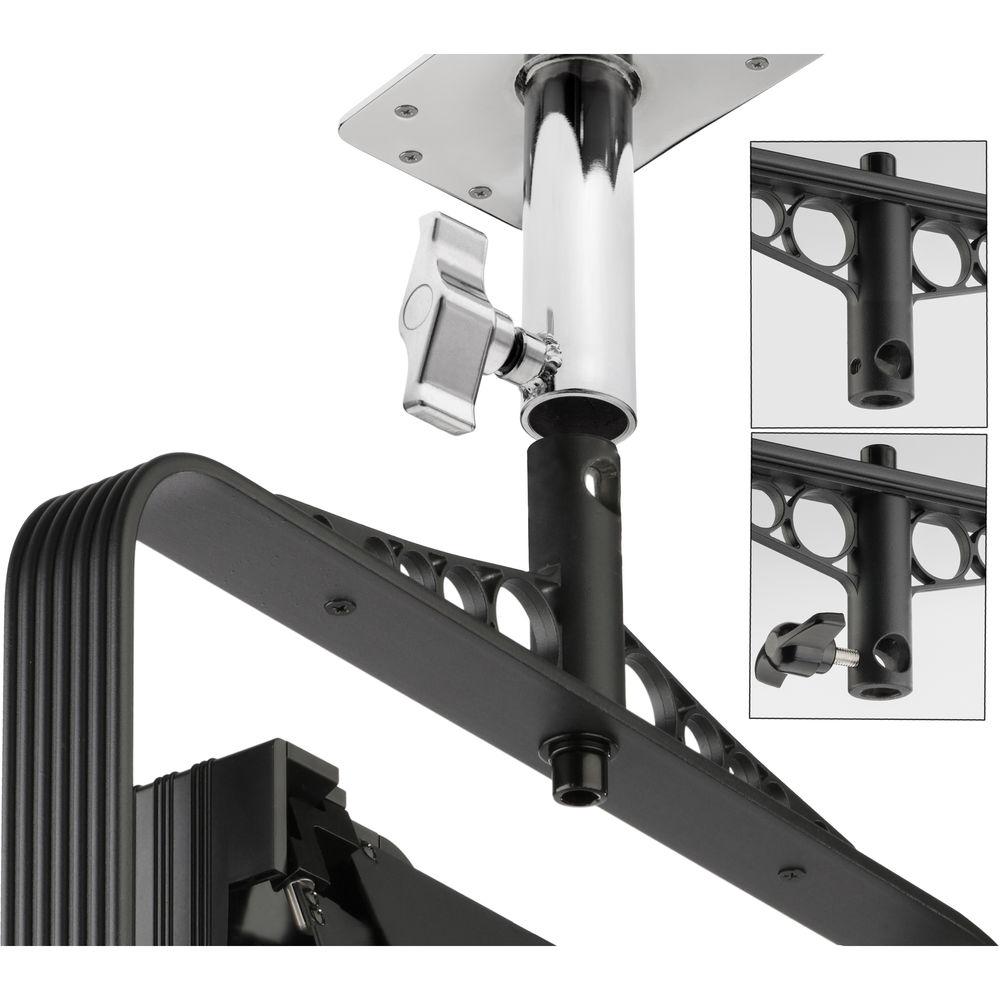

- The SpectroLED 1200D1 has a combination 5/8" receiver / 1-1/8" pin for stand mounting.
- Optional Barndoors
- The optional 4-way barndoors have textured silver inserts for enhanced output that can be removed for a softer look. The barndoors provide control of the light's tight 45-degree beam spread.

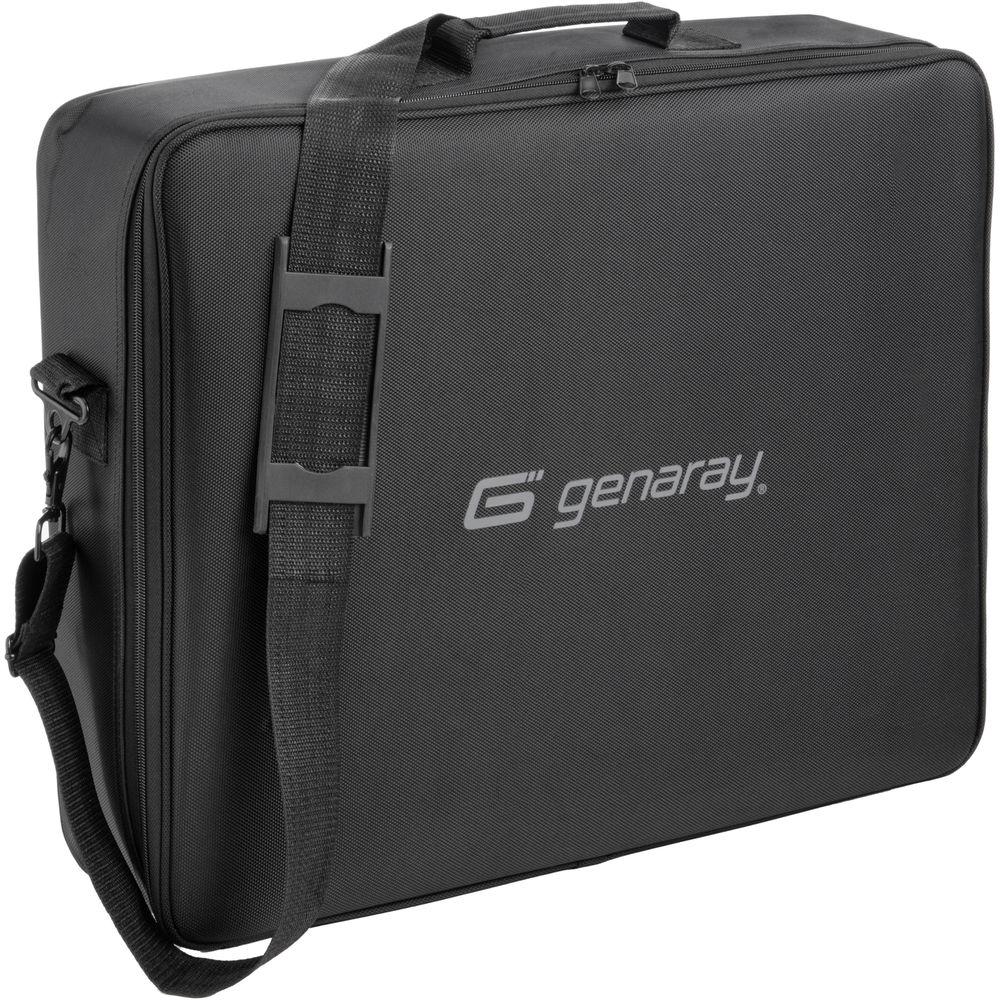

UPC: 847628012981 In the Box Genaray SpectroLED 1200D1 Daylight Studio LED Light Yoke Wireless Remote Control Diffusion Filter Tungsten Filter AC Power Adapter Power Cord Carry Case Limited 1-Year Warranty User Manual PDF 1.5mb Table of Contents
|
Upload User Manual
Have you got an user manual for the Genaray SpectroLED 1200D1 Daylight Studio LED Light in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersGenaray 1200D1 Specs | | | Beam Angle | 45° | | Color Temperature | 5600K | | Color Temperature with Included Filter | 3200K | | Color Accuracy Standard | CRI 95 at 5600K
TLCI 95 at 5600K | | Cooling System | Passive | | Dimming | Yes, 100 to 10% (Continuous) | | Display | LCD | | Photometrics | 45° at 5600K:
892.3 fc / 9605 lux at 3' / 0.91 m | | Number of LEDs | 1200 (Daylight) | | Rectangular Panel Size | 13.9 x 12.7" / 35.31 x 32.26 cm | | Fixture Dimensions | 18.5 x 15.2 x 3.0" / 47.0 x 38.7 x 7.6 cm (Including Yoke) | | Fixture Weight | 9 lb / 4.08 kg (Including Yoke, Barndoors) Weight Includes Yoke and Optional Barndoors | | | | Battery Plate | 1 x V-Mount | | Power Input Connector | 4-Pin XLR, D-Tap | | | | Fixture Mount | Combination 1-1/8" Stud and 5/8" Receiver | | Accessory Mount | None | | | | Yoke Type | Yoke/Bracket | | Tilt | 90
