Product description - The Genaray SP-AD120 SpectroLED-14 Flood Light

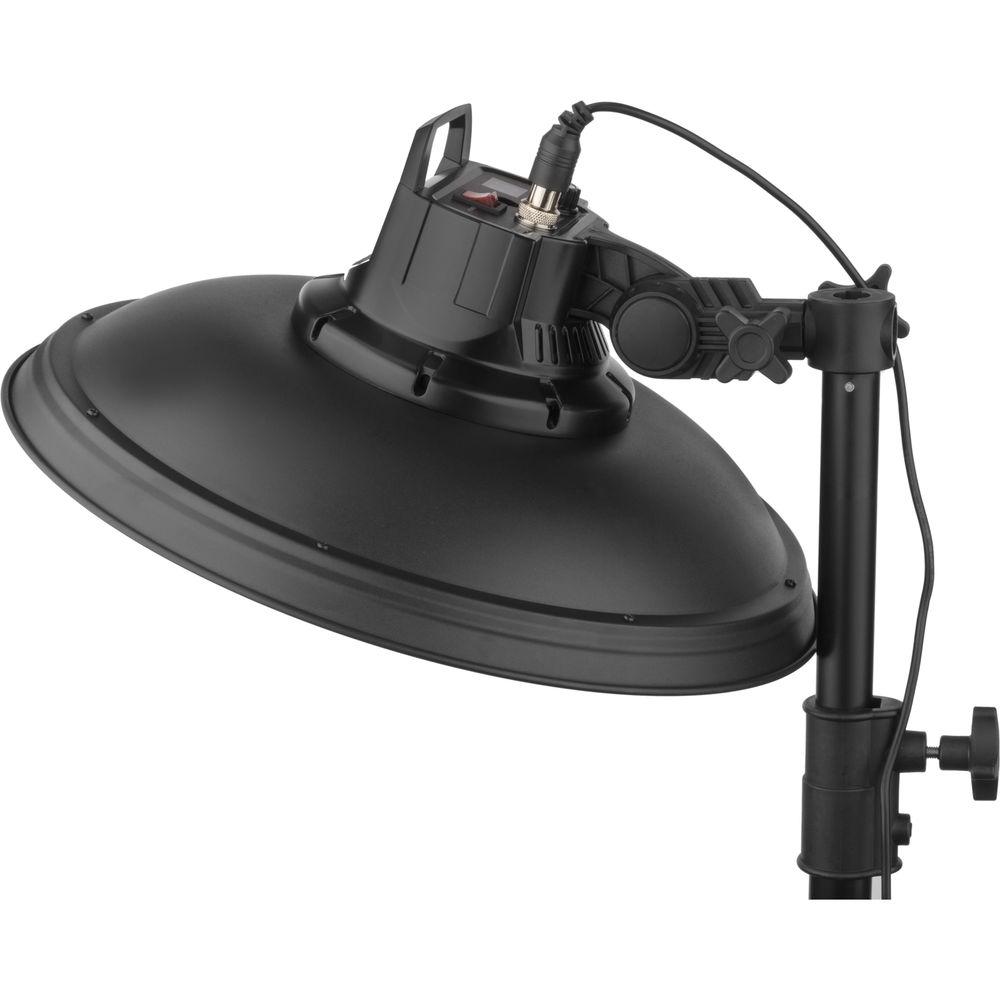

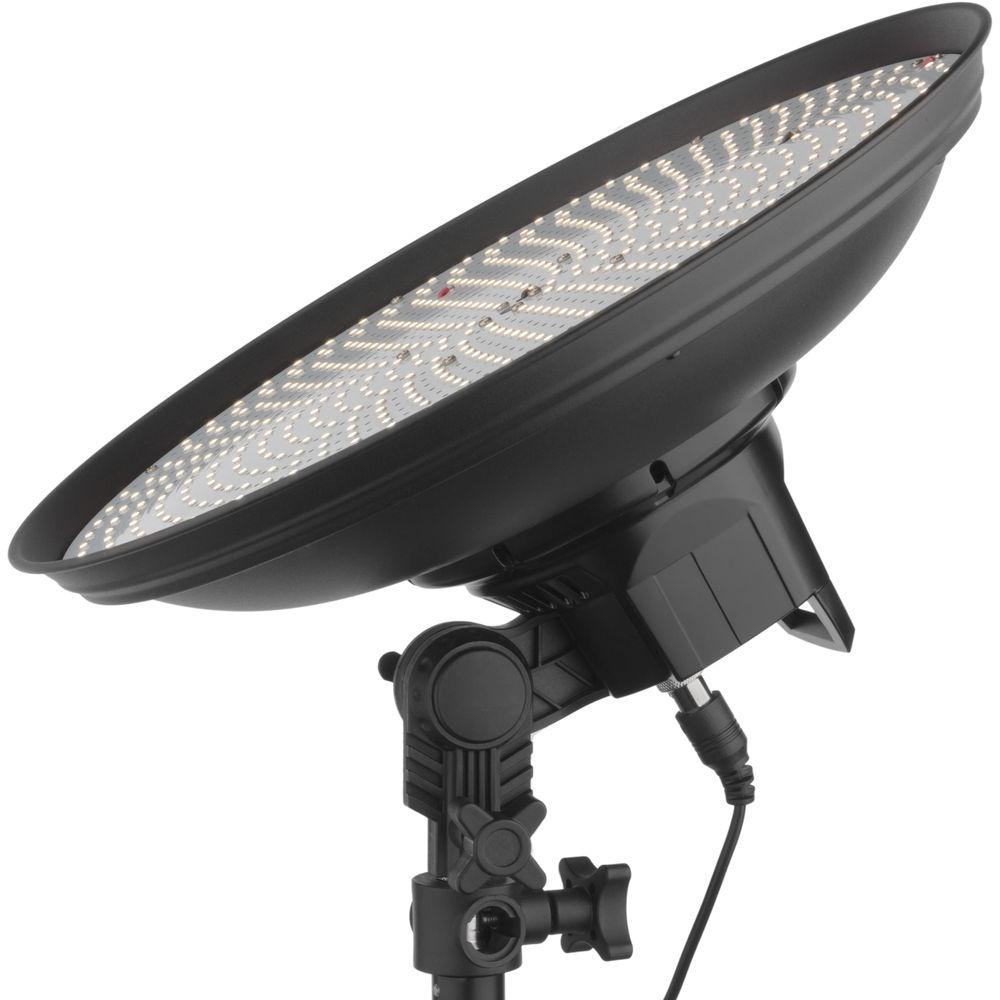

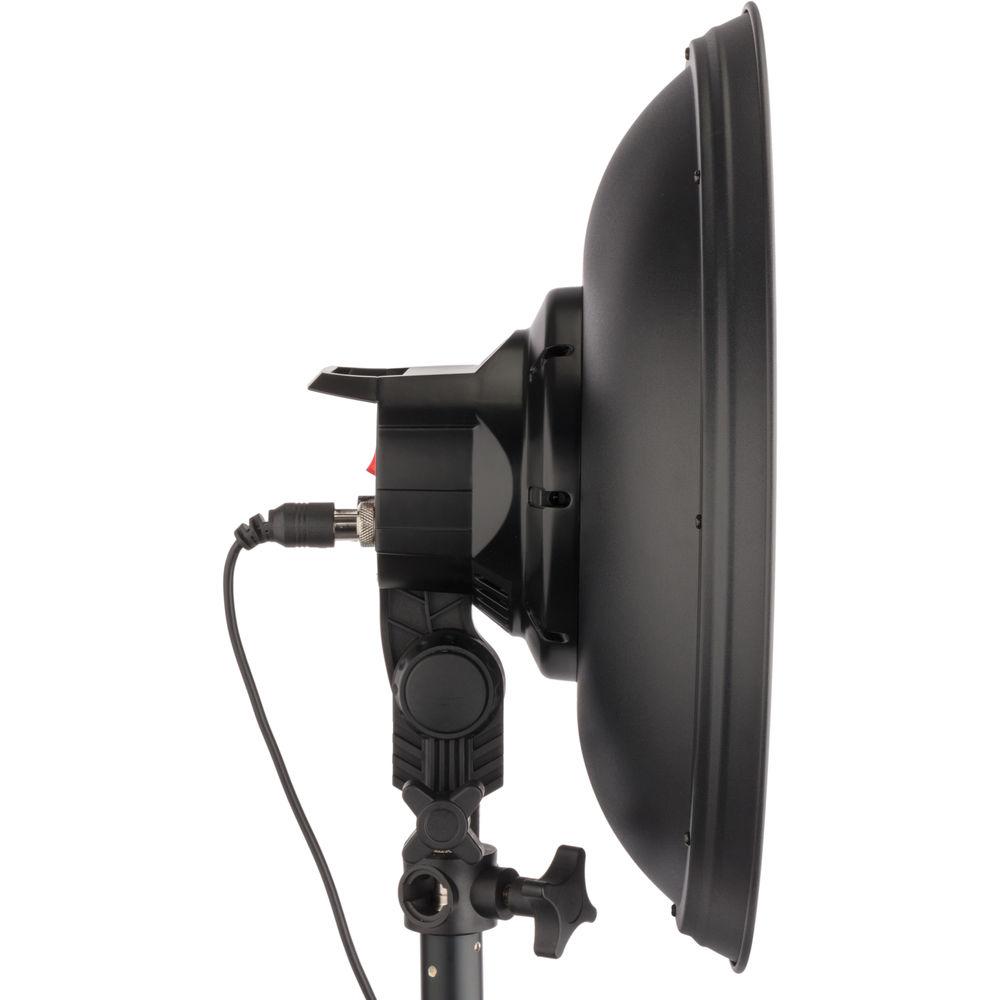

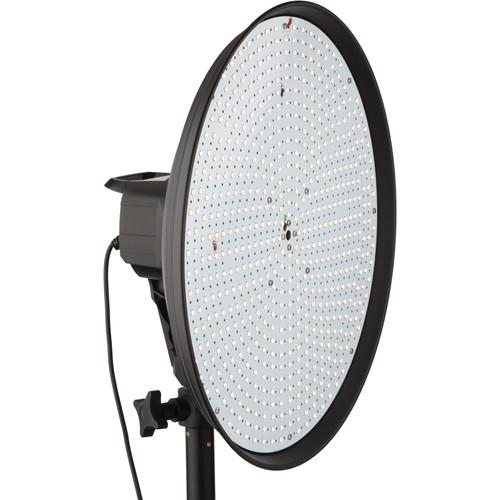

With a beam angle of 120°, the SpectroLED-14 Flood Light from Genaray is composed of a daylight-balanced fixture equipped with 600 LEDs. The round 14.5" light provides 10-100% dimming with a maximum power output of 120W, featuring a high CRI rating of 96 that helps ensure color accuracy regardless of your subject or dimming settings.In a field dominated by rectangular or square arrays, Genaray has made the wise choice of making their studio lights circular. Not only does the increased surface area have more wrap-around light characteristics but the shape renders pleasing, natural-looking catchlights in your subject's eyes. And if you're doing portraiture, you can soften the SpectroLED-14's output by slipping the included 3/4 stop diffusion sock over the reflector or with an optional Octa softbox that is specifically designed for this product. Heat is never a concern since the cool-running LEDs are barely warm to the touch.Another way to soften the quality of light is to use the umbrella socket that is built into the mount. You can use reflective or translucent umbrellas for bounce or shoot-through effects. The socket accepts 7 or 8 mm shafts and the mount has a 65-degree tilting range for perfect placement.Power is provided by an included multi-voltage power supply and adapter that accepts 100-240 VAC. You can also choose to power the light with an optional V-mount battery or three-stud batteries thanks to a D-tap slot in the back of the fixture. Also located at the back is a dimming knob for on-board control, complete with an LED readout for the brightness. The light mounts to any compatible 5/8" baby pin stand and can be paired with an optional Genaray MB-WRT remote for easy wireless operation. -
- Round, 14.5" LED fixture with daylight color temperature of 5600K and high CRI of 96

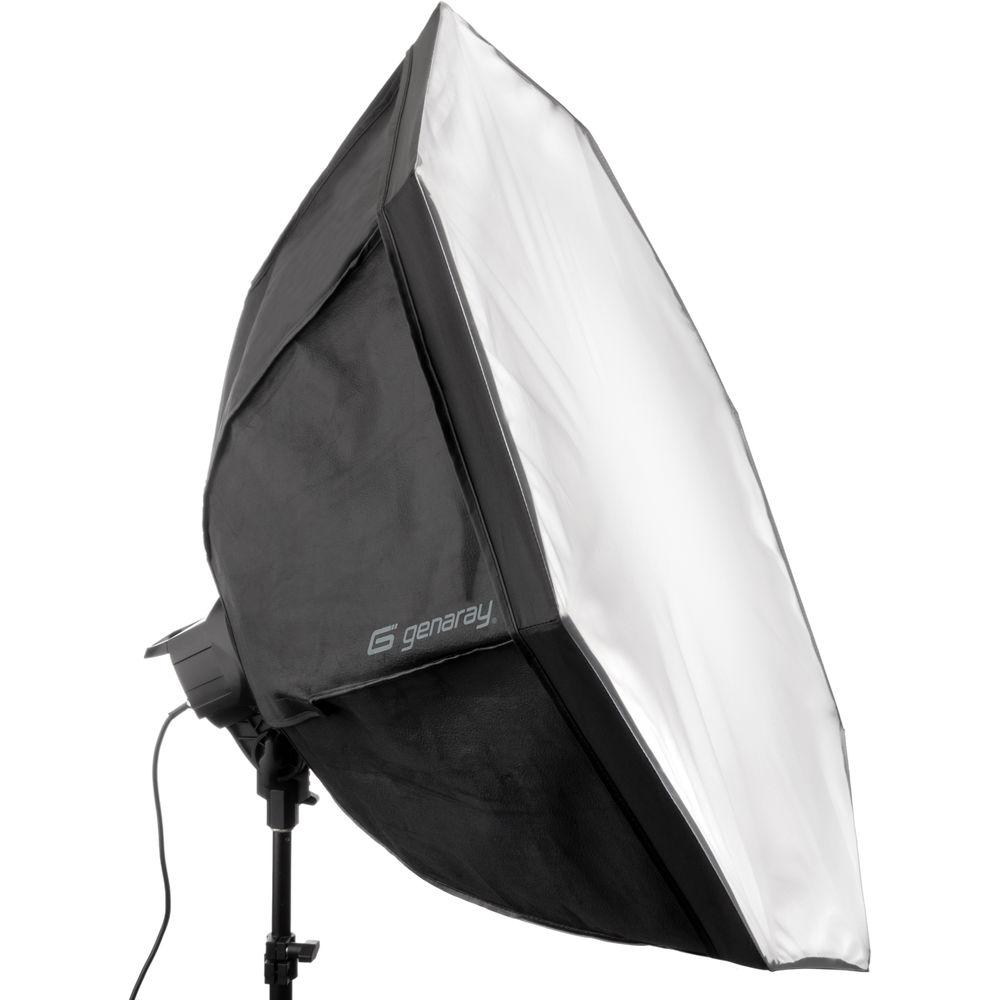

- Wide beam angle of 120° allows the light to pair with an optional Octa softbox for soft and even illumination

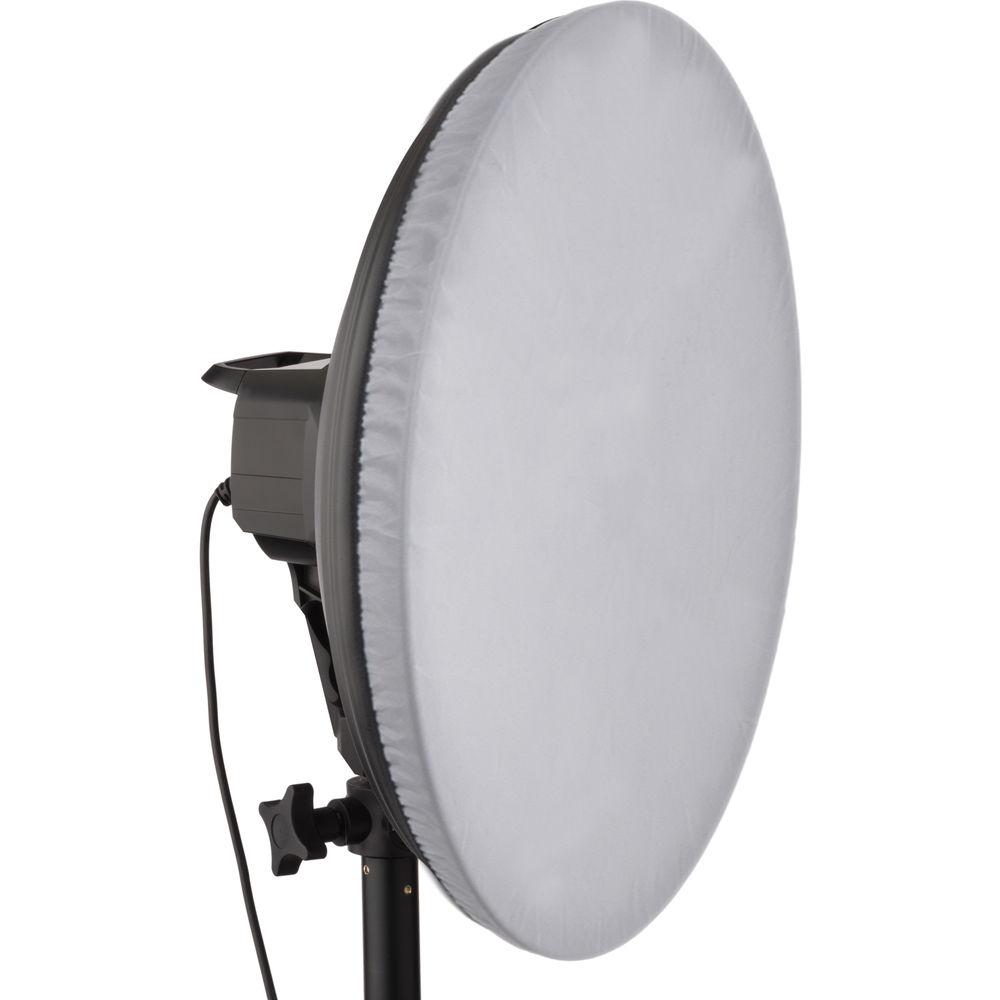

- Accepts an included 3/4 diffusion sock that goes over the reflector and optional umbrellas via a dedicated socket

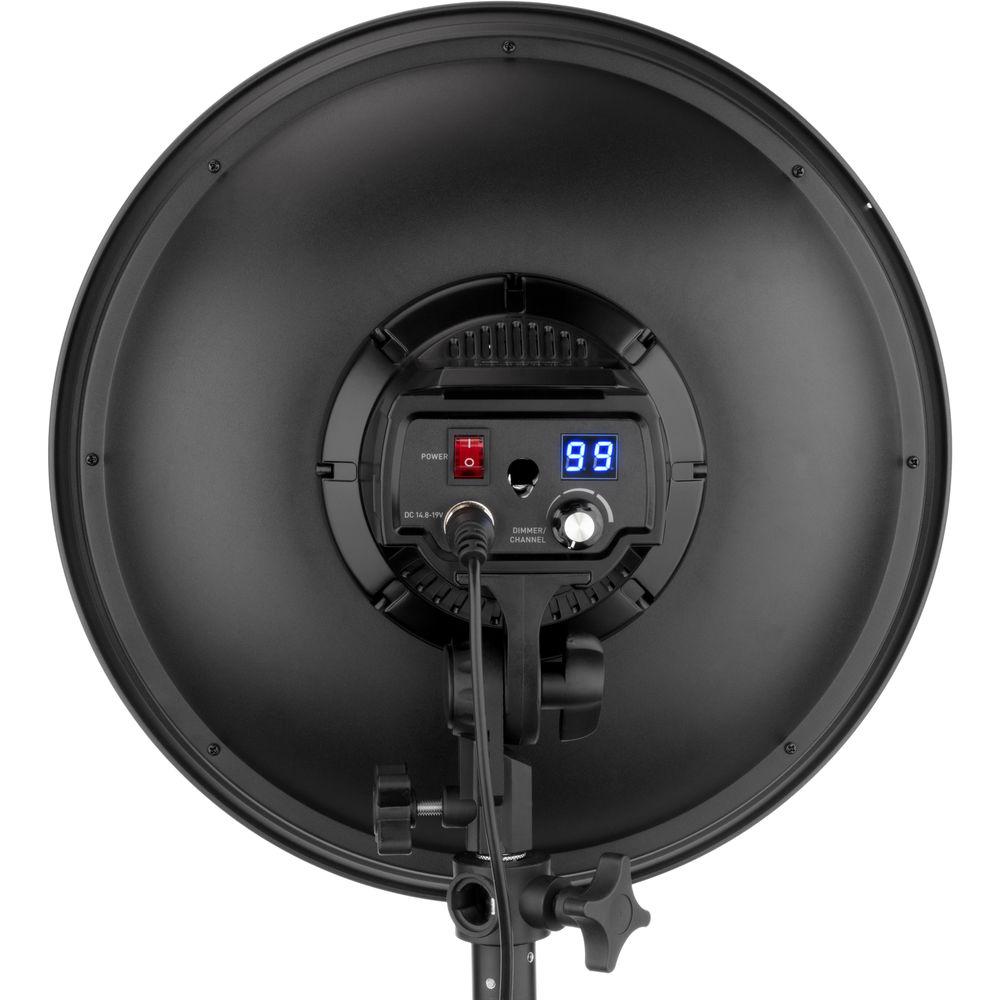

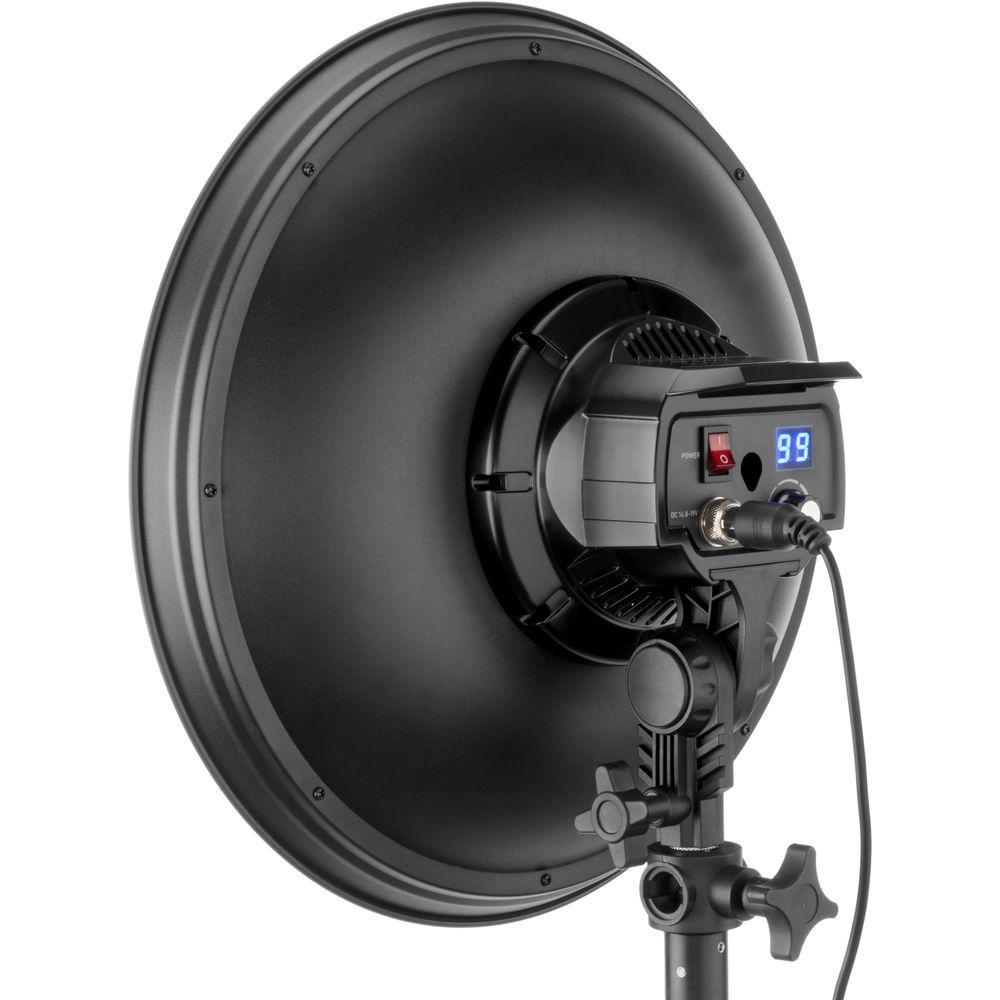

- Can be dimmed from 10 to 100% with on-board control knob, complete with LED readout for viewing brightness setting
- Wireless dimming possible with optional Genaray MB-WRT remote

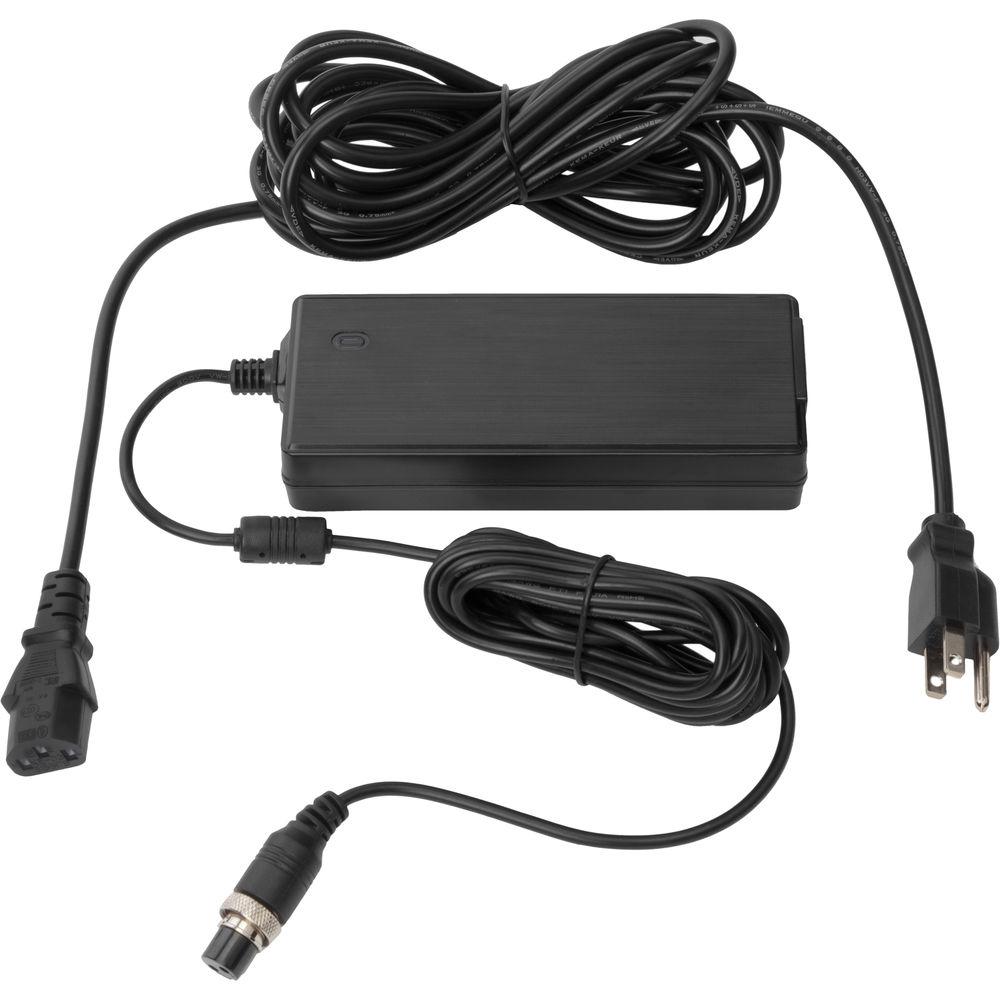

- Runs on 100-240 VAC power with included adapter, or on optional batteries via D-tap connection
- Mounts to any compatible light stand with standard 5/8" baby pin
UPC: 855193007202 In the Box Genaray SpectroLED-14 Flood LED Light Diffuser Cap 3/4 Stop Diffusion Sock Power Cord AC Adapter Limited 1-Year Warranty User Manual PDF 572.6kb Table of Contents
|
Upload User Manual
Have you got an user manual for the Genaray SpectroLED-14 Flood LED Light in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersGenaray SpectroLED 14 Specs | | | Beam Angle | 120° | | Color Temperature | 5600K | | Color Accuracy Standard | CRI 96
TLCI 92 | | Cooling System | Passive | | Dimming | Yes, 10 to 100% (Stepped) | | Display | None | | Housing Material | ABS Plastic | | Photometrics | 458.7 fc / 4938 lux at 2.99' / 0.91 m | | Number of LEDs | 600 | | Fixture Dimensions | 14.5 x 14.5 x 7.0" / 37.0 x 37.0 x 17.8 cm | | Fixture Weight | 3.5 lb / 1.59 kg | | | | Battery Plate | None | | Power Input Connector | D-Tap | | DMX Connector | None | | | | Fixture Mount | 5/8" Receiver | | Accessory Mount | None | | | | Remote Control Type | Proprietary Wireless | | Wireless Range | 98.4' / 30 m | | | | AC Input Power | 100 to 240 VAC, 50 / 60 Hz | | DC Input Power | 15 VDC at 10 A | | Power Source | AC Adapter, Cigarette Lighter Adapter, External Battery | | Max Power Consumption | 120 W | | | | Cable Length | 13.12' / 4 m | | | | Package Weight | 8.1 lb | | Box Dimensions (LxWxH) | 16.8 x 16.75 x 10.3" |
