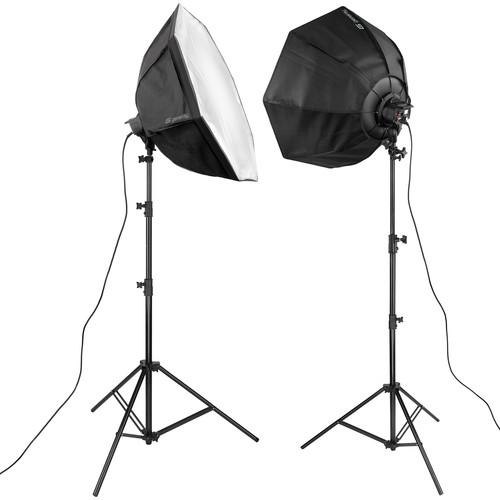

Genaray SpectroLED-14 LED Flood 2-Light Softbox

User Manual for Genaray SpectroLED-14 LED Flood 2-Light Softbox Kit

• Product category: LED Lights Genaray
• Brand: Genaray
• Description and content of package
• Technical information and basic settings
• Frequently asked questions – FAQ
• Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
• Authorized service for Genaray LED Lights

Product description

• 2 x Genaray SpectroLED-14 Flood LED Light
  • The Genaray SP-AD120 SpectroLED-14 Flood Light
  With a beam angle of 120°, the SpectroLED-14 Flood Light from Genaray is composed of a daylight-balanced fixture equipped with 600 LEDs. The round 14.5" light provides 10-100% dimming with a maximum power output of 120W, featuring a high CRI rating of 96 that helps ensure color accuracy regardless of your subject or dimming settings.In a field dominated by rectangular or square arrays, Genaray has made the wise choice of making their studio lights circular. Not only does the increased surface area have more wrap-around light characteristics but the shape renders pleasing, natural-looking catchlights in your subject's eyes. And if you're doing portraiture, you can soften the SpectroLED-14's output by slipping the included 3/4 stop diffusion sock over the reflector or with an optional Octa softbox that is specifically designed for this product. Heat is never a concern since the cool-running LEDs are barely warm to the touch.Another way to soften the quality of light is to use the umbrella socket that is built into the mount. You can use reflective or translucent umbrellas for bounce or shoot-through effects. The socket accepts 7 or 8 mm shafts and the mount has a 65-degree tilting range for perfect placement.Power is provided by an included multi-voltage power supply and adapter that accepts 100-240 VAC. You can also choose to power the light with an optional V-mount battery or three-stud batteries thanks to a D-tap slot in the back of the fixture. Also located at the back is a dimming knob for on-board control, complete with an LED readout for the brightness. The light mounts to any compatible 5/8" baby pin stand and can be paired with an optional Genaray MB-WRT remote for easy wireless operation.
  • • Round, 14.5" LED fixture with daylight color temperature of 5600K and high CRI of 96
    • Wide beam angle of 120° allows the light to pair with an optional Octa softbox for soft and even illumination
    • Accepts an included 3/4 diffusion sock that goes over the reflector and optional umbrellas via a dedicated socket
    • Can be dimmed from 10 to 100% with on-board control knob, complete with LED readout for viewing brightness setting
    • Wireless dimming possible with optional Genaray MB-WRT remote
    • Runs on 100-240 VAC power with included adapter, or on optional batteries via D-tap connection
    • Mounts to any compatible light stand with standard 5/8" baby pin
  UPC: 855193007202
• 2 x Genaray Octa Softbox for SpectroLED-14 Flood Light
  • The Genaray SP-AD120 SpectroLED-14 Flood Light
  Designed specifically for the SpectroLED-14 Flood light with a beam angle of 120°, this Octa Softbox from Genaray helps you achieve soft and even illumination that can be very flattering for portraits or product shots. The softbox forgoes the need for a speed ring thanks to several slots at the back of the light, which directly accept its aluminum flex rods for simple installation. It features a diameter of 31.5" and depth of 18.5" for a wide coverage that suits it well for use as a main light. The octagonal shape of this softbox produces rounded catchlights, a feature often desired for fashion or portrait photography, and its textured silver interior results in a more crisp and punchy light quality. An inner baffle and front diffuser, both removable, can be configured for the level of light diffusion desired. Included with the softbox is a carrying case for simplified transport when not in use. UPC: 855193007219
• 2 x Impact Heavy-Duty Air-Cushioned Light Stand (Black, 9.5')
  • The Genaray SP-AD120 SpectroLED-14 Flood Light
  This Impact Heavy-Duty Air-Cushioned Light Stand is a black anodized aluminum support that rises to a height of 9.5' and folds down to 42" for storage and transport. The stand will handle up to 22 lb and is topped with a removable 5/8" spigot with 1/4"-20 and 3/8"-16 threads. It has a wide footprint of 52" for greater stability. Air cushioning gently lowers the light when making height adjustments to protect equipment and fingers.
  Air-Cushioned
  • Protects equipment and fingers from damage
  Compact Design
  • Will fit easily into most location cases
  Accepts Casters
  • For easy positioning of lights
  UPC: 847628012004

• 2 x SpectroLED-14 Flood LED Light xwawfxuvavwyeevrvxbxfqfaxqexuwbe
• Diffuser Cap
• 3/4 Stop Diffusion Sock
• Power Cord
• AC Adapter
• Limited 1-Year Warranty

• 2 x Octa Softbox for SpectroLED-14 Flood Light

• 2 x Impact - Heavy-Duty Air-Cushioned Light Stand (Black, 9.5')

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

• 2 x Genaray SpectroLED-14 Flood LED Light

  Beam Angle	120°
  Color Temperature	5600K
  Color Accuracy Standard	CRI 96 TLCI 92
  Cooling System	Passive
  Dimming	Yes, 10 to 100% (Stepped)
  Display	None
  Housing Material	ABS Plastic
  Photometrics	458.7 fc / 4938 lux at 2.99' / 0.91 m
  Number of LEDs	600
  Fixture Dimensions	14.5 x 14.5 x 7.0" / 37.0 x 37.0 x 17.8 cm
  Fixture Weight	3.5 lb / 1.59 kg

  Battery Plate	None
  Power Input Connector	D-Tap
  DMX Connector	None

  Fixture Mount	5/8" Receiver
  Accessory Mount	None

  Remote Control Type	Proprietary Wireless
  Wireless Range	98.4' / 30 m

  AC Input Power	100 to 240 VAC, 50 / 60 Hz
  DC Input Power	15 VDC at 10 A
  Power Source	AC Adapter, Cigarette Lighter Adapter, External Battery
  Max Power Consumption	120 W

  Cable Length	13.12' / 4 m

  Box Dimensions (LxWxH)	16.8 x 16.75 x 10.3"

• 2 x Genaray Octa Softbox for SpectroLED-14 Flood Light

  Shape	Octagon
  Interior	Silver
  Requires Speed Ring	No
  Maximum Wattage	250 W
  Removable Front Face	Yes
  Removable Interior Baffle	Yes
  Circular Dimensions	Rating 90% users recommend this product to others. And what about you? This product has already been rated by 83 owners. Add your rating and experience with the product. Discussion Ask our technicians if you have a problem with your settings, or if anything is unclear in the user manual you have downloaded. You can make use of our moderated discussion. The discussion is public and helps other users of our website who may be encountering similar problems. The discussion is empty - enter the first post Post a new topic / query / comment: Items marked with * are required. Your name *: E-mail : Subject *: Message *: Your email address will not be displayed. Do not forget to fill it in if you want to receive a reply to your enquiry/contribution. Processing of personal data in accordance with GDPR
