User Manual for Genaray SpectroLED-14 LED Light Click to enlarge the picture
Contents of the user manual for the Genaray SpectroLED-14 LED Light
- Product category: LED Lights Genaray
- Brand: Genaray
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Genaray LED Lights
 |
User manual for the Genaray SpectroLED-14 LED Light contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Genaray product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Genaray user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Genaray product will considerably shorten its lifespan!
|
Product description - The Genaray SP-AD75 SpectroLED-14 Light

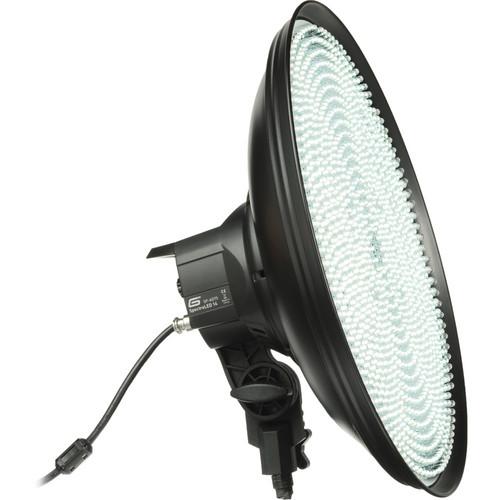

With a beam angle of 60°, the SpectroLED-14 Light from Genaray is composed of a daylight-balanced fixture equipped with 1140 LEDs. The round 14.5" light provides 10-100% dimming with a maximum power output of 75W.In a field dominated by rectangular or square arrays, Genaray has made the wise choice of making their studio lights circular. Not only does the increased surface area have more wrap-around light characteristics but the shape renders pleasing, natural-looking catchlights in your subject's eyes. And if you're doing portraiture, you can soften the SpectroLED-14's output by slipping the included 3/4 stop diffusion sock over the reflector. Heat is never a concern since the cool-running LEDs are barely warm to the touch.Another way to soften the quality of light is to use the umbrella socket that is built into the mount. You can use reflective or translucent umbrellas for bounce or shoot-through effects. The socket accepts 7 or 8 mm shafts and the mount has a 65-degree tilting range for perfect placement.Power is provided by an included multi-voltage power supply and adapter that accepts 100-240 VAC. The inclusion of a cigarette lighter adapter cord also gives you the option of using 12V batteries for convenience or location shooting. You can run the SpectroLED-14 for approximately 70 minutes on an average fully charged battery. Not only are you saving money every time you use the SpectroLED-14 due to its low current draw, but with a 50,000-hour lamp life the SpectroLED-14 is virtually maintenance-free. The light mounts to any compatible 5/8" baby pin stand and can be operated with an optional remote dimmer that connects via a 12.8' cable. -
- Round, 14.5" LED fixture with daylight color temperature of 5600K
- Beam angle of 60° for versatile use as a main or secondary light

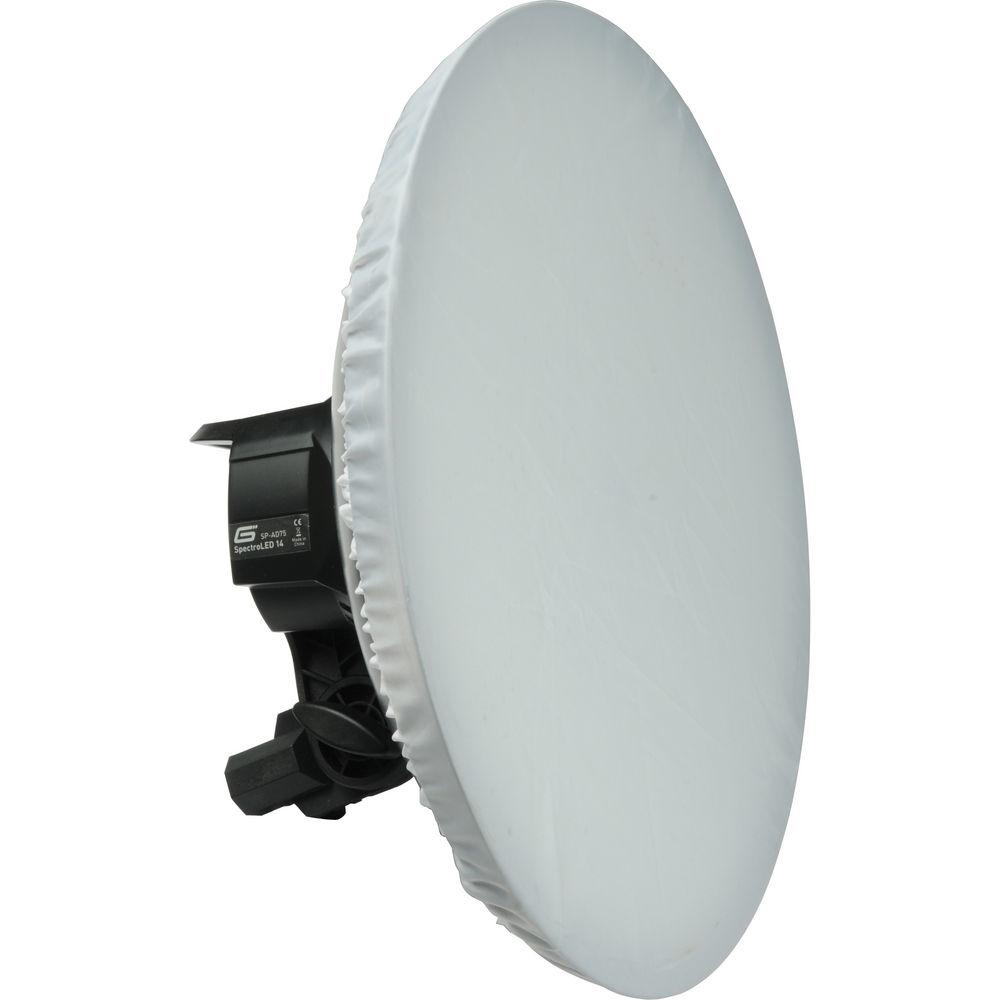

- Accepts an included 3/4 diffusion sock that goes over the reflector and optional umbrellas via a dedicated socket

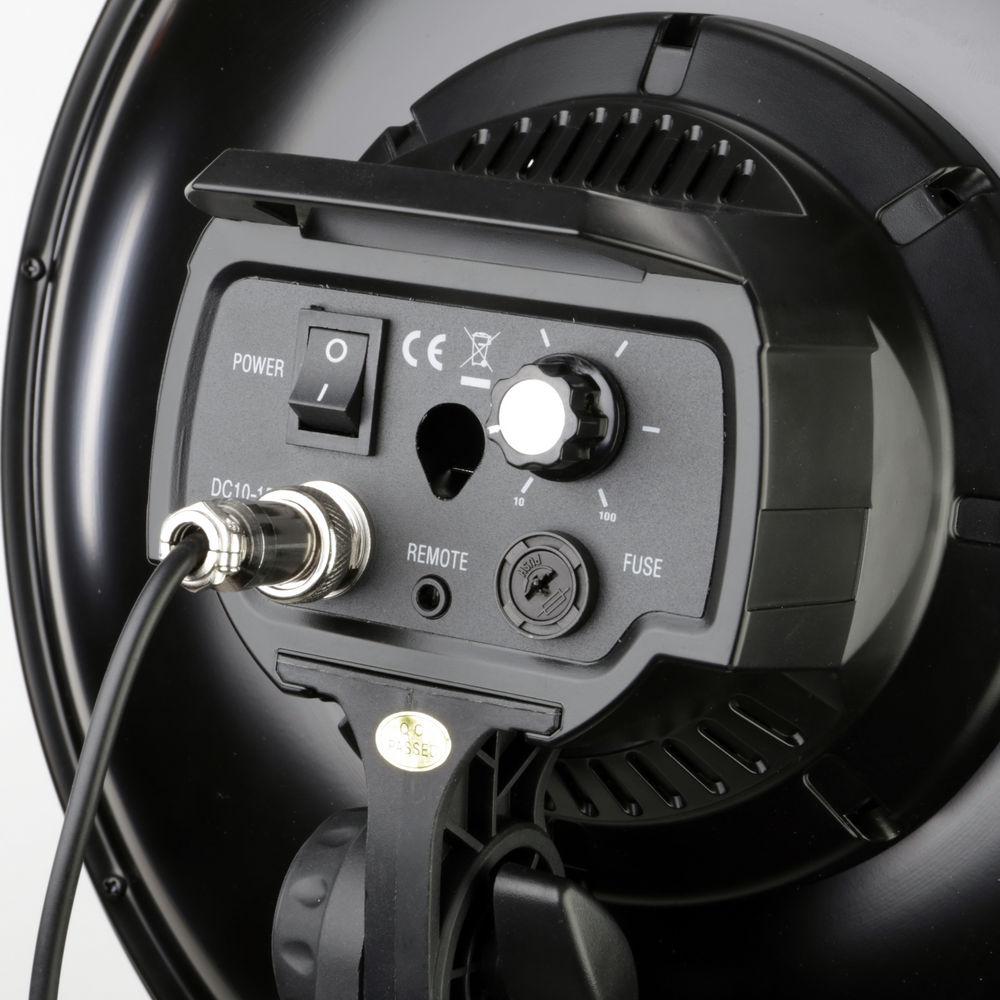

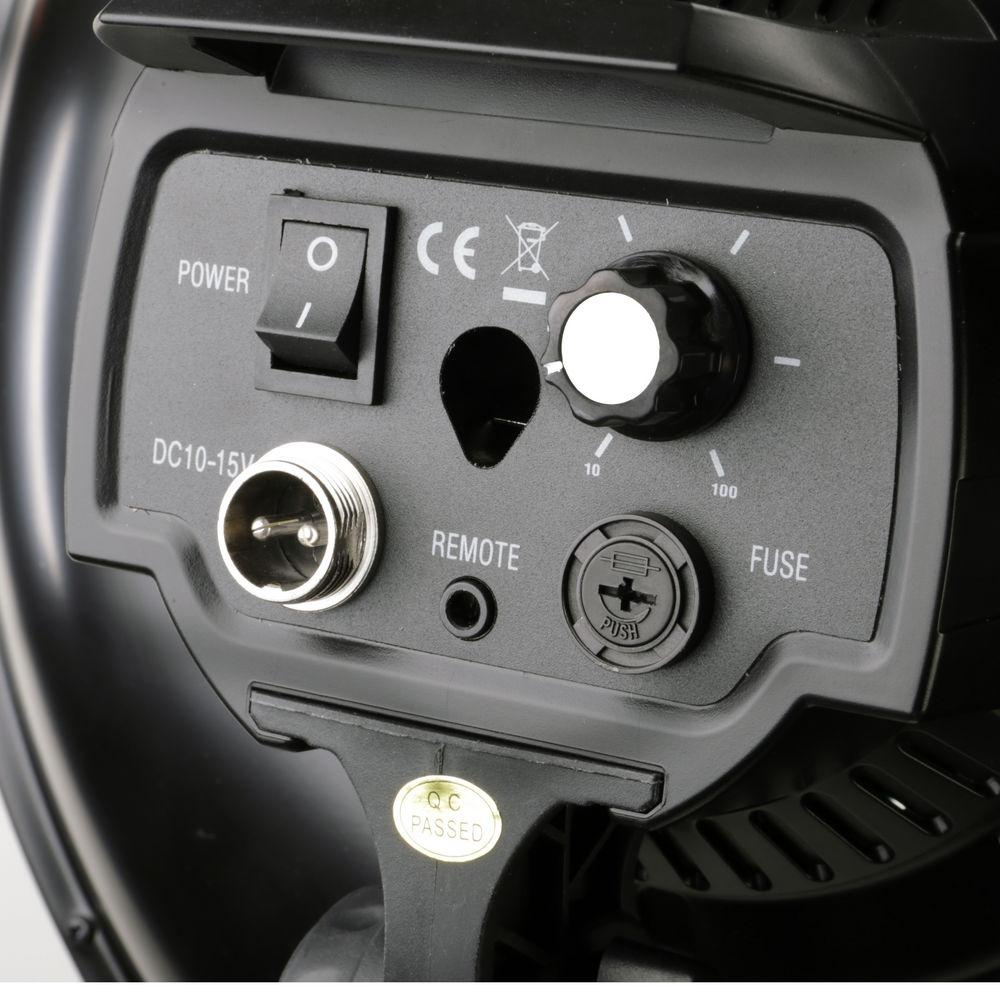

- Can be dimmed from 10 to 100% with on-board control knob
- Runs on 100-240 VAC power with included adapter, or on optional batteries via D-tap connection
- Mounts to any compatible light stand with standard 5/8" baby pin

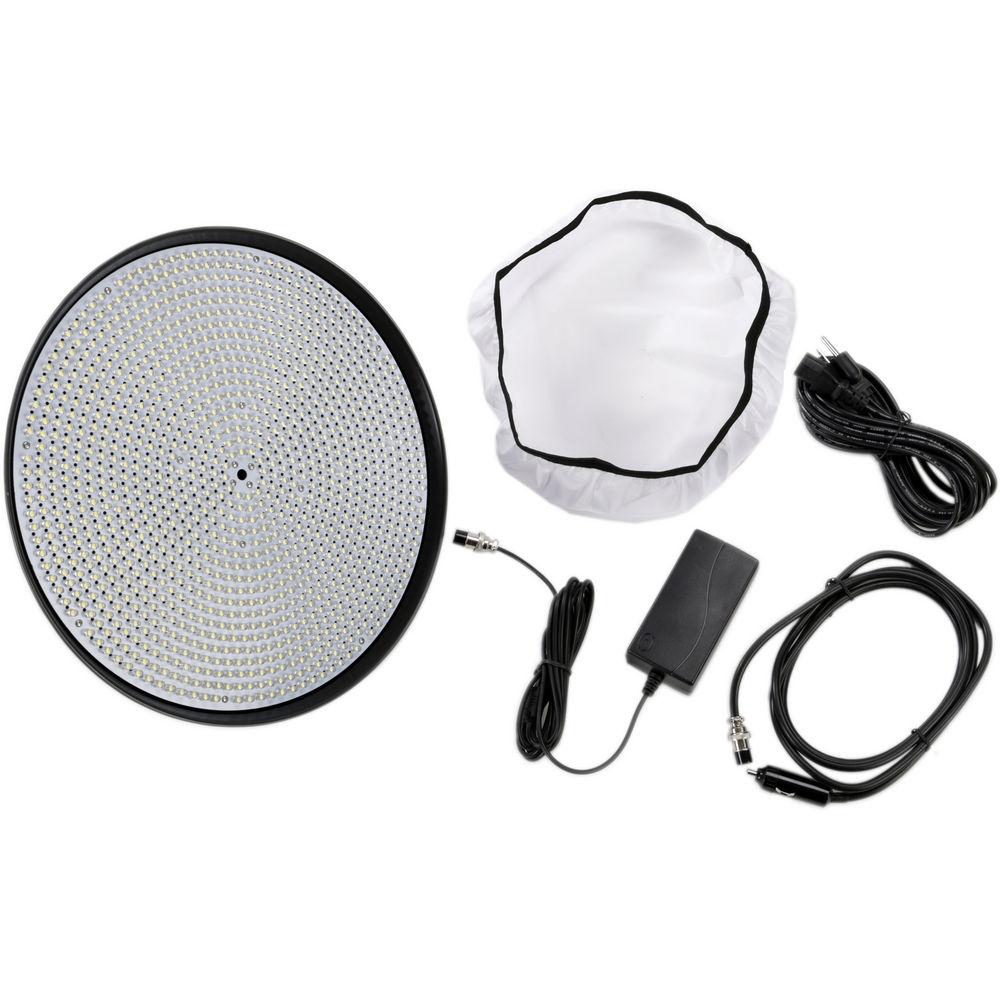

UPC: 639767567848 In the Box Genaray SpectroLED-14 LED Light Cigarette Light Attachment with Cord Pin Connection Cap 3/4 Stop Diffusion Sock Power Cord AC Adapter Limited 1-Year Warranty User Manual PDF 586.8kb Table of Contents
|
Upload User Manual
Have you got an user manual for the Genaray SpectroLED-14 LED Light in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersGenaray SpectroLED 14 Specs | | | Beam Angle | 60° | | Color Temperature | 5600K ± 200K | | Cooling System | Passive | | Dimming | Yes, 10 to 100% (Stepped) | | Display | None | | Housing Material | ABS Plastic | | Number of LEDs | 1144 | | Expected Lamp Life | 50,000 Hours | | Fixture Dimensions | 14.5 x 14.5 x 7.0" / 37.0 x 37.0 x 17.8 cm | | Fixture Weight | 3.95 lb / 1.8 kg | | | | Battery Plate | None | | Power Input Connector | D-Tap | | DMX Connector | None | | | | Fixture Mount | 5/8" Receiver | | Accessory Mount | None | | | | AC Input Power | 100 to 240 VAC, 50 / 60 Hz | | DC Input Power | 12 VDC | | Power Source | AC Adapter, Cigarette Lighter Adapter, External Battery | | Max Power Consumption | 75 W | | | | Cable Length | 13.12' / 4 m | | Cable Type | Unspecified to NEMA 5-15 | | | | Package Weight | 8.0 lb | | Box Dimensions (LxWxH) | 16.8 x 16.8 x 5.0" |
Rating88% users recommend this product to others. And what about you?
This product has already been rated by 68 owners. Add your rating and experience with the product.
