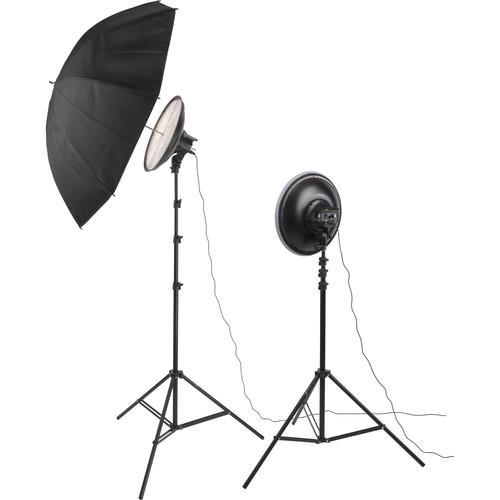

Genaray SpectroLED 2-Point Kit

User Manual for Genaray SpectroLED 2-Point Kit

• Product category: LED Lights Genaray
• Brand: Genaray
• Description and content of package
• Technical information and basic settings
• Frequently asked questions – FAQ
• Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
• Authorized service for Genaray LED Lights

Product description

• 2 x Genaray SpectroLED-14 LED Light
  • The Genaray SP-AD75 SpectroLED-14 Light
  With a beam angle of 60°, the SpectroLED-14 Light from Genaray is composed of a daylight-balanced fixture equipped with 1140 LEDs. The round 14.5" light provides 10-100% dimming with a maximum power output of 75W.In a field dominated by rectangular or square arrays, Genaray has made the wise choice of making their studio lights circular. Not only does the increased surface area have more wrap-around light characteristics but the shape renders pleasing, natural-looking catchlights in your subject's eyes. And if you're doing portraiture, you can soften the SpectroLED-14's output by slipping the included 3/4 stop diffusion sock over the reflector. Heat is never a concern since the cool-running LEDs are barely warm to the touch.Another way to soften the quality of light is to use the umbrella socket that is built into the mount. You can use reflective or translucent umbrellas for bounce or shoot-through effects. The socket accepts 7 or 8 mm shafts and the mount has a 65-degree tilting range for perfect placement.Power is provided by an included multi-voltage power supply and adapter that accepts 100-240 VAC. The inclusion of a cigarette lighter adapter cord also gives you the option of using 12V batteries for convenience or location shooting. You can run the SpectroLED-14 for approximately 70 minutes on an average fully charged battery. Not only are you saving money every time you use the SpectroLED-14 due to its low current draw, but with a 50,000-hour lamp life the SpectroLED-14 is virtually maintenance-free. The light mounts to any compatible 5/8" baby pin stand and can be operated with an optional remote dimmer that connects via a 12.8' cable.
  • • Round, 14.5" LED fixture with daylight color temperature of 5600K
    • Beam angle of 60° for versatile use as a main or secondary light
    • Accepts an included 3/4 diffusion sock that goes over the reflector and optional umbrellas via a dedicated socket
    • Can be dimmed from 10 to 100% with on-board control knob
    • Runs on 100-240 VAC power with included adapter, or on optional batteries via D-tap connection
    • Mounts to any compatible light stand with standard 5/8" baby pin
  UPC: 639767567848
• 2 x Impact Air-Cushioned Light Stand (Black, 10')
  • The Genaray SP-AD75 SpectroLED-14 Light
  This Impact Air-Cushioned Light Stand is a black anodized aluminum support that rises to a height of 10' and folds down to 33.5" for storage and transport. The stand will handle up to 8.5 lb and is topped with a 5/8" stud with 1/4"-20 threads. It has a wide footprint of 38" for greater stability. Air cushioning gently lowers the light when making height adjustments to protect equipment and fingers.
  Air-Cushioned
  • Protects equipment and fingers from damage
  Compact Design
  • Will fit easily into most location cases
  Accepts Casters
  • For easy positioning of lights
  UPC: 847628030626
• Impact Umbrella - Beaded Silver - 43"
  • The Genaray SP-AD75 SpectroLED-14 Light
  This is a 43" umbrella with a beaded silver reflective surface. It will intensify and slightly soften the light output of a strobe light fixture. Umbrellas soften, broaden, and diminish the light output of flash light source. Umbrellas with a white interior will soften and weaken light more than an umbrella with a silver lining. A white umbrella without a black backing may also be used as a makeshift softbox, although the use of the light will not be as efficient as with a lightbox.Choosing umbrella size is determined by the size of the subject, and the strength of the light supply being used. Choosing an umbrella surface is as subjective as choosing a paint and brush.
  • Softens and broadens the light output of any strobe of medium wattage
  UPC: 847628013285

• 2 x SpectroLED-14 LED Light zwryfafywtfdycabfbvtystesetayxes
• Cigarette Light Attachment with Cord
• Pin Connection Cap
• 3/4 Stop Diffusion Sock
• Power Cord
• AC Adapter
• Limited 1-Year Warranty

• 2 x Impact - Air-Cushioned Light Stand (Black, 10')

• Impact - Umbrella - Beaded Silver - 43"

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

• 2 x Genaray SpectroLED-14 LED Light

  Beam Angle	60°
  Color Temperature	5600K ± 200K
  Cooling System	Passive
  Dimming	Yes, 10 to 100% (Stepped)
  Display	None
  Housing Material	ABS Plastic
  Number of LEDs	1144
  Expected Lamp Life	50,000 Hours
  Fixture Dimensions	14.5 x 14.5 x 7.0" / 37.0 x 37.0 x 17.8 cm
  Fixture Weight	3.95 lb / 1.8 kg

  Battery Plate	None
  Power Input Connector	D-Tap
  DMX Connector	None

  Fixture Mount	5/8" Receiver
  Accessory Mount	None

  Remote Control Type	None

  AC Input Power	100 to 240 VAC, 50 / 60 Hz
  DC Input Power	12 VDC
  Power Source	AC Adapter, Cigarette Lighter Adapter, External Battery
  Max Power Consumption	75 W

  Cable Length	13.12' / 4 m
  Cable Type	Unspecified to NEMA 5-15

  IP Rating	IP20

  Box Dimensions (LxWxH)	16.8 x 16.8 x 5.0"

• 2 x Impact Air-Cushioned Light Stand (Black, 10')

  Maximum Load	8.5 lb (3.8 kg)
  Maximum Height	121.5" (308.6 cm)
  Minimum Height	40.5" (102.9 cm)
  Closed Length	33.5" (85 cm)
  Footprint Diameter	38" (96.5 cm)
  Leg Tip	0.8" (20 mm)
  Attachment Size	5/8" (16 mm) stud with 1/4"-20 male threads
  Accepts Wheels	Yes, casters
  Air Cushioned	Yes
  Weight	2.4 lb (1.1 kg)

  Box Dimensions (LxWxH)	34.0 x 3.0 x 3.0"

• Impact Umbrella - Beaded Silver - 43"

  Size	43.0" / 109.2 cm
  Interior	Silver
  Exterior	Black
  Shaft Diameter	8 mm
  Folded Size	L: 28.3" / L: 71.8 cm

  Box Dimensions (LxWxH)	29.0 x 3.5 x 1.5"
